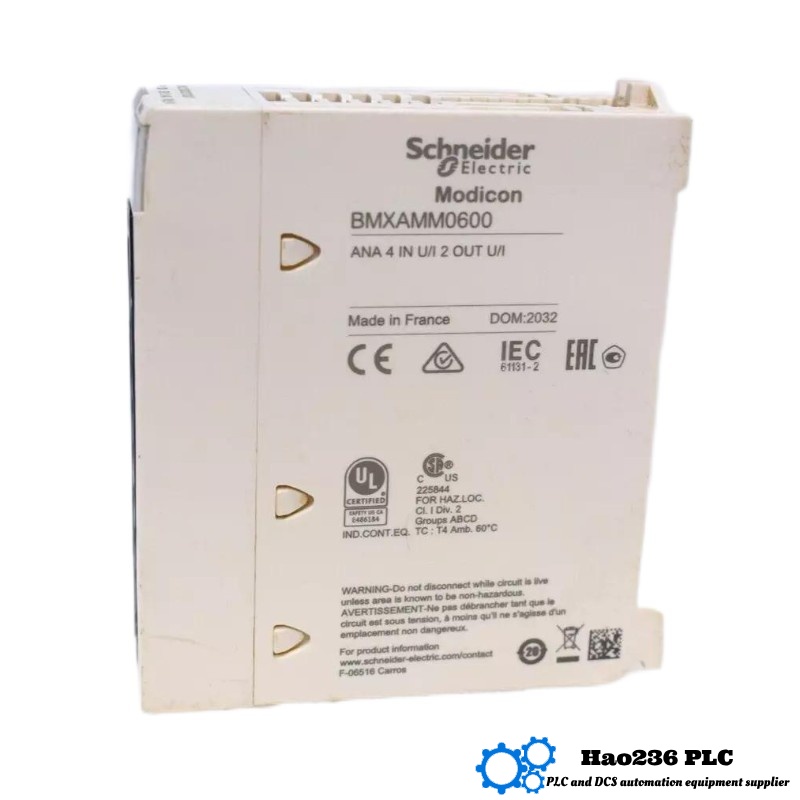

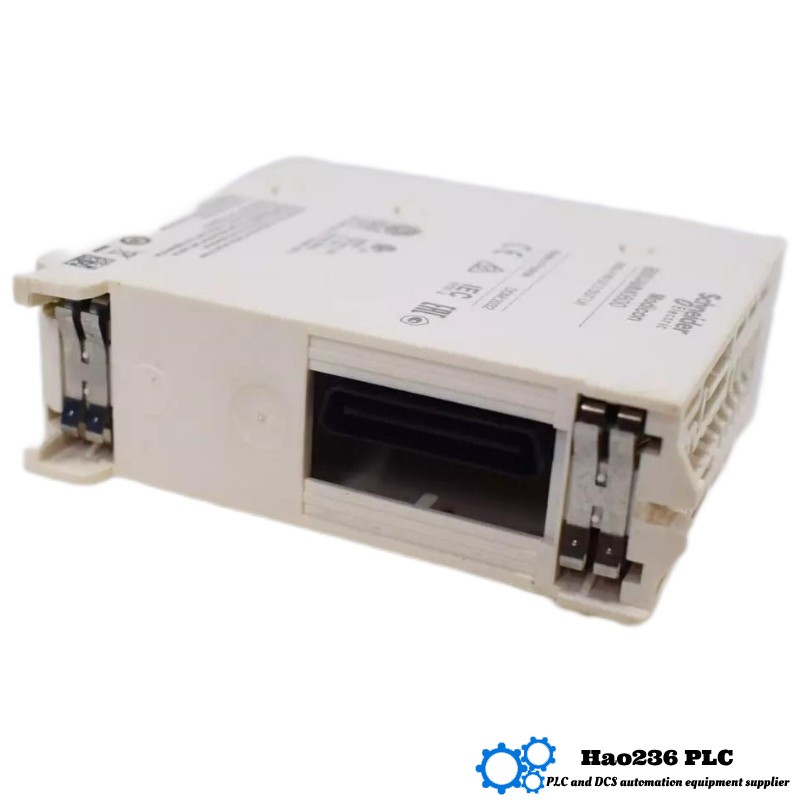

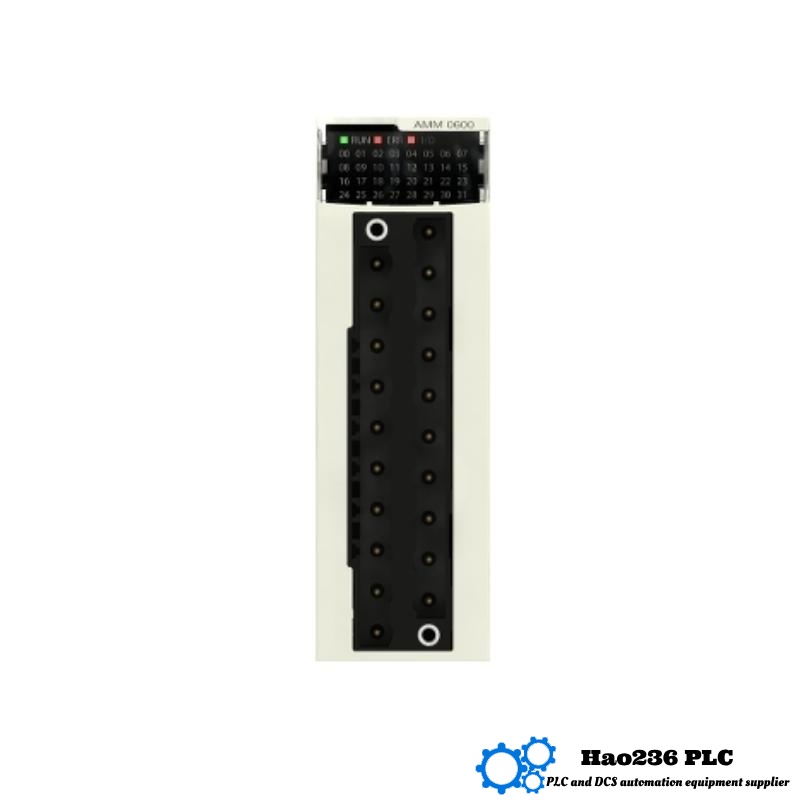

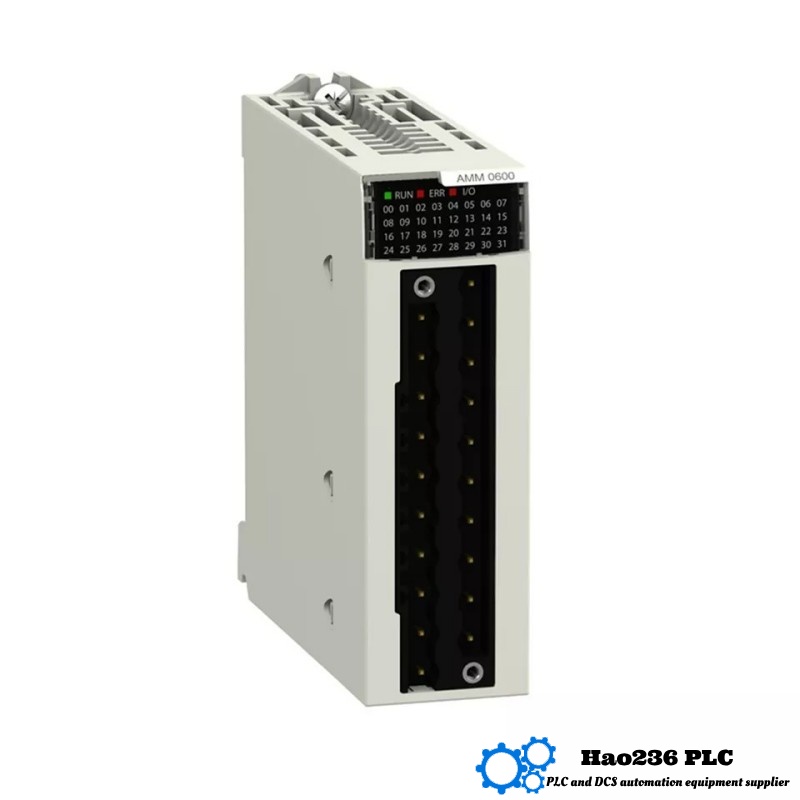

Schneider BMXAMM0600 – Hybrid Analog I/O Module

Product Introduction

The Schneider BMXAMM0600 is a Hybrid Analog I/O Module that is part of Schneider Electric’s Modicon X80 Series. This module is designed for industrial applications requiring both analog input and analog output capabilities within a single, compact unit. With its flexibility and ease of integration, the BMXAMM0600 is a crucial component for controlling a variety of industrial processes.

This module is equipped with 6 channels, which are a mix of analog inputs and analog outputs, providing a versatile solution for systems that need to handle multiple types of signals simultaneously. It supports a wide range of input/output ranges, including voltage and current signals, and can be easily configured to fit the specific needs of your control system.

The BMXAMM0600 is part of the Modicon X80 series, which is designed for advanced, scalable industrial control. The X80 series is known for its high performance, modular design, and flexibility, offering excellent integration with a variety of systems.

Product Specifications

Applications

The Schneider BMXAMM0600 is designed for a wide range of industrial applications, where analog input and output signals need to be processed with precision. Key applications include:

• Industrial Automation: Ideal for controlling equipment in manufacturing and production environments. It can handle temperature sensors, pressure sensors, and other analog devices.

• Process Control: Used in systems that require precise control of variables like flow rates, pressure, and temperature, especially in industries such as chemical processing, oil and gas, and water treatment.

• Energy Management: The module is well-suited for monitoring and controlling energy meters or other devices that require analog signals for voltage and current measurements.

• HVAC Systems: Perfect for use in heating, ventilation, and air conditioning (HVAC) systems where analog inputs and outputs are required for temperature regulation and other control loops.

• Building Automation: Widely used in smart buildings for controlling systems such as lighting, HVAC, and security, where real-time analog control is necessary.

Advantages

• Dual I/O Channels: The BMXAMM0600 combines both input and output channels in a single module, saving space and reducing the complexity of installations.

• High Resolution: With 16-bit resolution, the module provides high-precision signal processing for both inputs and outputs, ensuring accurate control.

• Wide Signal Compatibility: The module supports both voltage and current signals, providing flexibility for a wide range of industrial applications.

• Modular Design: As part of the Modicon X80 series, the BMXAMM0600 offers scalability and flexibility, allowing it to be easily integrated into existing control systems.

• Remote Connectivity: Supports communication via Modbus TCP and EtherNet/IP, ensuring easy integration with remote control systems and other Schneider Electric devices.

• Compact and Lightweight: With compact dimensions (93 × 33 × 104 mm) and a weight of only 0.155 kg, this module is ideal for space-constrained installations without sacrificing performance.

✅ Brand Overview

Schneider Electric is a global leader in energy management and automation. With a focus on sustainability and innovation, Schneider Electric offers a comprehensive range of products and solutions that improve energy efficiency and productivity. Their offerings span a variety of industries, from industrial automation to smart building solutions, making them a trusted partner for businesses around the world.

The Modicon X80 series is part of Schneider Electric’s extensive portfolio of programmable logic controllers (PLCs). These modules are designed to meet the needs of industries that require high-performance control systems, with a focus on flexibility, scalability, and ease of integration.
