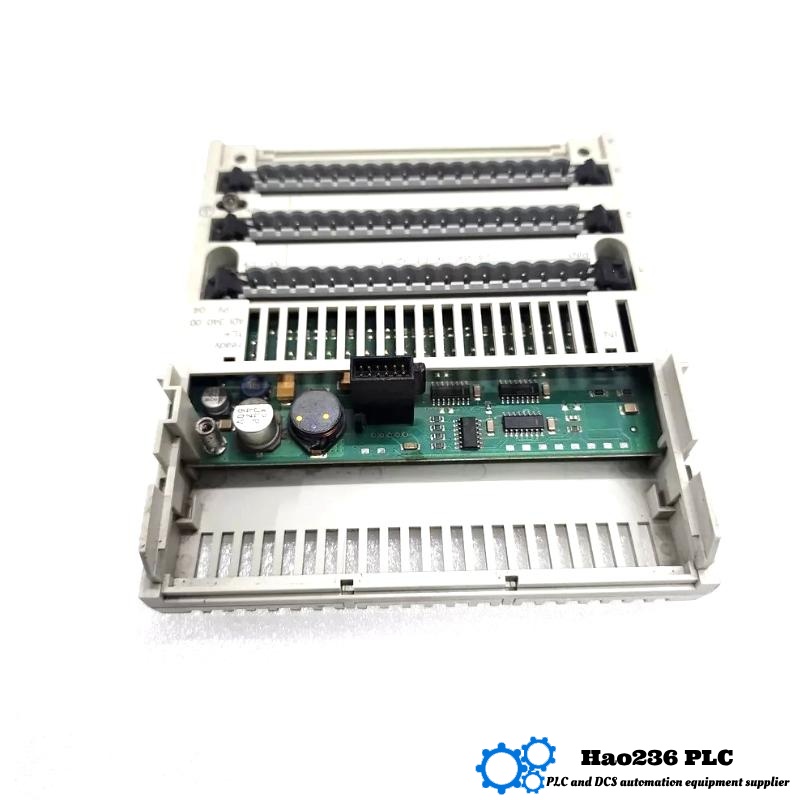

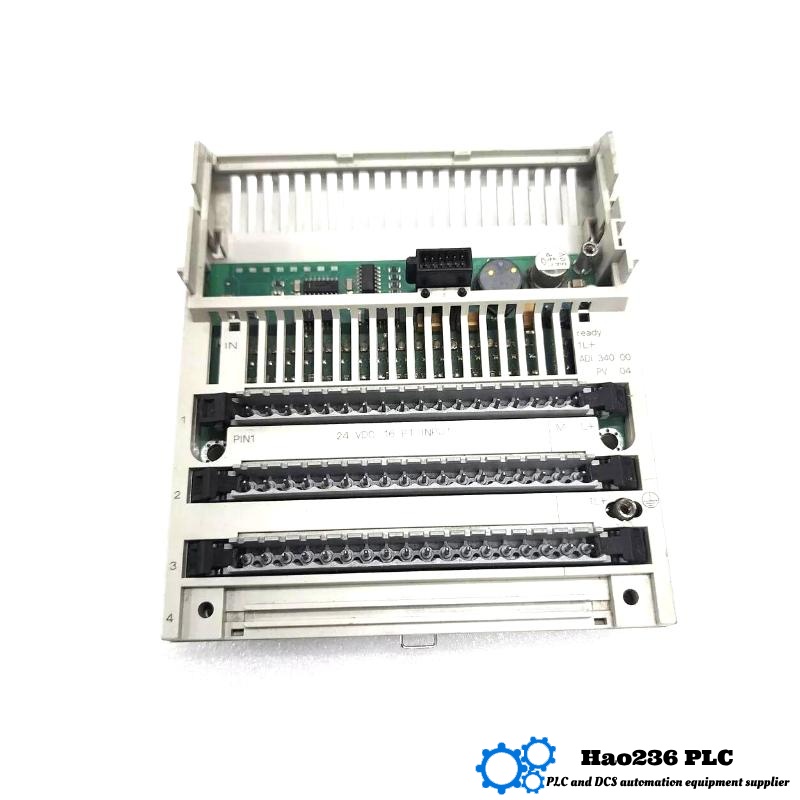

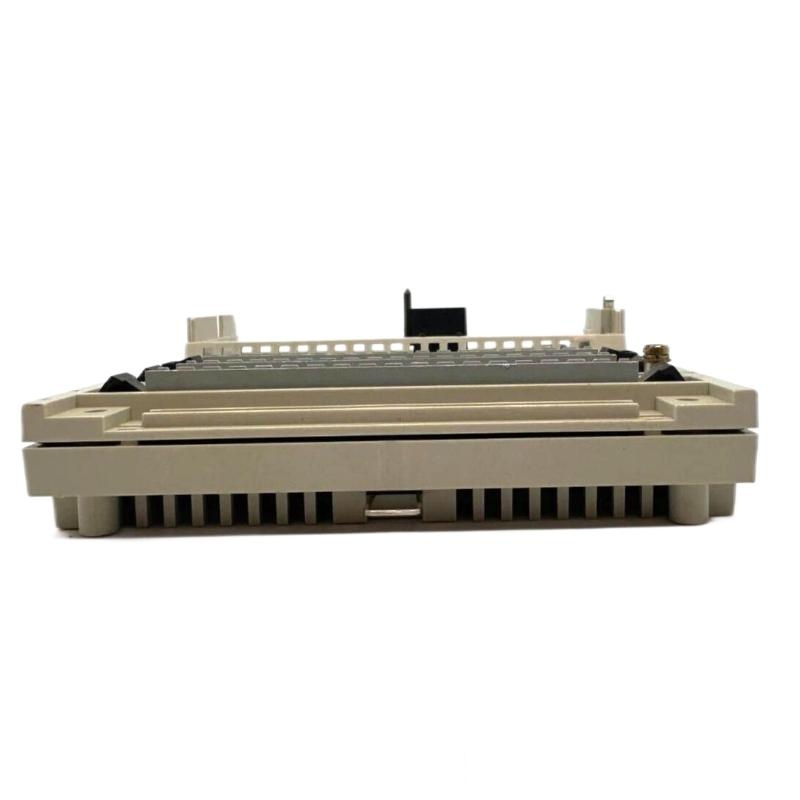

Schneider 170ADI34000 Discrete Input Module
Product Introduction
The Schneider 170ADI34000 is a high-quality discrete input module designed for use in the Modicon Momentum series of programmable automation controllers (PAC). This module allows for the precise and efficient management of discrete digital input signals in industrial automation systems. It is an essential component for applications requiring the integration of discrete signals from sensors, switches, and other digital devices into a control system.
The 170ADI34000 module provides a reliable solution for systems that need to monitor discrete inputs, such as limit switches, push buttons, and proximity sensors, in industries ranging from manufacturing to energy and process control. Its compact and robust design makes it a suitable choice for demanding environments where reliable and accurate input handling is crucial.
This module is easily integrated into the Modicon Momentum system, ensuring that it works seamlessly with other automation devices for smooth and continuous operation. With an industry-standard Modbus communication protocol, the 170ADI34000 offers simplified integration and ease of use.
Product Parameters
| Parameter | Details |
|---|---|
| Model | 170ADI34000 |
| Type | Discrete Input Module |
| Dimensions (mm) | 47.5 × 125 × 141.5 |
| Weight (kg) | 0.19 |
| Number of Channels | 16 Digital Inputs |
| Input Type | Dry Contact, 24V DC |
| Voltage Input Range | 24V DC |
| Current Input Range | 10mA to 20mA |
| Mounting Type | DIN Rail Mountable |
| Power Supply | 24V DC |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Communication Protocol | Modbus |
| Material | Plastic, Metal |
Applications
The 170ADI34000 discrete input module is widely applicable in various industries where discrete digital signals need to be monitored and processed. Its versatility makes it an ideal choice for systems that rely on digital inputs to control or monitor operational states.
-
Manufacturing Automation: The module integrates with sensors such as limit switches, push buttons, and relay contacts in production lines and machinery to monitor operational conditions.
-
Process Control: In industrial plants such as chemical or food processing, the module is used to monitor the status of on/off valves, emergency stops, and other digital devices crucial to maintaining process integrity.
-
Building Automation: The module is ideal for use in systems that require monitoring of digital devices such as door switches, alarm systems, or security sensors in building automation applications.
-
Energy Management: The module is used in energy metering and management systems to monitor digital inputs from energy meters, flow meters, or control devices.
-
Water Treatment: It can be used to monitor water treatment plants, particularly for monitoring the status of pumps, motors, or valve positions, ensuring the proper operation of systems.
Advantages
-
High Reliability: The 170ADI34000 is designed for high reliability in demanding environments, ensuring that it can handle industrial-grade discrete inputs effectively.
-
Compact Design: Its compact form factor (47.5 × 125 × 141.5 mm) allows for easy installation in space-constrained control panels.
-
Seamless Integration: The module works effortlessly with other Modicon Momentum components, making it an ideal choice for expanding an existing automation system.
-
Cost-Effective: Offering exceptional value, the 170ADI34000 provides a highly reliable solution for integrating discrete digital inputs into automation systems without breaking the bank.
-
Industry Standard Communication Protocol: Using the Modbus communication protocol ensures compatibility with other Schneider Electric PLCs and automation systems, reducing complexity in system integration.
-
Durability: It is designed to withstand a wide range of environmental conditions, including temperature fluctuations and humidity, making it suitable for harsh industrial environments.
-
Efficient Power Consumption: The module operates with a low power requirement of 24V DC, ensuring energy-efficient operation.
Brand Overview
Schneider Electric is a global leader in energy management and automation solutions. The company’s products and services span across various industries, helping businesses optimize their operations and energy use. Schneider Electric’s Modicon Momentum series is a robust and flexible line of PLC solutions known for their reliability, scalability, and ease of integration. With decades of experience, Schneider Electric continues to be at the forefront of automation technology, offering innovative solutions for industries worldwide.
Product Series
The 170ADI34000 is part of the Modicon Momentum series, which is known for its modular design and flexible automation solutions. This series is ideal for applications ranging from small to medium-sized systems. The Momentum series is designed for ease of use, quick installation, and seamless integration with other Schneider Electric products, providing reliable and efficient control systems.
Related Models (Same Series or Related)
| Model | Type | Dimensions (mm) | Weight (kg) | Channels | Input Type |
|---|---|---|---|---|---|
| 170ADI34100 | Discrete Input Module | 47.5 × 125 × 141.5 | 0.19 | 16 | 24V DC, Dry Contact |
| 170ADM350 | Digital Modem Module | 47.5 × 125 × 141.5 | 0.19 | N/A | N/A |
| 170ADA34000 | Analog Digital Input Module | 47.5 × 125 × 141.5 | 0.19 | 16 | 0-10V, 4-20mA |
| 170ACO350 | Communication Module | 47.5 × 125 × 141.5 | 0.19 | N/A | N/A |
| 170AMM320 | Analog Modem Module | 47.5 × 125 × 141.5 | 0.19 | N/A | N/A |
Popular Schneider Models
| Model | Type | Dimensions (mm) | Weight (kg) | Compatibility |
|---|---|---|---|---|
| 140DRA84000 | Discrete Input Module | 100 × 120 × 45 | 0.3 | Modicon Quantum |
| 170ENT110 | Ethernet Communication Module | 80 × 130 × 55 | 0.2 | Modicon Momentum |
| 140CPU67160 | CPU Module | 130 × 125 × 60 | 0.6 | Modicon Premium |
| 140DOI85300 | Digital Output Module | 100 × 120 × 45 | 0.35 | Modicon Quantum |
| 170MDO120 | Digital Output Module | 90 × 125 × 80 | 0.45 | Modicon Momentum |
FAQ (Frequently Asked Questions)
-
Q: How many discrete input channels does the 170ADI34000 have?
-
A: The 170ADI34000 has 16 discrete input channels.
-
-
Q: What type of inputs does the 170ADI34000 support?
-
A: The module supports dry contact inputs with a 24V DC voltage range.
-
-
Q: What is the input current range for the 170ADI34000?
-
A: The input current range for the module is between 10mA and 20mA.
-
-
Q: What is the power supply requirement for this module?
-
A: The 170ADI34000 operates with a 24V DC power supply.
-
-
Q: What is the operating temperature range for the 170ADI34000?
-
A: The operating temperature range is 0°C to 60°C.
-
-
Q: How is the 170ADI34000 mounted?
-
A: It is designed for DIN rail mounting, making installation simple and secure.
-
-
Q: What communication protocol is used by the 170ADI34000?
-
A: The module uses the Modbus communication protocol for seamless integration.
-
-
Q: Is the 170ADI34000 compatible with other Schneider Electric systems?
-
A: Yes, the 170ADI34000 is compatible with other Modicon Momentum components and Schneider Electric systems.
-
-
Q: What is the weight of the 170ADI34000 module?
-
A: The 170ADI34000 weighs 0.19 kg.
-
-
Q: What are the dimensions of the 170ADI34000?
-
A: The dimensions of the 170ADI34000 are 47.5 × 125 × 141.5 mm.
-
