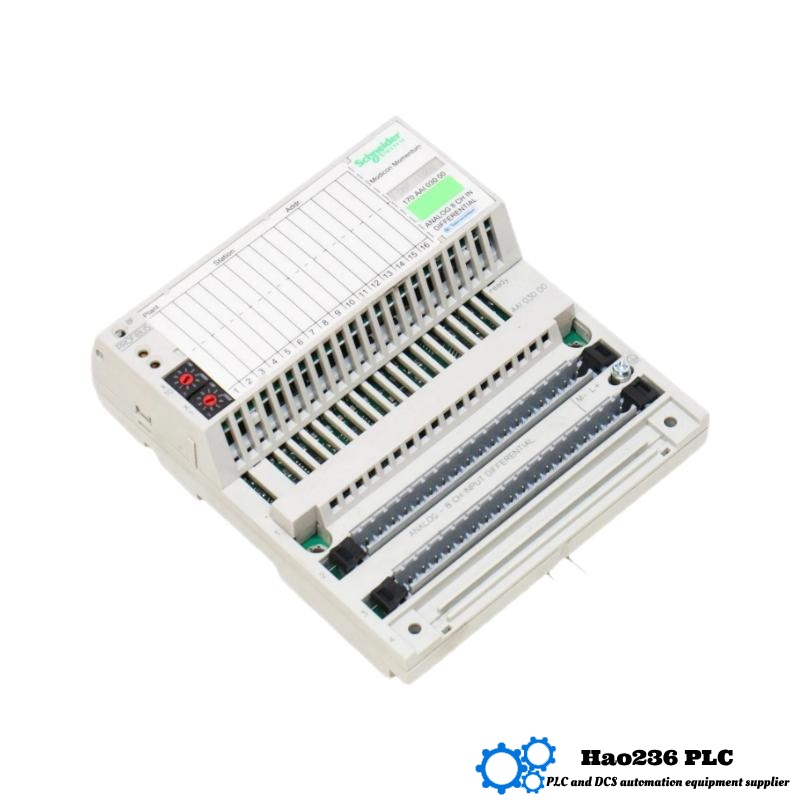

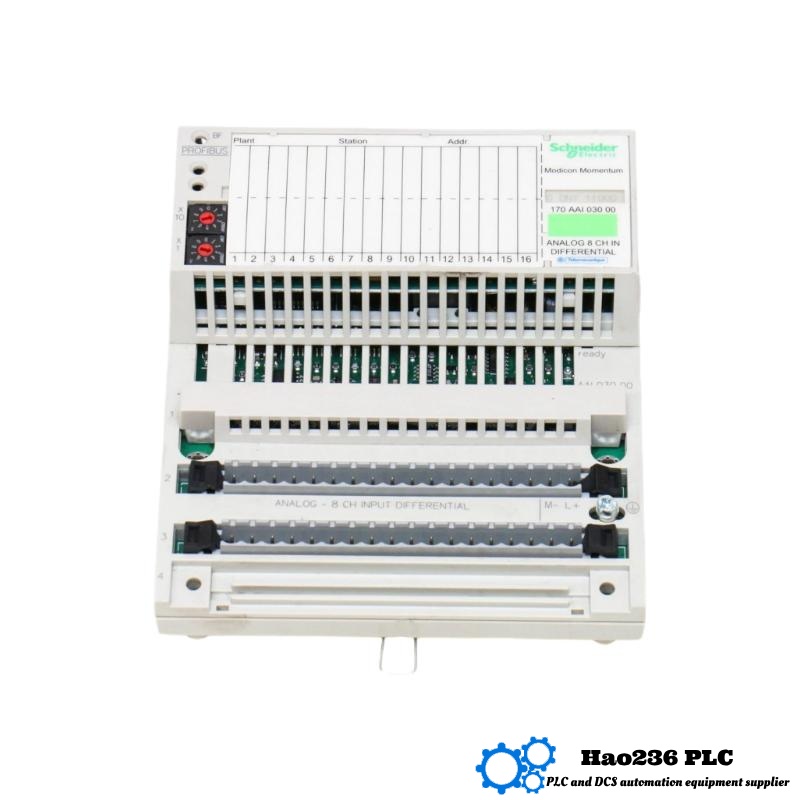

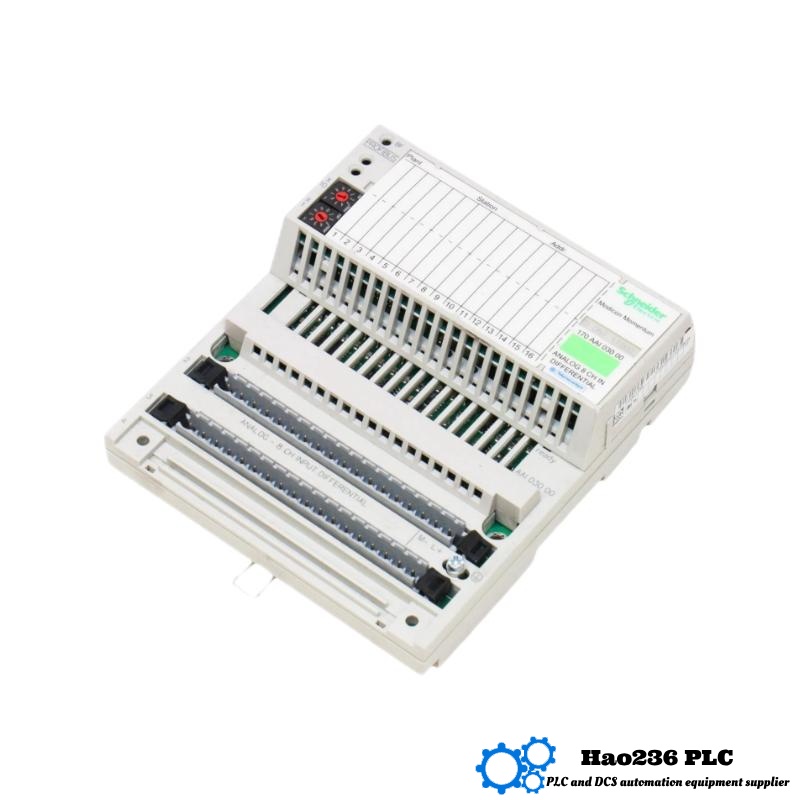

Schneider 170AAI03000 Distributed Analog Input Base
Product Introduction
The Schneider 170AAI03000 is a high-performance Distributed Analog Input Base module designed for use with the Modicon Momentum series of automation systems. This module is crucial for applications requiring the integration of analog signals into a PLC-based system. The 170AAI03000 supports the monitoring and processing of various analog inputs, offering outstanding accuracy, flexibility, and durability. Its compact design allows for installation in tight spaces while providing high-level functionality for industrial applications. This product is a key component in creating a robust and reliable control system, enabling users to manage and interpret analog signals from a range of industrial devices.
Product Applications
The 170AAI03000 distributed analog input base is suitable for a wide variety of industrial applications, including:
-
Industrial Automation Systems: Ideal for monitoring and controlling analog signals from sensors and instruments in an industrial setup.
-
PLC Systems Integration: Used in conjunction with Modicon Momentum PLCs for processing input from temperature, pressure, and flow sensors.
-
Process Control Systems: Essential for applications where precise control of processes based on analog inputs is required.
-
Energy Management Systems: Helps monitor analog signals from power meters, current transformers, and voltage sensors in energy management applications.
-
Machine Monitoring: Used in machine control systems to measure analog parameters like speed, temperature, or pressure.
Product Advantages
-
High Accuracy and Precision: The 170AAI03000 provides precise analog signal processing, ensuring that the control systems respond to inputs with accuracy.
-
Compact Design: With its compact dimensions of 47.5 × 125 × 141.5 mm, the module can be installed in spaces with limited space availability, optimizing equipment layout.
-
Seamless Integration: This module is designed to integrate smoothly into the Modicon Momentum automation system, offering seamless communication with other system components.
-
High Durability: Built with robust materials, the 170AAI03000 is designed to withstand the rigors of industrial environments, providing long-lasting performance.
-
Flexible Inputs: It supports multiple analog input types, allowing it to work with a wide range of sensors and devices for process monitoring and control.
-
Scalability: The 170AAI03000 is part of the Modicon Momentum system, which allows for easy system expansion and adaptation as control needs evolve.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 170AAI03000 |
| Type | Distributed Analog Input Base |
| Dimensions | 47.5 × 125 × 141.5 mm |
| Weight | 0.215 kg |
| Input Type | Analog |
| Input Range | ±10 V or 4-20 mA |
| Number of Channels | 8 |
| Power Consumption | 24 V DC |
| Temperature Range | –20°C to 60°C |
| Mounting Type | DIN Rail |
| Communication Protocol | Modbus RTU |
| Application | Industrial automation, process control, machine monitoring |
Brand Information
Schneider Electric is a global leader in the field of energy management and automation solutions. Headquartered in France, the company is known for providing innovative products and services that improve energy efficiency, sustainability, and safety across various industries. Schneider Electric has been at the forefront of the automation sector, with solutions like the Modicon Momentum series offering scalable and modular control systems for industrial and commercial applications. Their products are renowned for reliability, ease of integration, and high performance, making them ideal for industrial automation, control, and energy management needs.
Recommended Models (Same Series or Related)
| Model | Description | Dimensions (mm) | Weight (kg) | Input Type |
|---|---|---|---|---|
| 170AAI03100 | Distributed Analog Input Base (16 channels) | 47.5 × 125 × 141.5 | 0.235 | Analog |
| 170AAI03200 | Distributed Analog Input Base (4-20mA, 8 channels) | 47.5 × 125 × 141.5 | 0.215 | 4-20 mA |
| 170AAI03300 | Analog Input Base Module, 8 channels | 47.5 × 125 × 141.5 | 0.215 | ±10V |
| 170AAI04000 | Distributed Analog Input Base (Universal input types) | 47.5 × 125 × 141.5 | 0.220 | Universal |
| 170AAI05000 | High-accuracy Analog Input Base | 47.5 × 125 × 141.5 | 0.230 | ±10V, 4-20mA |
Popular Schneider Models
| Model | Description | Number of Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 140CPU67160 | Modicon Quantum PLC Processor | 10 | 140 x 150 x 120 | 1.5 |
| 140CRA93200 | Modicon Quantum I/O Module | 32 | 160 x 120 x 130 | 0.7 |
| 140DHA01000 | Modicon Quantum Analog Output | 8 | 100 x 120 x 80 | 0.6 |
| 140CPS11420 | Power Supply for Modicon Quantum | 1 | 150 x 110 x 120 | 1.2 |
| 140DSC96000 | Modicon Quantum Communication Module | 1 | 120 x 90 x 60 | 0.5 |
FAQ (Frequently Asked Questions)
Q1: How many channels does the 170AAI03000 support?
A1: The 170AAI03000 supports 8 channels for analog inputs.
Q2: What is the temperature range for the 170AAI03000?
A2: The operating temperature range for the 170AAI03000 is –20°C to 60°C.
Q3: What is the power supply requirement for the 170AAI03000?
A3: The 170AAI03000 requires a 24V DC power supply.
Q4: Can the 170AAI03000 be mounted on a DIN rail?
A4: Yes, the 170AAI03000 is designed to be mounted on a DIN rail.
Q5: What types of analog inputs are supported by the 170AAI03000?
A5: The 170AAI03000 supports ±10V and 4-20mA analog input signals.
Q6: What is the weight of the 170AAI03000?
A6: The 170AAI03000 weighs approximately 0.215 kg.
Q7: Can the 170AAI03000 be used for high-precision applications?
A7: Yes, the 170AAI03000 is designed for high-accuracy measurements, making it suitable for precision applications.
Q8: Is the 170AAI03000 compatible with other Modicon Momentum series modules?
A8: Yes, the 170AAI03000 is fully compatible with other Modicon Momentum series modules and integrates seamlessly into the system.
Q9: How is the 170AAI03000 connected to the PLC?
A9: The 170AAI03000 uses the Modbus RTU communication protocol for integration with the PLC.
Q10: What is the main advantage of using the 170AAI03000?
A10: The main advantage of the 170AAI03000 is its high flexibility, compact size, and precise signal processing, making it ideal for industrial automation and control systems.
