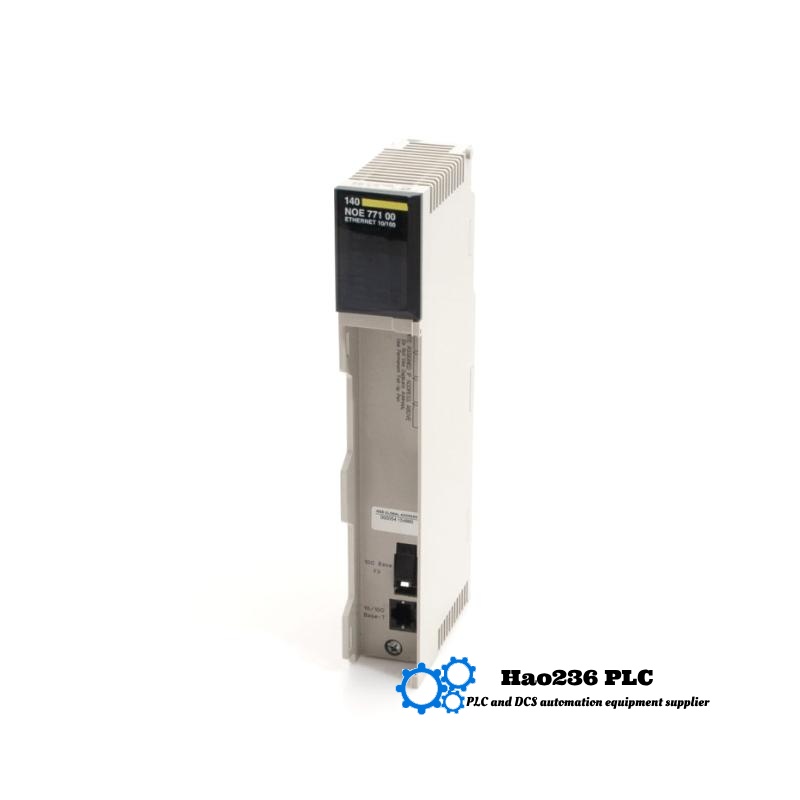

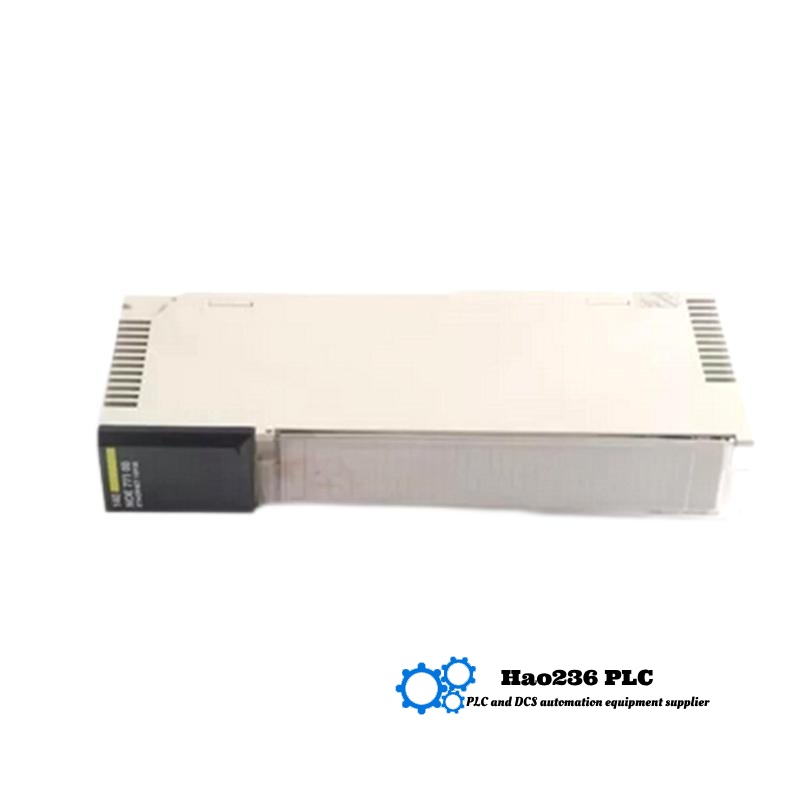

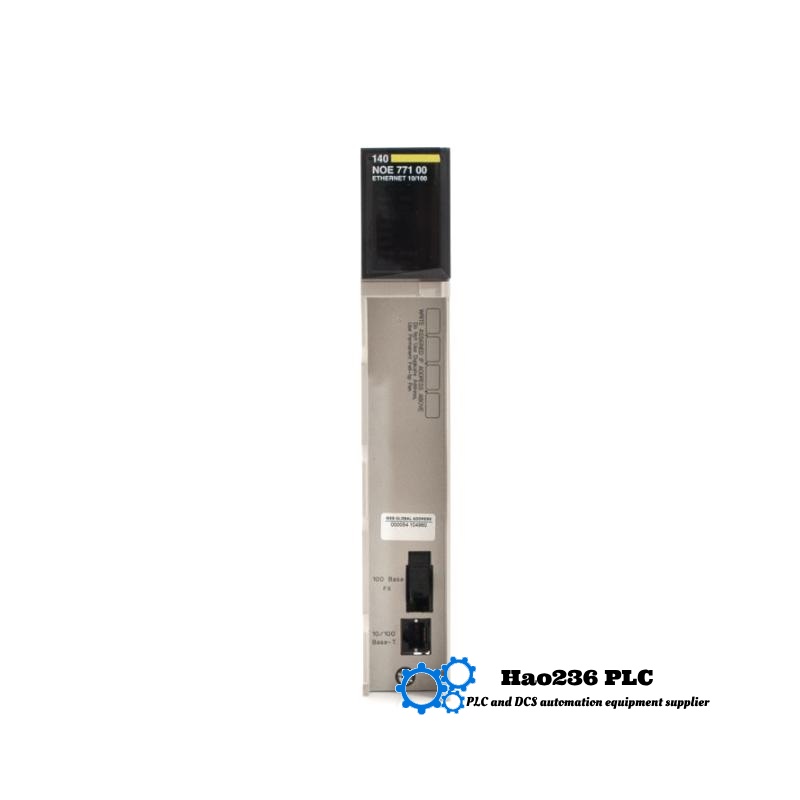

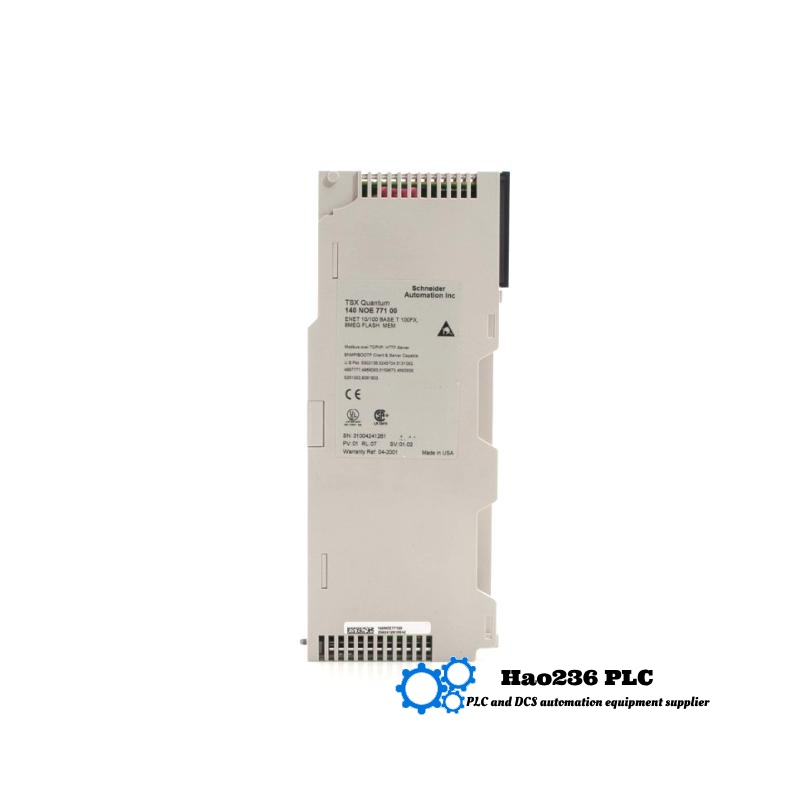

Schneider 140NOE77100 Ethernet TCP/IP Module
Product Overview
The Schneider 140NOE77100 is an Ethernet TCP/IP communication module designed for use with the Modicon Quantum series of programmable logic controllers (PLCs). This module enables fast, reliable, and secure communication between the PLC and other Ethernet-compatible devices in an industrial automation environment. The module provides a robust communication solution for applications requiring high-speed networking, and it supports various protocols, including Modbus TCP, Ethernet/IP, and TCP/IP protocols, ensuring compatibility with a wide range of devices and systems.
The 140NOE77100 is ideal for integrating Modicon Quantum PLCs into industrial networks, allowing real-time data exchange and control over Ethernet. Its advanced features and easy configuration make it a versatile choice for modern industrial automation, providing seamless communication between distributed systems and control centers.
Key Features
-
Ethernet Connectivity: Provides high-speed Ethernet TCP/IP communication for connecting Modicon Quantum PLC systems with other Ethernet-enabled devices.
-
Modbus TCP Protocol: Supports the Modbus TCP protocol for easy integration with other Modbus-compatible devices.
-
Ethernet/IP Support: Includes support for Ethernet/IP protocol, enabling compatibility with other industrial devices that use this standard.
-
Real-Time Data Exchange: Facilitates real-time communication and data exchange across the network, ensuring that control systems can respond to changes in real time.
-
High-Speed Performance: Delivers fast communication speeds for demanding industrial automation applications, reducing latency and improving system efficiency.
-
Easy Configuration: The module can be easily configured and integrated into the existing network, reducing setup time and simplifying operation.
-
Compact Design: Its small form factor makes it ideal for use in space-constrained environments, while still providing powerful communication capabilities.
-
Wide Compatibility: Compatible with a wide range of Schneider Electric’s PLCs and other industrial devices, making it a versatile choice for various control systems.
Applications
-
Industrial Automation: Used in industrial control systems to facilitate communication between PLCs, SCADA systems, and other industrial devices over Ethernet.
-
Process Control: Enables real-time data communication for process control systems in industries such as chemical, food & beverage, and pharmaceuticals.
-
Factory Automation: Ideal for factory floor automation, providing communication between PLCs, robotics, and other automation equipment.
-
Building Management: Can be integrated into building management systems (BMS) for HVAC control, energy management, and security systems.
-
Energy Management: Supports the integration of energy management systems, allowing for real-time monitoring and control of power usage.
Advantages
-
Enhanced Connectivity: The 140NOE77100 allows seamless connectivity across multiple Ethernet devices, enabling efficient network communication and enhanced system integration.
-
Flexible Protocol Support: By supporting both Modbus TCP and Ethernet/IP protocols, it offers flexibility for connecting various industrial systems and devices.
-
High-Speed Data Transfer: The module supports high-speed data transfer rates, ensuring quick responses and minimal delay in critical control systems.
-
Scalability: Ideal for both small and large-scale automation systems, the module can be integrated into a variety of system configurations.
-
Easy Integration: The module’s plug-and-play functionality simplifies integration with other Schneider PLCs and third-party devices, reducing setup and configuration times.
-
Compact and Efficient: Its compact size and efficient operation make it suitable for use in a variety of industrial applications where space and power efficiency are important.
Brand Information
-
Brand: Schneider Electric
-
Brand Overview: Schneider Electric is a global leader in energy management and automation solutions. The company is renowned for providing innovative technologies that enable industries to optimize energy use, enhance operational efficiency, and reduce their carbon footprint. Schneider Electric’s solutions are widely used across various sectors, including manufacturing, infrastructure, energy, and data centers.
-
Product Line: The Modicon Quantum series is part of Schneider Electric’s industrial automation solutions, providing a powerful and flexible PLC system with a range of modules for various control and communication needs.
Product Parameters
| Parameter | Description |
|---|---|
| Model | 140NOE77100 |
| Type | Ethernet TCP/IP Communication Module |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.345 kg |
| Communication Protocols | Modbus TCP, Ethernet/IP |
| Interface | Ethernet |
| Power Supply | 24V DC (nominal) |
| Operating Temperature | 0°C to 60°C |
| Mounting Type | DIN Rail Mountable |
| LED Indicators | Power, Communication, Error |
Recommended Models
5 Related Models (Same Series/Related)
| Model | Type | Communication Protocol | Dimensions | Weight |
|---|---|---|---|---|
| 140NOE77101 | Ethernet TCP/IP Communication Module | Modbus TCP, Ethernet/IP | 103.9 × 40.3 × 250 mm | 0.35 kg |
| 140NOE77102 | Ethernet TCP/IP Communication Module | Modbus TCP, Ethernet/IP | 103.9 × 40.3 × 250 mm | 0.35 kg |
| 140NOE77103 | Ethernet TCP/IP Communication Module | Modbus TCP, Ethernet/IP | 103.9 × 40.3 × 250 mm | 0.35 kg |
| 140NOE77104 | Ethernet TCP/IP Communication Module | Modbus TCP, Ethernet/IP | 103.9 × 40.3 × 250 mm | 0.35 kg |
| 140NOE77105 | Ethernet TCP/IP Communication Module | Modbus TCP, Ethernet/IP | 103.9 × 40.3 × 250 mm | 0.35 kg |
5 Popular Schneider Models
| Model | Type | Communication Protocol | Dimensions | Weight |
|---|---|---|---|---|
| 140CRA93100 | I/O Module | Digital I/O | 160 × 120 × 90 mm | 0.5 kg |
| 140CPU67160 | PLC CPU | Modbus TCP, Ethernet/IP | 150 × 150 × 100 mm | 1.2 kg |
| 140DRA84000 | Relay Module | Relay Output | 120 × 120 × 80 mm | 0.8 kg |
| 140CPS11400 | Power Supply Module | Power Supply | 140 × 120 × 60 mm | 0.9 kg |
| 140CPS32400 | Power Supply Module | Power Supply | 140 × 120 × 60 mm | 1.1 kg |
Frequently Asked Questions (FAQ)
Q1: What communication protocols are supported by the 140NOE77100?
A1: The module supports Modbus TCP and Ethernet/IP communication protocols.
Q2: Can the 140NOE77100 be used with other Schneider Electric PLCs?
A2: Yes, it is designed to be compatible with Schneider Electric’s Modicon Quantum series PLCs and other devices that support Ethernet-based communication.
Q3: What is the power supply requirement for the 140NOE77100 module?
A3: The module requires a 24V DC power supply.
Q4: What is the operating temperature range of the module?
A4: The module operates within the temperature range of 0°C to 60°C.
Q5: How many devices can be connected to the 140NOE77100?
A5: The module can support multiple devices depending on the network configuration and the number of communication addresses.
Q6: What is the maximum data transfer speed of the 140NOE77100?
A6: The module supports high-speed Ethernet communication, typically providing data transfer speeds up to 100 Mbps.
Q7: How is the 140NOE77100 mounted?
A7: The module is designed to be mounted on a DIN rail for easy installation and integration in industrial control panels.
Q8: What are the LED indicators on the 140NOE77100?
A8: The module includes LED indicators for power, communication status, and error signals.
Q9: Can the module be used in outdoor environments?
A9: The module is intended for indoor use and should be installed in environments with controlled temperature and humidity.
Q10: How do I configure the 140NOE77100 for use in a system?
A10: The module can be configured using Schneider Electric’s configuration software, allowing users to set communication parameters, address assignments, and integration settings.
