Product Overview

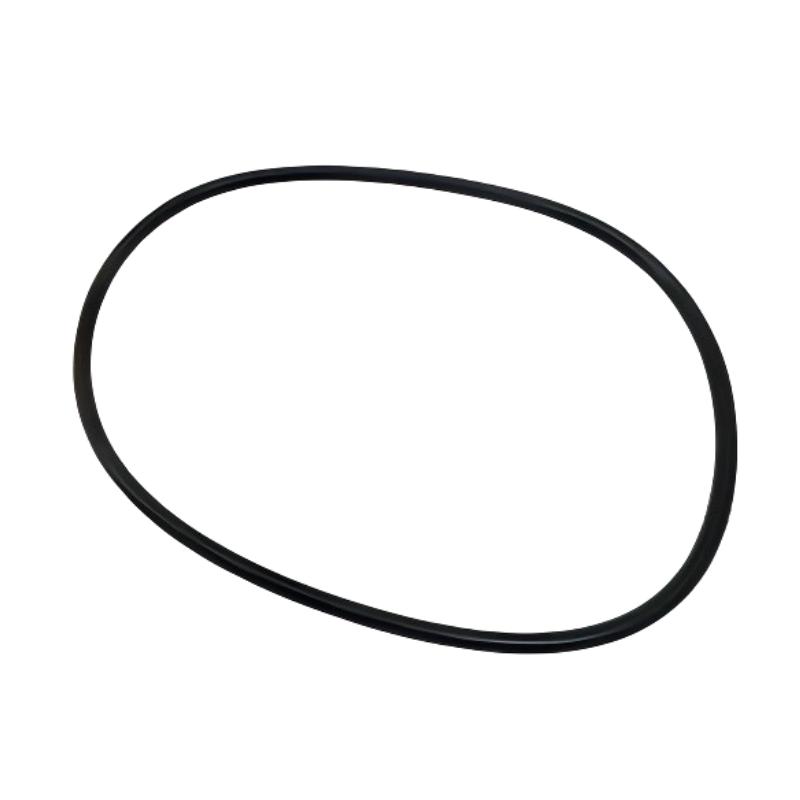

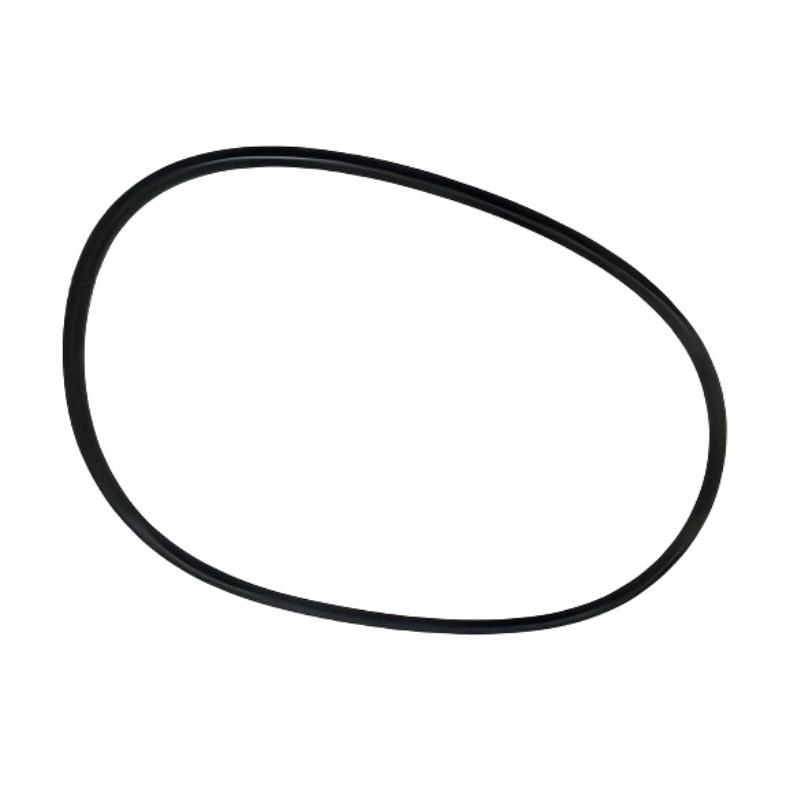

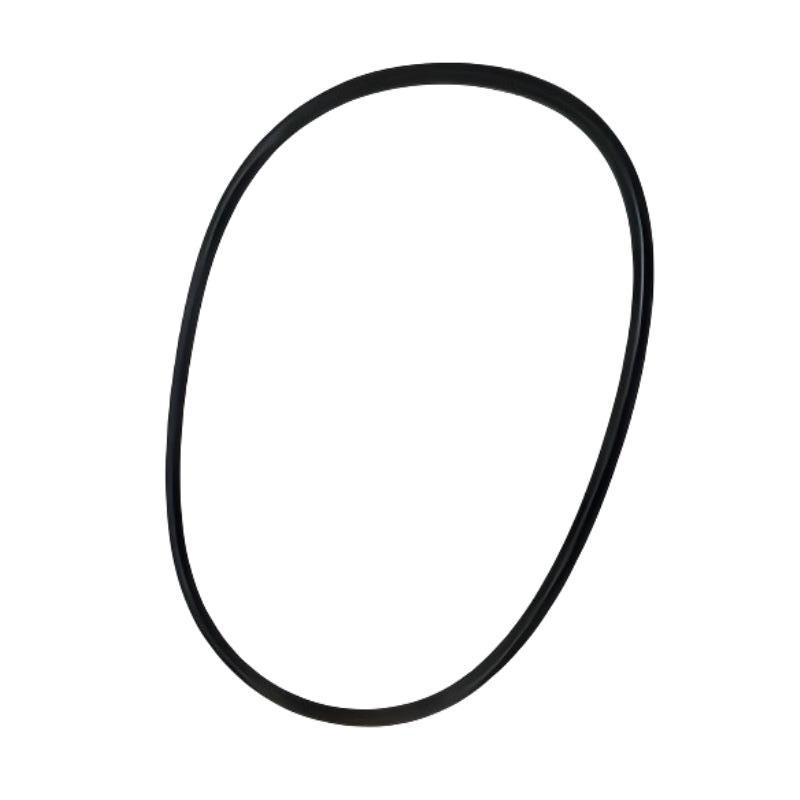

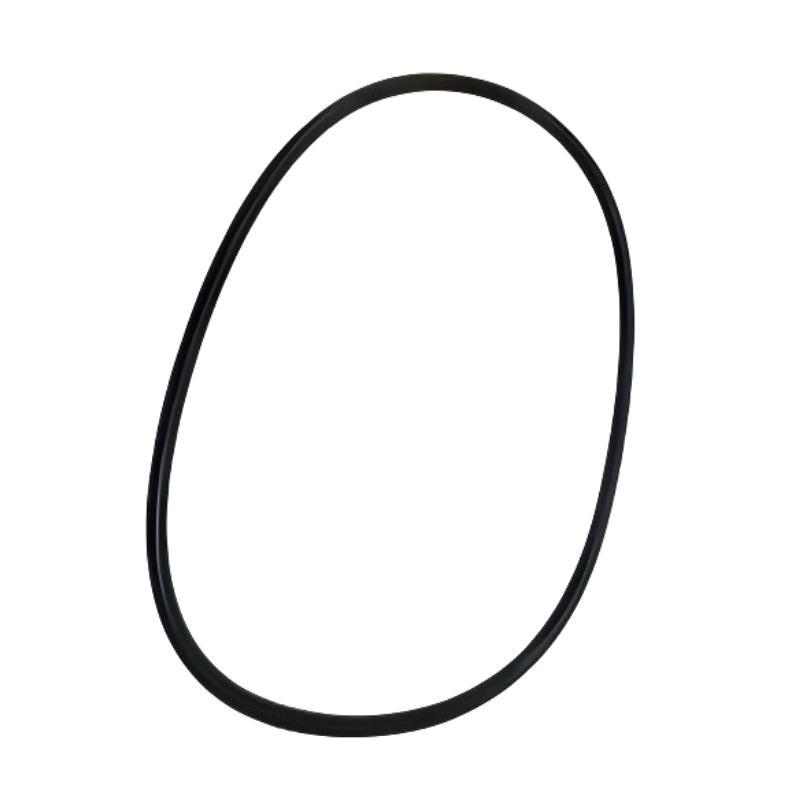

The Ingersoll Rand 95438917 O-Ring is a replacement sealing component associated with Ingersoll Rand Centac centrifugal air compressors, including selected C Series and CN Series equipment. It is used at a designated joint where a compressed sealing element is required to help contain the operating fluid or gas.

In centrifugal compressor assemblies, O-rings are used at selected interfaces between housings, covers, and other mating components. A correctly installed ring fills the intended sealing groove and maintains contact with the adjoining surfaces. This helps limit leakage and preserve the integrity of the connection during normal compressor operation.

Part number 95438917 is associated with a nominal sealing specification of 15 × 15.38 × 0.188 inches. The part is also listed in Centac compressor parts records under the O-ring category. Correct identification is important because several O-rings may be used within the same compressor assembly, with each assigned to a particular joint.

When leakage develops, replacing the O-ring may resolve the problem if the sealing element itself has deteriorated. However, a damaged groove, uneven mating surface, incorrect assembly, or excessive joint clearance can produce similar symptoms. Inspecting the complete sealing interface helps prevent repeated replacement without addressing the underlying fault.

The 95438917 is a component-level replacement part rather than a complete gasket or joint assembly. Its suitability depends on matching the original installation and using a sealing material appropriate for the operating conditions.

Technical Specifications

Product Features

• Joint sealing: Helps prevent leakage through designated connections between mating surfaces.
• Centac compressor application: Associated with selected C Series and CN Series centrifugal compressor assemblies.
• Defined part identification: The 95438917 reference distinguishes the component from other O-rings used within the same equipment.
• Groove-mounted installation: Relies on the specified groove and mating surfaces to establish the sealing interface.
• Replaceable sealing element: Allows renewal of the ring when deterioration or damage compromises its function.
• Maintenance traceability: Supports spare-parts identification and service recordkeeping.

Working Principle

The 95438917 O-ring creates a seal through controlled compression between mating surfaces. When the joint is assembled, the ring deforms within its groove and establishes contact with the surrounding surfaces, restricting the passage of gas or fluid through the interface.

A simplified arrangement is:

First Mating Surface → O-Ring in Sealing Groove → Second Mating Surface

The groove locates the ring and controls its installed compression. Once the joint is secured, the resulting contact pressure helps maintain the sealing barrier. In a pressurized system, the pressure acting on the ring can further support sealing when the groove design and material are appropriate for the application.

The sealing performance depends on the condition of the ring and the surfaces around it. Cuts, permanent deformation, contamination, or material deterioration can create a leakage path. Damage to the groove or mating face can have the same effect even when a new O-ring is installed.

During maintenance, the removed ring can provide useful evidence about the cause of failure. Flattening may indicate prolonged compression, while cuts or localized damage may point to an installation problem or a defect at the sealing interface. The groove should be inspected alongside the ring rather than treating replacement as the only corrective action.

The appropriate material must also be compatible with the medium and operating conditions at the joint. A ring that fits the groove mechanically may still be unsuitable if it cannot tolerate the temperature, pressure, or chemical exposure involved.

Role in the Compressor Sealing System

The 95438917 O-ring forms part of the sealing arrangement within a compatible Centac compressor assembly. It works with the groove, mating surfaces, and joint-retention components to maintain the intended boundary between adjacent sections.

Compressor Assembly → Sealing Groove → 95438917 O-Ring → Mating Component

Industrial Applications

Installation and Maintenance

1. Verify the part number: Confirm 95438917 against the compressor parts identification and the original component before ordering a replacement.
2. Identify the sealing location: Determine which joint uses the O-ring and check the assembly drawing or service documentation for the correct installation position.
3. Investigate the leakage source: Establish whether the leak originates at the O-ring interface or from a nearby joint, connection, or damaged component.
4. Shut down the compressor: Follow the approved shutdown procedure and prevent unexpected startup during maintenance.
5. Isolate and depressurize the system: Verify that the relevant equipment is safely isolated and that the affected circuit has been depressurized before opening the joint.
6. Remove the old ring carefully: Use suitable removal tools and avoid scratching the groove or damaging the surrounding sealing surfaces.
7. Inspect the removed O-ring: Look for cuts, flattening, cracking, hardening, swelling, or other signs of deterioration that may explain the leakage.
8. Clean the sealing groove: Remove residue and contamination using a cleaning method compatible with the equipment and the replacement material.
9. Inspect the mating surfaces: Check for burrs, corrosion, scratches, deformation, and other defects that could prevent the joint from sealing correctly.
10. Install the replacement: Follow the specified assembly procedure, keeping the ring correctly seated and free from twisting or damage.
11. Verify the completed repair: Reassemble the joint according to the applicable procedure and check for leakage during the authorized return-to-service process.
12. Record the maintenance results: Document the part number, observed damage, replacement date, condition of the sealing surfaces, and post-maintenance inspection findings.

Compatible System Components

Recommended Related Models

Key Advantages

• Supports sealing at the designated compressor joint.
• Provides a specific part number for spare-parts identification.
• Allows replacement of the sealing element without automatically replacing the complete assembly.
• Helps restore joint integrity when the fault is attributable to the O-ring.
• Supports maintenance inspections focused on both the seal and its mating surfaces.

Technical FAQs

Which compressor equipment is associated with part number 95438917?

The part is listed in connection with Ingersoll Rand Centac C Series and CN Series centrifugal compressor parts. The exact installation should be checked against the equipment’s parts identification before replacement.

How can an O-ring leak even when it appears intact?

A ring may have lost its sealing performance through permanent deformation, hardening, or material deterioration without developing an obvious tear. Leakage can also result from a damaged groove, contaminated mating surfaces, or an incorrectly assembled joint.

What should be inspected if a replacement O-ring leaks again shortly after servicing?

Inspect the groove, mating faces, joint alignment, and assembly condition. Check for burrs, scratches, excessive clearance, or damage caused during installation. Repeatedly replacing the ring without correcting these conditions may not resolve the leakage.

Can another Centac O-ring be substituted because it looks similar?

No. O-rings assigned to different joints may have different specifications or material requirements. Confirm the part number, sealing configuration, and operating conditions before considering a substitute.
