- Ingersoll Rand
- 47629376001 24242273
- Coalescing Filter
- USA
- 130 × 35 × 100 mm
- 0.45 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 7
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

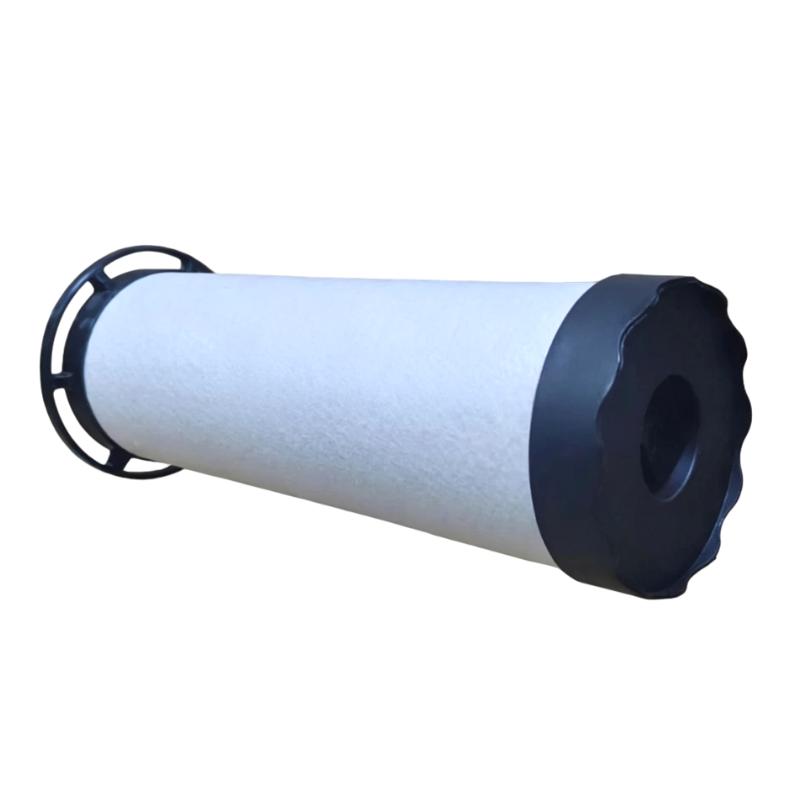

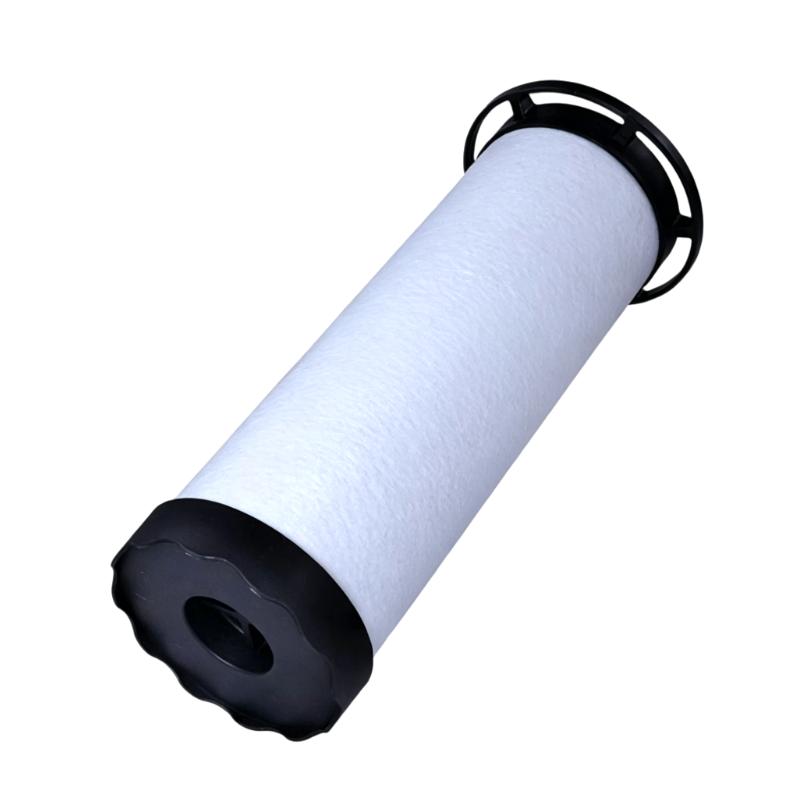

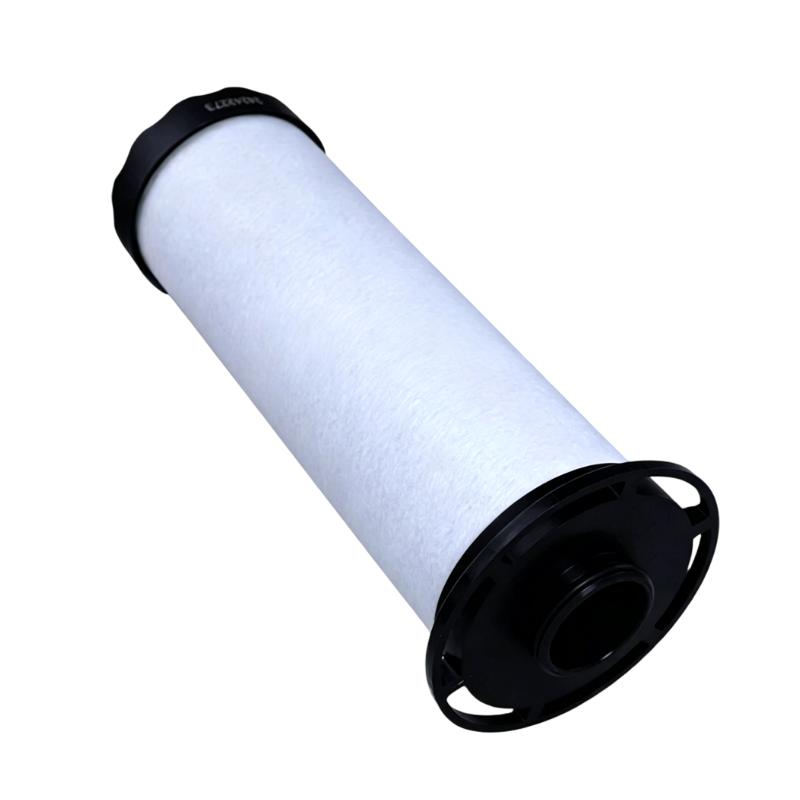

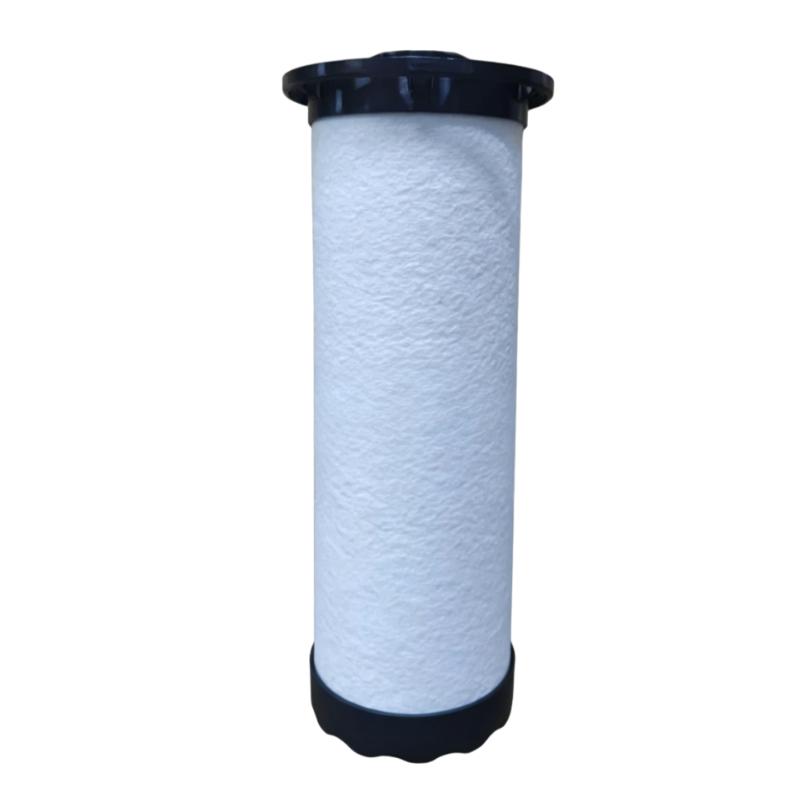

The Ingersoll Rand 47629376001 24242273 Coalescing Filter is an oil-removal filter element used in compatible compressed-air filtration systems. Part number 24242273 is associated with the FA490IH high-efficiency coalescing filter element, which is intended to remove fine oil aerosols and particulate contamination from compressed air.
Compressed air leaving an oil-injected compressor can carry residual oil mist, airborne particles, and other contaminants. These contaminants may affect pneumatic equipment, instrument air systems, production processes, and downstream air-treatment components. A coalescing filter addresses this problem by collecting fine liquid droplets and allowing them to combine into larger droplets that can drain away from the filter media.
The FA490IH element is specified for high-efficiency oil removal, with a nominal filtration rating of 0.01 micron and a residual oil aerosol specification of 0.01 mg/m³ under the applicable operating conditions. It is intended to operate as part of a properly configured compressed-air treatment system rather than as a standalone replacement for every type of air filter.
For effective filtration, the coalescing element should be installed downstream of an appropriate general-purpose pre-filter. The upstream stage removes larger particles and liquid contamination that would otherwise increase the loading on the fine filtration media. Correct filter selection, condensate drainage, and routine element replacement all contribute to maintaining the intended compressed-air quality.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model / Part Number | 47629376001 / 24242273 |
| Product Type | Coalescing Filter |
| Filter Element Reference | FA490IH |
| Component Category | Compressed-Air Filter Element |
| Filtration Type | High-Efficiency Oil-Aerosol Coalescing |
| Nominal Filtration Rating | 0.01 micron |
| Residual Oil Aerosol Specification | 0.01 mg/m³ |
| Compatible Filter Housing | FA490IH |
| Rated Airflow | 290 cfm, as specified for the associated FA600IH housing assembly |
| Primary Function | Removal of fine oil aerosols and particulate contamination from compressed air |
| Recommended Upstream Filtration | General-purpose pre-filter |
| Dimensions | 130 × 35 × 100 mm |
| Weight | 0.45 kg |
Product Features
- High-efficiency oil removal: Coalescing filtration helps reduce residual oil aerosols in compressed air.
- Fine-particle filtration: The associated FA490IH element is specified for a nominal filtration rating of 0.01 micron.
- Oil aerosol reduction: Supports compressed-air treatment where low residual oil aerosol levels are required.
- Replaceable filter element: Allows the filtration media to be renewed without replacing the entire filter installation.
- Upstream pre-filtration compatibility: Works as part of a multistage filtration arrangement that reduces the loading on the coalescing element.
- Compressed-air system integration: Supports air treatment for industrial pneumatic equipment and downstream processes.
- Maintenance-oriented design: Enables element replacement and inspection as part of routine compressed-air system servicing.
Working Principle
The 24242273 coalescing filter element removes fine contaminants by passing compressed air through specialized filtration media. As the air travels through the media, suspended particles and liquid oil aerosols are captured. Small oil droplets combine into larger droplets through the coalescing process, allowing the collected liquid to drain toward the designated collection area.
A typical filtration arrangement is:
Air Compressor → General-Purpose Pre-Filter → FA490IH Coalescing Filter → Downstream Air Treatment → Point of Use
The upstream pre-filter removes larger particles and liquid contamination before the air reaches the coalescing stage. This reduces unnecessary loading on the fine filter media and helps maintain filtration performance over the element’s service life.
Within the coalescing element, the filtration media captures fine oil droplets and promotes their combination into larger droplets. The collected liquid is then removed through the filter housing’s drainage arrangement. Proper drainage is essential because accumulated liquid can compromise the intended separation process and increase the risk of downstream carryover.
As the element accumulates contaminants, airflow resistance may increase. Excessive differential pressure can affect the compressed-air system’s energy consumption and available downstream pressure. Monitoring pressure drop and following the applicable maintenance schedule helps determine when the element requires replacement.
The coalescing element is not a substitute for every other air-treatment stage. It does not automatically remove all water vapor, dissolved contaminants, or every gaseous impurity. Applications with specific air-quality requirements may also need drying equipment, particulate filtration, or additional treatment stages.
Role in the Compressed-Air Treatment System
The 24242273 element serves as the fine oil-aerosol removal stage in a compatible compressed-air filtration arrangement. Its performance depends on the upstream filtration stage, filter housing, condensate drainage, and operating airflow.
Compressor → Pre-Filter → Coalescing Filter → Air Dryer or Additional Treatment → Pneumatic Equipment
| System Component | Function |
|---|---|
| Air Compressor | Supplies compressed air containing possible oil aerosols and particles |
| General-Purpose Pre-Filter | Removes larger particles and liquid contamination before fine filtration |
| 24242273 Coalescing Filter Element | Captures fine particles and promotes the separation of oil aerosols |
| FA490IH Filter Housing | Supports the element and provides the intended airflow and drainage arrangement |
| Condensate Drain | Removes collected liquid from the filter housing |
| Differential Pressure Indicator, Where Fitted | Helps identify increasing resistance across the filter element |
| Air Dryer | Reduces moisture according to its drying technology and operating conditions |
| Downstream Particulate Filter | Provides additional particle removal where the application requires it |
| Compressed-Air Distribution Network | Delivers treated air to production equipment and points of use |
Industrial Applications
| Application | Typical Use |
|---|---|
| Manufacturing Plants | Reducing oil aerosol contamination in compressed-air supplies |
| Pneumatic Automation | Protecting air-operated valves, actuators, and related equipment |
| Instrument Air Systems | Supporting air-quality requirements for compatible instrumentation |
| Packaging Machinery | Reducing oil contamination in pneumatic production equipment |
| Automotive Manufacturing | Providing oil-removal filtration for industrial compressed air |
| Industrial Assembly Lines | Supporting consistent air quality for pneumatic tools and mechanisms |
| General Industrial Utilities | Maintaining the coalescing filtration stage in compressed-air systems |
| Air Treatment Installations | Providing fine oil-aerosol removal downstream of general-purpose filtration |
| Equipment Maintenance Workshops | Replacing loaded or damaged coalescing filter elements |
| Centralized Compressor Rooms | Maintaining compressed-air filtration across industrial distribution systems |
Installation and Maintenance
- Verify the part number: Confirm 24242273 and the FA490IH element designation against the installed filter housing and equipment parts identification.
- Check the filtration requirement: Establish whether the application requires high-efficiency oil-aerosol removal and verify that the selected element matches the required air-quality specification.
- Inspect the upstream filtration stage: Confirm that a suitable general-purpose pre-filter is installed and functioning correctly to reduce contamination loading on the coalescing element.
- Shut down the filtration system: Follow the approved isolation procedure before opening the filter housing or removing the existing element.
- Depressurize the housing: Verify that the filter vessel is fully depressurized before loosening the housing or accessing internal components.
- Remove the existing element: Follow the housing-specific service procedure and prevent accumulated condensate or contamination from entering the downstream air line.
- Inspect the filter housing: Check the internal surfaces, element seating area, seals, and drainage passage for contamination or damage.
- Check the replacement element: Confirm that the new element matches the required part number and that its filtration media and sealing surfaces are undamaged.
- Install the element correctly: Fit the replacement according to the housing instructions, ensuring that the element is properly seated and that the required seals are correctly positioned.
- Verify the condensate drain: Check the drain arrangement for blockage or malfunction that could allow collected liquid to accumulate inside the housing.
- Restore pressure and inspect operation: Return the system to service according to the approved procedure and check for leakage, abnormal pressure drop, and correct airflow.
- Record the maintenance: Document the element part number, replacement date, observed contamination, differential-pressure readings where available, and any additional service work performed.
Compatible System Components
| Component | Function |
|---|---|
| Ingersoll Rand FA490IH Filter Housing | Accommodates the specified 24242273 coalescing element |
| General-Purpose Pre-Filter | Removes larger contaminants before the coalescing stage |
| Condensate Drain | Removes collected liquid from the filter housing |
| Filter Housing Seals | Maintain the pressure boundary and prevent bypass around the element |
| Differential Pressure Indicator | Indicates increasing filter resistance where fitted |
| Compressed-Air Piping | Carries air through the treatment system |
| Air Dryer | Reduces moisture in accordance with the selected drying technology |
| Downstream Particulate Filter | Provides additional particulate control where required |
Recommended Related Models
| Model / Part Number | Product Type | Main Application |
|---|---|---|
| Ingersoll Rand 24242273 | FA490IH Coalescing Filter Element | High-efficiency oil-aerosol removal |
| Ingersoll Rand 24242265 | FA490IG Filter Element | Alternative filter grade for compatible FA490-series installations |
| Ingersoll Rand 24242224 | Coalescing Filter Element | Fine oil-aerosol filtration in the associated filter series |
| Ingersoll Rand 24242240 | Filter Element | Related element for its specified filtration grade |
| Ingersoll Rand 24242281 | FA600IA Filter Element | Element for the specified FA600-series filter configuration |
| Ingersoll Rand 24242299 | Filter Element | Related compressed-air filtration element |
Key Advantages
- Reduces fine oil-aerosol contamination in compatible compressed-air systems.
- Supports high-efficiency filtration for applications requiring cleaner compressed air.
- Allows replacement of the filter element without automatically replacing the housing.
- Works with upstream pre-filtration to manage contaminant loading.
- Supports routine maintenance through element inspection and pressure-drop monitoring.
Technical FAQs
Why should a general-purpose pre-filter be installed before the 24242273 element?
The upstream filter removes larger particles and liquid contamination before they reach the fine coalescing media. This helps reduce premature loading and supports the intended service life of the oil-removal element.
What does the FA490IH designation indicate?
FA490IH identifies the associated high-efficiency coalescing filter element configuration. The designation distinguishes it from other filter grades within the Ingersoll Rand compressed-air filtration range, which may have different contaminant-removal characteristics.
What can cause increasing pressure drop across the coalescing element?
Progressive contaminant loading, liquid accumulation, unsuitable upstream filtration, or restricted drainage can contribute to increasing pressure drop. Check the pre-filter, drain, housing, and operating airflow before concluding that the element alone is responsible.
Can the 24242273 element remove all moisture from compressed air?
No. Coalescing filtration removes suspended liquid aerosols and particles, but it does not eliminate water vapor. Where a low pressure dew point is required, an appropriately selected compressed-air dryer is also necessary.
