Product Overview

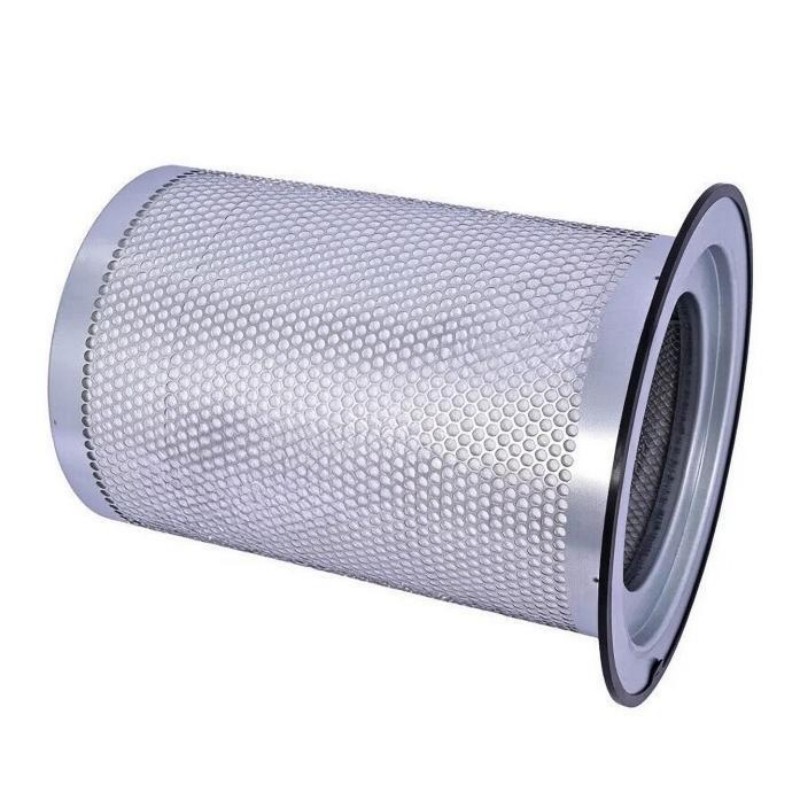

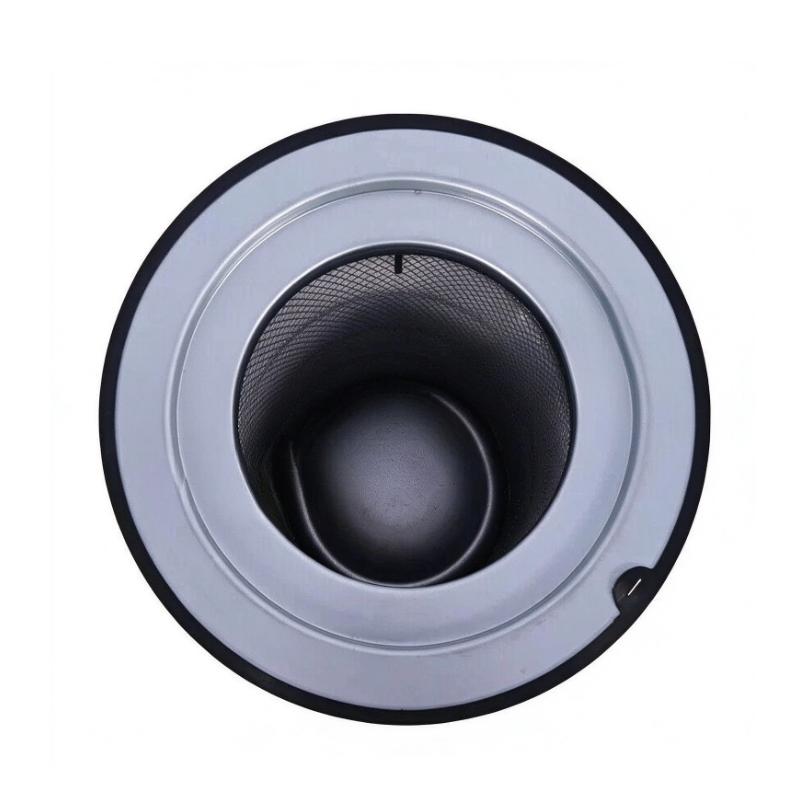

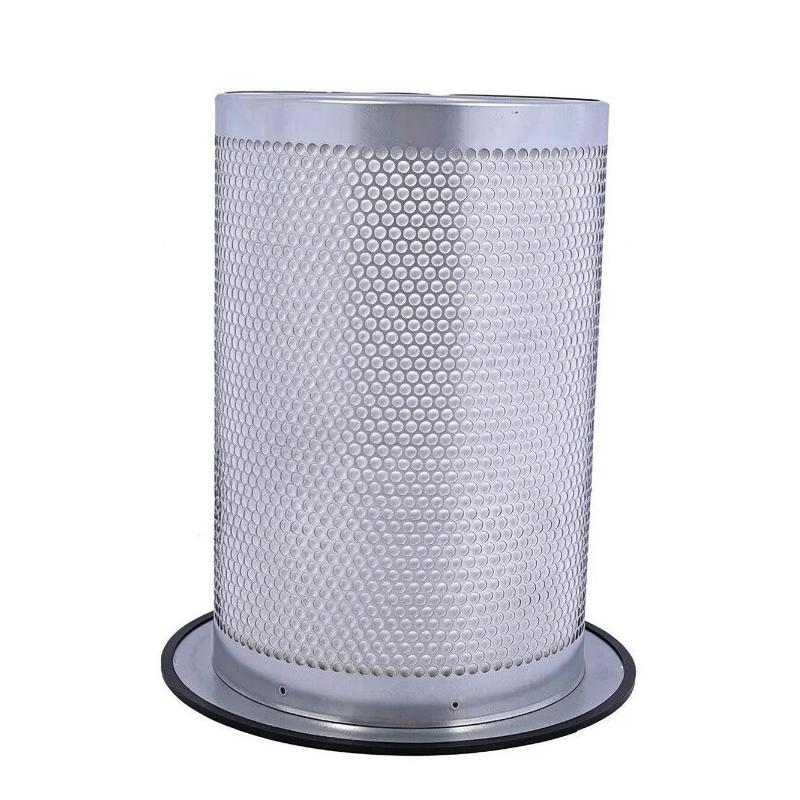

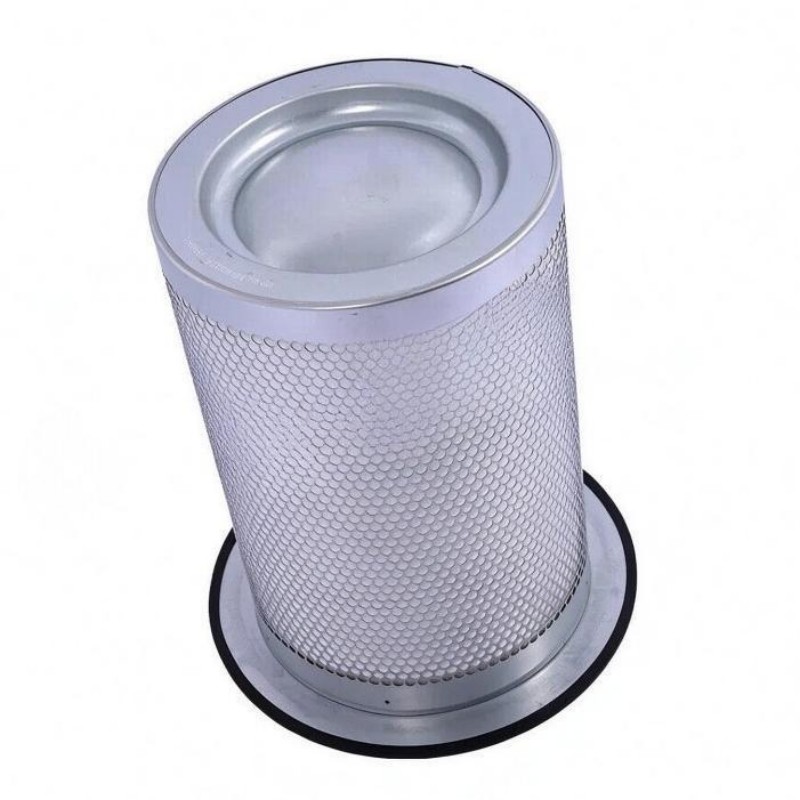

The Ingersoll Rand 47556185001 23545841 Air/Oil Separator is a replacement separator element used in compatible rotary screw air compressors. It separates oil carried in the compressed-air stream from the air leaving the compression stage, allowing recovered oil to return to the compressor’s lubrication circuit.

Inside an oil-injected rotary screw compressor, the air and lubricating oil mix during compression. The resulting mixture enters the separation system, where the separator element removes entrained oil before the compressed air proceeds toward the aftercooler and discharge outlet. The separated oil remains within the compressor’s oil-management system for reuse.

This part number is associated with selected Ingersoll Rand R90, R110, R132, and R160 compressor configurations, as well as corresponding RS-series models. These machines serve industrial applications requiring a continuous supply of compressed air, including manufacturing lines, pneumatic equipment, and plant utility systems. The exact replacement suitability depends on the compressor model, serial number, and installed separator configuration.

Separator condition directly affects the operation of the compressor’s air and oil circuits. As the element accumulates contamination or its separation performance deteriorates, oil carryover and pressure drop may increase. A separator that no longer performs correctly can contribute to increased oil consumption, additional maintenance on downstream equipment, and higher compressor operating costs.

For maintenance planning, the 23545841 reference should be checked against the installed compressor’s parts configuration. A separator that appears similar to the existing element may differ in its connection arrangement, internal construction, or fitment requirements.

Technical Specifications

Product Features

• Oil aerosol separation: Captures oil droplets carried by compressed air during the separation stage.
• Oil recovery: Supports the return of separated oil to the compressor’s lubrication circuit.
• Compressed-air quality control: Helps limit oil carryover into downstream air-treatment equipment and pneumatic systems.
• Pressure-drop management: A properly maintained element helps avoid excessive resistance across the separation stage.
• Application-specific fitment: The part reference supports identification of the separator required for compatible compressor configurations.
• Continuous-duty compressor service: Supports the air and oil separation process during normal operation of compatible rotary screw compressors.
• Maintenance replacement: Can be incorporated into planned service when the existing separator reaches its specified replacement interval or shows signs of deterioration.

Working Principle

The 23545841 separator element operates within the compressor’s air/oil separation system. After compression, the air-oil mixture enters the separator vessel. The element’s coalescing media captures fine oil droplets and allows them to combine into larger droplets, which can then drain back into the oil-management circuit.

The simplified process is:

Compression Stage → Air/Oil Mixture → Separator Element → Compressed Air Discharge

Separated Oil → Oil Recovery Path → Compressor Lubrication Circuit

The separation process serves two related purposes. First, it reduces the amount of oil leaving the compressor with the compressed air. Second, it recovers oil that can be returned to the lubrication circuit instead of being continually lost through the discharge stream.

Consider a manufacturing plant where a rotary screw compressor supplies pneumatic actuators, production machinery, and air-treatment equipment. If the separator becomes restricted or loses its separation effectiveness, the plant may experience increased oil consumption, elevated differential pressure, or oil contamination in downstream components. These symptoms can also have other causes, so the separator should be assessed alongside the compressor’s operating conditions.

The element is a passive filtration component; it does not regulate system pressure or independently control the oil-return process. Those functions depend on the complete compressor design, including the separator vessel, pressure-control components, and oil-return arrangement.

Role in the Compressor Air and Oil Circuit

The 23545841 occupies the separation stage between compression and compressed-air delivery. Its condition influences both the amount of oil carried downstream and the pressure loss associated with the separation process.

Industrial Applications

Installation and Maintenance

1. Verify the complete part number: Confirm 47556185001 and 23545841 against the installed compressor’s parts documentation before removing the existing separator.
2. Identify the compressor configuration: Check the compressor model, serial number, and relevant build information because separator fitment can vary between machine versions.
3. Shut down the compressor: Follow the prescribed shutdown procedure and allow the machine to reach a safe maintenance condition.
4. Release stored pressure: Isolate the compressor and verify that the separator vessel and associated air and oil circuits have been depressurized before opening the assembly.
5. Allow components to cool: Compressed oil and internal surfaces may remain hot after shutdown. Observe the required cooling period and use appropriate protective equipment.
6. Inspect the existing separator assembly: Examine the vessel, cover, sealing surfaces, connections, and oil-return arrangement for contamination or visible damage.
7. Remove the old element carefully: Follow the equipment-specific procedure and prevent loose debris or residual contamination from entering the open vessel.
8. Check the sealing surfaces: Inspect the relevant sealing areas and replace damaged seals where required by the service procedure.
9. Install the replacement element: Confirm the correct orientation and seating of the new separator. Follow the specified assembly and tightening requirements.
10. Inspect the oil-return path: Check the associated return line and fittings for obstruction or damage if the compressor has shown signs of excessive oil carryover.
11. Verify operation after service: Restart the compressor according to the approved procedure and check for leaks, abnormal differential pressure, unusual oil consumption, and relevant alarm indications.
12. Record the maintenance results: Document the installed part number, compressor identification, service date, operating hours, and observations made during the inspection.

Compatible System Components

Recommended Related Models

Key Advantages

• Separates entrained oil from compressed air in compatible rotary screw compressors.
• Supports oil recovery and recirculation within the compressor.
• Helps limit oil carryover into downstream air equipment.
• Supports planned maintenance of the compressor’s separation stage.
• Provides a distinct part reference for replacement identification.

Technical FAQs

What symptoms can indicate that the 23545841 separator needs attention?

Potential signs include increasing differential pressure across the separator, abnormal oil consumption, and increased oil carryover into the discharge air. These symptoms can also result from oil-return restrictions, operating conditions, or other compressor faults, so the complete system should be checked.

Which compressor models should be checked for compatibility with the 23545841?

The part is associated with selected R90, R110, R132, and R160 compressors and related RS-series configurations. The exact compressor model, serial number, and build specification should be checked before replacement.

Why does separator differential pressure matter?

Excessive differential pressure increases the resistance to airflow through the separation stage and can increase compressor energy consumption. A rising value may indicate a loaded element or another restriction in the system, but the diagnosis should account for the compressor’s operating conditions.

Should the oil filter and air filter be replaced at the same time as the separator?

Not automatically. Replacement should follow the applicable compressor service schedule, operating hours, and the condition of each component. If the separator is being changed during a scheduled service, inspect the related filters and oil circuit to determine which maintenance items are due.
