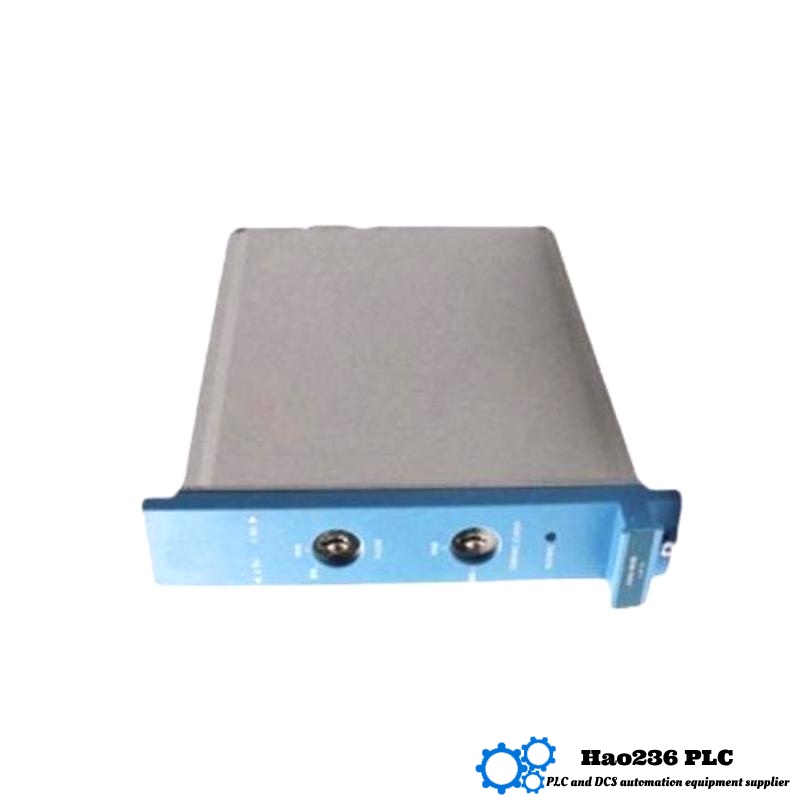

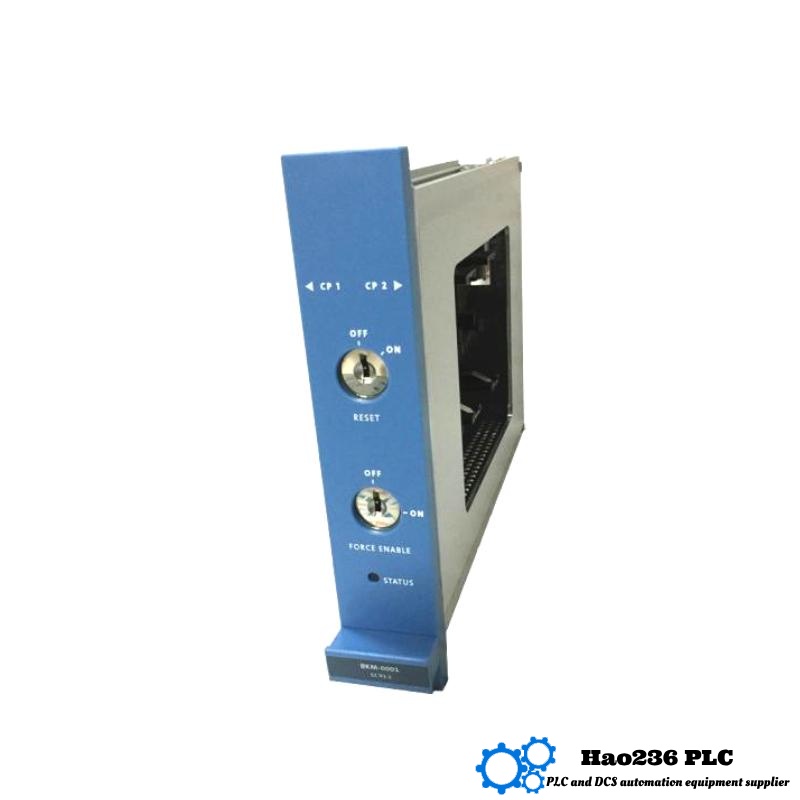

Product Overview: Honeywell FS-BKM-0001
1. Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | FS-BKM-0001 |
| Product Type | Building Key Module |
| Input Voltage | 24 VDC ±10% |
| Communication | BACnet MS/TP, Modbus RTU |
| Number of Inputs | 8 Digital Inputs |
| Number of Outputs | 4 Relay Outputs |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Dimensions (W×H×D) | 120 mm × 90 mm × 60 mm |
| Weight | 0.9 kg |
| Mounting | DIN Rail or Panel Mount |
| Certifications | CE, UL, FCC |
2. Product Introduction
The Honeywell FS-BKM-0001 is a compact and reliable Building Key Module designed to facilitate effective building automation and control. Equipped with 8 digital inputs and 4 relay outputs, it offers flexible control over a wide range of building systems.
It supports industry-standard communication protocols such as BACnet MS/TP and Modbus RTU, ensuring seamless integration with other building management systems. The device is suitable for installation in various environments thanks to its robust design and wide operating temperature range.
3. Product Applications
-
Control and monitoring of HVAC systems
-
Lighting system management
-
Security and access control integration
-
Energy management in commercial buildings
-
Automation of industrial processes
-
Remote monitoring and control of building equipment
4. Product Advantages
-
Flexible I/O Configuration: With multiple digital inputs and relay outputs, it supports various automation needs.
-
Protocol Compatibility: Supports widely-used BACnet MS/TP and Modbus RTU for easy integration.
-
Robust Design: Suitable for harsh environments with temperature and humidity resistance.
-
Compact Size: Small form factor allows installation in tight spaces.
-
Easy Installation: Supports both DIN rail and panel mounting for flexible setup.
-
Reliable Performance: Meets industry safety and quality standards with certifications such as CE, UL, and FCC.
5. Brand and Series Information
| Brand | Series |
|---|---|
| Honeywell | FS Building Key Module (BKM) Series |
6. Recommended Related Models (Same Series or Similar)
| Model | Inputs | Outputs | Communication | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|---|---|
| FS-BKM-0002 | 12 Digital | 6 Relay | BACnet, Modbus | 140 × 100 × 65 | 1.1 | Increased I/O capacity |
| FS-BKM-0003 | 16 Digital | 8 Relay | BACnet, Modbus | 160 × 110 × 70 | 1.3 | Enhanced output control |
| FS-BKM-0004 | 8 Digital | 8 Relay | BACnet, Modbus | 120 × 90 × 65 | 1.0 | Balanced input-output design |
| FS-BKM-0005 | 10 Digital | 4 Relay | BACnet, Modbus | 130 × 95 × 60 | 1.0 | Optimized for lighting control |
| FS-BKM-0006 | 8 Digital | 6 Relay | BACnet, Modbus | 125 × 90 × 60 | 1.1 | Enhanced relay module |
7. Popular Models from the Same Brand
| Model | Product Type | Inputs | Outputs | Dimensions (mm) | Weight (kg) | Application Focus |
|---|---|---|---|---|---|---|
| FS-BKM-0001 | Building Key Module | 8 Digital | 4 Relay | 120 × 90 × 60 | 0.9 | General building automation |
| FS-BCU-0036 | Building Control Unit | 36 I/O | Mixed | 200 × 120 × 60 | 1.2 | Large scale automation |
| FS-16DI-RL | Digital Input Module | 16 Digital | Relay | 150 × 100 × 60 | 0.7 | Industrial digital inputs |
| FS-16DO-RL | Digital Output Module | – | 16 Relay | 150 × 100 × 60 | 0.7 | Digital relay outputs |
| FS-16AI | Analog Input Module | 16 Analog | – | 150 × 100 × 60 | 0.8 | Analog data acquisition |
8. FAQ (QA Format)
Q1: What communication protocols does the FS-BKM-0001 support?
A1: It supports BACnet MS/TP and Modbus RTU protocols for flexible integration.
Q2: How many inputs and outputs does this module have?
A2: It offers 8 digital inputs and 4 relay outputs.
Q3: Can the FS-BKM-0001 operate in harsh environments?
A3: Yes, it works reliably within temperatures from -20°C to +60°C and humidity up to 95% non-condensing.
Q4: What mounting options are available for this product?
A4: It supports both DIN rail and panel mounting.
Q5: What are the dimensions and weight of the FS-BKM-0001?
A5: The dimensions are 120 mm × 90 mm × 60 mm, and it weighs approximately 0.9 kg.
Q6: Is this module suitable for HVAC control systems?
A6: Yes, it is widely used in HVAC automation and control.
Q7: Does the FS-BKM-0001 have any safety certifications?
A7: Yes, it complies with CE, UL, and FCC standards.
Q8: What is the power requirement for this device?
A8: It operates on a 24 VDC power supply with a ±10% tolerance.
Q9: Can the inputs be configured for different signal types?
A9: The inputs are digital, designed for on/off type signals.
Q10: Is the FS-BKM-0001 suitable for lighting control applications?
A10: Yes, with its relay outputs, it is ideal for lighting system control.
