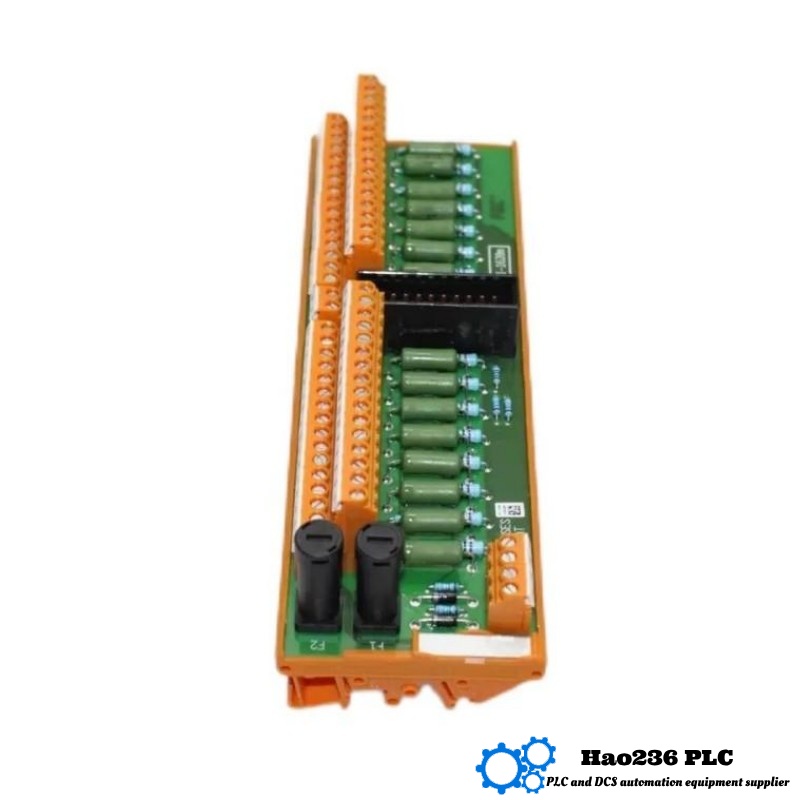

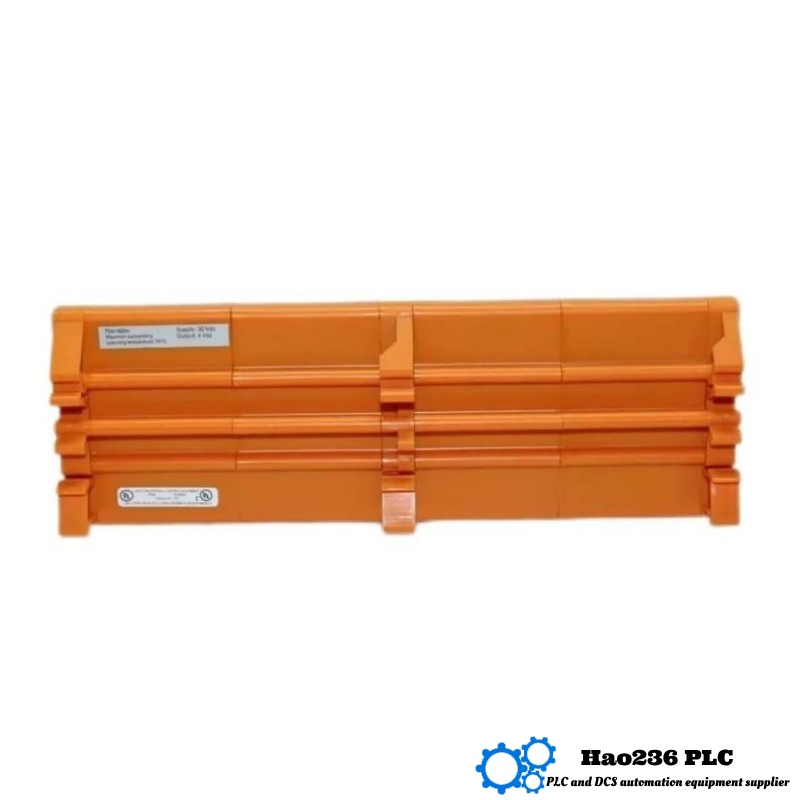

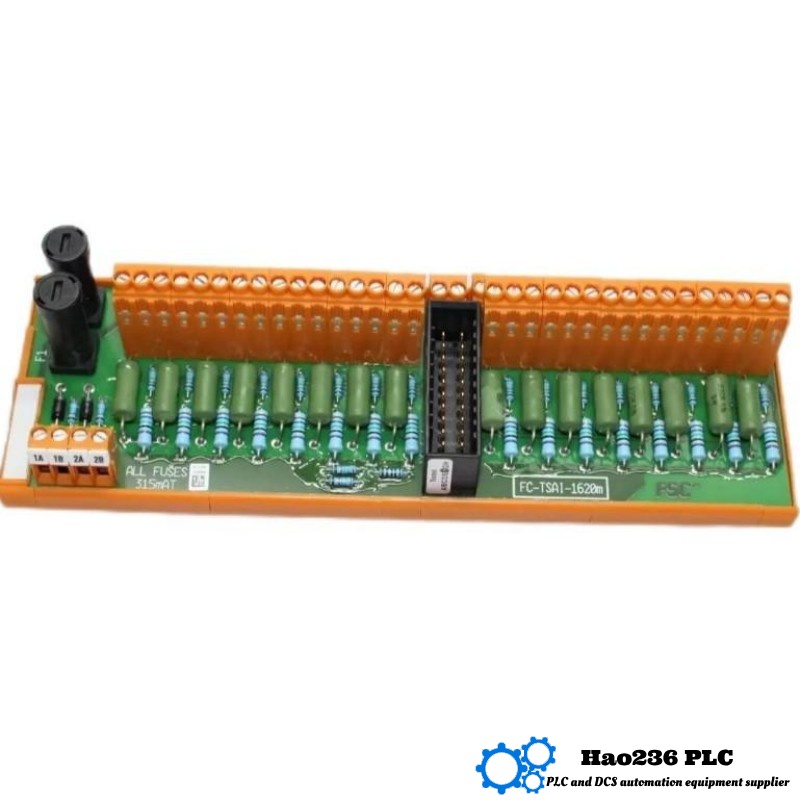

Honeywell FC-TSAI-1620M
Product Introduction
The Honeywell FC-TSAI-1620M is a high-precision analog input module designed for industrial automation and process control systems. It converts various types of analog signals from field devices, such as sensors and transmitters, into signals compatible with control systems for accurate monitoring and control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 16 (organized in two groups of 8 channels sharing 0V) |
| Input Types | 4–20 mA, 0–5 V, Thermocouple inputs |
| Input Current Range | 0–25 mA |
| Input Resistance | ≥100 kΩ |
| Output Voltage | 0–4 V DC |
| Output Resistance | 270 Ω ±5% |
| Output Current | Per channel max 120 mA at 30 V DC |
| Accuracy | 0.10% |
| Fuse Rating | 315 mA (5×20 mm slow blow) |
| Dimensions (L×W×H) | 210 mm × 70 mm × 60 mm |
| Weight | 0.43 kg |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Power Supply | External 30 V DC, 3 mA (no input load) |
| Mounting | DIN rail TS32 / TS35 × 7.5 |
| Terminal Block Specs | Max wire size 2.5 mm² (AWG14); Strip length 7 mm; Torque 0.5 Nm |
Applications
-
Industrial automation systems for signal conversion from field sensors.
-
Process control for temperature, pressure, flow, and other parameters.
-
Safety and critical monitoring systems requiring reliable signal transmission.
-
Remote monitoring and data acquisition systems.
Product Advantages
-
High precision with 0.10% accuracy ensures reliable data.
-
Supports multiple input types (4–20 mA, 0–5 V, thermocouple) for flexibility.
-
Compact size fits well in tight spaces.
-
High reliability with quality components for long-term operation.
-
Easy installation with standard DIN rail mounting.
Brand and Series
-
Brand: Honeywell
-
Series: FC-TSAI Series (Field Termination Assembly Input Modules)
-
Positioning: Designed for industrial process control and automation applications requiring accurate analog input conversion.
Recommended Similar or Related Models
| Model | Input Type | Channels | Output Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| FC-TSAI-1610M | 4–20 mA | 8 | 0–4 V DC | 210 × 70 × 60 | 0.43 |
| FC-TSAI-1630M | 0–5 V | 16 | 0–4 V DC | 210 × 70 × 60 | 0.43 |
| FC-TSAI-1640M | Thermocouple | 16 | 0–4 V DC | 210 × 70 × 60 | 0.43 |
| FC-TSAI-1650M | 4–20 mA | 32 | 0–4 V DC | 210 × 70 × 60 | 0.43 |
| FC-TSAI-1660M | 0–5 V | 32 | 0–4 V DC | 210 × 70 × 60 | 0.43 |
Recommended Popular Models from the Same Brand
| Model | Type | Input/Output | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| FC-SAI-1620M | Safety Analog Input | 4–20 mA | 16 | 210 × 70 × 60 | 0.43 |
| FC-SAI-1630M | Safety Analog Input | 0–5 V | 16 | 210 × 70 × 60 | 0.43 |
| FC-SAI-1640M | Safety Analog Input | Thermocouple | 16 | 210 × 70 × 60 | 0.43 |
| FC-SAI-1650M | Safety Analog Input | 4–20 mA | 32 | 210 × 70 × 60 | 0.43 |
| FC-SAI-1660M | Safety Analog Input | 0–5 V | 32 | 210 × 70 × 60 | 0.43 |
FAQ (Frequently Asked Questions)
Q1: What input signal types does the FC-TSAI-1620M support?
A1: It supports 4–20 mA, 0–5 V, and thermocouple inputs.
Q2: How many channels does this module have?
A2: It has 16 input channels.
Q3: What is the operating temperature range?
A3: The module operates safely between -20°C and +60°C.
Q4: How is this module installed?
A4: It is installed using a standard DIN rail (TS32 / TS35 × 7.5).
Q5: What is the accuracy of this module?
A5: The accuracy is ±0.10%.
Q6: What is the power supply requirement?
A6: It requires an external 30 V DC power supply with 3 mA current consumption (no load).
Q7: Can it handle multiple sensor types at once?
A7: Yes, it supports mixed input types like 4–20 mA and thermocouples but configured per installation.
Q8: What is the module’s weight?
A8: It weighs approximately 0.43 kg.
Q9: Is it suitable for hazardous environments?
A9: It is designed for industrial use but verify hazardous area certifications before use in such environments.
Q10: How are the wiring terminals configured?
A10: Terminals support wires up to 2.5 mm² with a strip length of 7 mm and tightening torque of 0.5 Nm.
