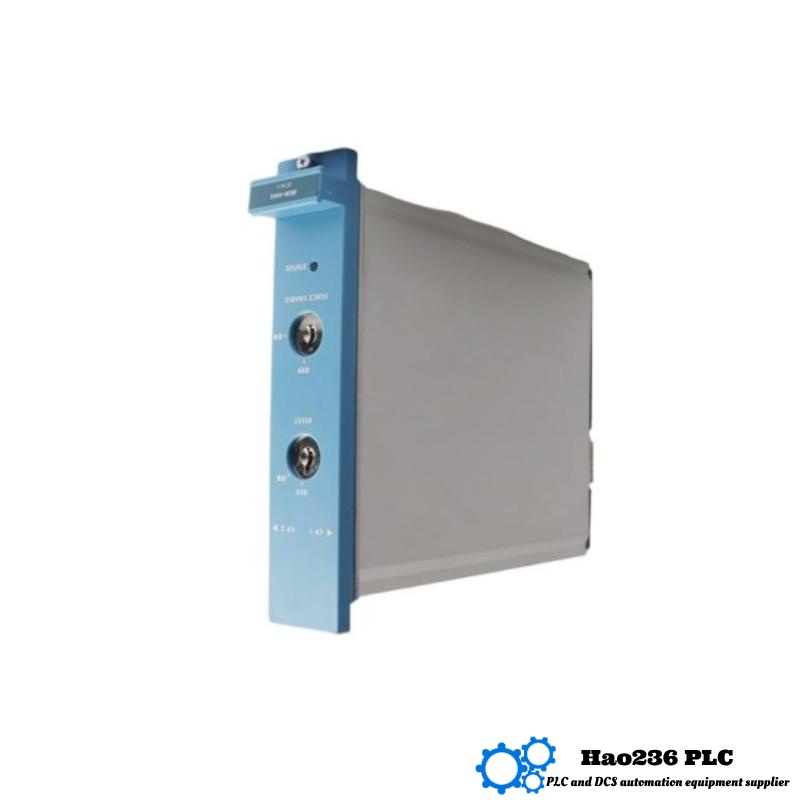

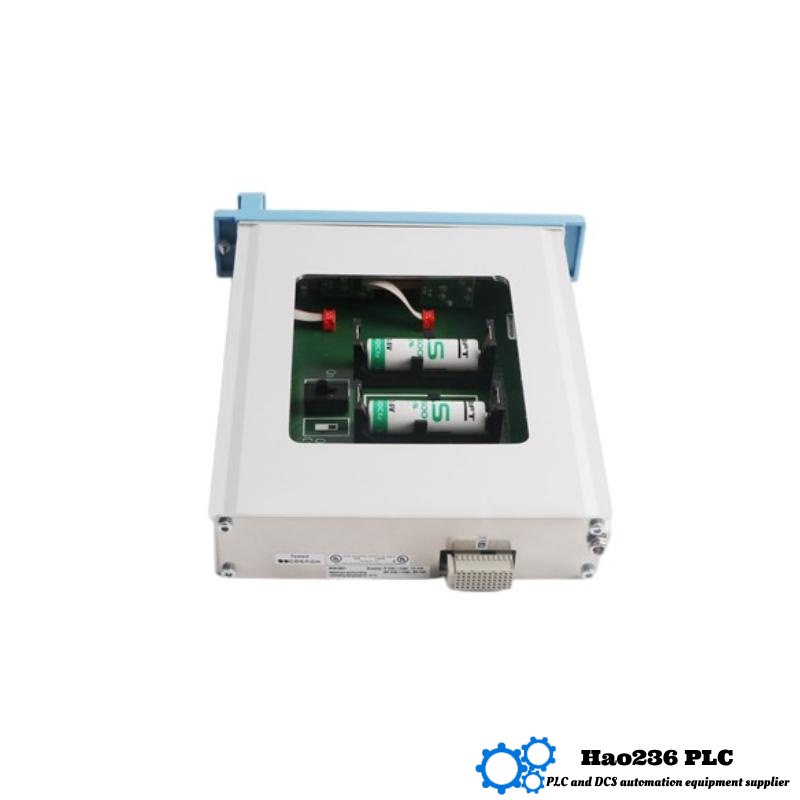

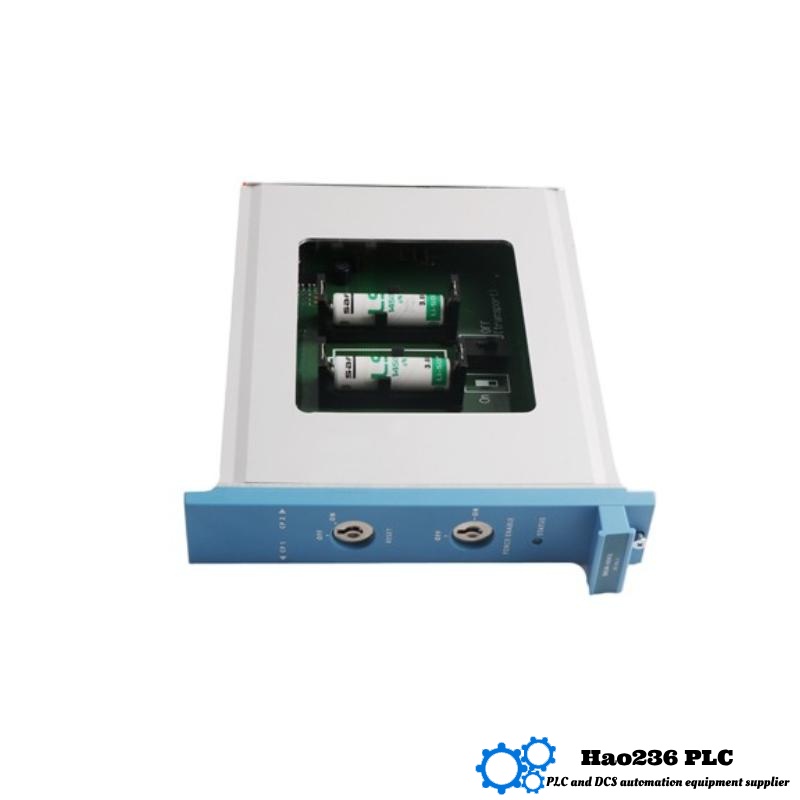

Honeywell FC-BKM-001 Battery and Key Switch Module
Product Introduction
The Honeywell FC-BKM-001 is a specialized module designed to provide backup power and secure access control for industrial automation systems. It integrates a high-capacity lithium-thionyl chloride battery with a mechanical key switch, ensuring uninterrupted operation and enhanced security for critical control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FC-BKM-001 |
| Battery Type | Lithium-thionyl chloride (SAFT LS14500CFG) |
| Battery Voltage | 3.6 V DC |
| Battery Capacity | > 2 Ah |
| Key Switch Type | Rotary key switch with mechanical lock |
| Switch Rating | 2 A at 24 V DC |
| Isolation Voltage | 500 V DC between battery and switch circuitry |
| Supply Voltage (24 V) | 24 V DC ±15% to +30% |
| Supply Current (24 V) | Max 20 mA, typically 7 mA (shared load) |
| Supply Voltage (5 V) | 5 V DC ±10% |
| Supply Current (5 V) | Max 10 mA |
| Output Supply Voltage | 14 V DC to 31 V DC |
| Short Circuit Protection | Continuous short-circuit proof |
| Operating Temperature | –5°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Dimensions (H × W × D) | 176 mm × 35.2 mm × 212 mm |
| Weight | 0.5 kg |
| Mounting Type | DIN Rail |
| Protection Rating | IP20 |
| Compliance Standards | CE, UL, CSA |
Applications
-
Industrial Automation Systems: Provides backup power to ensure continuous operation during power outages.
-
Access Control Systems: Enhances security by restricting unauthorized access to critical control panels.
-
Building Management Systems: Ensures reliability and security in HVAC and lighting control systems.
-
Energy Management Systems: Supports uninterrupted monitoring and control of energy usage.
-
Process Control Systems: Maintains system integrity and security in manufacturing processes.
Product Advantages
-
Reliable Backup Power: Equipped with a high-capacity lithium-thionyl chloride battery, offering extended backup time.
-
Enhanced Security: Mechanical key switch prevents unauthorized access, ensuring system integrity.
-
Compact Design: Space-saving dimensions facilitate easy integration into control panels.
-
Wide Temperature Range: Operates effectively in a broad temperature range, suitable for various environments.
-
Compliance with Standards: Meets international standards (CE, UL, CSA), ensuring quality and safety.
Brand & Series
-
Brand: Honeywell
-
Series: FC Series
Related Models
| Model | Description | Battery Type | Key Switch | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| FC-BKM-001 | Battery and Key Switch Module | Lithium-thionyl chloride | Rotary key switch | 176 × 35.2 × 212 | 0.5 |
| FC-BKM-002 | Enhanced Battery Module | Lithium-thionyl chloride | Rotary key switch | 176 × 35.2 × 212 | 0.6 |
| FC-BKM-003 | Battery Module with Display | Lithium-thionyl chloride | Rotary key switch | 176 × 35.2 × 212 | 0.65 |
| FC-BKM-004 | Battery Module with Alarm | Lithium-thionyl chloride | Rotary key switch | 176 × 35.2 × 212 | 0.7 |
| FC-BKM-005 | Battery Module with USB Port | Lithium-thionyl chloride | Rotary key switch | 176 × 35.2 × 212 | 0.75 |
Popular Honeywell Models
| Model | Description | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| FC-PAOH01 | Analog Output Module | Analog Output | 160 × 120 × 55 | 0.8 |
| FC-PAIH01 | Analog Input Module | Analog Input | 160 × 120 × 55 | 0.85 |
| FC-PDIL01 | Digital Input Module | Digital Input | 160 × 120 × 55 | 0.75 |
| FC-PCF901 | Communication Module | Communication | 160 × 120 × 55 | 0.9 |
| FC-PDOB01 | Digital Output Module | Digital Output | 160 × 120 × 55 | 0.8 |
FAQs
Q1: What is the main purpose of the FC-BKM-001 module?
A1: It provides backup power and secure access control for automation systems to keep them running and safe.
Q2: What kind of battery does this module use?
A2: It uses a lithium-thionyl chloride battery with a voltage of 3.6 volts and a capacity of more than 2 amp-hours.
Q3: How does the key switch work to protect the system?
A3: The rotary key switch physically locks to prevent unauthorized people from accessing the control system.
Q4: What voltage does the module supply to the connected devices?
A4: The output voltage ranges from 14 volts DC up to 31 volts DC, depending on system needs.
Q5: Can the module function in very hot or cold environments?
A5: Yes, it works well between –5°C and +70°C and can be safely stored in even wider temperature ranges.
Q6: How do I mount this module in my control cabinet?
A6: It’s designed to be mounted easily on a standard DIN rail inside control panels.
Q7: Is this module compatible with all types of Honeywell controllers?
A7: It works with many Honeywell controllers, but you should check your specific controller model for full compatibility.
Q8: What happens if there is a short circuit in the system?
A8: The module has built-in short circuit protection to prevent damage during faults.
Q9: How heavy is the FC-BKM-001?
A9: The module weighs about 0.5 kilograms, making it lightweight and easy to handle.
Q10: Does the module require special maintenance?
A10: No special maintenance is usually needed, but regular inspection of the battery and switch condition is recommended.
