Product Overview

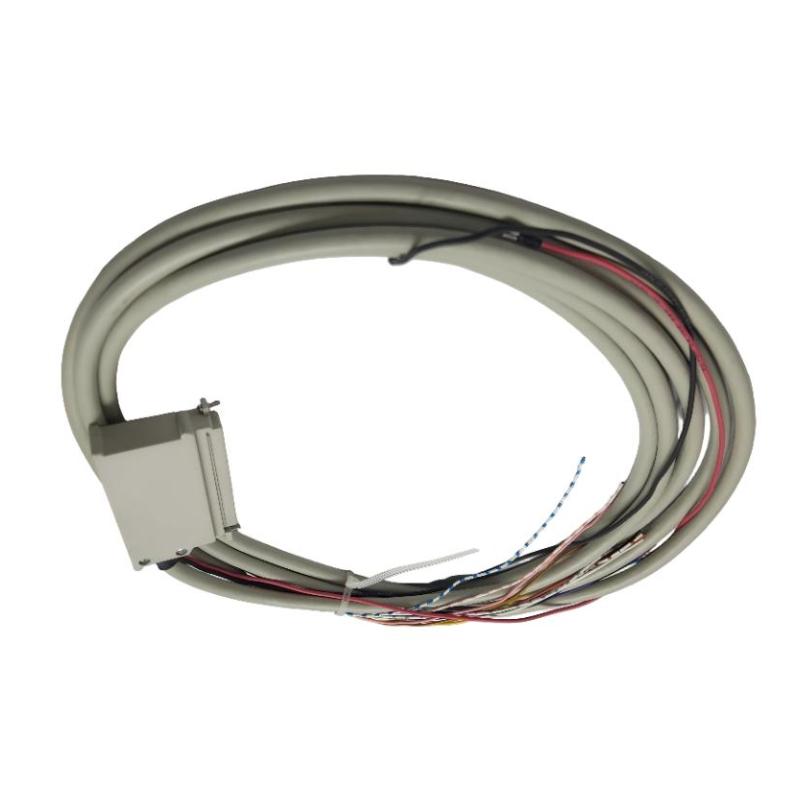

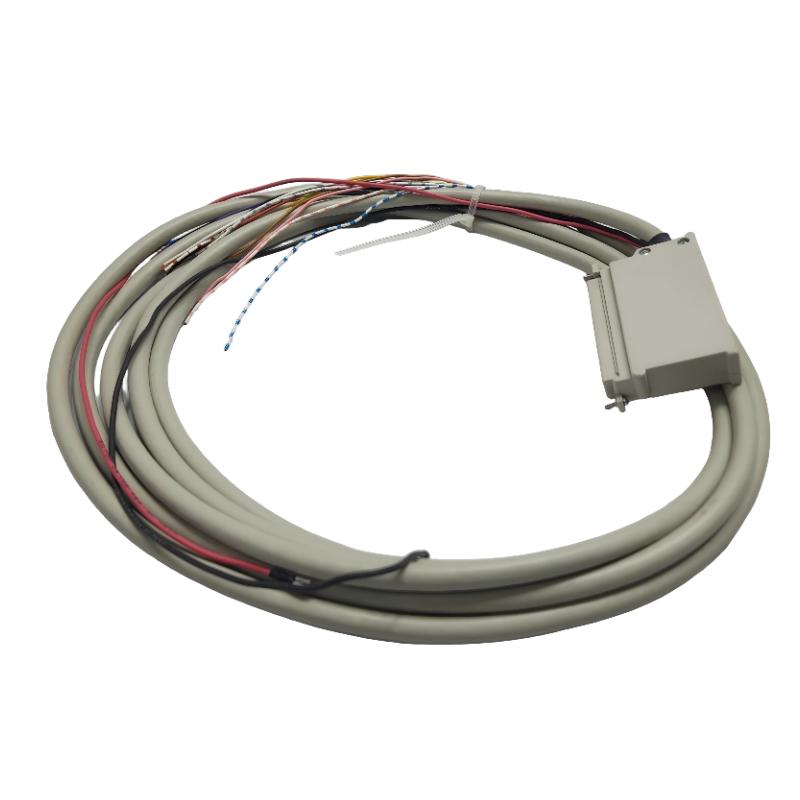

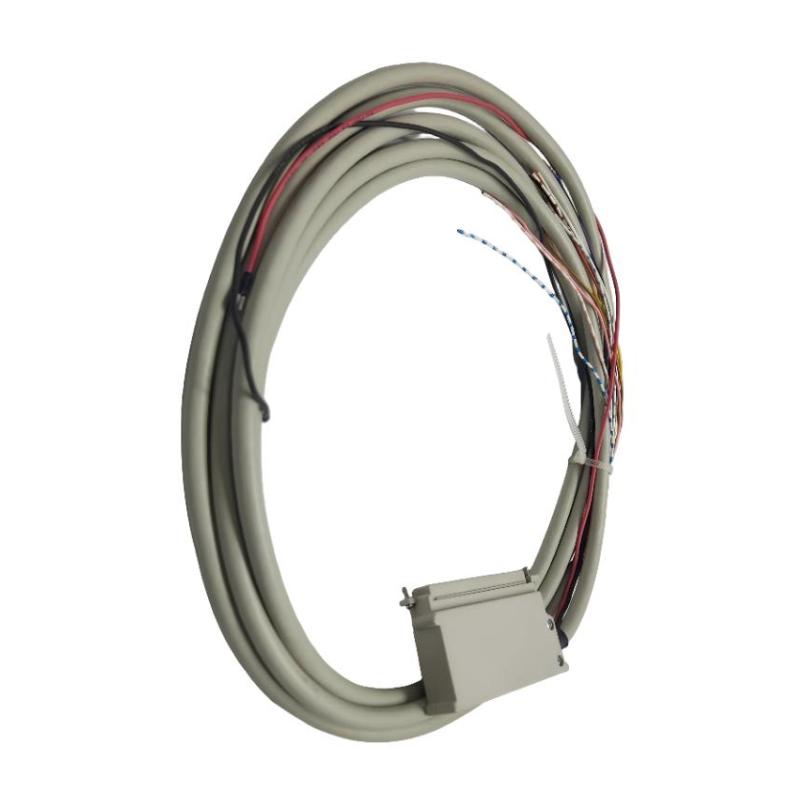

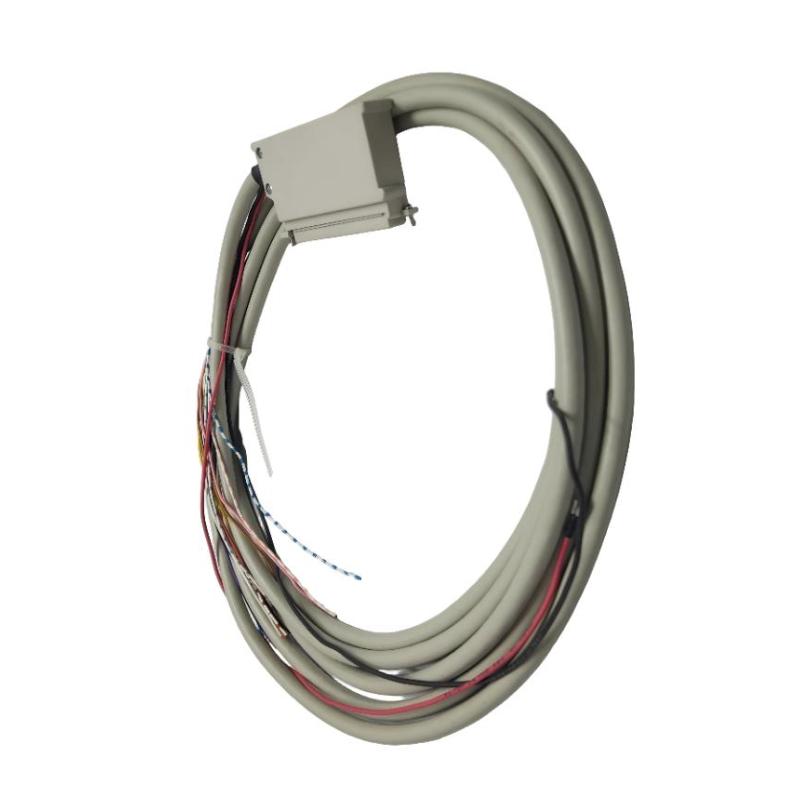

The HIMA Z7108/3237/C7/R2 Cable Plug is a dedicated cable connection accessory used in HIMA safety control system installations.
This cable plug provides a pre-configured cable interface for connecting HIMA system components, helping ensure stable signal transmission and organized wiring between safety modules, field devices, and control cabinet equipment. With a fixed 7-meter cable length, it is suitable for installations requiring extended connection distances between system components.
The Z7108/3237/C7/R2 is commonly used in safety instrumented systems (SIS), industrial automation cabinets, and process control applications where reliable electrical connections are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |
| Model | Z7108/3237/C7/R2 |
| Product Type | Cable Plug |
| Application | Safety System Cable Connection |
| Cable Length | 7 meters |
| Function | Electrical Connection and Signal Transmission |
| Shipping Weight | 3 kg |
Product Features
The HIMA Z7108/3237/C7/R2 Cable Plug provides a reliable and convenient wiring solution for HIMA system integration.
Key characteristics include:
- Designed for HIMA safety automation applications
- Equipped with a 7-meter cable assembly
- Provides ready-to-install connection capability
- Helps reduce on-site wiring complexity
- Supports structured cabinet and field connections
- Improves installation efficiency
- Suitable for industrial safety environments
- Supports maintenance and replacement operations
The pre-configured cable design helps simplify installation while maintaining consistent connection performance.
Working Principle
The HIMA Z7108/3237/C7/R2 functions as a cable interface component that transfers electrical signals between connected HIMA system components.
The signal path is:
HIMA Module / Field Interface → Z7108/3237/C7/R2 Cable Plug → Connected Safety System Equipment
The cable plug provides the physical connection and electrical contact required for signal transmission. The integrated 7-meter cable allows flexible installation distances between system components.
During operation, it supports:
- Signal transmission
- Cable connection
- Equipment interconnection
- Wiring organization
- System integration
The cable plug itself does not process signals or execute safety logic; these functions are performed by the connected HIMA controller and I/O modules.
Role in a HIMA Safety System
Within HIMA safety system architectures, the Z7108/3237/C7/R2 provides an important connection link between hardware components.
A typical connection structure is:
Field Equipment / System Module → Cable Plug → HIMA Safety Controller or I/O Interface → Safety Application
The cable assembly helps maintain reliable connections while allowing flexible equipment placement inside control cabinets or between system sections.
Typical functions include:
- Extending connection distance
- Simplifying system wiring
- Supporting modular installation
- Improving cabinet organization
- Facilitating equipment replacement
Industrial Applications
The HIMA Z7108/3237/C7/R2 Cable Plug is suitable for industrial applications requiring dependable safety system connections.
| Application | Typical Use |
|---|---|
| Oil & Gas Facilities | Safety instrumented system wiring |
| Chemical Plants | Emergency shutdown system connections |
| Power Generation | Safety cabinet integration |
| Process Automation | Controller and field equipment connection |
| Industrial Manufacturing | Machine safety wiring |
| Transportation Systems | Safety control equipment connection |
The cable plug supports applications where connection reliability and installation flexibility are important.
Installation and Maintenance
Proper installation helps maintain stable electrical performance.
Recommended practices include:
- Confirm compatibility with connected HIMA equipment
- Verify cable routing before installation
- Avoid excessive bending or mechanical stress on the cable
- Ensure connectors are fully secured
- Inspect cable condition during maintenance
- Check signal continuity after installation
Regular inspection helps reduce wiring-related faults in safety automation systems.
Related Components
The HIMA Z7108/3237/C7/R2 is commonly used with HIMA safety system components.
| Component | Function |
|---|---|
| HIMA Safety Controller | Executes safety application logic |
| HIMA I/O Modules | Connect sensors and actuators |
| Field Termination Assemblies | Organize field wiring |
| Connector Boards | Provide system connection interfaces |
| Communication Modules | Support system data exchange |
| Extension Racks | Support modular hardware installation |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| HIMA Z7108/3237/C7/R2 | Cable Plug | 7-meter system connection |
| HIMA Z7108/3237/W/R1 | Cable Plug | Flexible cable length connection |
| HIMA HIMax Cable Assemblies | System Cable Components | Safety system wiring |
| HIMA HIQuad X Cable Accessories | Connection Accessories | Control cabinet integration |
| HIMA Connector Assemblies | Electrical Interface Components | Industrial automation |
Model selection depends on cable length, system configuration, and connection requirements.
Key Advantages
- Provides ready-to-use cable connection.
- Includes 7-meter cable length for flexible installation.
- Simplifies safety system wiring.
- Reduces field installation time.
- Supports reliable signal transmission.
- Suitable for industrial safety applications.
Technical FAQs
What is the cable length of the HIMA Z7108/3237/C7/R2?
The Z7108/3237/C7/R2 cable plug is supplied with a 7-meter cable length, allowing flexible installation between connected system components.
How does a pre-configured cable plug improve system installation?
A pre-configured cable assembly reduces manual wiring work, minimizes connection errors, and helps achieve consistent installation quality.
Can the Z7108/3237/C7/R2 be used for signal processing?
No. The cable plug only provides the physical connection path; signal processing is performed by HIMA safety controllers and I/O modules.
What should be checked when replacing this cable plug?
Engineers should confirm the exact model number, cable length, connector compatibility, installation routing, and signal continuity after replacement.
