Product Overview

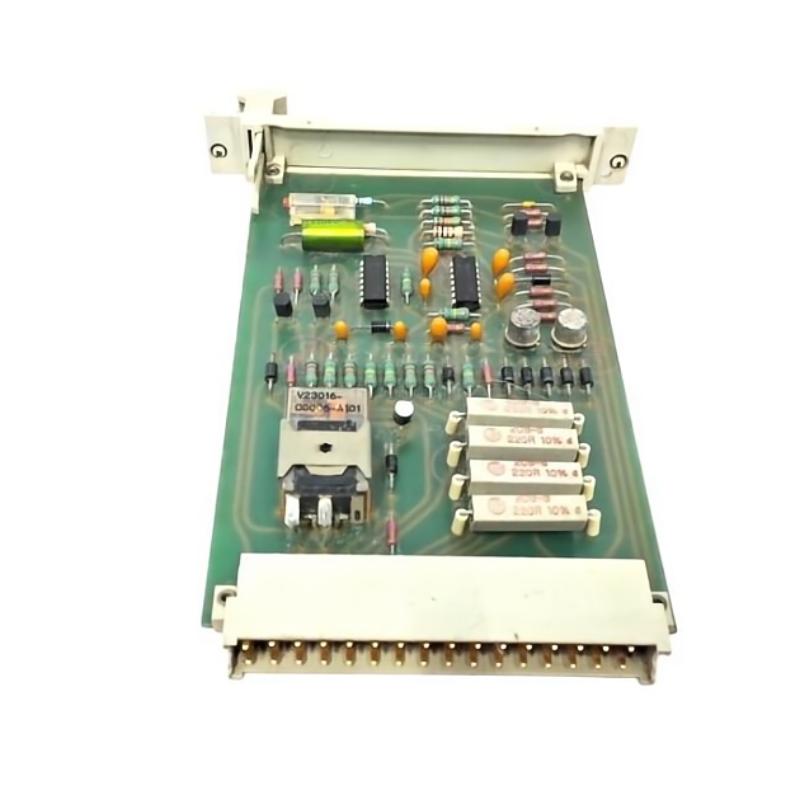

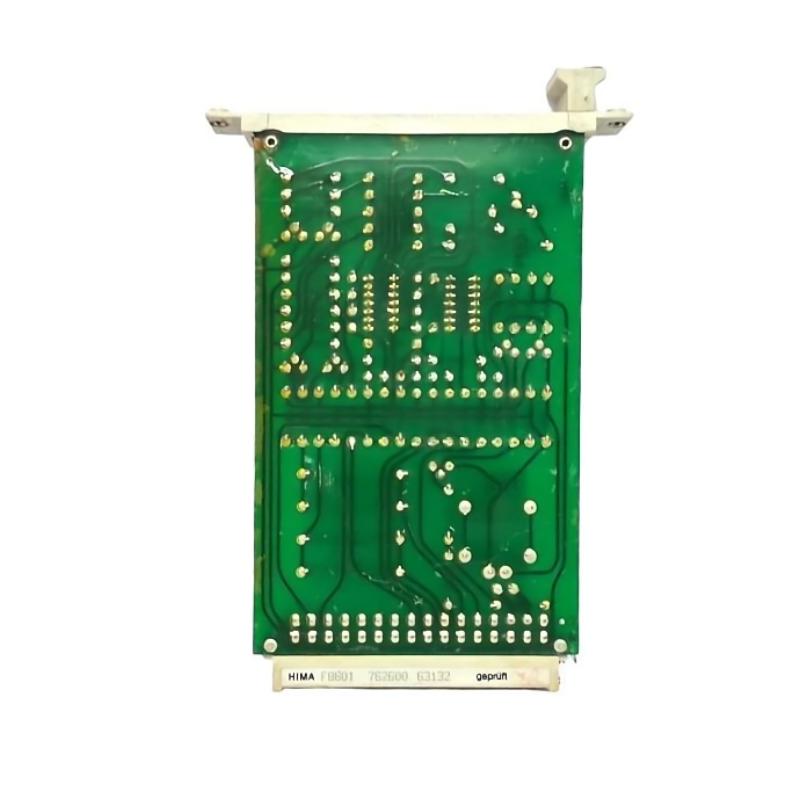

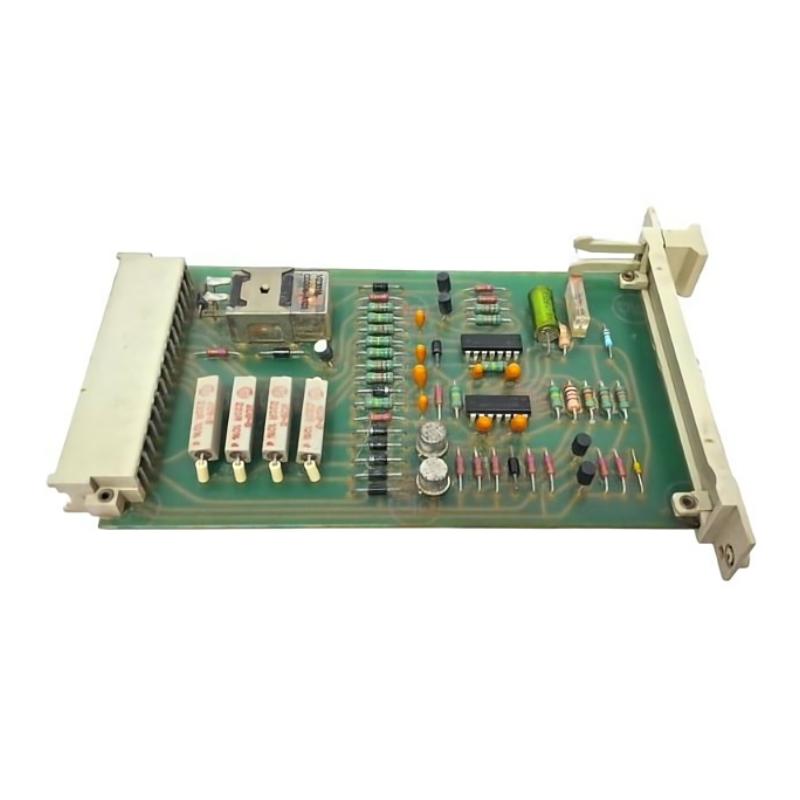

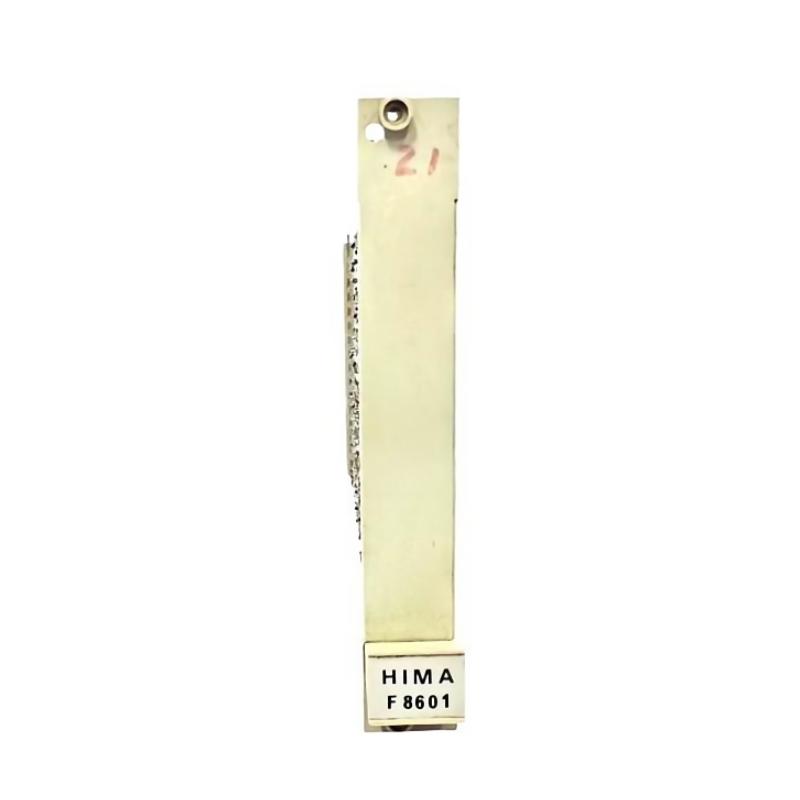

The HIMA F8601 is an Alarm System CPU Module designed for the Planar F safety and automation system. It serves as the central processing unit for alarm management, coordinating signals from various safety inputs and generating outputs for alarm devices. This module ensures fast, reliable, and deterministic alarm processing, which is critical in industrial safety systems where timely notification of hazardous conditions is essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | HIMA |
| Model | F8601 |
| Product Type | Alarm System CPU Module |
| System Compatibility | Planar F Safety System |
| Function | Central processing of alarm signals and coordination of alarm outputs |
| Dimensions | 160 × 100 × 50 mm |
| Weight | 0.49 kg |
| Processing Type | Safety-certified CPU for alarm management |
| Channels | Multiple alarm input/output channels (depending on configuration) |
| Mounting | DIN rail or Planar F system rack |
| Operating Environment | Industrial safety and automation systems |
Function and Working Principle
The F8601 module operates by:
- Receiving input signals from digital or analog safety modules
- Processing alarm logic according to pre-configured safety parameters
- Activating alarm outputs to devices such as sirens, lights, or control panels
- Providing fail-safe operation to ensure alarms are correctly triggered under fault conditions
- Coordinating multiple alarm channels for centralized monitoring and management
This allows operators to detect and respond to abnormal or hazardous process conditions in real-time.
Role in Industrial Automation
The F8601 plays a vital role by:
- Monitoring critical safety inputs in industrial processes
- Providing deterministic alarm outputs for safety notifications
- Enhancing safety integrity by ensuring timely alerts
- Serving as the core of alarm management systems in Planar F installations
Industrial Applications
Typical applications include:
- Process industries such as chemical, petrochemical, and oil & gas
- Emergency shutdown (ESD) and fire & gas detection systems
- Safety-critical alarm management for plant operators
- Centralized alarm handling in industrial control rooms
Installation and Usage
Installation steps:
- Mount the F8601 CPU module on a DIN rail or Planar F system rack
- Connect input signals from field sensors or digital I/O modules
- Connect output channels to alarm devices such as sirens, lights, or displays
- Configure the module using HIMA Planar F software to define alarm thresholds and logic
- Test all inputs and outputs to ensure correct and fail-safe alarm operation
Its compact and lightweight design allows easy integration into control panels.
Compatible System Components
- HIMA Planar F Input Modules (DI/AI)
- HIMA Planar F Output Modules (DO/Relay/Amplifier)
- Alarm devices: sirens, buzzers, lights, and panels
- HIMA Planar F system rack and backplane
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| HIMA F8601 | Alarm System CPU Module | Central alarm processing | Planar F safety system alarm management |
| HIMA F8602 | Alarm CPU Module | Enhanced processing for larger systems | Large-scale alarm monitoring |
| HIMA F8600 | Alarm Interface Module | Signal conditioning and relay outputs | Small or medium alarm installations |
Key Advantages
- Fail-safe alarm processing for safety-critical systems
- Deterministic response to input signals
- Centralized coordination of multiple alarm channels
- Compact and easy to install in Planar F systems
- Reliable and industrial-grade design
Technical FAQs
What is the main purpose of the F8601 module?
It processes alarm signals from input modules and triggers outputs to alarm devices in a fail-safe manner.
How many alarms can it handle?
The number of alarm channels depends on the system configuration, but it supports multiple channels for centralized alarm management.
Is it compatible with Planar F modules?
Yes, it is fully compatible with Planar F input/output and communication modules.
Does it provide fail-safe operation?
Yes, all alarms are processed deterministically with fail-safe operation, ensuring reliability in safety-critical environments.
Conclusion
The HIMA F8601 Alarm System CPU Module is a reliable and compact solution for centralized alarm management in Planar F safety systems. It ensures fail-safe operation, deterministic alarm handling, and seamless integration with field devices, making it ideal for industrial safety-critical applications where timely alerts are essential.
