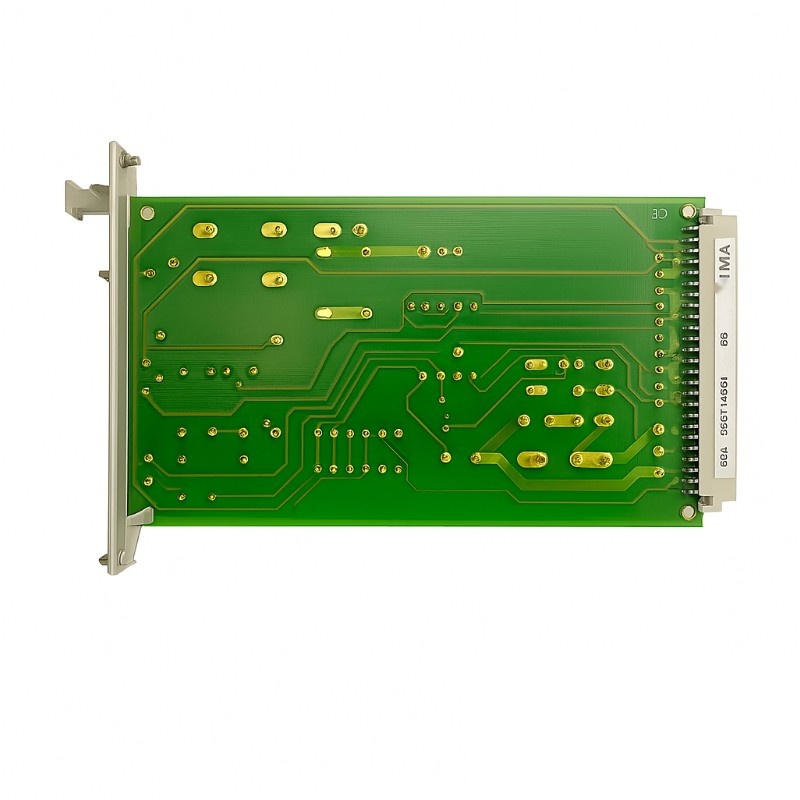

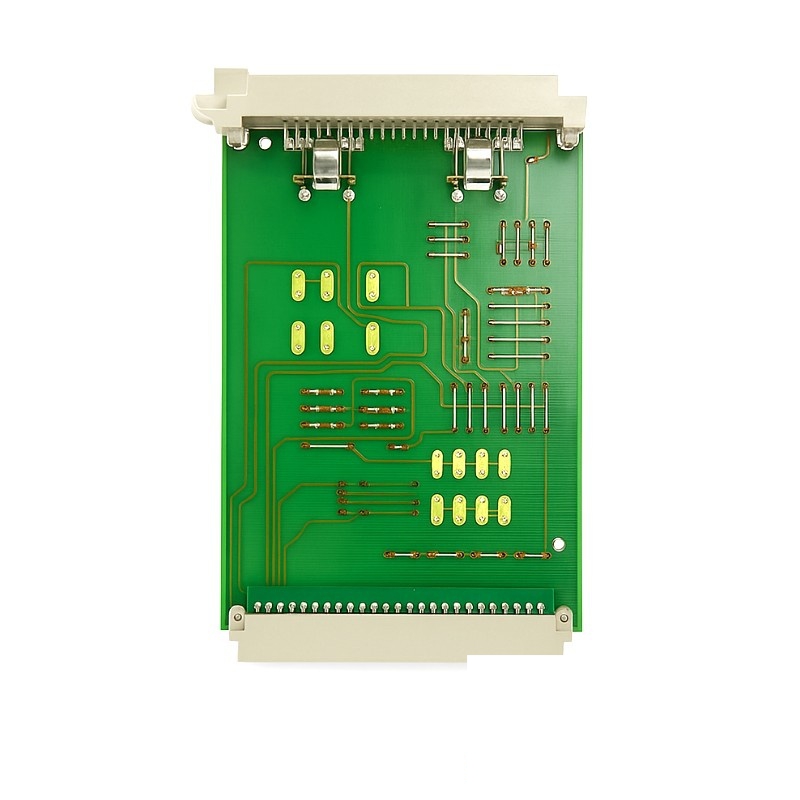

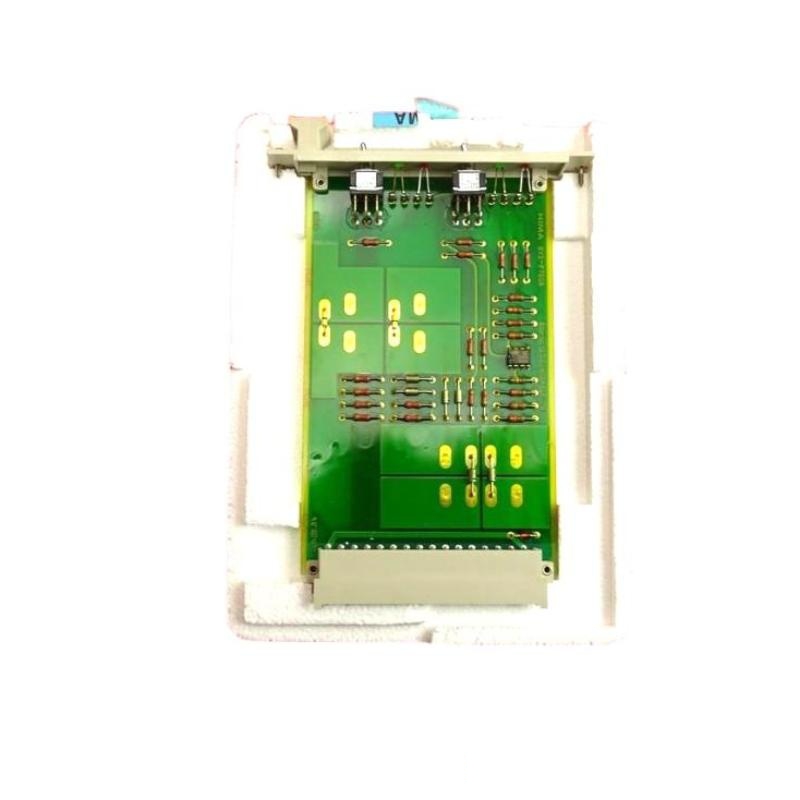

HIMA F7508 Bypass Module
Product Overview:
The HIMA F7508 is a bypass module that is part of the Planar F Series by HIMA, designed to provide high-performance functionality in critical industrial safety systems. This module is used primarily in safety-related applications, such as process control, emergency shutdown systems, and fire and gas detection systems, ensuring that operations can continue safely even in the event of maintenance or a fault condition.
The F7508 bypass module acts as an intermediary between the control system and safety devices, allowing for the temporary bypassing of safety systems when required for maintenance or testing. This ensures that processes can continue running while safety functions are temporarily disabled, thereby preventing unnecessary shutdowns and increasing the uptime of industrial operations. The F7508 is designed to integrate seamlessly with other HIMA safety control modules and provides reliable performance, even in the most demanding environments.
Technical Specifications:
| Parameter | Value |
|---|---|
| Dimensions | 100 x 50 x 25 mm |
| Weight | 0.1 kg |
| Input Channels | 8 Bypass Channels |
| Output Channels | 8 Output Channels |
| Power Supply | 24 V DC |
| Communication Protocol | Modbus RTU |
| Response Time | 5 ms |
| Operating Temperature | -20°C to +70°C |
| Environmental Rating | IP20 |
| Mounting Type | DIN Rail Mount |
| Diagnostic LEDs | Yes |
| Status Indication | Yes |
Applications:
-
Safety Systems Bypass: The HIMA F7508 is primarily used in safety-critical applications, allowing for temporary bypassing of safety functions without compromising the overall system integrity.
-
Process Control Systems: In process control systems, the module ensures smooth operation by enabling maintenance without causing system shutdowns.
-
Emergency Shutdown Systems: The module is essential in emergency shutdown systems, where it can be used to temporarily bypass safety devices for testing or maintenance.
-
Fire and Gas Detection Systems: It is also utilized in fire and gas detection systems to maintain functionality during system testing or repairs without disrupting operations.
-
Preventive Maintenance: In preventive maintenance scenarios, the F7508 helps reduce unnecessary downtimes by providing a bypass for system checks and tests.
Advantages:
-
Increased System Uptime: By allowing for the temporary bypassing of safety systems, the F7508 helps to ensure that industrial processes remain uninterrupted during maintenance or testing.
-
Reliable Performance: With an IP20 rating and robust construction, the F7508 is designed to function reliably even in harsh industrial environments.
-
Quick Integration: The F7508 integrates seamlessly with other HIMA safety control modules, making it ideal for users with existing HIMA systems.
-
Fast Response Time: With a response time of 5 ms, the module ensures quick switching between normal operation and bypass modes, minimizing downtime.
-
Low Power Consumption: Operating at 24 V DC, the F7508 is energy-efficient, reducing overall operational costs.
-
Compact Design: With a compact size of 100 x 50 x 25 mm, it is space-efficient and can be easily installed in tight control panels.
-
Diagnostic LEDs: The presence of LED indicators allows for easy monitoring and troubleshooting of the module, ensuring system reliability.
Brand and Series:
-
Brand: HIMA
-
Series: Planar F Series
The HIMA F7508 is part of the Planar F Series, a range of high-quality safety control modules designed for industrial applications that require high reliability, robustness, and seamless integration with other HIMA products.
Recommended Products from the Same Series:
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| F7507 | Safety relay module | 100 x 50 x 25 mm | 0.1 kg |
| F7509 | Digital output module | 100 x 50 x 25 mm | 0.1 kg |
| F7510 | Analog input module | 100 x 50 x 25 mm | 0.1 kg |
| F7511 | Input/output communication module | 100 x 50 x 25 mm | 0.1 kg |
| F7512 | Emergency shutdown relay module | 100 x 50 x 25 mm | 0.1 kg |
Recommended Popular Models from HIMA:
| Model | Description | Dimensions (mm) |
|---|---|---|
| F6101 | Analog input module, 8-channel, standard configuration | 120 x 80 x 45 |
| F6202 | Digital input/output module, 16-channel, isolated | 130 x 100 x 50 |
| F6205 | Digital output module, 8-channel, high-voltage support | 130 x 100 x 50 |
| F6102 | Analog input module, 16-channel, high-precision | 120 x 80 x 45 |
| F6206 | Digital input/output module, 16-channel, with extended diagnostics | 130 x 100 x 50 |
FAQ for HIMA F7508 Bypass Module:
Q1: What is the purpose of the F7508 bypass module?
A1: The F7508 is designed to temporarily bypass safety systems during maintenance or testing, allowing processes to continue without unnecessary shutdowns.
Q2: How does the F7508 module integrate with other HIMA products?
A2: The F7508 is part of the Planar F Series, designed for easy integration with other HIMA safety control modules in your existing systems.
Q3: What is the input and output configuration of the F7508?
A3: The F7508 module has 8 bypass input channels and 8 output channels, providing sufficient flexibility for typical industrial safety applications.
Q4: What is the power supply required for the F7508?
A4: The F7508 operates on a 24 V DC power supply, making it compatible with most industrial control systems.
Q5: What is the response time of the F7508?
A5: The F7508 has a response time of 5 ms, ensuring quick switching between bypass and normal operation modes.
Q6: Is the F7508 module suitable for outdoor use?
A6: The F7508 has an IP20 rating, which means it is suitable for use in indoor industrial environments but is not designed for outdoor exposure.
Q7: How is the F7508 mounted in a control panel?
A7: The F7508 is designed for DIN rail mounting, allowing for easy installation in standard control panels.
Q8: Does the F7508 module provide diagnostic features?
A8: Yes, the F7508 includes LED indicators for status monitoring and diagnostics, ensuring easy troubleshooting.
Q9: What is the operating temperature range of the F7508?
A9: The F7508 operates within a temperature range of -20°C to +70°C, making it suitable for a variety of industrial environments.
Q10: Can the F7508 be used in safety-critical applications?
A10: Yes, the F7508 is specifically designed for use in safety-critical systems, ensuring high reliability and performance when bypassing safety devices.
