✅ HIMA F6217 — Full Product Overview & Specifications (English)
1. Product Overview
Brand: HIMA
Series: Safety-Related I/O Modules / Analog Input Modules

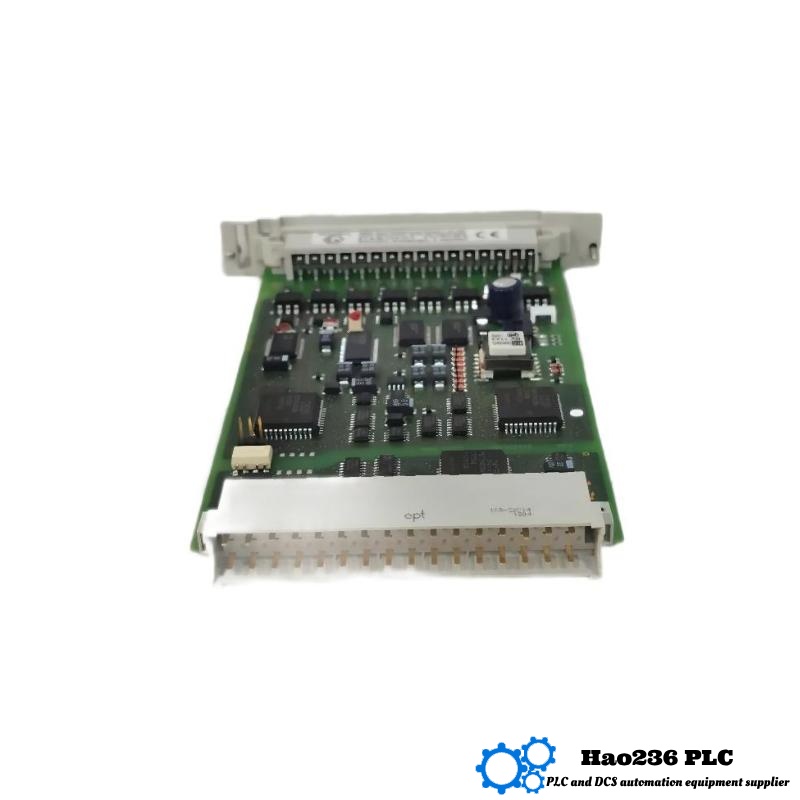

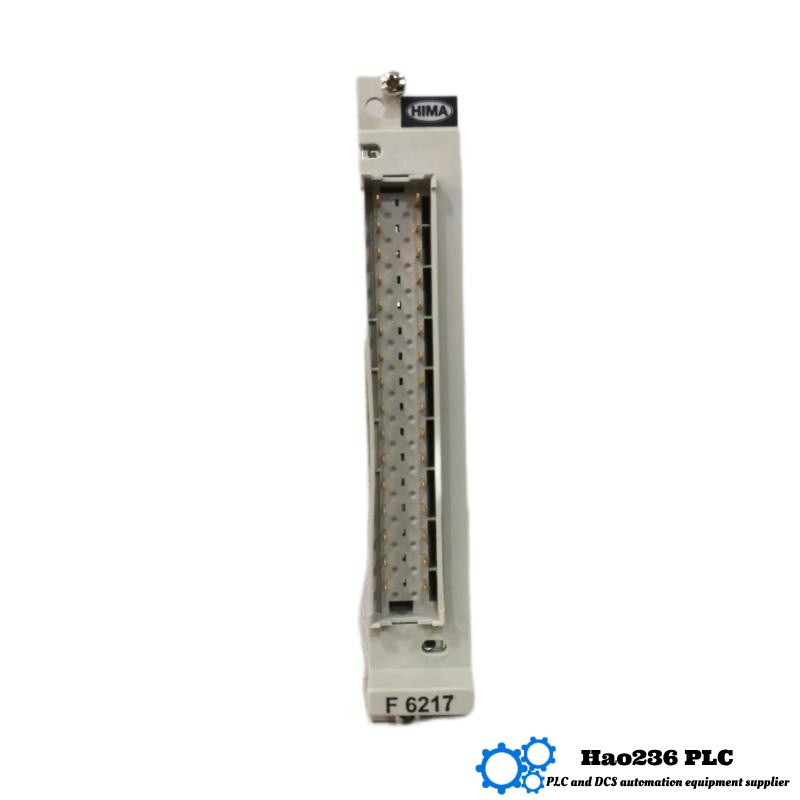

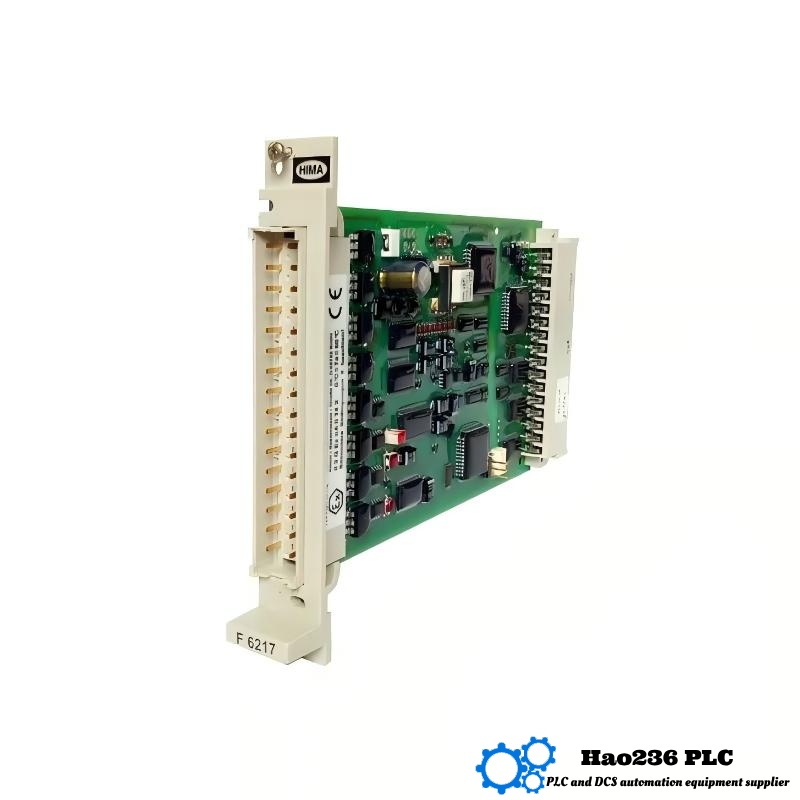

The HIMA F6217 is an 8-channel analog input module designed for high-integrity industrial automation systems. It is engineered to interface with field instrumentation such as transmitters and sensors, converting analog current or voltage signals into digital values for safe processing within the logic controller. With built-in diagnostics, isolation, and support for industry safety standards (SIL3), it is suited for mission-critical applications in hazardous environments.
2. Technical Specifications
| Parameter | Value |
|---|---|
| Model | F6217 (Part No. 984621702) |
| Number of Channels | 8 Analog Input Channels |
| Input Types | Voltage / Current |
| Input Range | 0/4–20 mA, 0–5 V, 0–10 V (some versions support up to 5.5 V) |
| Resolution | 12-bit |
| Input Resistance | Approx. 100 kΩ |
| Isolation | Galvanic isolation per channel |
| Safety Integrity Level (SIL) | SIL 3 (IEC 61508 / IEC 61511) |
| Response Time | < 450 ms |
| Diagnostic Features | Short circuit, wire break detection, over/undervoltage protection, internal diagnostics |
| Operating Temperature | ‑40°C to +70°C |
| Storage Temperature | ‑40°C to +85°C |
| Dimensions | Approx. 90 × 90 × 60 mm |
| Weight | Approx. 0.3 kg (varies from 0.3–0.6 kg depending on supplier data) |
| Certifications | SIL3, IEC standards-compliant |
| Mounting | DIN Rail or standard cabinet |
3. Key Advantages
-
SIL 3 Certified: Meets stringent safety integrity standards for critical operations.
-
High Input Flexibility: Supports both voltage and current signals.
-
Multi-Channel Efficiency: Handles 8 analog inputs in one module, ideal for dense installations.
-
Robust Diagnostics: Built-in self-tests and fault detection for increased reliability.
-
Electrical Isolation: Ensures safety between channels and system bus.
-
Compact Design: Small footprint allows easy cabinet integration.
-
Wide Temperature Range: Operates in extreme industrial environments.
-
Failsafe Performance: Designed for safe shutdown in case of fault detection.
4. Typical Applications
The F6217 module is commonly used in:
-
Oil & Gas: Monitor pressure, level, temperature, and flow with shutdown interlocks.
-
Chemical Plants: Ensure safe reactor and tank operation under hazardous conditions.
-
Power Plants: Used for boiler, turbine, and water treatment analog measurements.
-
Pharmaceutical Manufacturing: Monitor environmental conditions and production parameters.
-
Water & Wastewater Treatment: Control of flow, level, and chemical dosing systems.
-
Food & Beverage: Process temperature and flow monitoring for product quality.
-
Fire & Gas Systems: Monitor gas levels, flame detectors, and trigger alarms.
5. Related Models – Same Series / Similar Functions
| Model | Channels | Input Type | Resolution | SIL | Weight | Notes |
|---|---|---|---|---|---|---|
| F6214 | 8 | Voltage / Current | 12-bit | SIL 3 | ~0.3 kg | Similar to F6217 with minor spec variation |
| F6215 | 8 | Voltage / Current | 12-bit | SIL 3 | ~0.3 kg | Enhanced diagnostic range |
| F3311 | Multi | Analog | ±0.1% | SIL 3 | ~0.5 kg | High-accuracy analog input |
| F3405 | N/A | Voltage / Current Monitor | N/A | SIL 3 | ~0.2 kg | Power monitoring module |
| F3236 | Mixed | Analog + Digital | 12-bit (analog) | SIL 3 | ~0.35 kg | Combines analog and digital inputs |
6. Popular Models by the Same Brand
| Model | Type | Features | SIL | Weight | Use Case |
|---|---|---|---|---|---|
| F8627X | CPU / Controller | Multi-core, high-speed | SIL 3 | ~1–2 kg | Central controller for safety logic |
| F8650X | I/O Expansion | Analog + Digital | SIL 3 | ~0.5–1 kg | Expands I/O capacity |
| K9203 | Interface Module | Communication bridge | SIL 3 | ~0.8 kg | Connects networks / protocols |
| F3330 | I/O Module | Mixed signal processing | SIL 3 | ~0.5 kg | Combined analog + digital I/O |
| H4135A | High-Speed Module | Fast response, high throughput | SIL 3 | ~0.7–1 kg | Used in high-speed applications |
7. Frequently Asked Questions (FAQ)
Q1: What input signals does the F6217 support?
A1: The F6217 supports standard analog signals including 0–20 mA, 4–20 mA, 0–5 V, and 0–10 V.
Q2: Is this module certified for functional safety applications?
A2: Yes. It is certified to Safety Integrity Level 3 (SIL3) under IEC 61508 and IEC 61511 standards.
Q3: Are the channels electrically isolated?
A3: Yes. Each channel is galvanically isolated to prevent signal interference and improve system safety.
Q4: What’s the response time for the module?
A4: The typical response time is less than 450 ms for fault detection and signal processing.
Q5: What’s the resolution and accuracy?
A5: The module features 12-bit resolution, offering precise analog input readings.
Q6: Is self-diagnosis available?
A6: Yes. It includes features like short circuit detection, wire break detection, overvoltage and undervoltage protection.
Q7: What is the module’s operating temperature range?
A7: It operates between -40°C and +70°C, suitable for harsh environments.
Q8: Can it be hot-swapped?
A8: No. Hot-swapping is generally not supported for safety-critical I/O modules like this one.
Q9: What is the module’s weight?
A9: The weight is approximately 0.3 kg, though some versions may weigh up to 0.55 kg.
Q10: What are its installation requirements?
A10: The module is DIN-rail mountable and should be installed in a protective cabinet with shielded cables for best performance.
