📘 Product Overview: HIMA F3330
1. Product Description

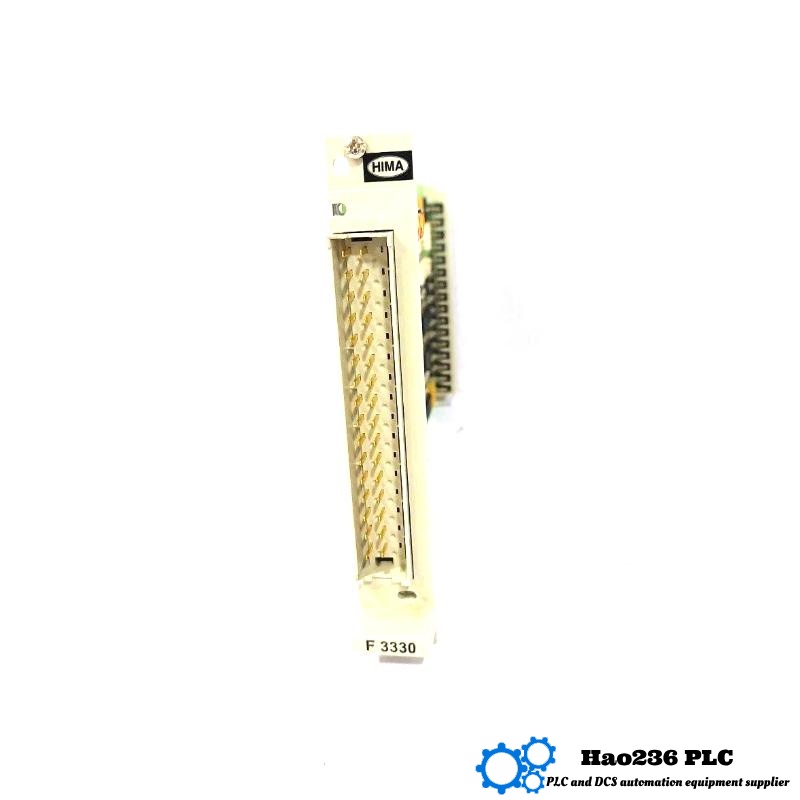

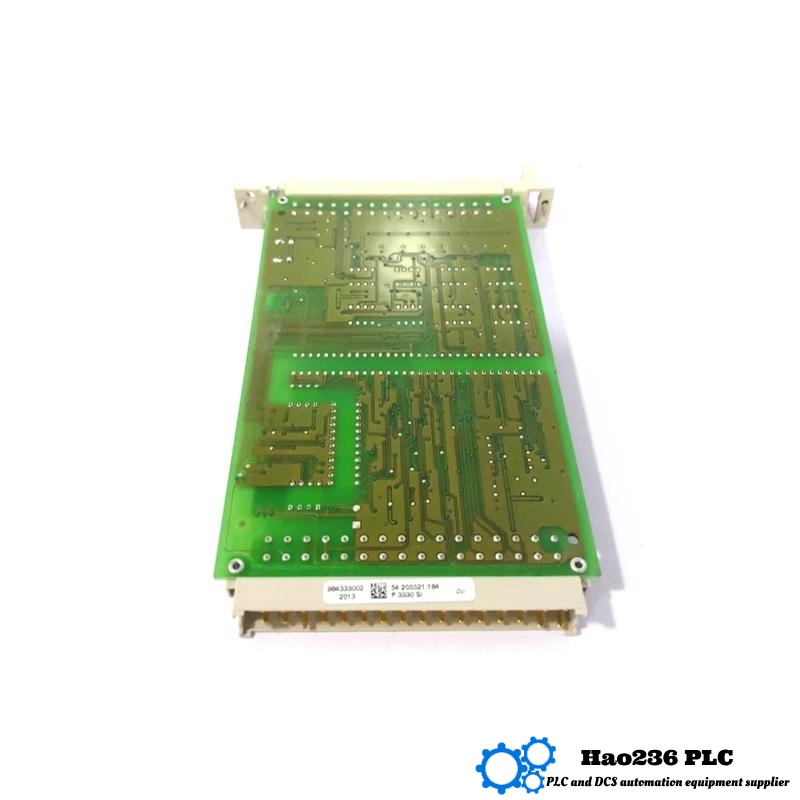

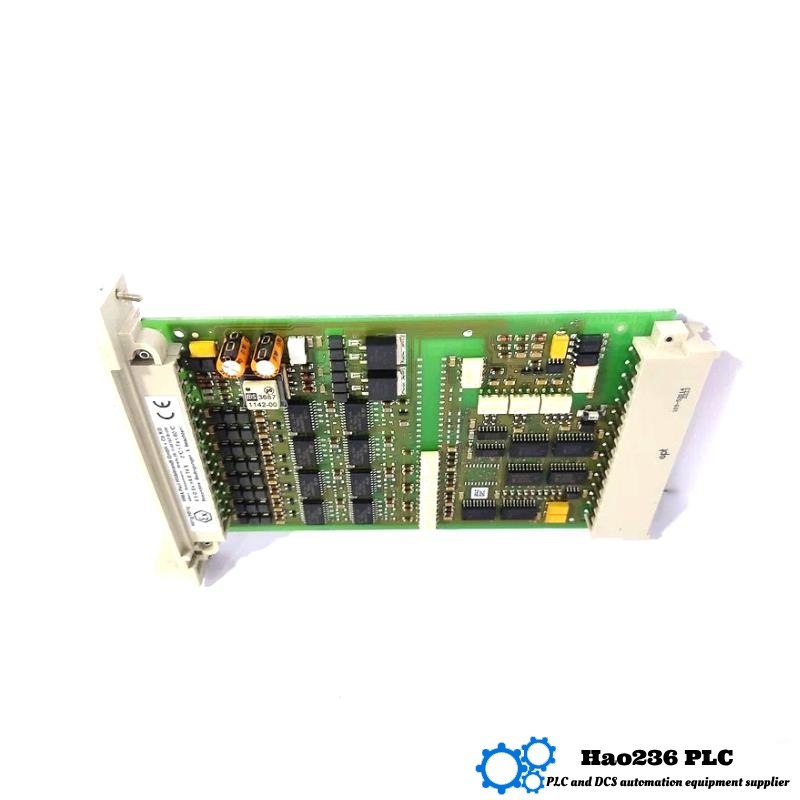

The HIMA F3330 is a high-performance digital output module designed for safety-critical applications in industrial automation systems. It provides 8 independent channels capable of controlling resistive and inductive loads up to 500 mA (12 W), including lamp connections up to 4 W. Each channel features short-circuit protection and a low internal voltage drop of ≤2 V at full load, ensuring stable operation in power-sensitive environments. The module’s fail-safe design automatically deactivates outputs during undervoltage conditions (tripping at 16 V DC), prioritizing system safety.
2. Technical Specifications
| Parameter | Details |
|---|---|
| Model | HIMA F3330 |
| Product Type | 8-channel Digital Output Module |
| Output Channels | 8 |
| Output Voltage | 24 V DC |
| Output Current per Channel | 500 mA (12 W) |
| Lamp Connection | Up to 4 W |
| Internal Voltage Drop | ≤2 V at full load |
| Undervoltage Tripping | 16 V DC |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Protection Rating | IP20 |
| Mounting | 4 TE space requirement |
| Dimensions (W×H×D) | 140 mm × 70 mm × 130 mm |
| Weight | 0.8 kg |
3. Applications
-
Power Generation: The module is suitable for controlling digital outputs in power plants, enabling reliable and secure power generation.
-
Oil and Gas Industry: It finds applications in the oil and gas sector for controlling digital output signals in critical processes, ensuring operational safety.
-
Manufacturing: The module is utilized in manufacturing facilities to regulate digital outputs in production lines, improving productivity and quality.
4. Key Advantages
-
Enhanced Control: The HIMA F3330 module provides precise and reliable control over digital output signals, ensuring accurate operation of industrial processes.
-
Improved Efficiency: With its high-speed operation and diagnostic capabilities, it optimizes industrial operations, reducing downtime and enhancing productivity.
-
Robust Design: Built to withstand harsh industrial environments, the module ensures long-term reliability and performance.
-
Compliance with Standards: The module meets industry standards, providing confidence in its safety and reliability.
5. Brand and Series Information
-
Brand: HIMA
-
Series: HIMatrix F3
6. Related Models from the Same Series
| Model | Function | Key Feature Differences | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F3331 | 8-channel Digital Output Module | Similar to F3330 but with enhanced features | 140 × 70 × 130 | 0.8 |
| F3332 | 16-channel Digital Output Module | Provides 16 digital output channels | 140 × 70 × 130 | 1.2 |
| F3333 | 4-channel Digital Output Module | Offers 4 digital output channels | 140 × 70 × 130 | 0.6 |
| F3334 | 8-channel Digital Input Module | Provides 8 digital input channels | 140 × 70 × 130 | 0.8 |
| F3335 | 16-channel Digital Input Module | Offers 16 digital input channels | 140 × 70 × 130 | 1.2 |
7. Popular Models from the Same Brand
| Model | Application Type | Highlight Features | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F8652E | Safety CPU Module | Dual-redundant processors, SIL 3 certified | 100 × 80 × 25 | 0.42 |
| F8650X | High-End CPU Module | Increased processing and communication capacity | 100 × 80 × 40 | 0.55 |
| F8627X | Communication Interface Module | Expanded protocol support | 120 × 100 × 80 | 0.50 |
| F8621A | Serial Communication Module | RS-232/485 extensions | 120 × 80 × 30 | 0.20 |
| F7553 | Digital Input Module | High-density digital input solution | 100 × 80 × 25 | 0.35 |
8. FAQ (10 Questions & Answers)
Q1: What is the input voltage range for the HIMA F3330?
A1: The HIMA F3330 operates at 24 V DC.
Q2: How many output channels does the HIMA F3330 have?
A2: The HIMA F3330 has 8 digital output channels.
Q3: What is the maximum output current per channel?
A3: Each channel can handle up to 500 mA (12 W).
Q4: What is the internal voltage drop at full load?
A4: The internal voltage drop is ≤2 V at full load.
Q5: What is the undervoltage tripping point?
A5: The module trips at 16 V DC.
Q6: What is the operating temperature range?
A6: The operating temperature range is -40°C to +70°C.
Q7: What is the storage temperature range?
A7: The storage temperature range is -40°C to +85°C.
Q8: What is the protection rating of the module?
A8: The module has an IP20 protection rating.
Q9: Can the HIMA F3330 be used with inductive loads?
A9: Yes, the module is capable of driving both resistive and inductive loads up to 12 W per channel.
Q10: Does the F3330 have short-circuit protection?
A10: Yes, each channel is equipped with built-in short-circuit protection to ensure system safety and longevity.
