📘 Product Overview: HIMA F3236
1. Product Description

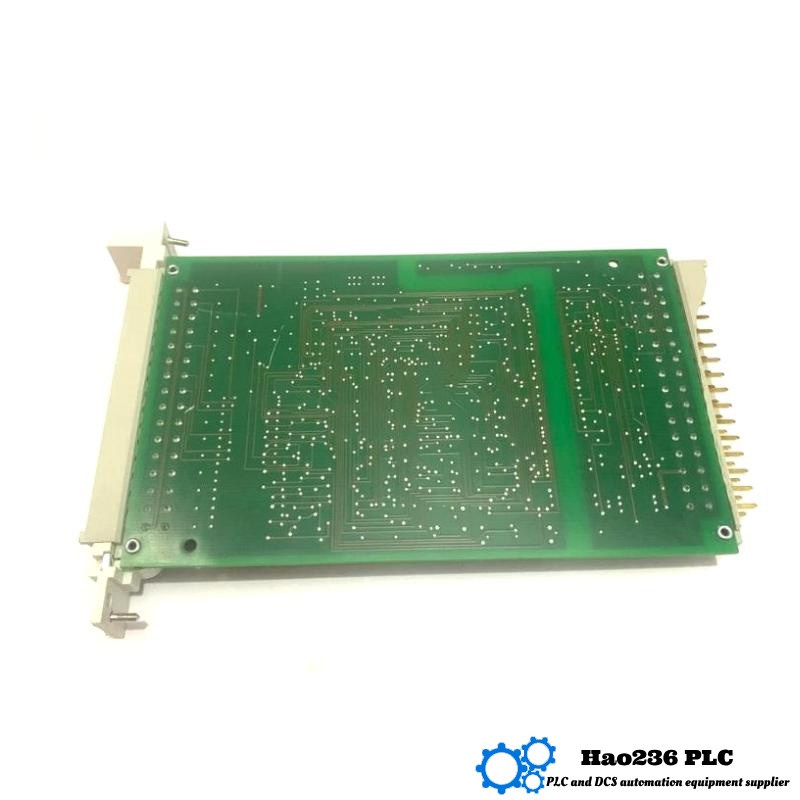

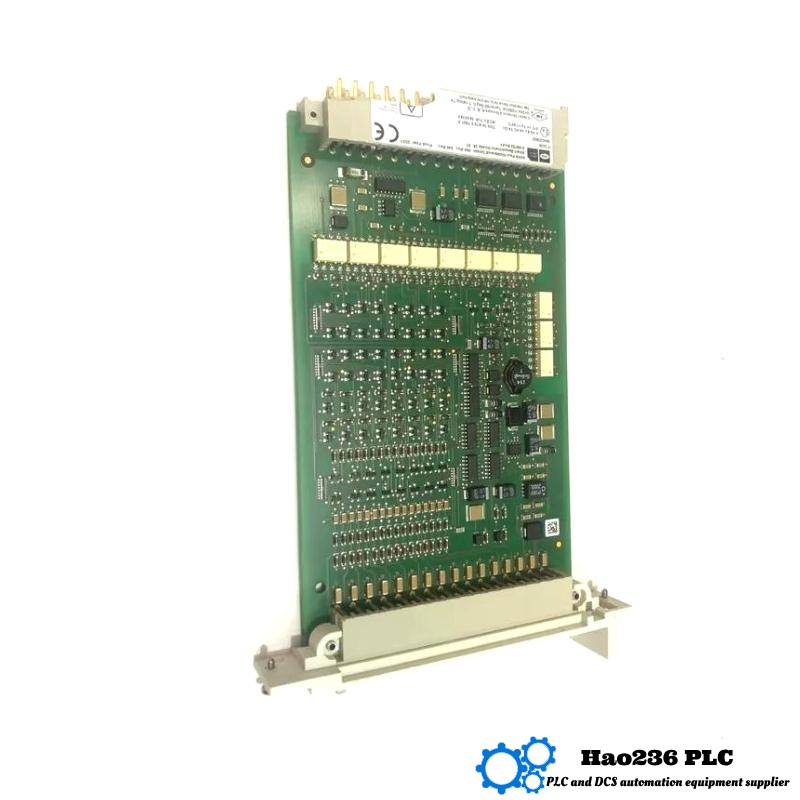

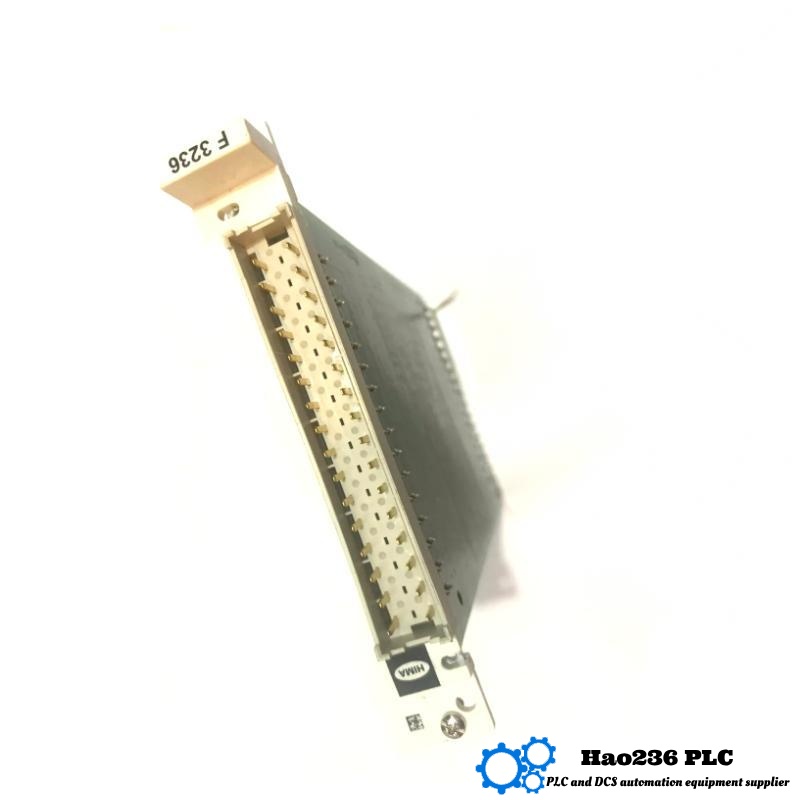

The HIMA F3236 is a high-performance 16-channel digital input module designed for safety-critical applications in industrial automation systems. It serves as a crucial component for acquiring and processing digital signals from sensors, switches, and other field devices. The module converts physical input states, such as the on/off status of mechanical contacts or voltage signals, into standardized digital data that can be interpreted by PLC systems, enabling precise monitoring and control of industrial processes.
2. Technical Specifications
| Parameter | Details |
|---|---|
| Model | F3236 |
| Product Type | 16-channel Digital Input Module |
| Input Types | 1-signal (6 mA) or mechanical contact (24 V DC) |
| Number of Channels | 16 |
| Switching Time | Typical 8 ms |
| Power Supply | 5 V DC (120 mA) or 24 V DC (200 mA) |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% non-condensing |
| Protection Rating | IP20 |
| Mounting | 4 TE space requirement |
| Dimensions (W×H×D) | 105 mm × 125 mm × 20.3 mm |
| Weight | 0.1 kg |
3. Applications
-
Chemical and Petrochemical Plants: Monitoring and controlling various equipment and processes to ensure stable operation and safety.
-
Manufacturing Industry: Receiving and processing signals from sensors, switches, and other devices to achieve automation and intelligence in the production process.
-
Electricity and Transportation: Helping achieve stable operation of the power system and ensuring the safety of the transportation system.
-
Fire and Gas Detection Systems: Used for data collection and control operations in safety-critical environments.
4. Key Advantages
-
High Accuracy Signal Processing: Ensures minimal error in digital input capture, critical for safety applications.
-
Flexible Configuration: Allows adaptation to specific industrial requirements, including input type selection.
-
Advanced Self-Diagnostics: Performs comprehensive tests during operation, reducing manual inspections and identifying potential issues proactively.
-
Robust Design: Built to withstand harsh industrial environments, ensuring reliable performance.
-
Wide Compatibility: Seamlessly integrates with various industrial automation systems, enhancing system flexibility.
5. Recommended Models from the Same Series
| Model | Function | Key Feature Differences | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F3237 | 16-channel Digital Output Module | Provides 16 digital output channels | 105 × 125 × 20.3 | 0.1 |
| F3238 | 8-channel Analog Input Module | Offers 8 analog input channels | 105 × 125 × 20.3 | 0.1 |
| F3239 | 8-channel Analog Output Module | Provides 8 analog output channels | 105 × 125 × 20.3 | 0.1 |
| F3240 | 16-channel Digital Input Module | Similar to F3236 but with enhanced features | 105 × 125 × 20.3 | 0.1 |
| F3241 | 8-channel Digital Input Module | Offers 8 digital input channels | 105 × 125 × 20.3 | 0.1 |
6. Popular Models from the Same Brand
| Model | Application Type | Highlight Features | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F8652E | Safety CPU Module | Dual-redundant processors, SIL 3 certified | 100 × 80 × 25 | 0.42 |
| F8650X | High-End CPU Module | Increased processing and communication capacity | 100 × 80 × 40 | 0.55 |
| F8627X | Communication Interface Module | Expanded protocol support | 120 × 100 × 80 | 0.50 |
| F8621A | Serial Communication Module | RS-232/485 extensions | 120 × 80 × 30 | 0.20 |
| F7553 | Digital Input Module | High-density digital input solution | 100 × 80 × 25 | 0.35 |
7. FAQ (10 Questions & Answers)
Q1: What input types does the F3236 support?
A1: The F3236 supports 1-signal (6 mA) and mechanical contact (24 V DC) inputs.
Q2: How many channels does the F3236 have?
A2: The F3236 has 16 channels for digital input.
Q3: What is the typical switching time for the F3236?
A3: The typical switching time is 8 ms.
Q4: What is the power supply requirement for the F3236?
A4: The F3236 operates on 5 V DC (120 mA) or 24 V DC (200 mA).
Q5: What is the operating temperature range for the F3236?
A5: The operating temperature range is -25°C to +60°C.
Q6: What is the storage temperature range for the F3236?
A6: The storage temperature range is -40°C to +85°C.
Q7: What is the protection rating of the F3236?
A7: The F3236 has an IP20 protection rating.
Q8: What is the space requirement for mounting the F3236?
A8: The F3236 requires 4 TE space for mounting.
Q9: What are the dimensions of the F3236?
A9: The dimensions are 105 mm × 125 mm × 20.3 mm.
Q10: What is the weight of the F3236?
A10: The weight is 0.1 kg.
