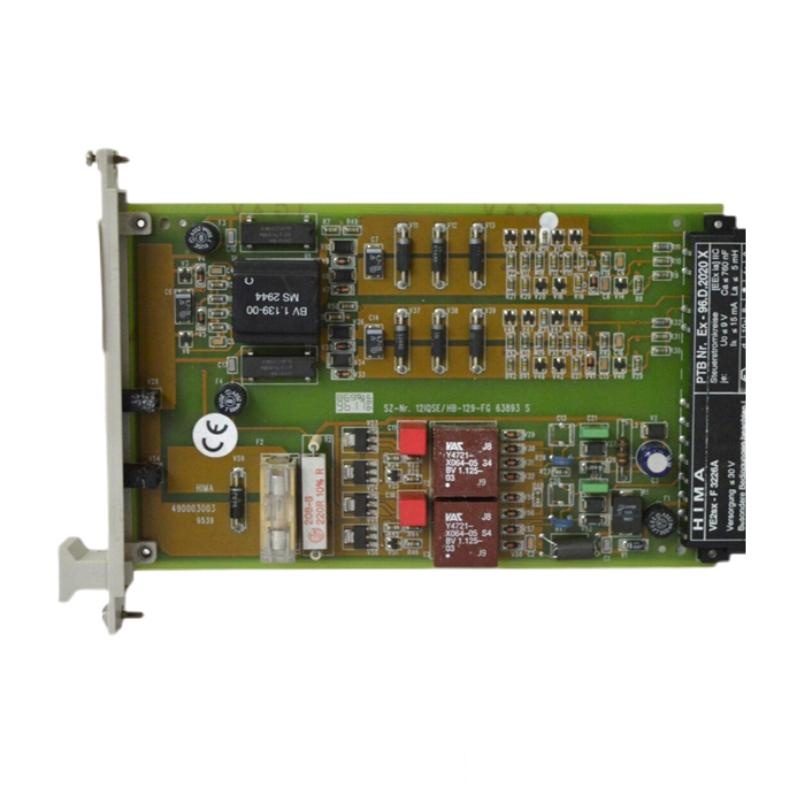

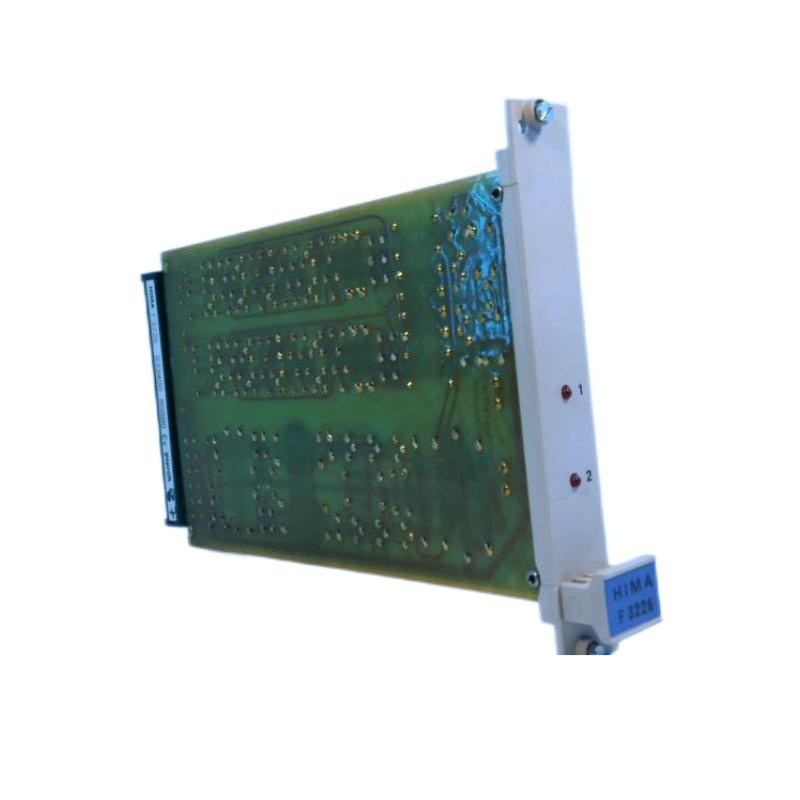

HIMA F3226 2-Channel Safety-Related Switch Amplifier Module
Product Introduction:
The HIMA F3226 is a highly reliable 2-channel safety-related switch amplifier module designed for industrial applications where functional safety is crucial. It is part of the Planar F series and provides a fail-safe interface between sensors and safety systems, offering exceptional protection against hazards and ensuring the safety of processes in critical environments. The F3226 is designed to amplify signals from switches, enabling safe and precise detection of critical conditions. This module is highly effective for use in systems where safety is paramount, such as emergency stop systems, process control, and safety interlocks.
Product Applications:
-
Emergency Stop Systems: The HIMA F3226 is often used in systems that require the immediate shutdown of machinery or processes, such as emergency stop circuits.
-
Safety Interlock Systems: Ideal for safety interlocks in industrial plants, ensuring that certain operations cannot take place unless conditions are safe.
-
Process Control Safety: Used in process industries to ensure safe operations and prevent hazardous conditions through accurate monitoring and response.
-
Machine Safety Systems: Incorporates safety-related functions in machinery, ensuring that machines only operate within safe parameters.
-
Hazardous Area Protection: Suitable for environments where the risk of hazardous conditions demands highly reliable safety measures and fast response times.
Product Advantages:
-
Dual-channel Configuration: The F3226 utilizes a dual-channel architecture to enhance the reliability and redundancy of safety systems, providing an additional layer of protection against potential failures.
-
Failsafe Operation: Designed with inherent safety features to ensure that the system operates in a failsafe manner, even under fault conditions.
-
Compact Design: With its compact size of 193 x 117 x 40 mm, it can be easily integrated into existing safety systems without taking up excessive space.
-
High Performance: Provides high performance with fast and accurate signal amplification, making it ideal for time-critical safety applications.
-
Easy Integration: The F3226 module integrates seamlessly with other HIMA safety systems, creating a unified, safe operation environment.
-
Wide Temperature Range: It operates efficiently across a wide temperature range, making it suitable for use in diverse industrial environments.
Brand and Series:
-
Brand: HIMA
-
Series: Planar F Series – Safety Modules
Parameters:
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 193 x 117 x 40 mm |
| Weight | 0.168 kg |
| Channels | 2 Channels (Redundant) |
| Input Type | Switch Inputs |
| Output Type | Signal Amplification |
| Supply Voltage | 24 V DC |
| Temperature Range | –40°C to +70°C |
| Mounting Type | DIN Rail Mountable |
| Response Time | Fast response (< 20 ms) |
| Compliance | SIL 3, IEC 61508 |
Recommended Models from the Same Series or Related Models:
| Model | Channels | Dimensions (L x W x H) | Weight | Supply Voltage | Temperature Range | Response Time | Compliance |
|---|---|---|---|---|---|---|---|
| F3225 | 2 Channels | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
| F3216 | 2 Channels | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
| F3230 | 2 Channels | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
| F3231 | 2 Channels | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
| F3240 | 2 Channels | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
Recommended Popular Models from HIMA:
| Model | Channels | Dimensions (L x W x H) | Weight | Supply Voltage | Temperature Range | Response Time | Compliance |
|---|---|---|---|---|---|---|---|
| F3234 | 2 Channels | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
| F3236 | 2 Channels | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
| F3200 | 1 Channel | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
| F3241 | 2 Channels | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
| F3224 | 2 Channels | 193 x 117 x 40 mm | 0.168 kg | 24 V DC | –40°C to +70°C | < 20 ms | SIL 3, IEC 61508 |
FAQ for HIMA F3226 2-Channel Safety-Related Switch Amplifier Module
Q1: What is the HIMA F3226 used for?
A1: The HIMA F3226 is a 2-channel safety-related switch amplifier module used to amplify signals from switches and interface with safety systems to ensure fail-safe operation in industrial applications.
Q2: What is the main advantage of the dual-channel design?
A2: The dual-channel design provides redundancy, ensuring that the system remains operational even in the case of a failure in one channel, enhancing safety and reliability.
Q3: How does the F3226 contribute to safety?
A3: The F3226 is certified to SIL 3 according to IEC 61508 standards, making it suitable for use in safety-critical applications where the risk of failure needs to be minimized.
Q4: What is the operating temperature range of the module?
A4: The F3226 operates within a temperature range of –40°C to +70°C, allowing it to function in both low and high-temperature industrial environments.
Q5: What is the response time of the F3226?
A5: The response time of the module is less than 20 ms, making it ideal for time-critical safety applications.
Q6: What is the size of the module?
A6: The F3226 has compact dimensions of 193 x 117 x 40 mm, making it easy to integrate into safety systems with limited space.
Q7: Can the F3226 be mounted on a DIN rail?
A7: Yes, the F3226 is designed to be mounted on a DIN rail, making installation simple and efficient.
Q8: What is the weight of the F3226 module?
A8: The F3226 weighs only 0.168 kg, which ensures easy handling and installation.
Q9: What type of output does the module provide?
A9: The F3226 provides signal amplification as its output, which is essential for processing and sending signals to the safety system.
Q10: Is the F3226 compatible with other HIMA safety systems?
A10: Yes, the F3226 integrates seamlessly with other HIMA safety systems, enabling a cohesive safety infrastructure for your facility.
