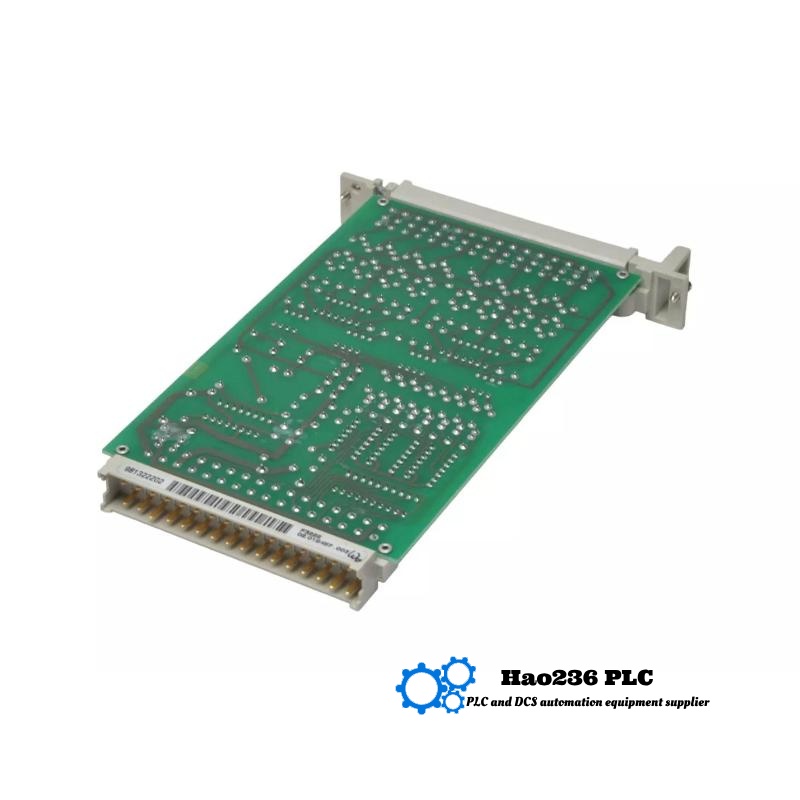

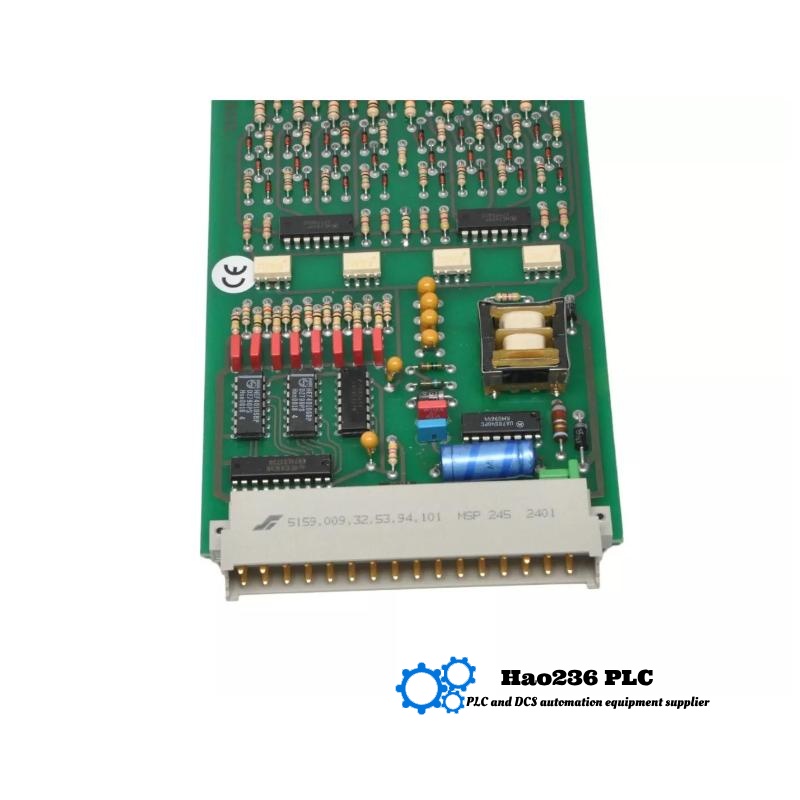

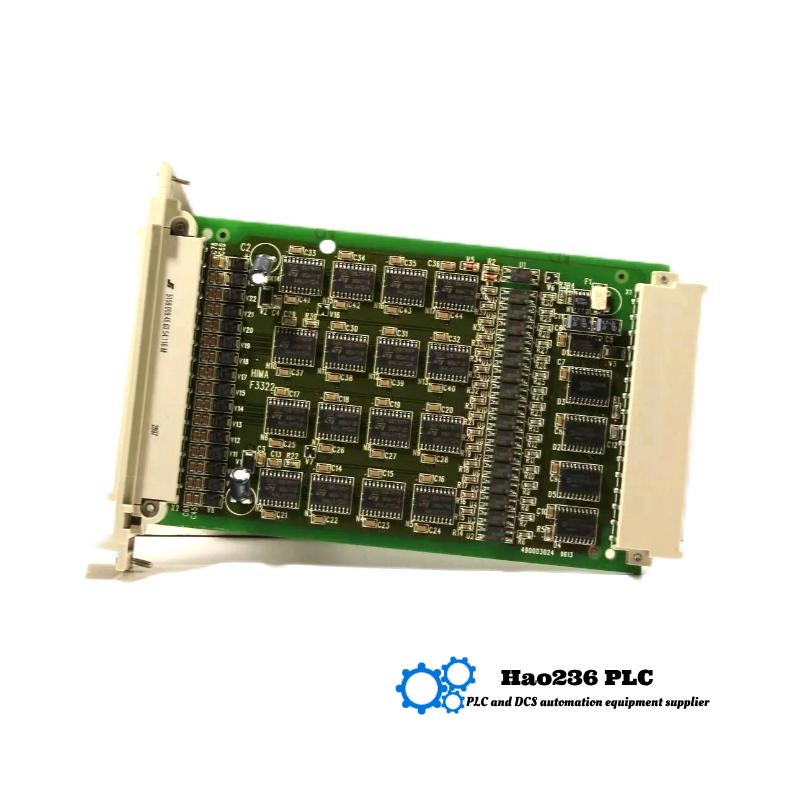

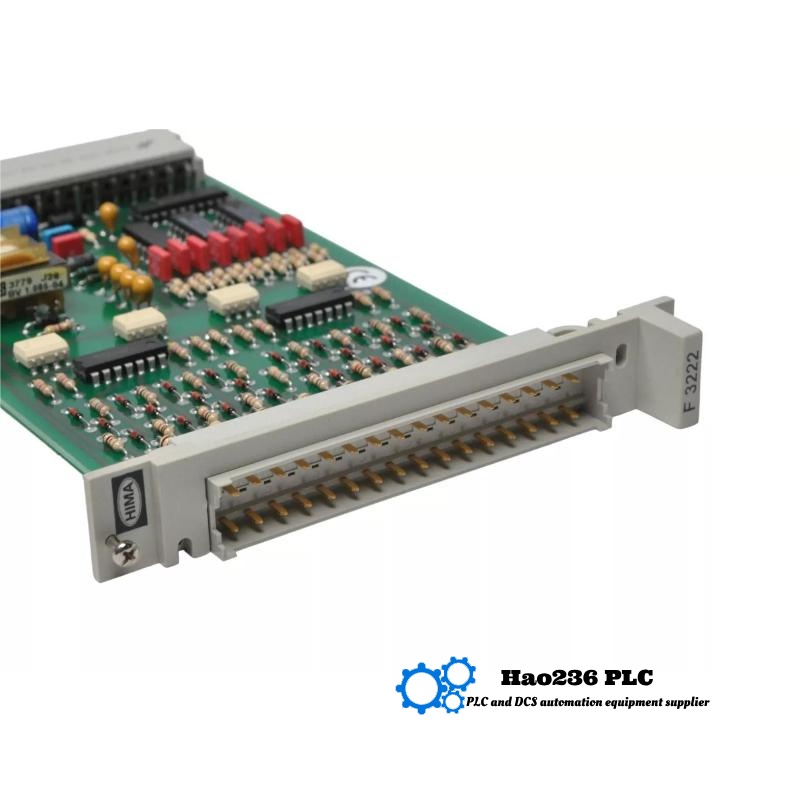

HIMA F3222 8-Channel Proximity Switch Input Module
Product Overview
The HIMA F3222 is an 8-channel proximity switch input module designed for use in safety-related applications. It is an integral component of HIMA’s HIQuad 2 series, offering reliable and robust input processing for proximity switches and sensors. This module is specifically engineered to handle the input signals from proximity switches and other types of sensors used to monitor and control critical safety processes in various industries.
The F3222 module ensures safe, efficient, and precise detection of proximity signals in automation and process control systems. It is particularly valuable in industries that require high safety standards, such as chemical plants, petrochemical facilities, and power generation. This module is designed to provide seamless integration into HIMA’s HIQuad 2 system, offering high reliability, fast processing speeds, and excellent fault tolerance.
Applications
The HIMA F3222 8-channel proximity switch input module is used in a variety of safety-critical applications:
-
Process Safety: Essential for monitoring proximity sensors in hazardous process environments, such as chemical and petrochemical plants.
-
Machine Monitoring: Ideal for ensuring the proper operation of machinery and equipment, detecting potential faults or misalignment.
-
Safety Instrumented Systems (SIS): Integrates into SIS for safeguarding critical processes in industries where safety and uptime are paramount.
-
Power Generation: Ensures the safe operation of equipment and machinery by accurately processing proximity switch inputs, providing essential data for safety analysis.
The F3222 provides a robust solution for safety-critical input processing, enabling seamless communication and control in industries that require absolute operational integrity and reliability.
Product Advantages
-
High Reliability: Built to withstand harsh environments, the F3222 module ensures continuous, fault-free operation in mission-critical applications.
-
Safety Compliance: Meets stringent safety standards, making it ideal for use in safety instrumented systems where reliability is non-negotiable.
-
Compact Design: With compact dimensions of 130 x 30 x 100 mm, it is easy to integrate into existing control systems, saving valuable space.
-
Fast Signal Processing: The F3222 module offers rapid input signal processing to minimize response time and improve system efficiency.
-
Seamless Integration: As part of the HIQuad 2 series, it integrates effortlessly into the HIMA safety system, enabling consistent and reliable performance across various processes.
Brand: HIMA
HIMA is a global leader in functional safety solutions for industrial automation. The company specializes in providing high-quality, reliable, and certified safety-related systems. Their products, such as the F3222, are designed to meet the highest safety standards, offering advanced technology for mission-critical applications.
Series: HIQuad 2 Series
The HIQuad 2 series from HIMA represents a comprehensive range of safety controllers and modules designed for industrial automation. These products are known for their redundancy, fault tolerance, and ability to meet the most demanding safety standards. The F3222 is part of this highly reliable and scalable series, which is widely used in sectors that require high safety integrity.
Product Parameters
| Parameter | Specification |
|---|---|
| Module Type | 8-Channel Proximity Switch Input Module |
| Dimensions | 130 x 30 x 100 mm |
| Weight | 0.25 kg |
| Input Type | Proximity Switch |
| Number of Inputs | 8 Channels |
| Input Voltage | 24 VDC |
| Signal Type | Digital (Binary) |
| Temperature Range | –20°C to +60°C |
| Mounting Type | DIN Rail Mounting |
| Safety Certification | SIL 3 (Safety Integrity Level 3) |
| Response Time | < 10 ms |
| Protection Class | IP20 (For indoor use) |
Related Models (Same Series / Related)
| Model Number | Description | Parameters (Summary) |
|---|---|---|
| F3221 | 4-Channel Proximity Switch Input Module | 130 x 30 x 100 mm, 0.25 kg, 4 Channels, 24 VDC Input, SIL 3, IP20 Protection Class |
| F3223 | 12-Channel Proximity Switch Input Module | 130 x 30 x 100 mm, 0.3 kg, 12 Channels, 24 VDC Input, SIL 3, IP20 Protection Class |
| F3211 | 8-Channel Digital Input Module | 130 x 30 x 100 mm, 0.25 kg, 8 Channels, Digital Inputs, 24 VDC Power |
| F3201 | 16-Channel Digital Input Module | 130 x 30 x 100 mm, 0.35 kg, 16 Channels, SIL 2, IP20 Protection Class |
| F3212 | 8-Channel High-Speed Input Module | 130 x 30 x 100 mm, 0.25 kg, 8 Channels, High-Speed Input, 24 VDC Power |
Popular HIMA Models (Same Brand)
| Model Number | Description | Parameters (Summary) |
|---|---|---|
| F3300 | Safety Control Unit | 200 x 120 x 50 mm, 0.7 kg, 16 Digital Inputs, SIL 3, Redundant System |
| F3230 | Analog Input Module | 130 x 30 x 100 mm, 0.25 kg, 8 Analog Channels, SIL 3, 24 VDC Input |
| F3400 | Safety Processor Module | 250 x 100 x 70 mm, 0.6 kg, Dual Processor, SIL 3, High Availability |
| F3110 | Digital Output Module | 130 x 30 x 100 mm, 0.3 kg, 8 Digital Outputs, SIL 3, 24 VDC |
| F3240 | Redundant Safety System | 300 x 200 x 80 mm, 1.2 kg, Dual-Channel System, SIL 3, High Fault Tolerance |
FAQ (10 Questions)
Q1: What is the main function of the HIMA F3222 module?
A1: The HIMA F3222 is an 8-channel proximity switch input module designed to process the signals from proximity switches used in safety-critical applications.
Q2: How many channels does the F3222 module support?
A2: The F3222 module supports 8 channels for input from proximity switches, providing a reliable and robust solution for monitoring up to 8 sensors.
Q3: What industries use the HIMA F3222 module?
A3: The F3222 is commonly used in process industries, power generation, and machine monitoring, where safety and fault tolerance are paramount.
Q4: What is the temperature range of the HIMA F3222 module?
A4: The F3222 module operates within a temperature range of –20°C to +60°C, making it suitable for a wide range of industrial environments.
Q5: What is the safety certification level for the F3222?
A5: The F3222 module is certified SIL 3 (Safety Integrity Level 3), ensuring it meets the highest standards for functional safety in critical applications.
Q6: How is the HIMA F3222 module mounted?
A6: The module can be mounted using DIN rail, ensuring easy installation and secure attachment to industrial control panels.
Q7: What is the power supply requirement for the F3222 module?
A7: The F3222 module operates with a 24 VDC power supply, which is standard for industrial automation systems.
Q8: Can the F3222 module handle fault tolerance in safety systems?
A8: Yes, the F3222 module is designed for high fault tolerance, providing reliable operation even in the presence of component failures.
Q9: What is the response time of the HIMA F3222?
A9: The response time of the F3222 module is less than 10 ms, ensuring fast processing and real-time input signal handling.
Q10: Is the F3222 module compatible with other HIMA systems?
A10: Yes, the F3222 module is designed for seamless integration into HIMA’s HIQuad 2 system, offering compatibility with other modules and safety controllers.
