- HIMA
- F3117

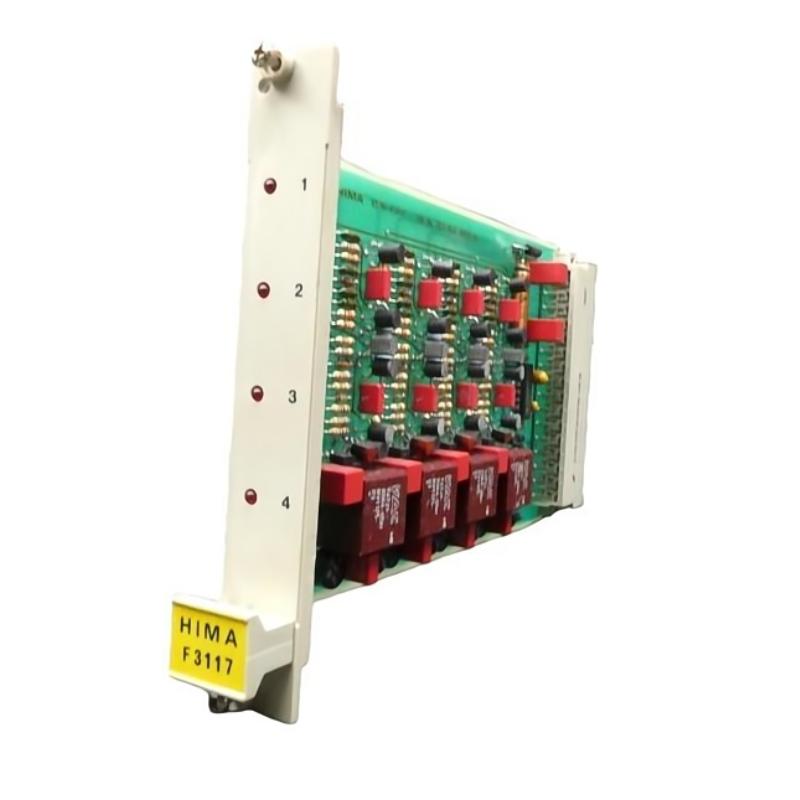

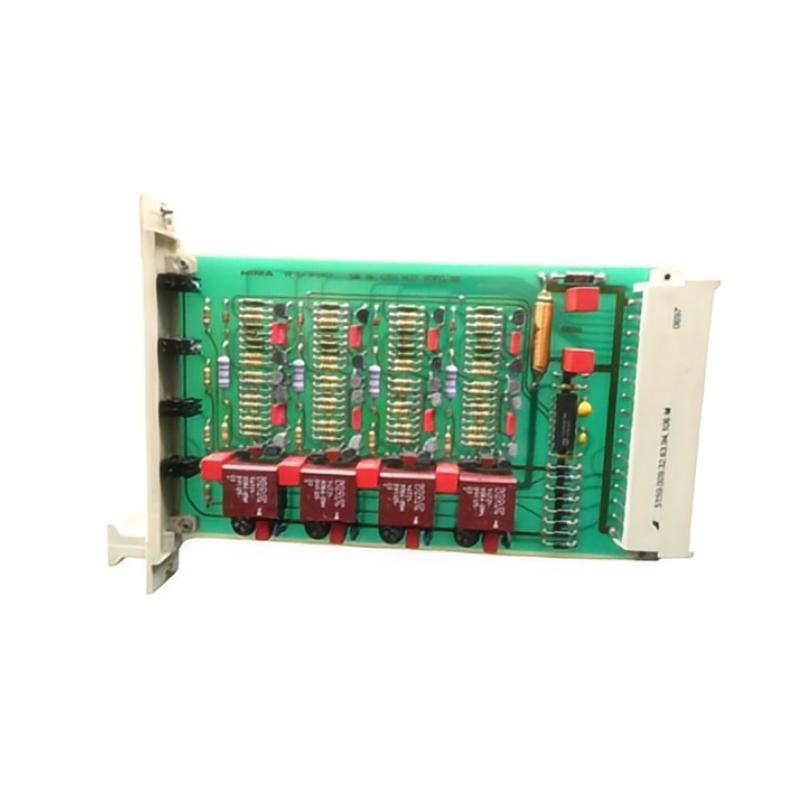

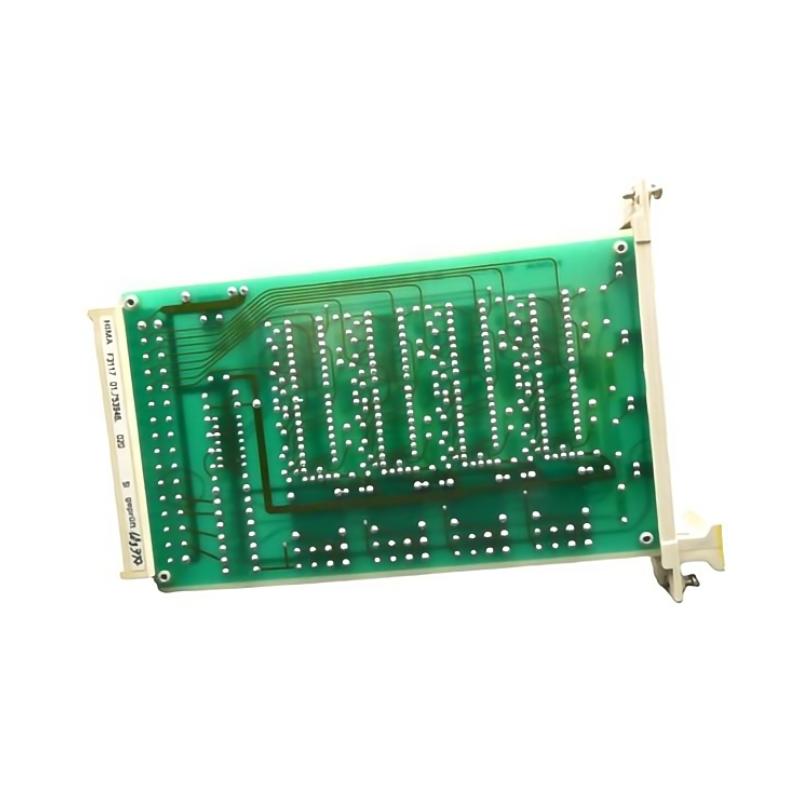

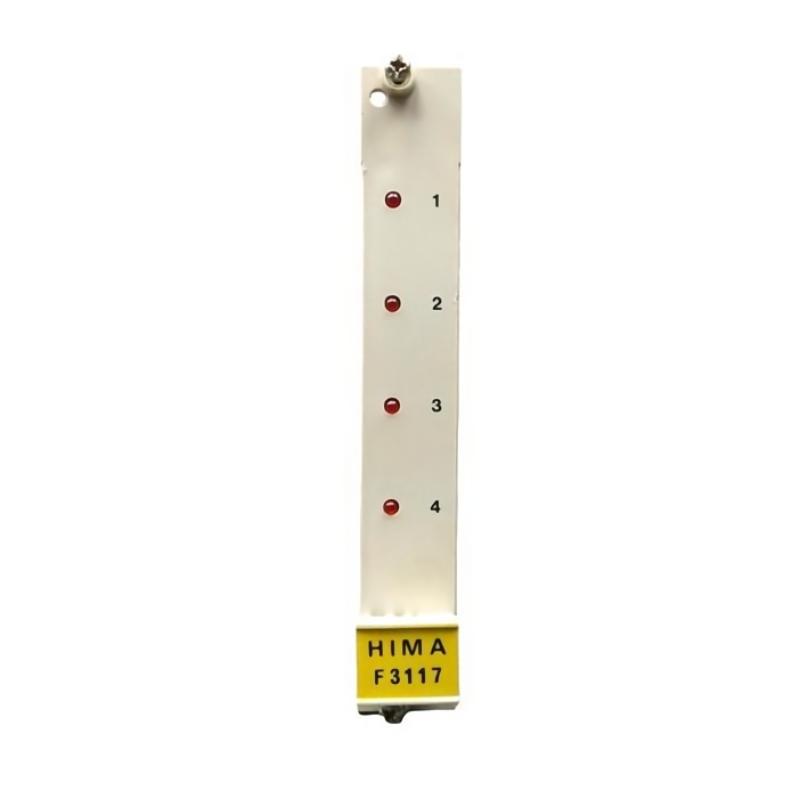

- 4-Channel Safety Relay Amplifier Switch Module (Planar F System)
- Germany
- 130 x 25 x 120 mm
- 0.37 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 18
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The HIMA F3117 is a 4-Channel Safety Relay Amplifier Switch Module designed for the Planar F safety system. It provides fail-safe amplification and switching of safety signals from the controller to external devices, ensuring reliable and deterministic operation in critical industrial automation environments. This module is essential for driving actuators, alarms, and indicators while maintaining safety integrity.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | HIMA |
| Model | F3117 |
| Product Type | 4-Channel Safety Relay Amplifier Switch Module |
| System Compatibility | Planar F Safety System |
| Function | Amplifies and switches safety signals to field devices |
| Dimensions | 130 × 25 × 120 mm |
| Weight | 0.37 kg |
| Channels | 4 independent relay outputs |
| Output Type | Safety relay signals (electromechanical) |
| Mounting | DIN rail or Planar F system rack |
| Operating Environment | Industrial safety and automation systems |
Function and Working Principle
The F3117 module operates by:
- Receiving safety signals from the Planar F safety controller
- Amplifying the signals to suitable levels for external devices
- Switching outputs via fail-safe relays for actuators, alarms, or indicators
- Providing electrical isolation between the controller and field devices
This ensures reliable signal transmission while maintaining safety integrity in industrial environments.
Role in Industrial Automation
The F3117 is used to:
- Interface safety control logic with external actuators and alarms
- Amplify and switch signals for safe operation of field devices
- Provide fail-safe outputs that maintain system integrity
- Support redundancy and deterministic safety operations
Industrial Applications
Common applications include:
- Process safety systems in chemical, petrochemical, and oil & gas industries
- Emergency shutdown (ESD) systems
- Fire and gas detection systems
- Actuator, valve, and alarm control in safety-critical networks
Installation and Usage
Installation procedure:
- Mount the F3117 module on a DIN rail or within a Planar F system rack
- Connect input signals from the safety controller
- Wire the relay outputs to field devices such as alarms, actuators, or indicators
- Test each channel to ensure fail-safe operation and correct signal amplification
Its compact design allows easy integration and maintenance.
Compatible System Components
- HIMA Planar F Safety System controllers
- HIMA F-series I/O modules and relay modules
- Actuators, valves, alarms, and indicators
- System power supply and backplane connections
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| HIMA F3117 | 4-Channel Safety Relay Amplifier Switch Module | Amplifies and switches safety signals | Planar F system actuator/alarm control |
| HIMA F3113A | 8-Channel Output Amplifier Module | Amplifies more channels | Large-scale safety systems |
| HIMA F3105 | 4-Channel Relay Module | Standard relay outputs | General signal isolation and control |
Key Advantages
- Fail-safe relay switching for safety-critical applications
- Amplifies signals for reliable operation of actuators and alarms
- Electrical isolation between controller and field devices
- Compact and easy to install in Planar F systems
- Durable and industrial-grade design
Technical FAQs
How many channels are available?
The module has 4 independent relay outputs.
Can it drive actuators and alarms?
Yes, it is designed to safely amplify and switch signals to field devices.
Is it compatible with other HIMA systems?
It is specifically designed for Planar F safety systems.
Does it provide fail-safe operation?
Yes, all outputs are fail-safe, maintaining safety integrity in case of faults.
Conclusion
The HIMA F3117 4-Channel Safety Relay Amplifier Switch Module is a reliable and compact solution for amplifying and switching safety signals in Planar F systems. It ensures fail-safe operation, signal integrity, and robust control of actuators and alarms, making it ideal for safety-critical industrial automation applications.
