Product Overview

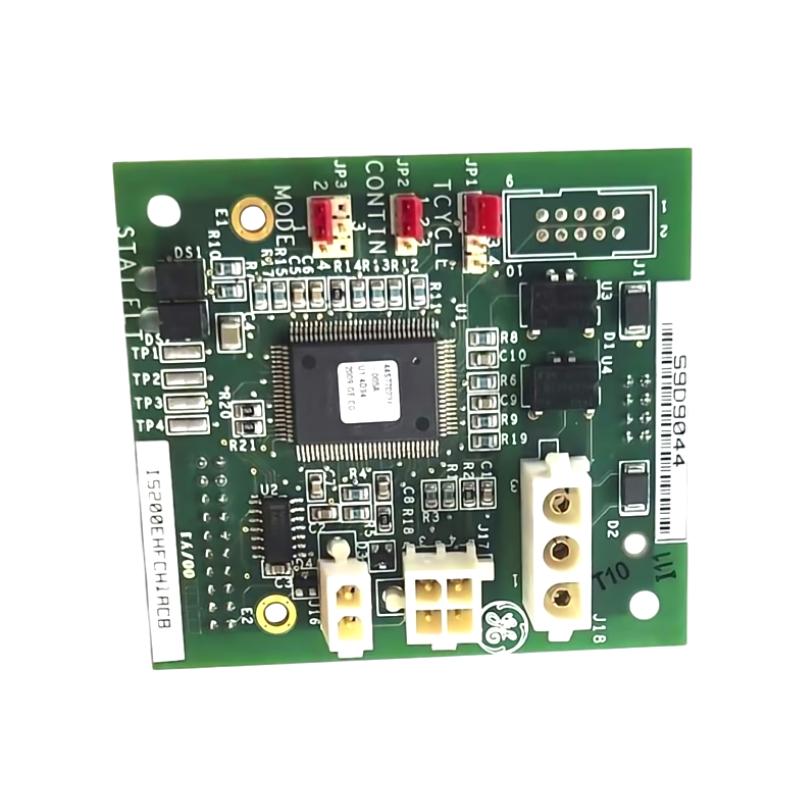

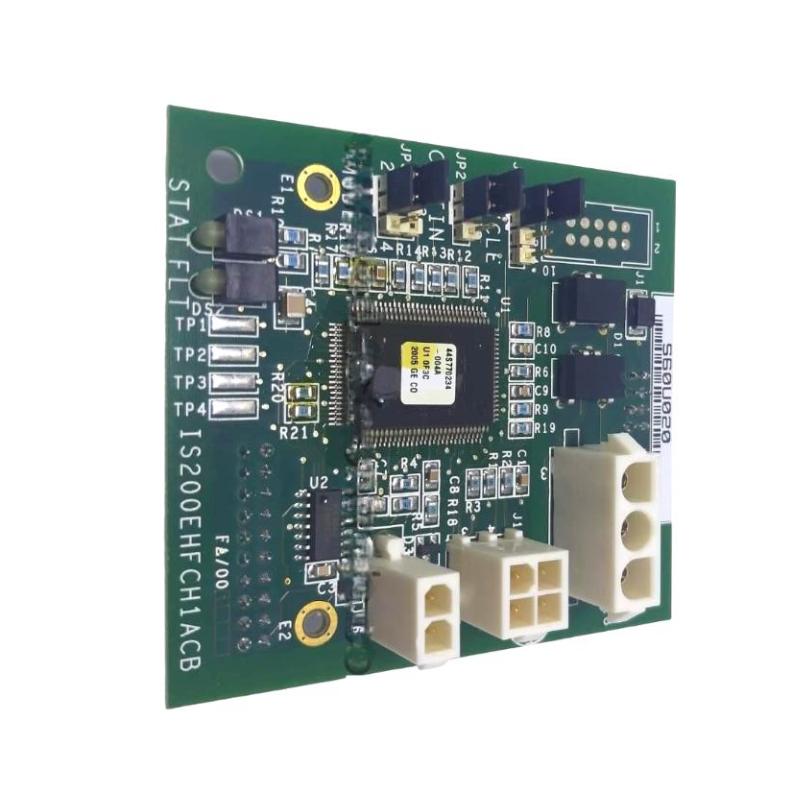

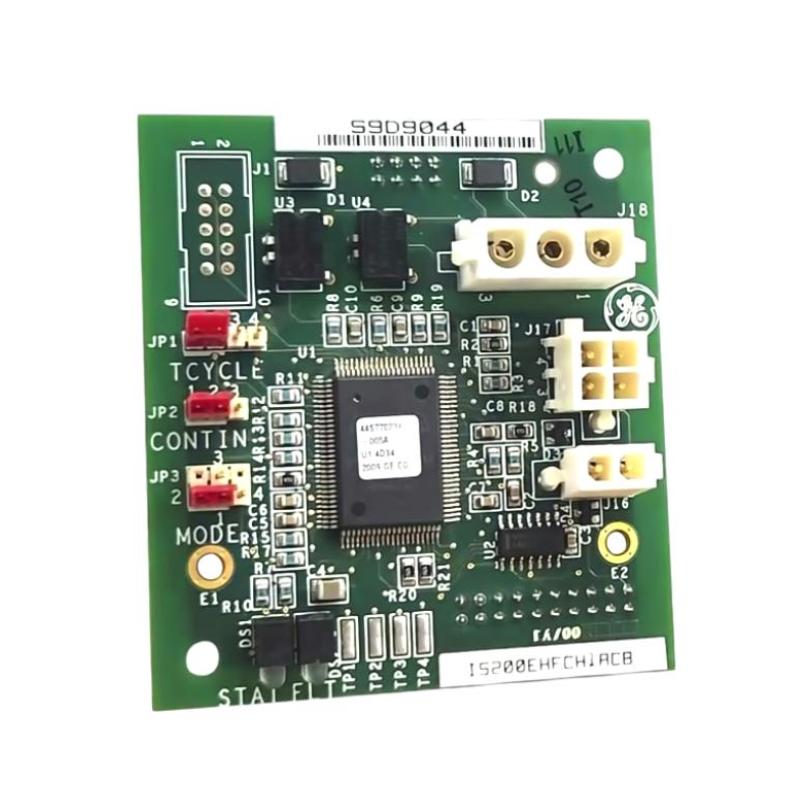

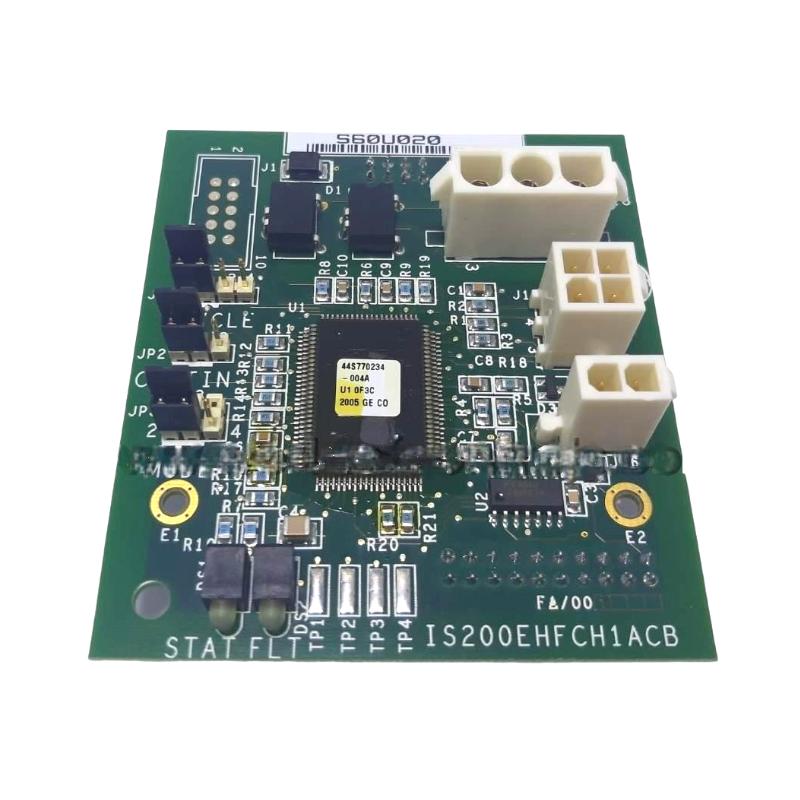

The GE IS200EHFCH1A is an Excitation Fan Controller used in GE EX2100 excitation systems. It is designed to control and monitor cooling fan operation for excitation converter modules, ensuring stable thermal conditions for power electronics in turbine and generator systems.
This board is a key part of the thermal management subsystem, helping prevent overheating and ensuring reliable operation of high-power excitation equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IS200EHFCH1A |
| Product Type | Excitation Fan Controller |
| System Series | GE EX2100 Excitation System |
| Function | Fan control, monitoring, and protection |
| Control Method | Lead/lag fan control logic (redundant cooling) |
| Circuit Type | Industrial control PCB |
| Interface | Excitation system backplane / control bus |
| Power Supply | System backplane powered |
| Output Type | Fan drive control signals |
| Monitoring | Fan status + fault detection |
| Protection | Over-temperature and fan-failure shutdown support |
| Mounting Type | Rack-mounted module |
| Operating Environment | Industrial control cabinet |
| Humidity Range | 5%–95% non-condensing |
| Material | Industrial-grade PCB assembly |
| Dimensions | 267 × 216 × 25 mm |
| Weight | 2.5 kg |
Function and Working Principle
The IS200EHFCH1A operates as a smart thermal control module within excitation systems.
Its core functions include:
- Controlling one or more cooling fans in excitation converters
- Implementing lead/lag fan redundancy logic for reliability
- Monitoring fan health and detecting failures
- Switching automatically to backup fan during fault conditions
- Supporting controlled startup/shutdown sequencing to reduce inrush current
- Protecting excitation power electronics from overheating
It ensures that the excitation system maintains a safe operating temperature under all load conditions.
Role in Industrial Control Systems
Within GE EX2100 excitation architectures, the IS200EHFCH1A provides:
- Thermal regulation of power converter assemblies
- Redundant cooling control (fan backup strategy)
- Fault detection and alarm reporting for cooling systems
- Protection of SCR/IGBT power stages from thermal overload
- Coordination with overall excitation protection logic
Industrial Applications
The GE IS200EHFCH1A is widely used in:
- Gas turbine excitation systems
- Steam turbine generator systems
- Power generation plants
- High-power rectifier/inverter cooling systems
- Industrial motor drive cooling systems
- Energy conversion and regulation systems
Installation and System Integration
Recommended installation practices include:
- Installing within GE EX2100 excitation converter cabinet
- Ensuring proper airflow and ventilation alignment
- Verifying fan wiring and control connections
- Testing lead/lag switching during commissioning
- Maintaining clean airflow paths to avoid overheating
Compatible System Components
The IS200EHFCH1A typically works with:
- GE EX2100 excitation control modules
- Gate pulse amplifier boards (EGPAG series)
- Power bridge assemblies (SCR/IGBT stacks)
- Exciter fan assemblies (dual 100 mm or equivalent fans)
- Feedback and protection modules
- Control processors and I/O systems
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IS200EHFCH1A | Fan controller | Redundant cooling control | EX2100 systems |
| IS200EGPAG1B | Gate pulse amplifier | Power switching control | Excitation systems |
| IS200EBRGH2A | Bridge interface board | Control/power interface | Generator excitation |
| IS200DSPXH1D | DSP control board | Real-time processing | Turbine control |
| IS200EACFG3A | Feedback board | Signal monitoring | Control systems |
Key Advantages
- Intelligent lead/lag fan redundancy control
- Protects excitation system from overheating
- Improves reliability of power converter operation
- Automatic fault detection and alarm reporting
- Reduces downtime via backup fan switching
- Industrial-grade robustness for harsh environments
Technical FAQs
What is the IS200EHFCH1A used for?
It controls and monitors cooling fans in GE EX2100 excitation systems.
Why is fan control important in excitation systems?
Because power electronics generate high heat and require continuous cooling for safe operation.
Does it control power directly?
No, it controls cooling infrastructure, not electrical power conversion.
What happens if a fan fails?
The system switches to a backup fan and issues an alarm; in severe cases, it may shut down protection circuits.
Conclusion
The GE IS200EHFCH1A Excitation Fan Controller is a critical thermal management module in GE EX2100 excitation systems. It ensures reliable cooling, redundancy, and protection for high-power excitation electronics, making it essential for stable turbine and generator operation in industrial environments.
