Product Overview

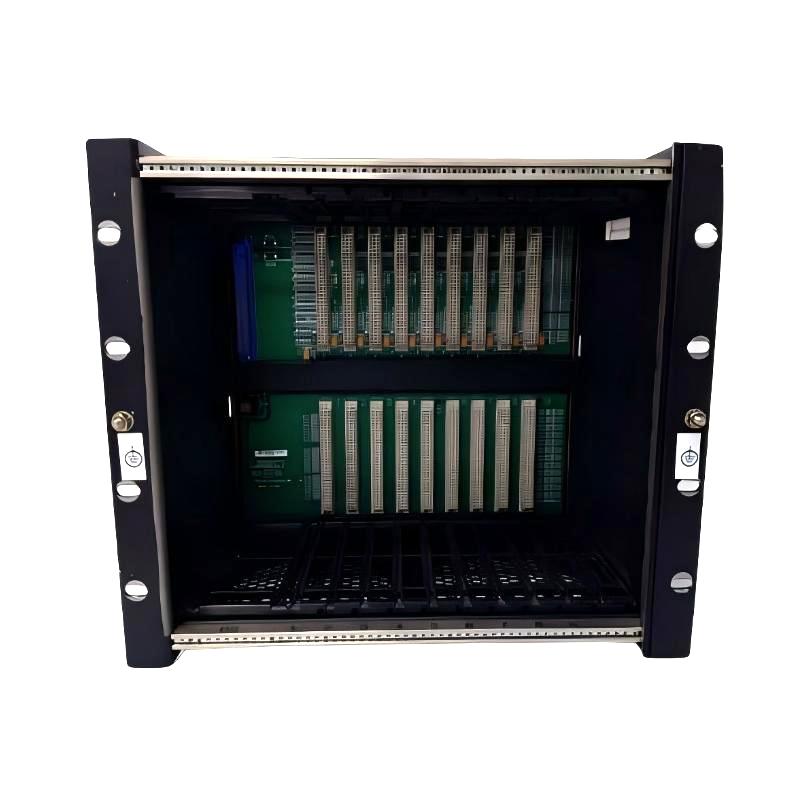

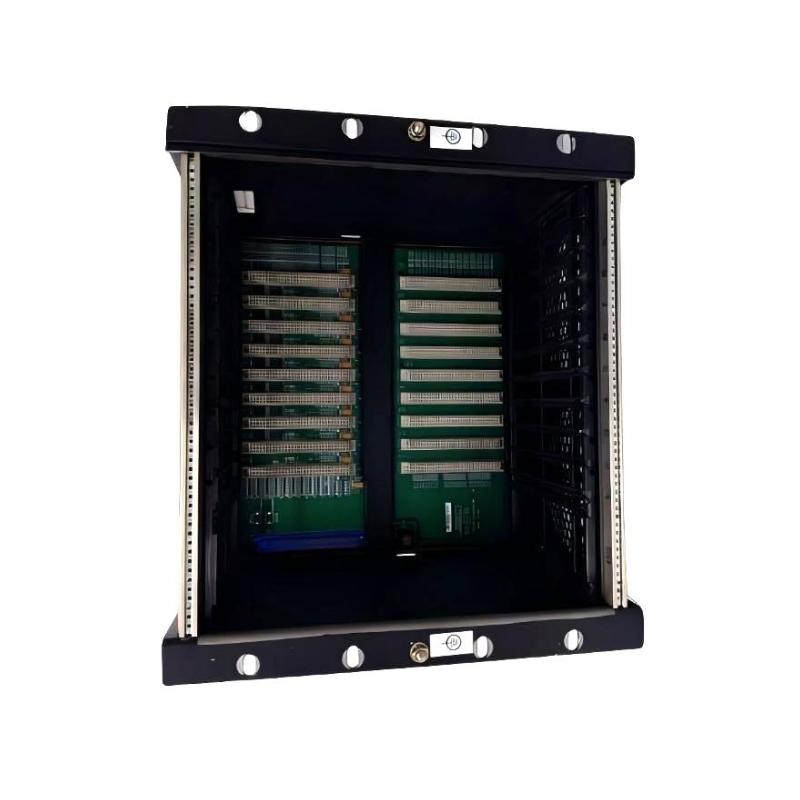

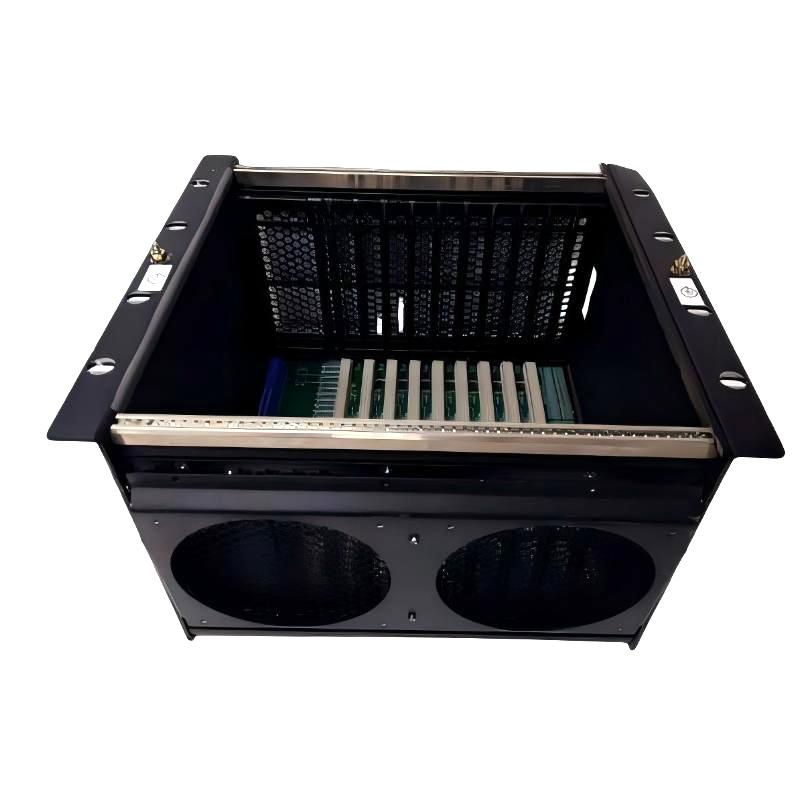

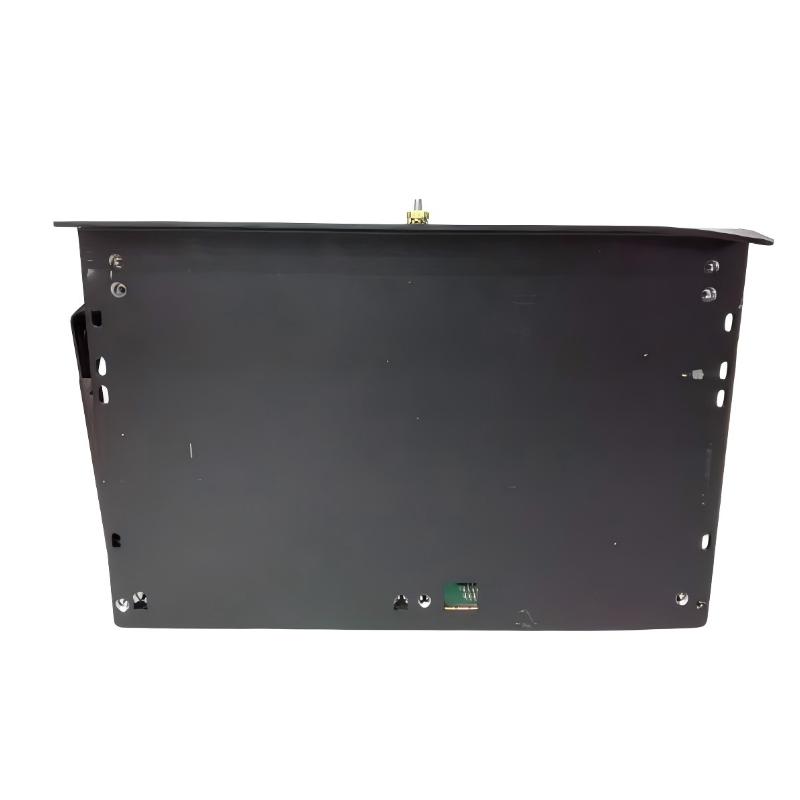

The GE IC698CHS009 is a robust RX7i PACSystem I/O rack (9-slot backplane chassis) designed to support modular PLC configurations. It provides the physical framework and electrical interconnection for CPU, power supply, and I/O modules within GE RX7i automation systems.
With support for both RX7i and Series 90-70 modules, it enables flexible system design, including migration from legacy platforms to modern architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC698CHS009 |
| Product Type | RX7i I/O Rack / Backplane |
| System Series | PACSystems RX7i |
| Total Slots | 9 slots (plus power supply slot) |
| Slot Allocation | Slot 0: Power Supply / Slot 1: CPU |
| Backplane Type | VME64 high-speed bus |
| Module Support | Single-width and double-width modules |
| Module Spacing | 20.3 mm |
| Power Supply Compatibility | RX7i 100 W / 350 W power supplies |
| Addressing | Automatic slot recognition |
| Communication | High-speed backplane communication |
| Cooling Support | Compatible with rack fan assemblies |
| Mounting Type | Panel-mounted (front or rear) |
| Material | Industrial metal chassis |
| Dimensions | 283 × 320 × 184 mm |
| Weight | 5.08 kg |
| Operating Environment | Industrial enclosure required (IP-rated cabinet) |
Function and Working Principle
The IC698CHS009 functions as the central structural and communication backbone of an RX7i PLC system.
Its operation includes:
- Providing slots for installing CPU, power supply, and I/O modules
- Distributing power from the installed power supply to all modules
- Enabling high-speed communication through the VME-based backplane
- Automatically identifying module positions via slot detection
- Supporting seamless data exchange between system components
This ensures synchronized and efficient system operation.
Role in Industrial Control Systems
Within RX7i systems, the IC698CHS009 provides:
- Core infrastructure for modular PLC assembly
- Centralized communication and data exchange
- Power distribution across installed modules
- Scalable architecture for system expansion
- Integration of modern and legacy automation components
Industrial Applications
The GE IC698CHS009 is commonly used in:
- Large-scale industrial automation systems
- Process industries (oil & gas, chemical plants)
- Power generation and energy distribution
- Water and wastewater treatment facilities
- Manufacturing and production lines
- Infrastructure and utility control systems
Installation and System Integration
Recommended installation practices include:
- Mounting inside a properly rated industrial control cabinet
- Installing the power supply in slot 0 and CPU in slot 1
- Allowing sufficient space for airflow or cooling fans
- Ensuring proper grounding and shielding
- Configuring modules through software (no manual addressing required)
Compatible System Components
The IC698CHS009 typically works with:
- RX7i CPU modules (IC695 / IC698 series)
- RX7i power supply modules
- Digital and analog I/O modules
- Communication modules (Ethernet, Genius, fieldbus)
- Series 90-70 I/O modules (for hybrid systems)
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC698CHS009 | RX7i Rack | 9-slot standard rack | Medium systems |
| IC698CHS109 | RX7i Rack | Front-access version | Panel installations |
| IC698CHS017 | RX7i Rack | Higher slot count | Large systems |
| IC697CHS750 | 90-70 Rack | Legacy platform rack | Existing systems |
| IC695PSA040 | Power Supply | RX3i power module | RX3i systems |
Key Advantages
- Flexible 9-slot modular configuration
- Supports both RX7i and legacy 90-70 modules
- High-speed VME64 backplane communication
- Automatic module addressing
- Scalable for complex automation systems
- Industrial-grade mechanical design
Technical FAQs
What is the IC698CHS009 used for?
It serves as the rack/backplane for mounting and connecting RX7i PLC modules.
How many modules can it hold?
Up to 9 modules, depending on configuration.
What are slot 0 and slot 1 used for?
Slot 0 is for the power supply, and slot 1 is for the CPU.
Does it support legacy modules?
Yes, it supports Series 90-70 I/O modules.
Conclusion
The GE IC698CHS009 RX7i I/O Rack is a critical component for building scalable and high-performance PLC systems. With its flexible slot design, high-speed communication backbone, and compatibility with both modern and legacy modules, it provides a reliable foundation for advanced industrial automation applications.
