Product Overview

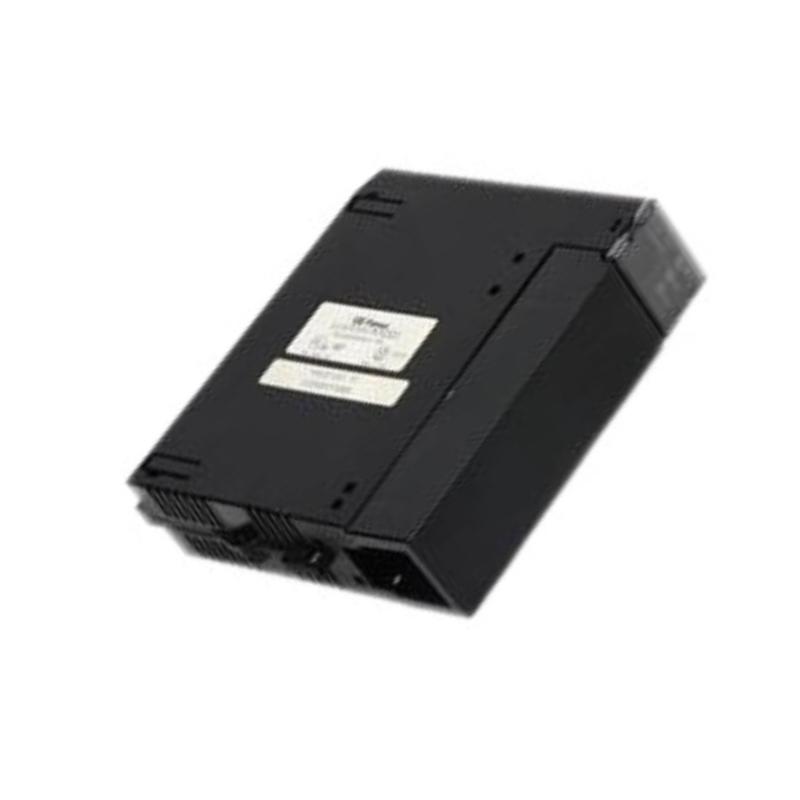

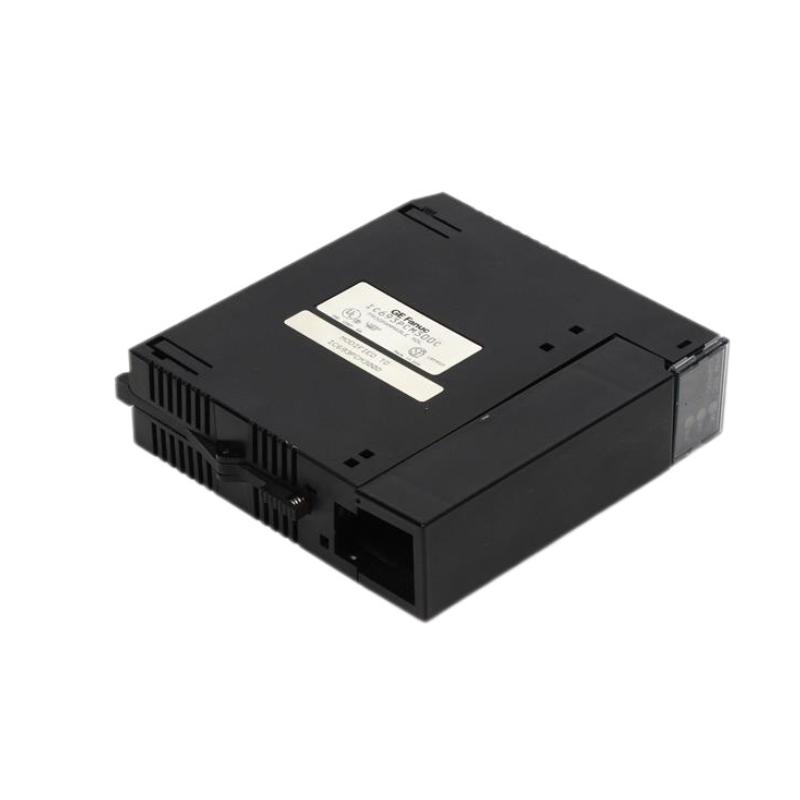

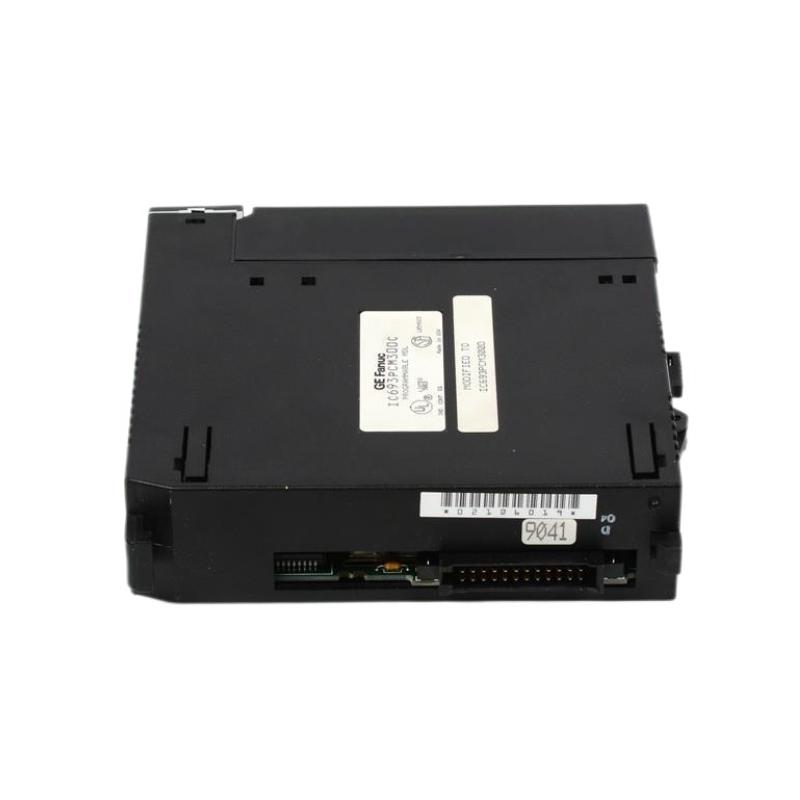

The GE IC693PCM300 Programmable Coprocessor Module (PCM) is a high-performance auxiliary processor module designed for the GE Series 90-30 PLC system. It is used to offload complex computing, communication handling, and advanced control tasks from the main PLC CPU.
This module effectively acts as a secondary industrial computer, enabling enhanced processing capability, multi-protocol communication, and execution of specialized control programs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE (GE Fanuc / Emerson) |
| Model | IC693PCM300 |
| Product Type | Programmable Coprocessor Module |
| System Compatibility | GE Series 90-30 PLC |
| Function | Auxiliary processor / communication coprocessor |
| Memory Capacity | 160 KB total memory |
| User Program Memory | ~35 KB (MegaBasic) |
| Programming Languages | C, MegaBasic |
| Communication Ports | 2 serial ports (shared front connector) |
| Supported Protocols | Modbus RTU, GE CCM, ASCII communication |
| Operating Mode | Dual-task processing (logic + communication) |
| Battery Backup | Yes (RAM backup battery) |
| Backplane Power | Powered via PLC rack |
| Slot Requirement | 1 slot |
| Mounting Type | Rack-mounted |
| Material | Industrial-grade electronics module |
| Dimensions | 150 × 100 × 25 mm |
| Weight | 0.2 kg |
| Operating Temperature | 0°C to 60°C |
Function and Working Principle
The IC693PCM300 operates as a co-processing unit that works alongside the main PLC CPU.
Its working principle includes:
- Receiving data from the PLC CPU via backplane communication
- Executing independent programs (MegaBasic or C language routines)
- Handling advanced communication tasks (e.g., Modbus RTU, CCM protocols)
- Managing external device communication such as printers, barcode readers, and RTU systems
- Running parallel tasks while the main PLC executes control logic
This allows the PLC system to offload time-consuming communication or computation tasks, improving overall system performance.
Role in Industrial Control Systems
The IC693PCM300 plays an advanced role in GE 90-30 PLC systems:
- Acts as an auxiliary industrial processor
- Enhances PLC communication capabilities
- Executes custom logic beyond standard ladder programming
- Supports multi-protocol data exchange
- Enables integration with legacy serial devices
- Improves system efficiency by reducing CPU workload
Industrial Applications
The GE IC693PCM300 is commonly used in:
- Industrial automation systems
- Data acquisition systems
- SCADA communication gateways
- Barcode scanning and tracking systems
- Weighing and measurement systems
- Legacy serial device integration
- Process control environments requiring custom computation
Installation and System Integration
Recommended installation practices include:
- Installing in GE Series 90-30 PLC rack (one slot required)
- Ensuring compatibility with supported CPU models (not embedded CPUs)
- Connecting serial ports for external communication devices

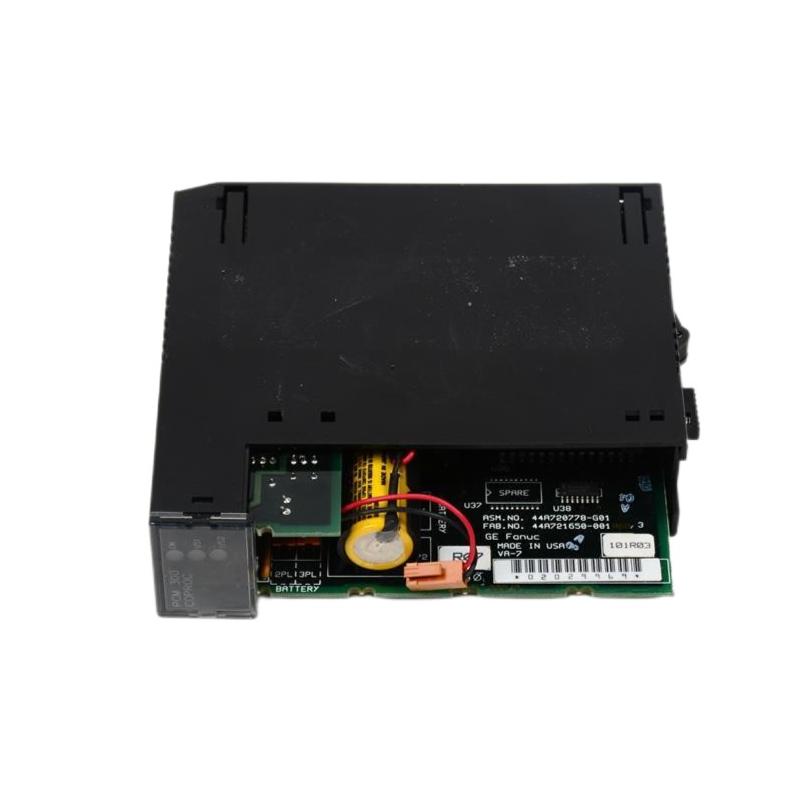

- Installing backup battery for program retention
- Configuring communication parameters via PLC software tools
Proper configuration ensures stable dual-task operation.
Compatible System Components
The IC693PCM300 typically works with:
- GE Series 90-30 CPU modules (IC693CPU series)
- Serial communication devices (RS-232/RS-485 systems)
- Industrial printers and barcode readers
- SCADA and HMI systems
- Modbus RTU network devices
- ASCII-based industrial equipment
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC693PCM300 | Coprocessor Module | 160 KB memory, dual-port comms | General industrial coprocessing |
| IC693PCM301 | Coprocessor Module | Higher memory variant | Advanced processing tasks |
| IC693PCM311 | Coprocessor Module | Highest memory capacity | Complex automation systems |
| IC693CMM321 | Communication Module | Ethernet/serial communication | Network expansion |
| IC693CPU364 | CPU Module | Main PLC processor | Primary control system |
Key Advantages
- Offloads processing tasks from main PLC CPU
- Supports advanced programming (C and MegaBasic)
- Dual serial communication ports
- Enables integration of legacy devices
- Flexible multi-protocol communication support
- Reliable industrial-grade design
Technical FAQs
What is the main function of IC693PCM300?
It acts as a coprocessor to handle communication and advanced processing tasks.
Does it replace the PLC CPU?
No, it works alongside the CPU as a secondary processor.
What programming languages does it support?
MegaBasic and C language programming.
What kind of devices can it connect to?
Barcode readers, printers, RTU devices, and serial communication equipment.
Conclusion
The GE IC693PCM300 Programmable Coprocessor Module is a powerful extension component for GE Series 90-30 PLC systems. By providing additional processing power and advanced communication capabilities, it significantly enhances system flexibility and performance in complex industrial automation environments.
