Product Overview

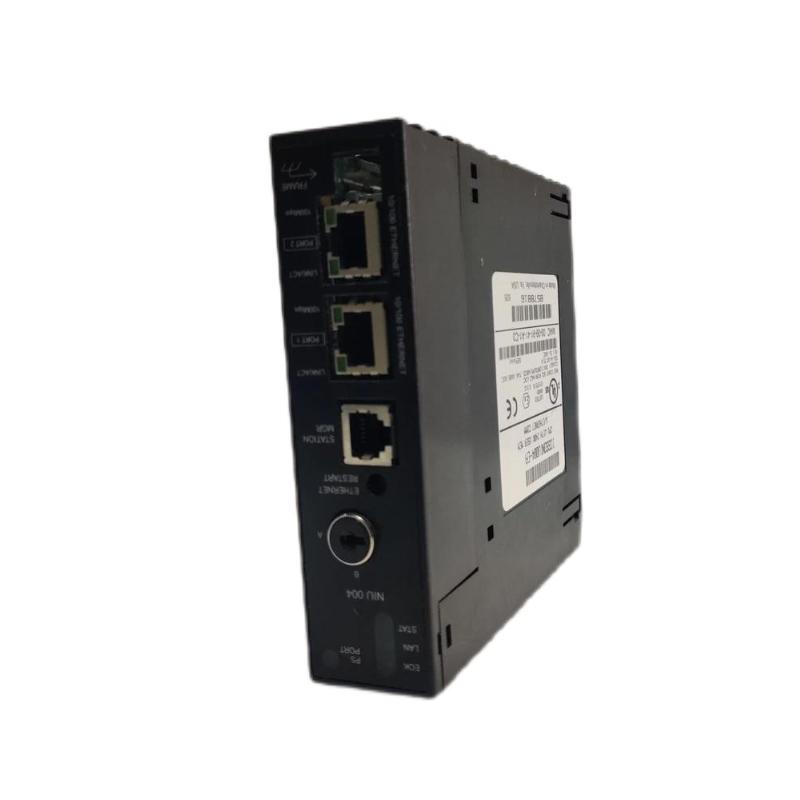

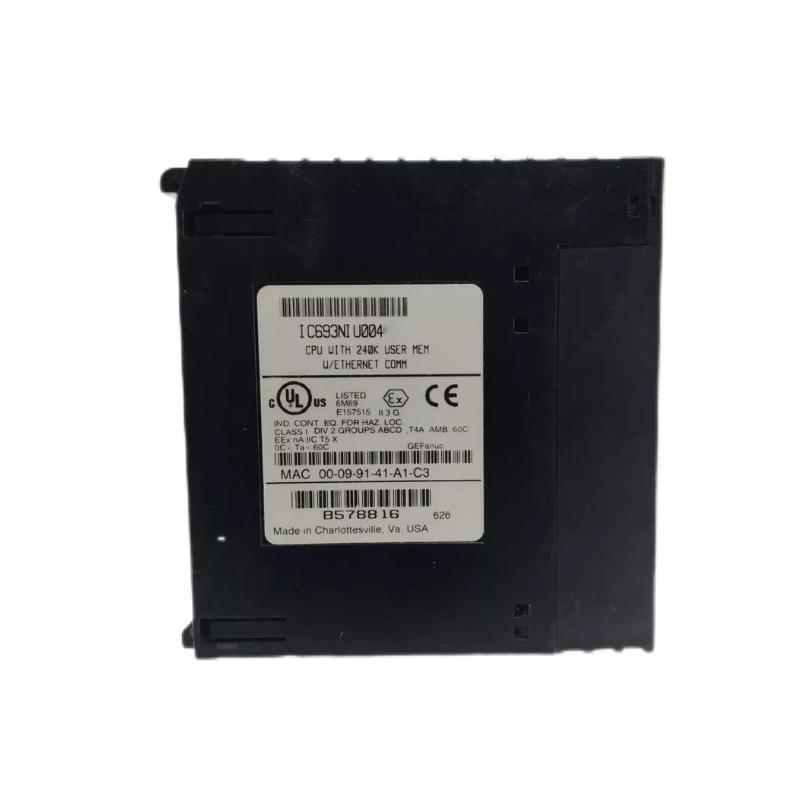

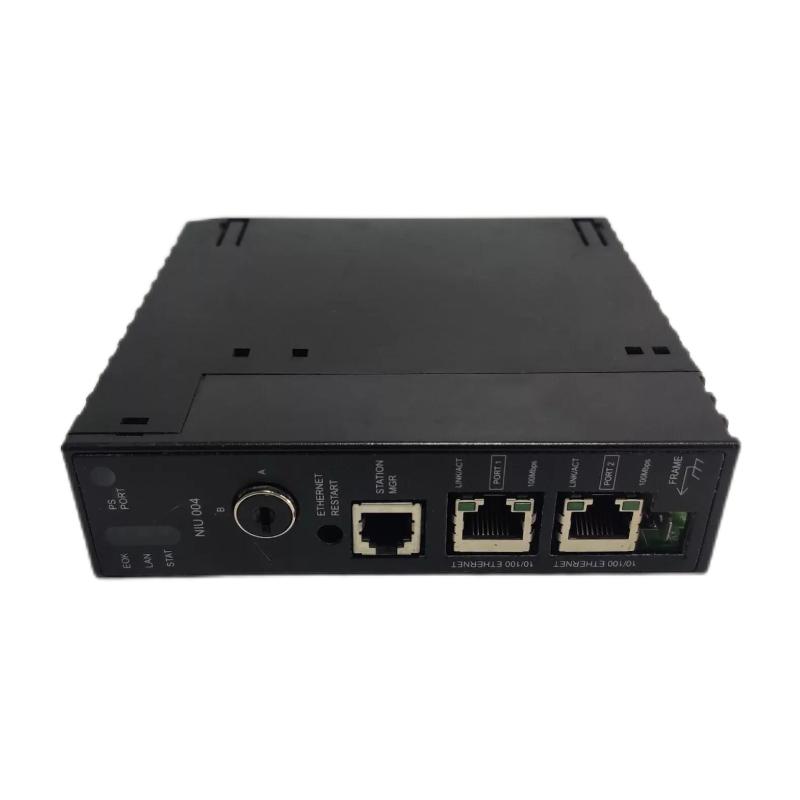

The GE IC693NIU004 Ethernet Network Interface Unit is a communication module designed for the GE Series 90-30 PLC system. It enables high-speed Ethernet-based networking between PLCs, remote I/O stations, SCADA systems, and industrial controllers.
The module functions as a network interface and distributed control gateway, allowing PLC systems to operate within modern Ethernet-based industrial architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693NIU004 |
| Product Type | Ethernet Network Interface Unit |
| System Compatibility | GE Series 90-30 PLC |
| Network Interface | Ethernet (10/100 Mbps) |
| Protocol Support | EGD, SRTP, Modbus TCP/IP |
| Communication Ports | Dual RJ45 Ethernet ports |
| IP Configuration | Static / DHCP support |
| Power Supply | 5 VDC (via backplane) |
| Power Consumption | Low power industrial design |
| I/O Capacity Support | High-capacity distributed I/O mapping |
| Diagnostic Indicators | LED status indicators |
| Mounting Type | PLC rack-mounted |
| Material | Industrial-grade electronic assembly |
| Dimensions | 210 × 188 × 262 mm |
| Weight | 0.35 kg |
| Operating Temperature | 0°C to 60°C |
| Humidity Range | Industrial standard non-condensing |
Function and Working Principle
The IC693NIU004 operates as an Ethernet communication gateway between the PLC backplane system and industrial networks.
Its working process includes:
- Collecting data from PLC CPU and I/O modules via backplane communication
- Packaging control and monitoring data into Ethernet frames
- Transmitting real-time data over industrial Ethernet networks
- Receiving commands from SCADA or control systems
- Distributing control signals to connected PLC modules
This allows the PLC system to function as a networked distributed control node in large-scale automation environments.
Role in Industrial Control Systems
The IC693NIU004 plays a critical role in modern industrial architectures:
- Enables PLC-to-PLC communication over Ethernet
- Supports remote I/O system expansion
- Acts as a gateway for SCADA and HMI systems
- Integrates PLC systems into plant-wide networks
- Improves system scalability and data transparency
Industrial Applications
The GE IC693NIU004 is widely used in:
- Industrial automation networks
- Distributed control systems (DCS)
- SCADA monitoring systems
- Manufacturing plants
- Energy and utility control systems
- Remote I/O automation networks
- Process control industries
Installation and System Integration
Recommended installation guidelines:
- Install in GE Series 90-30 PLC rack system
- Ensure stable 5 VDC backplane power supply
- Configure IP address before network integration
- Connect Ethernet ports to industrial switch or network hub
- Ensure proper grounding and shielding for noise protection
Proper configuration ensures stable communication and network reliability.
Compatible System Components
The IC693NIU004 typically works with:
- GE Series 90-30 CPU modules
- Digital and analog I/O modules
- SCADA and HMI systems
- Industrial Ethernet switches
- Remote I/O racks
- Power supply modules
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC693NIU004 | Ethernet NIU | Dual-port Ethernet gateway | Distributed control systems |
| IC693CPU364 | CPU Module | Integrated processing unit | Standalone PLC control |
| IC693CMM321 | Communication Module | Industrial fieldbus communication | Network expansion |
| IC695NIU001 | Advanced NIU | Enhanced Ethernet performance | RX3i systems |
| IC693CPU374 | CPU with Ethernet | Integrated network CPU | Compact automation systems |
Key Advantages
- High-speed Ethernet communication (10/100 Mbps)
- Supports multiple industrial protocols
- Enables distributed control architecture
- Easy integration with SCADA systems
- Reliable industrial-grade design
- Supports large-scale I/O networking
Technical FAQs
What is the main function of IC693NIU004?
It enables Ethernet communication between PLC systems and industrial networks.
Does it support remote I/O systems?
Yes, it is commonly used for distributed and remote I/O architectures.
What protocols does it support?
It supports Ethernet-based industrial protocols such as EGD, SRTP, and Modbus TCP/IP.
Is it a CPU module?
No, it is a network interface unit that works alongside a PLC CPU.
Conclusion
The GE IC693NIU004 Ethernet Network Interface Unit is a powerful communication module for GE Series 90-30 PLC systems. It enables seamless Ethernet networking, distributed control, and integration with modern industrial automation systems.
With strong communication capabilities and reliable industrial design, it is an essential component for building scalable and networked PLC architectures.
