Product Overview

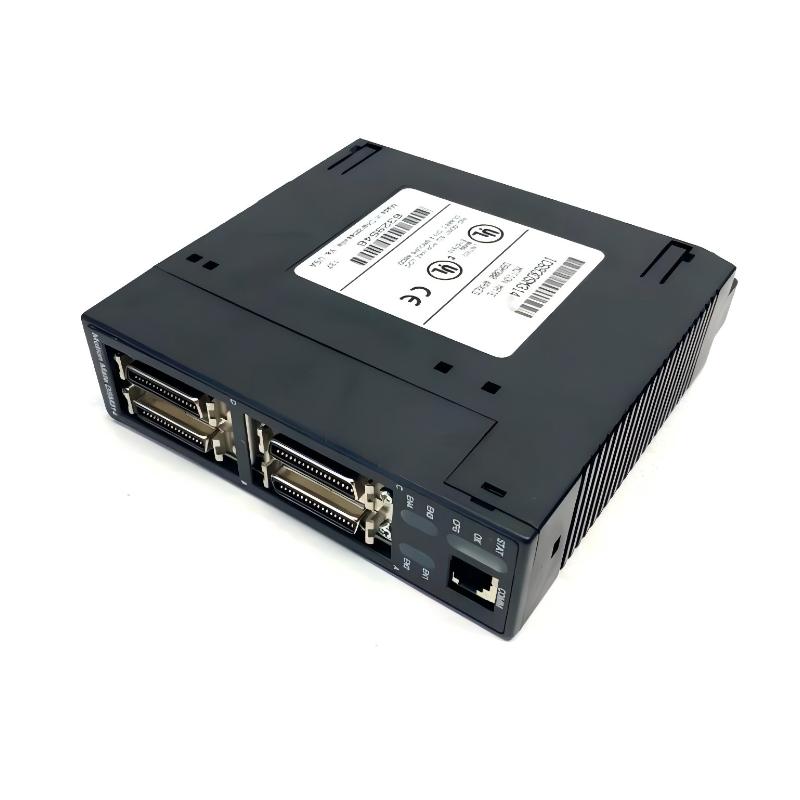

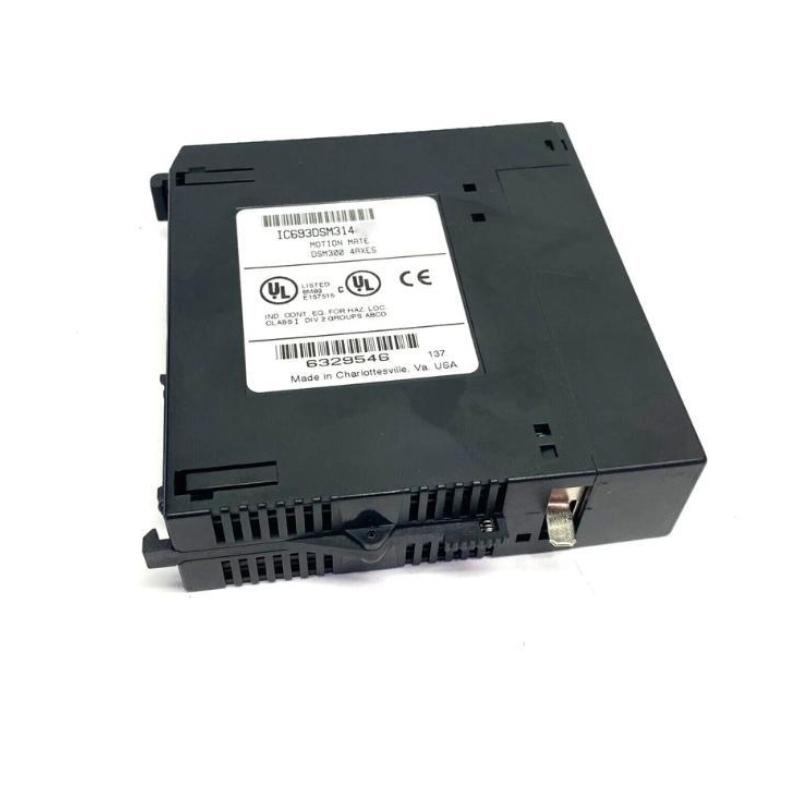

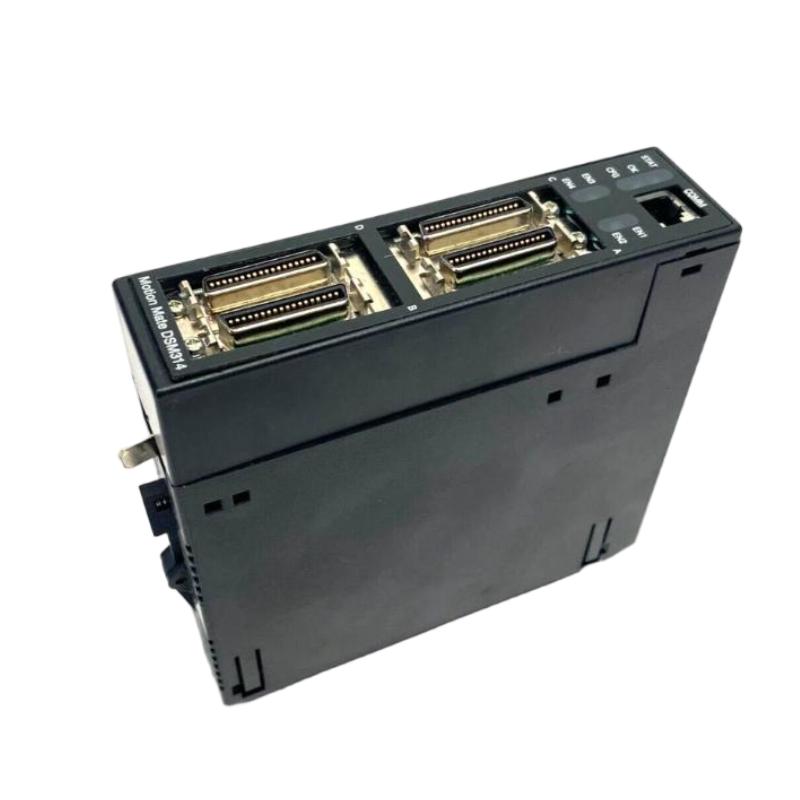

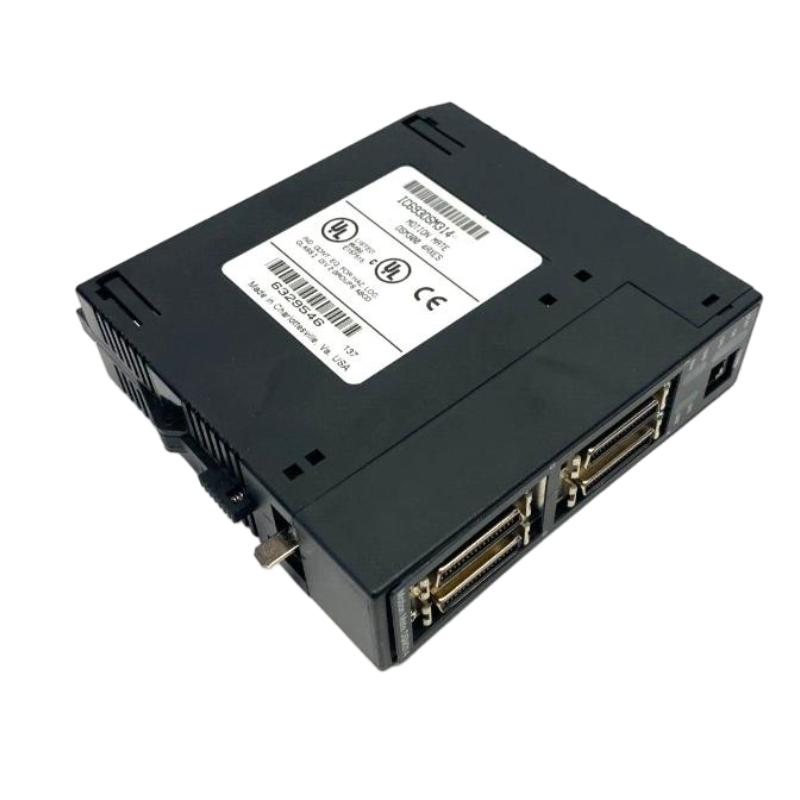

The GE IC693DSM314 Axis Motion Control Module is a specialized motion control unit designed for GE Series 90-30 PLC systems. It provides precise control of servo motors and motion systems, enabling accurate positioning, speed regulation, and synchronized multi-axis operations.
This module is widely used in industrial environments where high-precision motion control is required, such as automated machinery, robotics, and manufacturing systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693DSM314 |
| Product Type | Axis Motion Control Module |
| System Compatibility | GE Series 90-30 PLC |
| Slot Requirement | 1 slot |
| Function | Motion control and servo drive interface |
| Axis Capability | 1–2 digital axes / up to 4 analog axes |
| Control Type | Digital and analog servo control |
| Motion Functions | Position, velocity, acceleration, synchronization |
| Feedback Type | Encoder feedback support |
| Communication | PLC backplane communication |
| Programming Support | PLC motion control instructions |
| Expansion Support | Works with I/O and CPU modules |
| Mounting Type | Rack-mounted |
| Material | Industrial-grade electronic module |
| Dimensions | 130 × 100 × 30 mm |
| Weight | 0.5 kg |
| Operating Environment | Industrial automation systems |
| Temperature Range | 0°C to 60°C |
Function and Working Principle
The IC693DSM314 operates as a dedicated motion controller within a PLC system.
Its working principle includes:
- Receiving motion commands from the PLC CPU
- Generating control signals for servo drives
- Monitoring encoder feedback for position accuracy
- Performing closed-loop motion control
- Coordinating multi-axis movement and synchronization
This ensures precise and repeatable motion control in industrial applications.
Role in Industrial Control Systems
Within GE Series 90-30 PLC architectures, the IC693DSM314 serves a specialized motion role:
- Acts as a motion controller separate from the main CPU
- Improves system performance by offloading motion tasks
- Enables precise control of servo-driven systems
- Supports synchronized multi-axis operations
- Enhances automation accuracy and efficiency
It is essential in applications requiring high-speed and high-precision control.
Industrial Applications
The GE IC693DSM314 is commonly used in:
- CNC machinery and machine tools
- Packaging and labeling equipment
- Robotics and automated assembly lines
- Conveyor and material handling systems
- Printing and textile machinery
- Semiconductor and precision manufacturing
Installation and System Integration
Recommended installation practices include:
- Installing in GE Series 90-30 PLC racks
- Properly wiring servo drives and feedback encoders
- Ensuring signal shielding and grounding
- Configuring motion parameters in PLC software
- Verifying system calibration before operation
Accurate installation is critical for motion precision and system stability.
Compatible System Components
The IC693DSM314 typically works with:
- GE Series 90-30 CPU modules (IC693CPU series)
- Servo drives (digital or analog)
- Encoders and feedback devices
- Power supply modules
- I/O modules for auxiliary control
- Industrial motors and actuators
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC693DSM314 | Motion Control Module | Multi-axis servo control | Precision automation |
| IC693DSM302 | Motion Module | Basic motion control | Entry-level systems |
| IC693APU302 | Axis Positioning Module | Position control | Standard applications |
| IC693CPU364 | CPU Module | High-speed processing | Complex automation |
| IC693CMM301 | Communication Module | System networking | Integrated systems |
Key Advantages
- Supports both digital and analog servo control
- Multi-axis motion capability
- High precision positioning and speed control
- Reduces load on PLC CPU
- Improves automation accuracy and efficiency
- Suitable for complex motion applications
Technical FAQs
What is the main function of IC693DSM314?
It controls servo motors and manages motion operations such as positioning and speed control.
How many axes can it support?
It supports up to 2 digital axes or 4 analog axes.
Does it work independently?
No, it works together with a GE Series 90-30 CPU module.
What industries use this module?
It is used in robotics, manufacturing, and precision automation systems.
Conclusion
The GE IC693DSM314 Axis Motion Control Module is a powerful solution for precise motion control in industrial automation systems. It enables accurate multi-axis coordination, improves system performance, and supports complex motion applications.
For engineers and system integrators, it is an essential component for building high-performance motion control systems within GE Series 90-30 PLC platforms.
