Product Overview

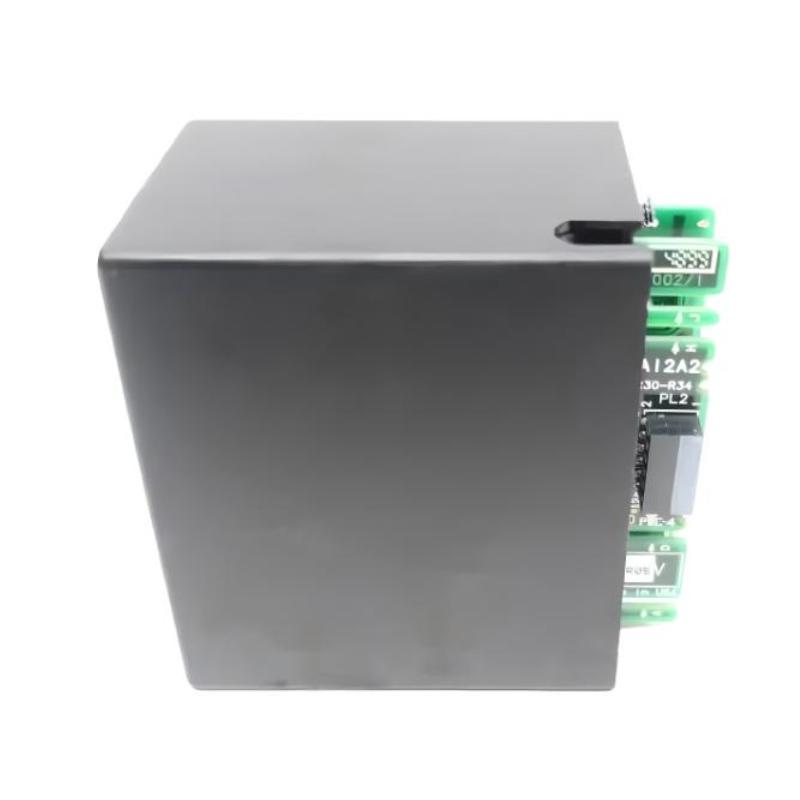

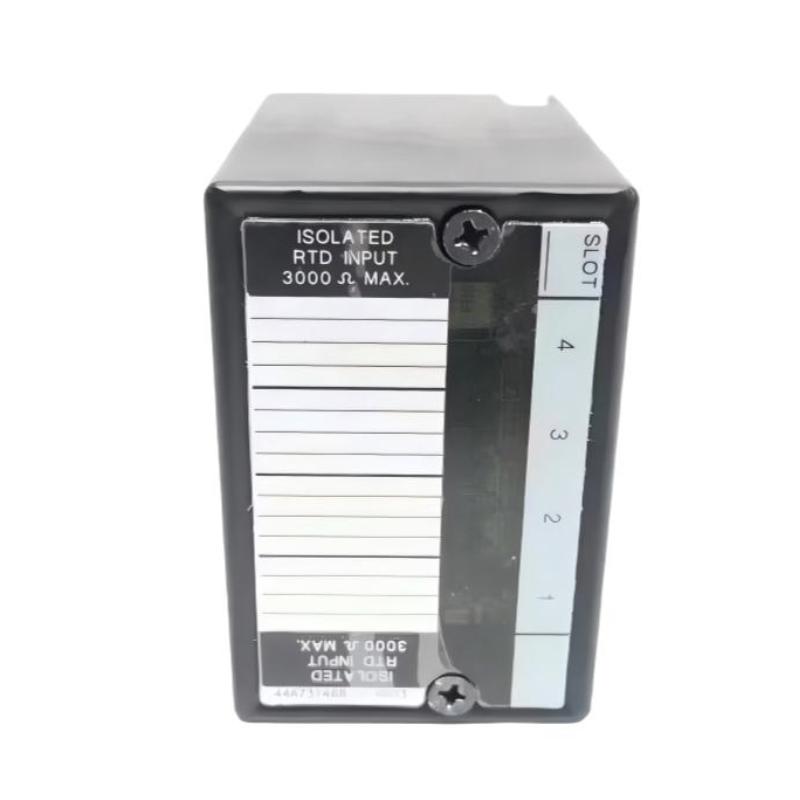

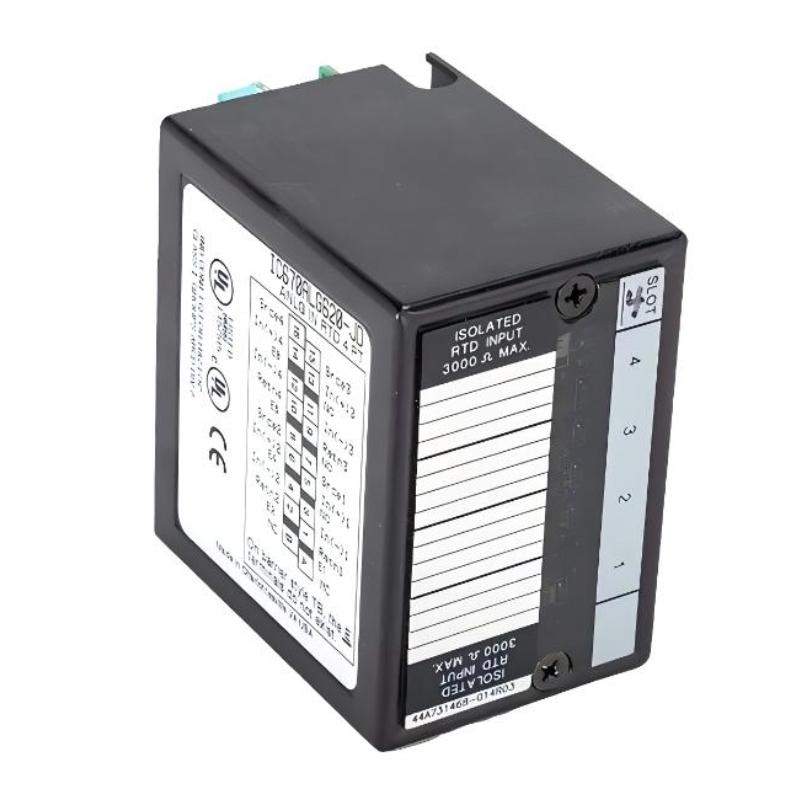

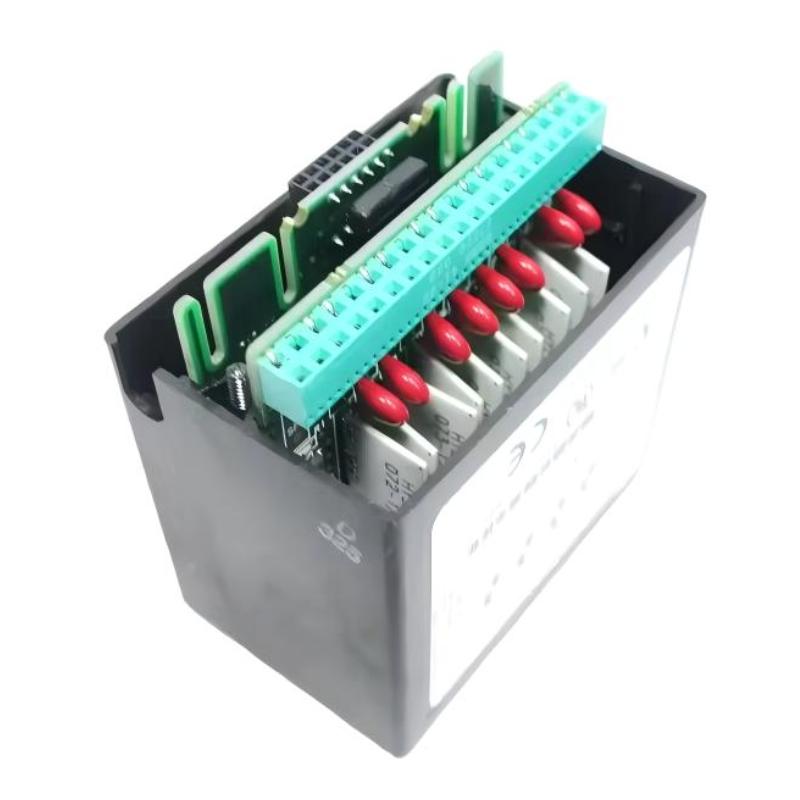

The GE IC670ALG620 4-Channel RTD Analog Input Module is an industrial automation I/O module designed to acquire temperature signals from RTD sensors and transfer the measured values into a control system. It is intended for applications where accurate temperature monitoring is required as part of a larger machine or process automation system.
RTD sensors are widely used in industrial applications because their electrical resistance changes predictably with temperature. Compared with simple switching devices, an RTD provides a continuously changing measurement that can be used by a control system for temperature monitoring, alarm handling, process control, and equipment protection.
The IC670ALG620 provides four RTD input channels, allowing multiple temperature sensors to be connected through one compact I/O module. This arrangement is useful when several temperature measurement points are located around the same machine, process unit, or control area.
As an analog input module, the IC670ALG620 operates at the field interface level. It receives temperature-related electrical signals from RTD sensors and makes the resulting measurement information available to the automation controller.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | IC670ALG620 |
| Product Type | RTD Analog Input Module |
| Channel Count | 4 Channels |
| Input Type | RTD |
| Main Function | Temperature Signal Acquisition |
| Signal Type | Resistance-Based Temperature Measurement |
| Automation Platform | GE Field Control |
| Application | Industrial Temperature Monitoring |
| Installation | Industrial Control System |
| Dimensions | 120 × 50 × 100 mm |
| Weight | 0.431 kg |
| Application Area | Process and Machine Automation |
Product Features
The GE IC670ALG620 is designed for temperature measurement applications where multiple RTD sensors need to be integrated into an industrial control system.
Key features include:
- Four RTD input channels
- Designed for resistance temperature measurement
- Supports multiple temperature measurement points
- Suitable for industrial process monitoring
- Provides a direct interface between RTD sensors and the control system
- Compact modular I/O design
- Suitable for distributed automation architectures
- Useful for equipment temperature monitoring
- Compact 50 mm module width
- Suitable for industrial control cabinet installation
The four-channel configuration is useful when several temperature points need to be monitored without installing a separate input module for every sensor.
Working Principle
The IC670ALG620 receives resistance-based signals from connected RTD sensors and processes the measured information so that the automation system can determine the corresponding temperature.
An RTD sensor changes its electrical resistance as its temperature changes. The input module monitors this resistance and converts the measurement into temperature-related process information that can be used by the control system.
A typical operating sequence includes:
- Connecting an RTD sensor to an input channel
- Supplying the appropriate measurement interface to the sensor
- Detecting the resistance of the RTD
- Determining the corresponding temperature value
- Transferring the measured value to the control system
- Using the temperature information for monitoring or control
The controller can then use the temperature value for alarms, trends, equipment protection, process regulation, or other application-specific functions.
Role in Industrial Control Systems
The IC670ALG620 provides the temperature measurement interface between field-mounted RTD sensors and the automation system.
| Function | Description |
| RTD Signal Acquisition | Receives resistance-based signals from RTD sensors |
| Temperature Measurement | Provides temperature-related process data |
| Field Interface | Connects temperature sensors with the control system |
| Process Monitoring | Allows continuous temperature monitoring |
| Equipment Protection | Provides temperature information for protective functions |
| I/O Expansion | Adds multiple RTD measurement points |
The module does not normally execute the primary control program. Instead, it supplies the controller with temperature information that can be used by the broader automation strategy.
Industrial Applications
The IC670ALG620 can be applied wherever RTD-based temperature measurement is required.
| Industry | Typical Applications |
| Manufacturing | Motor, bearing, and machine temperature monitoring |
| Chemical Processing | Reactor and process temperature measurement |
| Power Generation | Equipment and process temperature monitoring |
| Oil & Gas | Process and equipment temperature measurement |
| Water Treatment | Pump and process temperature monitoring |
| Food Processing | Production temperature monitoring |
| Pharmaceutical | Process temperature measurement |
| Industrial Machinery | Motor, bearing, and equipment monitoring |
RTD inputs are particularly useful where temperature needs to be monitored continuously rather than detected only after reaching a fixed alarm threshold.
Installation and System Integration
Proper sensor wiring is important when installing the IC670ALG620 because RTD measurements can be affected by lead resistance and wiring conditions.
Recommended installation steps include:
- Confirm the IC670ALG620 model before installation.
- Verify compatibility with the existing GE Field Control system.
- Identify the required RTD input channels.
- Install the module in the designated I/O position.
- Connect each RTD sensor to the correct input terminals.
- Check sensor wiring and terminal assignments.
- Verify the applicable RTD sensor configuration.
- Configure the input channels within the control system.
- Compare the displayed temperature with a known reference during commissioning.
- Monitor the input values after the system is placed into operation.
Sensor cables should be routed appropriately, particularly in cabinets containing variable-frequency drives, motors, contactors, and other equipment capable of generating electrical interference.
Compatible System Components
The IC670ALG620 can be integrated with other components to form a complete temperature monitoring and control system.
| Compatible Component | Function |
| RTD Sensors | Measure process or equipment temperature |
| GE Field Control Controller | Processes temperature data and executes control logic |
| Field I/O Components | Provide system-level signal integration |
| Terminal Blocks | Provide sensor wiring connections |
| Control Network | Transfers measurement information |
| Operator Station | Displays temperature values and alarms |
| Engineering Workstation | Used for system configuration |
| Process Equipment | Provides the temperature measurement point |
The sensor type, wiring method, control configuration, and application requirements should be checked before commissioning.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
| GE IC670ALG620 | 4-Channel RTD Analog Input Module | Multi-point RTD temperature acquisition | Industrial automation |
| GE IC670ALG310 | Analog Input Module | General analog signal acquisition | Field Control systems |
| GE IC670ALG320 | Analog Output Module | Current/voltage analog output | Process and machine control |
| GE Field Control RTD Input Modules | RTD Input | Temperature measurement | Industrial process monitoring |
| GE Field Control Analog Input Modules | Analog Input | Modular field signal acquisition | Distributed automation |
When selecting an alternative RTD input module, the number of channels, supported sensor type, wiring arrangement, measurement characteristics, controller compatibility, and system generation should all be verified. A general analog input module is not necessarily a direct substitute for an RTD-specific input module.
Key Advantages
- Provides four RTD input channels
- Designed for industrial temperature measurement
- Supports multiple temperature monitoring points
- Provides direct integration with RTD sensors
- Suitable for process and equipment monitoring
- Supports distributed I/O architectures
- Compact 120 × 50 × 100 mm dimensions
- Lightweight 0.431 kg construction
- Suitable for industrial control cabinet installation
- Useful for continuous temperature monitoring
- Supports temperature-related control, alarm, and diagnostic applications
Technical FAQs
What makes an RTD input different from a conventional analog voltage input?
An RTD is a resistance-based temperature sensor. Its resistance changes according to temperature, so the input module must be designed to measure that resistance and convert it into temperature information. A conventional voltage input is designed to interpret an electrical voltage rather than directly measure RTD resistance.
Why can the wiring configuration affect RTD measurement accuracy?
The resistance of the sensor leads can become part of the measured resistance and introduce an error, particularly with longer cables. The appropriate wiring arrangement and installation method should therefore be selected according to the sensor and input module requirements.
Where are four-channel RTD input modules especially useful?
They are useful in applications with several temperature measurement points, such as motors, bearings, process equipment, heating systems, reactors, pumps, and production machinery. Four channels allow several sensors to be monitored through one I/O module.
What should be checked if an RTD channel shows an abnormal temperature value?
The sensor itself, wiring continuity, terminal connections, sensor configuration, channel assignment, and environmental electrical interference should be checked. Comparing the affected channel with a known temperature reference can also help determine whether the problem originates from the sensor, wiring, or input module.
