Product Overview

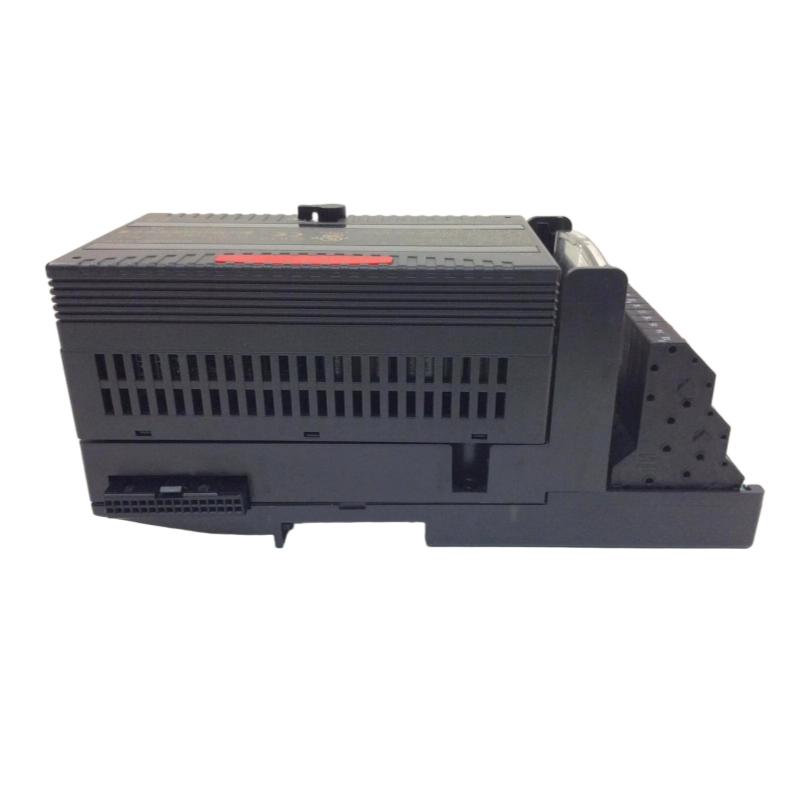

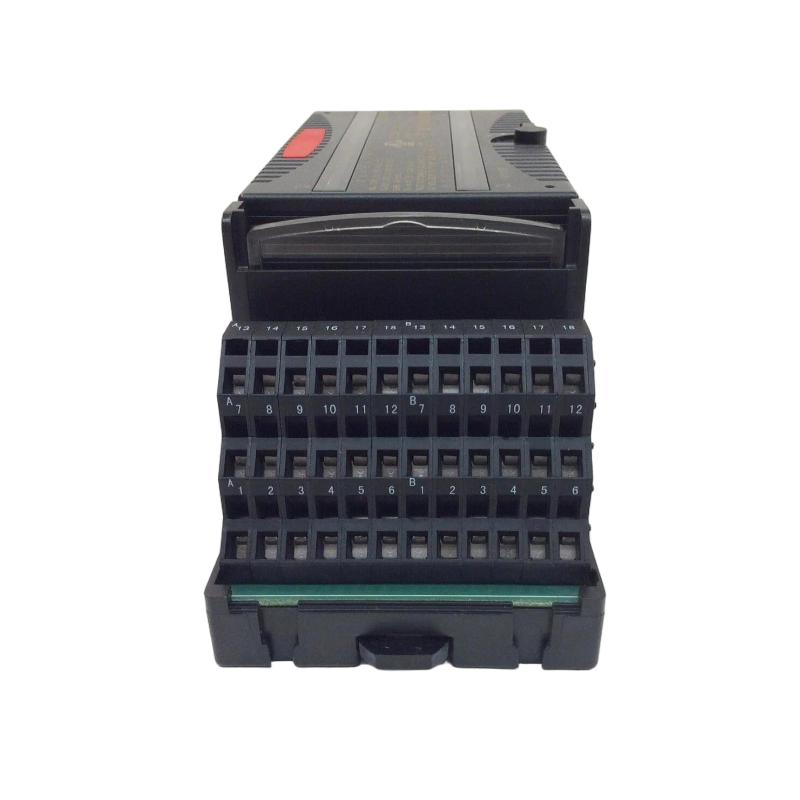

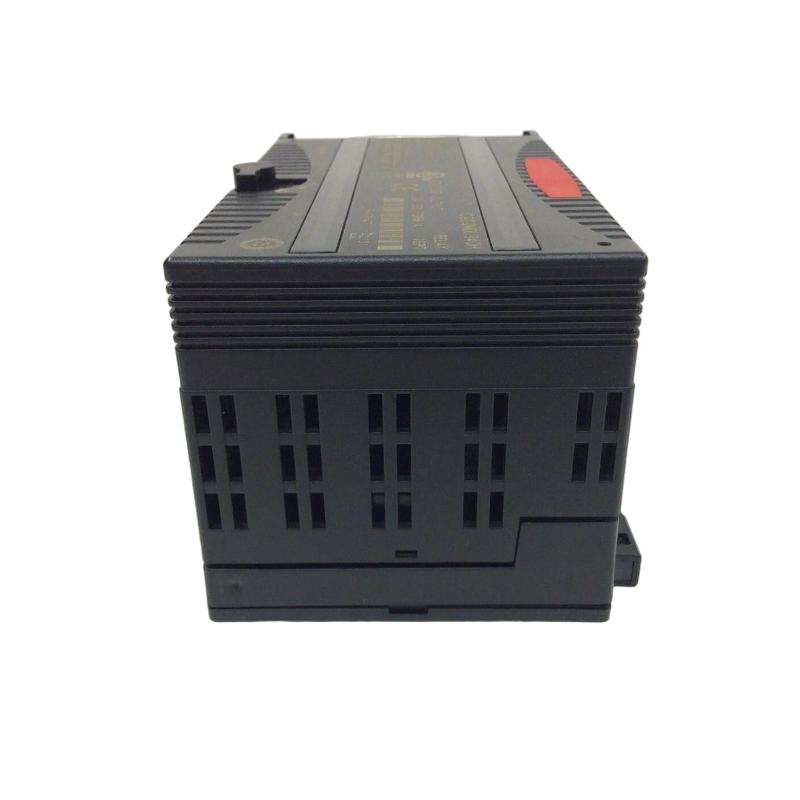

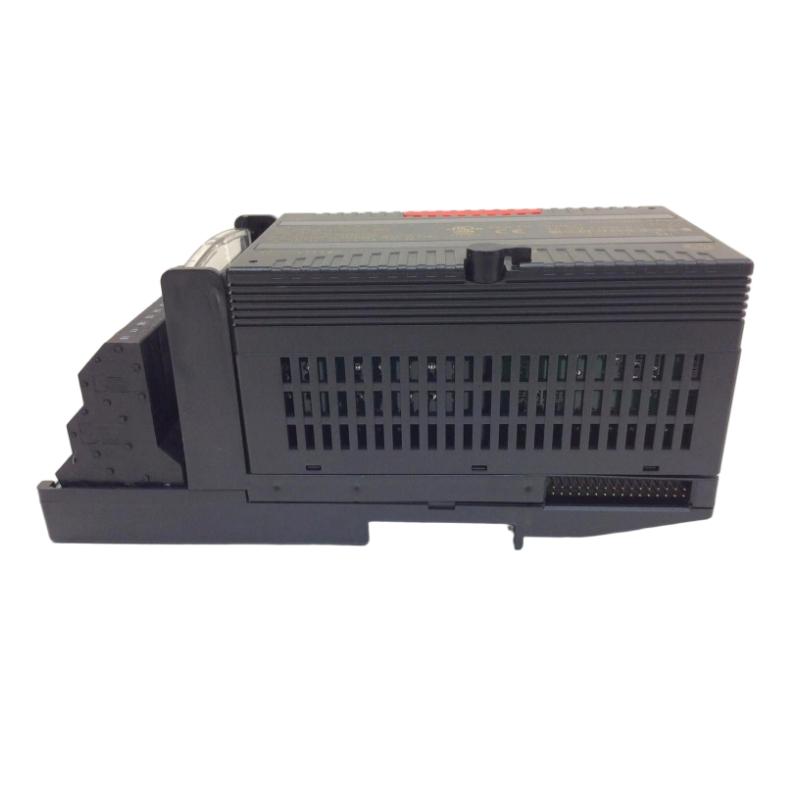

The GE IC200MDL102 VersaMax Discrete Input Module is a discrete input interface designed for industrial automation systems based on the GE VersaMax platform. It provides a connection between field-level discrete devices and the control system, allowing external ON/OFF signals to be monitored by the controller.
The module is intended for applications where the control system needs to detect the status of field devices such as switches, proximity devices, relay contacts, pushbuttons, limit switches, and other discrete signals.
The IC200MDL102 is installed as part of a modular VersaMax I/O system. Its role is to receive field signals, condition them appropriately, and make the resulting input states available to the controller through the VersaMax backplane.
The supplied product information is:
- Manufacturer: GE
- Model: IC200MDL102
- Product Family: VersaMax
- Product Type: Discrete Input Module
- Dimensions: 110 × 66.8 × 50 mm
- Weight: 0.36 kg
- Application: Industrial Automation and Machine Control
- Primary Function: Monitoring discrete field signals
The module is particularly suitable for control applications where reliable detection of discrete field conditions is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Product Family | VersaMax |
| Model | IC200MDL102 |
| Product Type | Discrete Input Module |
| Input Type | Discrete / Digital |
| Primary Function | Field Status Monitoring |
| System Architecture | Modular I/O |
| Application | Industrial Automation |
| Dimensions | 110 × 66.8 × 50 mm |
| Weight | 0.36 kg |
| Installation | VersaMax Modular I/O System |
| Signal Category | ON/OFF Field Signals |
| Interface | VersaMax Backplane and Field Wiring |
| Typical Devices | Switches, contacts, sensors, status devices |
The exact electrical characteristics, channel count, voltage range, current requirements, and wiring configuration should be confirmed against the specific system design before commissioning.
Function and Working Principle
The IC200MDL102 operates as an interface between field devices and the VersaMax controller.
A simplified signal path is:
Field Device
↓
Field Wiring
↓
IC200MDL102
↓
VersaMax Backplane
↓
CPU / Controller
↓
Control Logic
The module receives discrete signals from field devices.
For example, a field switch may change between an OFF and ON condition. The IC200MDL102 detects the corresponding electrical state and makes that state available to the controller.
The controller can then use the input information for:
- Interlocking
- Sequencing
- Machine monitoring
- Alarm generation
- Start/stop logic
- Equipment status
- Safety-related permissive logic where the overall system is appropriately designed
The input module does not normally make the final control decision. Instead, it provides the controller with the status information required for the control program.
Role in the VersaMax Control System
The IC200MDL102 is positioned between field instrumentation and the control processor.
A typical architecture can be represented as:
Sensors / Switches
↓
IC200MDL102
↓
VersaMax I/O Backplane
↓
VersaMax Controller
↓
PLC Program
↓
Output Modules / Actuators
This architecture separates field-level signal acquisition from control logic.
For example, a machine may use a limit switch to indicate that a mechanical assembly has reached its end position. The switch connects to a discrete input channel. The IC200MDL102 reports the input condition to the PLC, and the control program can then stop a motor or initiate the next sequence.
Discrete Input Applications
Discrete inputs are commonly used for signals with clearly defined states.
Typical applications include:
- Motor running feedback
- Motor fault indication
- Valve open status
- Valve closed status
- Limit switch monitoring
- Pushbutton inputs
- Selector switches
- Relay contacts
- Pressure switch status
- Level switch status
- Proximity sensor signals
- Machine position detection
- Alarm contacts
The module is therefore suitable for both machine-control and process-automation applications.
Installation Guide
1. Verify the Module
Before installation, confirm the product marking:
GE IC200MDL102
Check the module housing for:
- Correct model number
- Physical damage
- Damaged connectors
- Broken locking features
- Contamination
- Bent terminals
Do not install a module if its connector or housing is visibly damaged.
2. Inspect the I/O Assembly
Before installing the module, inspect the associated VersaMax mounting arrangement.
Check:
- Carrier or base
- Backplane connector
- Mounting position
- Terminal assembly
- Adjacent modules
- Power connections
The IC200MDL102 depends on proper mechanical and electrical engagement with the VersaMax I/O assembly.
3. Disconnect Power Before Installation
Unless the particular system architecture and approved maintenance procedure explicitly support live replacement, remove system power before installing or removing the module.
Before beginning maintenance:
- Stop the controlled equipment as required.
- Follow the plant isolation procedure.
- Remove electrical power where required.
- Verify the safe state.
- Confirm that the module can be serviced safely.
This prevents accidental equipment operation and reduces the possibility of connector or module damage.
4. Install the Module
Align the IC200MDL102 with its assigned mounting position.
Carefully engage the module with the carrier/backplane.
Verify:
- Correct orientation
- Full seating
- Secure mechanical engagement
- Proper connector alignment
Do not force the module into the carrier.
If resistance is abnormal, remove the module and inspect the connector alignment.
5. Connect Field Wiring
Connect the field devices according to the approved electrical drawing.
Typical discrete input devices include:
- Pushbuttons
- Switches
- Relay contacts
- Proximity sensors
- Limit switches
- Auxiliary contacts
- Alarm contacts
Each input channel should be clearly identified.
6. Check Input Polarity and Common Connections
Discrete input circuits depend on the correct electrical relationship between the field device and the input circuit.
Before energizing:
- Verify supply wiring.
- Verify common connections.
- Confirm signal polarity where applicable.
- Check for accidental shorts.
- Confirm that field devices use the intended voltage.
- Verify terminal identification.
Incorrect wiring can cause a permanently ON input, permanently OFF input, or module damage.
7. Check Field Device Operation
Operate representative field devices manually or through the equipment control system.
For each input:
Field Device OFF
→
Input Should Show OFF
and:
Field Device ON
→
Input Should Show ON
The exact electrical behavior depends on the connected field device and circuit design.
Commissioning Procedure
Step 1: Mechanical Inspection
Verify that the IC200MDL102 is fully seated.
Step 2: Wiring Inspection
Check every field connection against the wiring documentation.
Step 3: Power Inspection
Verify the appropriate supply and common connections.
Step 4: Energize the System
Restore power according to the approved commissioning procedure.
Step 5: Check Module Status
Inspect module indicators and controller diagnostics.
Step 6: Verify Controller Recognition
Confirm that the VersaMax controller recognizes the installed input module.
Step 7: Test Individual Inputs
Activate each representative field device.
Step 8: Compare Physical State With PLC State
For example:
Limit Switch Open → PLC Input OFF
Limit Switch Closed → PLC Input ON
The actual logic may be inverted depending on the application.
Step 9: Check Alarms
Verify that abnormal field conditions generate the expected PLC alarms.
Step 10: Perform Functional Testing
Confirm that the input signals correctly influence the intended control sequences.
Troubleshooting Guide
Problem 1: IC200MDL102 Is Not Recognized
If the controller does not recognize the module, possible causes include:
- Module not fully seated
- Backplane connector problem
- Incorrect configuration
- Power supply problem
- Communication issue
- Damaged module
Troubleshooting Procedure
- Check the module seating.
- Inspect the backplane connector.
- Check module status indicators.
- Review controller diagnostics.
- Verify the hardware configuration.
- Check the associated power supply.
- Inspect adjacent I/O components.
If the problem remains after reseating, investigate the carrier and backplane rather than immediately assuming the input electronics are defective.
Problem 2: All Inputs Remain OFF
Possible causes include:
- Field power missing
- Common connection open
- Incorrect wiring
- Module power problem
- Input devices not operating
- Configuration problem
- Backplane issue
Diagnostic Approach
First determine whether the problem affects every channel.
If all channels are OFF simultaneously, investigate common power and wiring.
If only one channel is OFF, focus on the corresponding field device and wiring.
Problem 3: One Input Remains OFF
If the field device is known to be active but the PLC input remains OFF, inspect:
- Field device
- Field wiring
- Terminal connection
- Common connection
- Input channel
- Module seating
- PLC input status
A broken wire or loose terminal is often easier to identify than an internal module fault.
Problem 4: One Input Remains ON
Possible causes include:
- Shorted field wiring
- Incorrect common connection
- Failed field device
- Incorrect input wiring
- Input circuit fault
- Incorrect PLC logic
Disconnecting the field circuit according to an approved troubleshooting procedure can help determine whether the ON condition originates in the field or the input channel.
Problem 5: Input Status Changes Intermittently
Intermittent input signals may be caused by:
- Loose terminals
- Damaged cables
- Mechanical vibration
- Worn switches
- Poor contact surfaces
- Electrical interference
- Unstable field power
- Connector problems
Check the field device and wiring before replacing the module.
If physically moving the field cable causes the input state to change, investigate the wiring and termination.
Problem 6: Multiple Inputs Change Unexpectedly
If multiple input channels change at the same time, investigate common causes:
- Shared power supply
- Common wiring
- Grounding issue
- Electrical interference
- Backplane problem
- Incorrect field wiring
When several inputs exhibit the same abnormal behavior simultaneously, a common circuit problem is generally more likely than multiple independent channel failures.
Problem 7: Input Works During Testing but Fails During Machine Operation
This can indicate:
- Vibration
- Electromagnetic interference
- Voltage fluctuation
- Loose terminal
- Incorrect field-device wiring
- Mechanical switch bounce
- Cable routing problem
Observe whether the problem occurs when motors, contactors, solenoids, or variable-speed drives operate.
If the input changes at the same time as high-power equipment switches, inspect signal cable routing and electrical separation.
Problem 8: Module Fault After Replacement
If a replacement IC200MDL102 produces the same symptoms as the original module, investigate the surrounding system.
Check:
- Field wiring
- Carrier
- Backplane
- Power supply
- Configuration
- Field device
- Common connections
Replacing the module repeatedly without checking the surrounding infrastructure can result in unnecessary maintenance.
Input Diagnostic Method
A systematic diagnostic process is recommended.
Step 1 — Check the Physical Device
Determine whether the field switch or sensor is actually changing state.
Step 2 — Check the Field Wiring
Verify continuity and terminal connections.
Step 3 — Check the Module Input
Determine whether the electrical input reaches the corresponding channel.
Step 4 — Check the PLC Status
Confirm whether the controller receives the expected state.
Step 5 — Check the Control Logic
If the physical input is correct but the machine does not respond correctly, inspect the PLC program and interlocks.
This method separates:
Field Device Fault
from
Wiring Fault
from
I/O Module Fault
from
PLC Logic Fault
Preventive Maintenance
The IC200MDL102 should be included in routine control-panel inspections.
| Inspection Item | Recommended Check |
|---|---|
| Module Housing | Check for damage |
| Module Seating | Verify secure installation |
| Connector | Check for contamination |
| Terminals | Check connection integrity |
| Field Wiring | Inspect insulation and routing |
| Input Devices | Verify operation |
| Power Supply | Check stability |
| Cabinet | Check temperature and contamination |
| Diagnostics | Review recurring faults |
| PLC Status | Compare physical and software states |
Preventive inspection is particularly valuable in systems exposed to vibration, dust, temperature changes, or frequent switching.
Industrial Applications
Machine Automation
The IC200MDL102 can monitor:
- Limit switches
- Start/stop buttons
- Machine-position sensors
- Motor feedback
- Door switches
- Interlock signals
Packaging Equipment
Discrete inputs can monitor:
- Product sensors
- Conveyor positions
- Machine guards
- Cylinder position
- Emergency status contacts
- Equipment-ready signals
Material Handling
Potential applications include:
- Conveyor status
- Motor feedback
- Photoelectric sensor signals
- Position switches
- Jam detection
- Equipment interlocks
Process Automation
Discrete field signals can represent:
- Pump running status
- Valve position
- High-level switch
- Low-level switch
- Pressure switch
- Alarm contacts
Building and Utility Systems
The module can also be used to monitor:
- Fan status
- Pump status
- Equipment alarms
- Contact feedback
- Switch states
Wiring and Signal Considerations
Good field wiring practices are essential for reliable discrete input operation.
Separate Signal and Power Wiring
Avoid routing low-level input wiring together with high-current motor conductors.
Use Proper Terminations
Loose terminals can cause intermittent signals.
Maintain Cable Identification
Every input should have a clear tag corresponding to the electrical drawing and PLC program.
Check Common Connections
A common connection problem can affect multiple input channels simultaneously.
Minimize Electrical Interference
Keep sensitive input wiring away from:
- VFD output cables
- Motor feeders
- Transformer wiring
- High-current switching circuits
IC200MDL102 Troubleshooting Table
| Symptom | Possible Cause | Recommended Check |
|---|---|---|
| Module not recognized | Seating/configuration problem | Check module and controller |
| All inputs OFF | Common power/wiring fault | Check supply and common |
| One input OFF | Field device/wiring | Check device and cable |
| One input ON | Short or wiring issue | Inspect field circuit |
| Intermittent input | Loose connection | Inspect terminals |
| Several inputs unstable | Common supply/interference | Check power and routing |
| Input works only when equipment stops | EMI/vibration | Check wiring and cabinet |
| Replacement module has same fault | External fault | Check carrier, wiring, configuration |
Key Advantages
- Designed for GE VersaMax modular automation systems
- Provides discrete field signal acquisition
- Suitable for ON/OFF status monitoring
- Supports machine and process automation
- Interfaces field devices with the PLC
- Simplifies distributed I/O architecture
- Suitable for modular control cabinets
- Supports systematic field diagnostics
- Compact industrial form factor
- Supplied dimensions of 110 × 66.8 × 50 mm
- Supplied weight of 0.36 kg
Technical FAQs
What is the GE IC200MDL102?
The GE IC200MDL102 is a VersaMax discrete input module used to acquire ON/OFF signals from field devices and provide those states to the control system.
What type of signals does IC200MDL102 handle?
It is designed for discrete or digital input signals, where the field condition is represented by defined ON/OFF states.
What devices can be connected to a discrete input module?
Typical devices include:
- Pushbuttons
- Limit switches
- Proximity sensors
- Relay contacts
- Auxiliary contacts
- Pressure switches
- Level switches
- Machine-status sensors
What are the dimensions of IC200MDL102?
The supplied dimensions are:
110 × 66.8 × 50 mm
What is the weight of IC200MDL102?
The supplied weight is:
0.36 kg
Does IC200MDL102 control an actuator directly?
No. The module primarily acquires field input states. The PLC program determines how those signals are used for control.
Why does the PLC show an input as OFF when the field device is ON?
Possible causes include:
- Incorrect wiring
- Missing field power
- Open common connection
- Faulty field device
- Module connection problem
- Configuration issue
Why does an input remain ON?
Check for:
- Shorted wiring
- Incorrect common connection
- Failed field device
- Incorrect wiring
- Input circuit fault
- PLC logic that interprets the signal differently
Why are several inputs failing simultaneously?
Check common causes first, particularly:
- Field power
- Common wiring
- Backplane
- Module seating
- Electrical interference
Can vibration cause input problems?
Yes. Vibration can loosen terminals, connectors, and field-device wiring, creating intermittent input signals.
Can electromagnetic interference affect discrete inputs?
Yes. Poorly routed input wiring can pick up interference from motors, drives, contactors, and other high-power equipment.
Should I replace the IC200MDL102 if one input fails?
Not immediately. First isolate the problem by checking the field device, wiring, terminal connection, and the corresponding input channel.
How can I determine whether the problem is the module or the field wiring?
Trace the signal from the field device toward the module. Verify the device state, cable continuity, terminal voltage or contact state as appropriate, and finally the PLC input status.
Is the IC200MDL102 a complete PLC?
No. It is an I/O module and requires the appropriate VersaMax system components and controller architecture to perform a complete automation function.
Conclusion
The GE IC200MDL102 VersaMax Discrete Input Module provides a practical interface between discrete field devices and a GE VersaMax control system. Its primary function is to acquire reliable ON/OFF status information from switches, sensors, relay contacts, machine feedback devices, and other discrete field equipment.
With supplied dimensions of 110 × 66.8 × 50 mm and a weight of 0.36 kg, the module is suitable for compact modular industrial automation installations.
Successful installation depends on correct module seating, proper field wiring, appropriate common connections, secure terminals, and careful separation of signal wiring from high-power circuits. During commissioning, each input should be tested from the physical field device through to the PLC program so that the complete signal path is verified.
When troubleshooting the IC200MDL102, it is important to distinguish between an input-channel problem, field-device problem, wiring problem, backplane problem, and PLC-logic problem. Checking the complete signal path systematically prevents unnecessary module replacement and makes fault diagnosis considerably faster.
