Product Overview

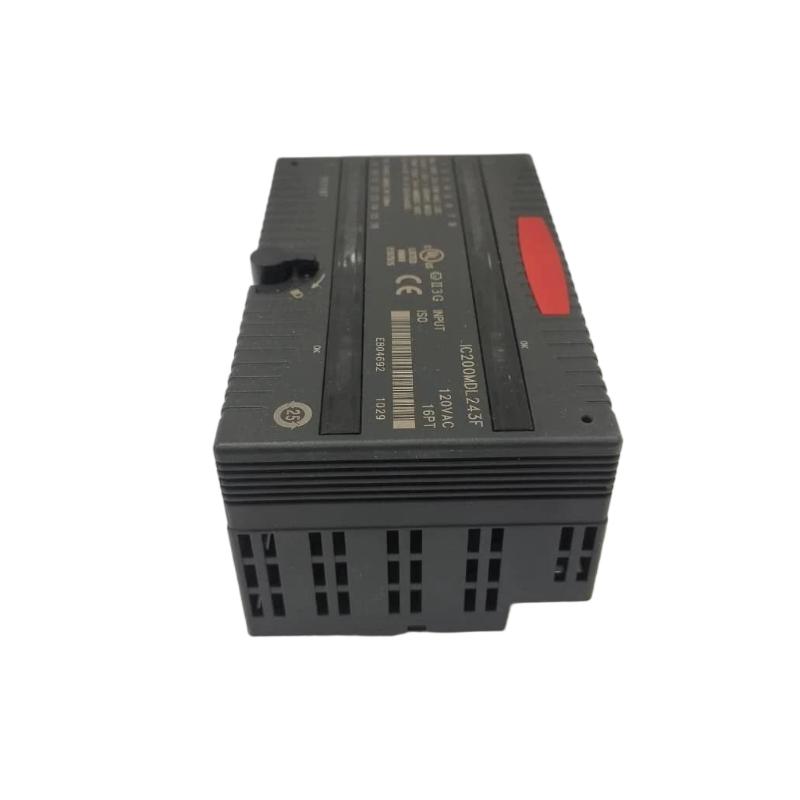

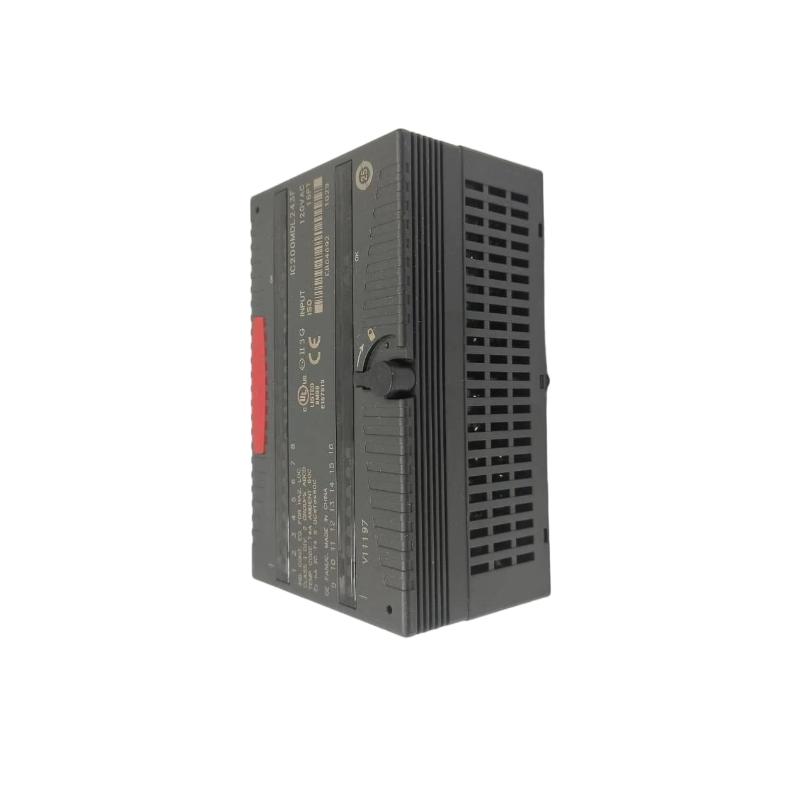

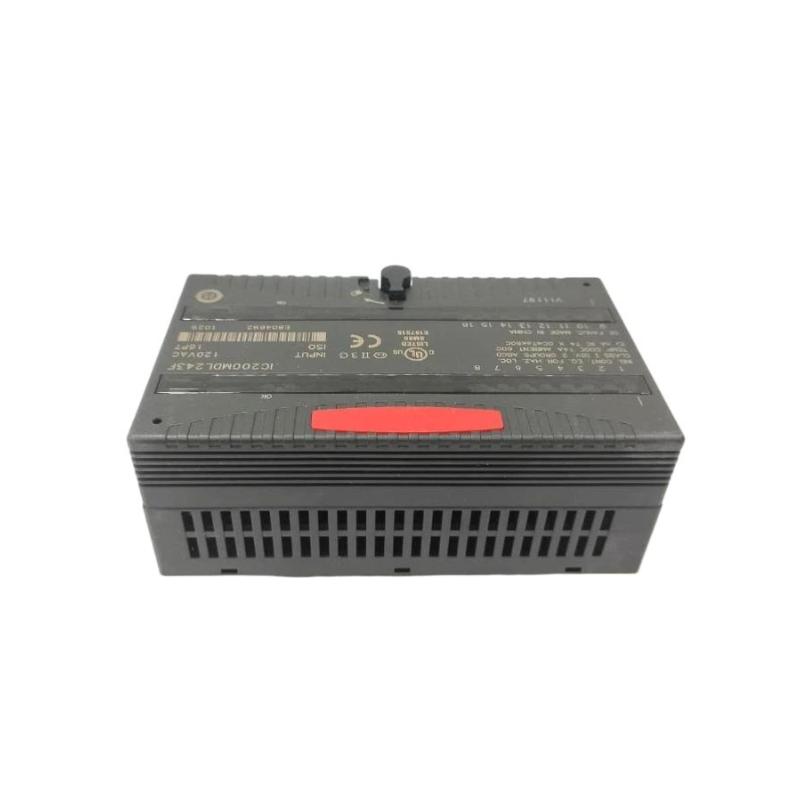

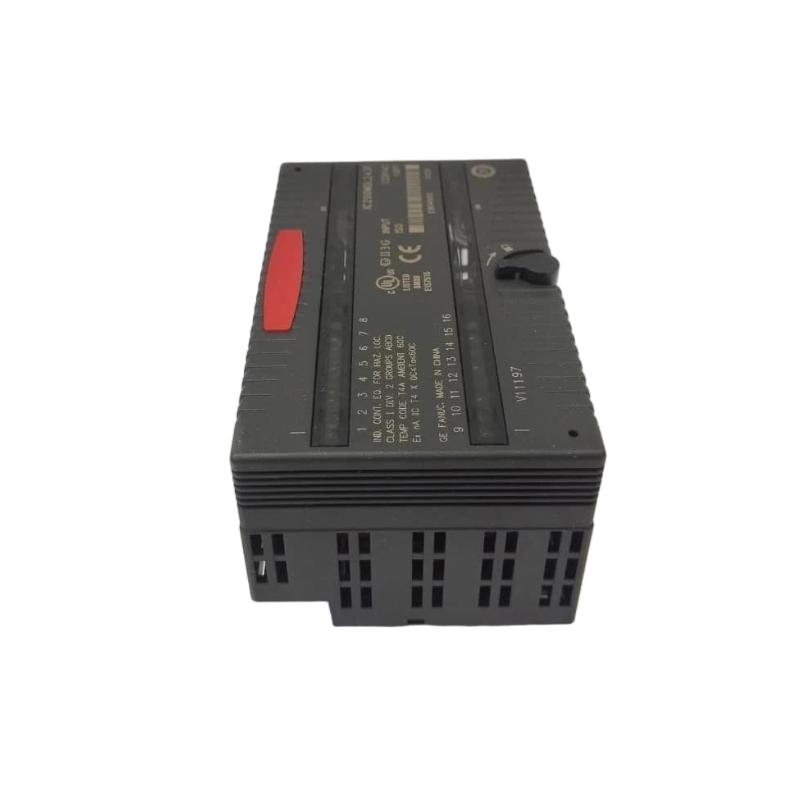

The GE IC200MDL243 VersaMax Discrete Input Module is a modular digital input component used in GE VersaMax industrial automation systems. Its primary role is to receive discrete signals from field devices and make their operating states available to the control system.

In industrial control applications, many field conditions are represented by simple binary states. A motor can be running or stopped, a valve can be open or closed, a limit switch can be actuated or released, and a machine can be ready or in a fault condition. The IC200MDL243 provides the interface required to bring these discrete conditions into the VersaMax control architecture.

The module is intended to operate as part of a complete VersaMax I/O system rather than as an independent controller. It works together with the appropriate carrier, backplane, controller, power arrangement, and field wiring.

The supplied product information is:

• Manufacturer: GE
• Product Family: VersaMax
• Model: IC200MDL243
• Product Type: Discrete Input Module
• Dimensions: 110 × 66.8 × 50 mm
• Weight: 0.27 kg
• Application: Industrial Automation
• Primary Function: Discrete Field Signal Acquisition

For engineering and replacement work, the exact electrical characteristics and system configuration should always be matched to the actual application.

---

Technical Specifications

The precise input voltage, current, channel arrangement, electrical isolation, and terminal configuration should be verified using the documentation associated with the specific system installation.

---

Function and Working Principle

The IC200MDL243 acts as an interface between field-level discrete devices and the PLC control system.

A simplified signal path is:

Field Device

↓

Field Wiring

↓

IC200MDL243

↓

VersaMax Backplane

↓

Controller

↓

PLC Program

↓

Control Output

When a field device changes state, the associated input circuit detects the change. The module then provides the input status to the controller through the VersaMax I/O architecture.

For example, a conveyor may use a proximity sensor to detect the presence of a product. When the sensor becomes active, the corresponding input state changes. The PLC can then use that state to initiate another machine sequence.

The same principle applies to equipment feedback, switches, alarms, and interlocks.

---

Role in Industrial Control Systems

The IC200MDL243 provides the connection between physical equipment and software-based control logic.

A typical automation structure can be represented as:

Sensors / Switches

↓

IC200MDL243

↓

VersaMax I/O Infrastructure

↓

PLC Controller

↓

Control Program

↓

Output Modules

↓

Actuators

This structure allows input acquisition and control processing to be handled as separate functional layers.

The module can therefore contribute to:

• Machine sequencing
• Equipment monitoring
• Interlocking
• Alarm detection
• Position monitoring
• Motor feedback
• Process status monitoring

---

Typical Industrial Applications

Machine Automation

Discrete inputs can monitor:

• Limit switches
• Machine positions
• Motor feedback
• Equipment-ready contacts
• Guard status
• Start/stop commands

Conveyor Systems

Typical signals include:

• Product detection
• Conveyor position
• Motor running feedback
• Jam detection
• End-of-line sensors
• Equipment fault contacts

Packaging Machines

The module can be used for:

• Product presence
• Cylinder position
• Machine-ready signals
• Door status
• Position switches
• Equipment interlocks

Pump and Fan Systems

Discrete inputs may monitor:

• Running status
• Fault status
• Auxiliary contacts
• Starter feedback
• Local/remote status

Process Equipment

Possible input signals include:

• Valve position
• Pressure switch status
• Level switch status
• Pump status
• Alarm contacts
• Process permissives

---

Installation Guide

1. Confirm the Model

Before installation, verify that the module marking corresponds to:

GE IC200MDL243

Also inspect the physical condition of the module.

Check for:

• Damaged housing
• Cracked plastic
• Bent connector contacts
• Damaged locking features
• Contamination
• Signs of overheating

A damaged module should not be installed.

---

2. Inspect the Mounting Assembly

Before installing the IC200MDL243, inspect the associated VersaMax carrier and I/O interface.

Check:

• Carrier condition
• Backplane connector
• Mounting position
• Adjacent modules
• Terminal assembly
• Power connections

The carrier and backplane are part of the signal path, so their condition can directly affect input reliability.

---

3. Follow Electrical Safety Procedures

Before installation or removal, follow the facility’s approved isolation and maintenance procedures.

Unless the specific system architecture permits live module replacement, disconnect power before servicing.

The connected machine should also be placed into an appropriate safe condition.

---

4. Install the Module

Align the IC200MDL243 with its designated carrier position.

Carefully engage the module.

Verify:

• Correct orientation
• Full connector engagement
• Proper mechanical seating
• Secure locking

Do not use excessive force.

If the module does not engage normally, inspect the carrier and connector before continuing.

---

5. Connect Field Devices

Connect field devices according to the approved wiring diagram.

Potential devices include:

• Pushbuttons
• Limit switches
• Proximity sensors
• Relay contacts
• Selector switches
• Auxiliary contacts
• Equipment status contacts

Each input should be clearly identified.

---

6. Verify Wiring

Before energizing the system, inspect:

• Field supply
• Common connections
• Input conductors
• Terminal assignments
• Polarity where applicable
• Cable insulation
• Short circuits

A wiring error can create false input conditions or cause an input circuit problem.

---

7. Verify the Field Device

Operate representative field devices.

The expected relationship should be established between the physical field condition and PLC state.

For example:

Field Device Inactive → PLC Input OFF

Field Device Active → PLC Input ON

The exact logical relationship depends on the circuit and control program.

---

Commissioning Procedure

Step 1: Mechanical Inspection

Verify that the IC200MDL243 is firmly seated.

Step 2: Wiring Verification

Compare each field connection against the electrical drawing.

Step 3: Power Verification

Check field power and common connections.

Step 4: System Energization

Restore power according to the approved procedure.

Step 5: Module Status Check

Check available module and controller diagnostics.

Step 6: Controller Recognition

Verify that the VersaMax controller recognizes the input module.

Step 7: Input Testing

Activate representative field devices.

Step 8: PLC Verification

Compare physical field states with PLC input states.

Step 9: Interlock Testing

Confirm that required permissives and interlocks respond correctly.

Step 10: Functional Testing

Run the applicable machine or process sequence and verify the input signals throughout operation.

---

Troubleshooting Guide

Problem 1: IC200MDL243 Is Not Recognized

Possible causes include:

• Incorrect module installation
• Poor connector engagement
• Carrier problem
• Configuration error
• Power problem
• Module failure

Troubleshooting Procedure

1. Check module seating.
2. Inspect the carrier connector.
3. Check module status indicators.
4. Review controller diagnostics.
5. Verify hardware configuration.
6. Check power.
7. Inspect adjacent I/O modules.

If the problem remains after reseating, investigate the carrier and backplane.

---

Problem 2: All Inputs Remain OFF

If every input remains OFF, investigate common conditions first.

Potential causes include:

• Missing field power
• Open common connection
• Incorrect wiring
• Field devices inactive
• Module power problem
• Carrier problem
• Configuration issue

Start with the field power source and trace the circuit toward the IC200MDL243.

---

Problem 3: One Input Remains OFF

If one device is active but the corresponding PLC input remains OFF, check:

1. Field device
2. Field cable
3. Terminal connection
4. Common circuit
5. Input channel
6. Module seating
7. PLC configuration

A single input problem does not automatically mean the module has failed.

---

Problem 4: One Input Remains ON

Possible causes include:

• Shorted field wiring
• Incorrect common wiring
• Faulty field device
• Incorrect terminal connection
• Input circuit problem
• PLC program interpretation

First establish whether the actual field circuit remains active or whether the PLC logic is producing the unexpected status.

---

Problem 5: Input Signal Is Intermittent

Intermittent input conditions can result from:

• Loose terminals
• Damaged cables
• Worn switches
• Mechanical vibration
• Electrical interference
• Unstable field power
• Connector contamination

Inspect the complete signal path before replacing the module.

---

Problem 6: Multiple Inputs Change Simultaneously

When several inputs change unexpectedly at the same time, investigate common conditions.

Check:

• Shared field power
• Common wiring
• Grounding
• Cable routing
• Electromagnetic interference
• Carrier/backplane

A common external condition is often more likely than several independent input-channel failures.

---

Problem 7: Inputs Become Unstable During Equipment Operation

If the input module works normally while equipment is idle but becomes unstable during machine operation, investigate:

• Motor switching
• VFD activity
• Contactor operation
• Electromagnetic interference
• Mechanical vibration
• Voltage fluctuation
• Signal cable routing

Observe whether the input fault coincides with a particular machine event.

---

Problem 8: Replacement Module Does Not Correct the Fault

If replacing the IC200MDL243 does not solve the problem, investigate:

• Field wiring
• Field devices
• Carrier
• Backplane
• Power supply
• Controller configuration
• PLC program

This helps determine whether the original problem was external to the input module.

---

Systematic Fault Diagnosis

A structured troubleshooting process should follow the signal path.

1. Field Device

Confirm that the switch or sensor changes state.

↓

2. Field Wiring

Confirm that the signal reaches the correct terminal.

↓

3. Input Module

Confirm that the corresponding input channel responds.

↓

4. Backplane

Confirm proper communication between the module and controller.

↓

5. Controller

Verify the controller’s input status.

↓

6. PLC Program

Verify that the control logic interprets the input correctly.

This method can distinguish between:

• Sensor failure
• Switch failure
• Wiring fault
• Terminal problem
• Input module fault
• Carrier problem
• Controller issue
• PLC logic error

---

Preventive Maintenance

Routine maintenance helps prevent intermittent input problems.

Systems operating in high-vibration or electrically noisy environments deserve additional inspection.

---

Wiring and Installation Best Practices

Keep Signal Wiring Away From High-Power Cables

Discrete input wiring should be routed separately from:

• Motor power cables
• VFD output cables
• Large contactor circuits
• Transformer wiring

This reduces the possibility of unwanted electrical interference.

Secure Terminal Connections

Loose terminals can cause:

• Intermittent inputs
• False OFF conditions
• False ON conditions
• Random input changes

Maintain Clear Documentation

Each input should have a consistent relationship between:

Field Device → Terminal → Input Address → PLC Tag

This makes troubleshooting much faster.

Inspect Common Circuits

A shared common connection can affect multiple input channels simultaneously.

---

IC200MDL243 Troubleshooting Table

---

Key Advantages

• Designed for GE VersaMax automation systems
• Provides discrete field signal acquisition
• Suitable for binary ON/OFF monitoring
• Modular I/O architecture
• Suitable for machine automation
• Suitable for process equipment monitoring
• Provides an interface between field devices and PLC logic
• Compact installation footprint
• Supports systematic fault diagnosis
• Suitable for industrial control applications
• Supplied dimensions of 110 × 66.8 × 50 mm
• Supplied weight of 0.27 kg

---

Technical FAQs

What is GE IC200MDL243?

The GE IC200MDL243 is a VersaMax discrete input module used to acquire digital field signals and provide their status to a compatible control system.

What is the purpose of a discrete input module?

It allows a PLC to monitor field conditions represented by defined states, such as ON/OFF, open/closed, running/stopped, or active/inactive.

What types of field devices can be used?

Common examples include:

• Pushbuttons
• Limit switches
• Proximity sensors
• Relay contacts
• Selector switches
• Auxiliary contacts
• Equipment status contacts

What are the dimensions of IC200MDL243?

The supplied dimensions are:

110 × 66.8 × 50 mm

What is the weight of IC200MDL243?

The supplied weight is:

0.27 kg

Is IC200MDL243 a complete PLC?

No. The IC200MDL243 is an I/O module and must operate as part of the appropriate VersaMax control architecture.

Why are all input channels OFF?

Check the field power supply, common wiring, field-device states, module seating, carrier, and controller configuration.

Why does only one input fail?

Start with the individual field device and its wiring. Then check the corresponding terminal and input channel.

Why does an input stay ON?

Check for a short circuit, incorrect common connection, failed field device, wiring error, or PLC logic issue.

Why do multiple input channels change simultaneously?

Investigate shared power, common wiring, grounding, electromagnetic interference, and the carrier/backplane.

Can vibration affect the IC200MDL243?

Yes. Mechanical vibration can loosen terminals, connectors, and field switches, producing intermittent input conditions.

Can electrical interference affect discrete inputs?

Yes. Signal cables routed close to high-power equipment may experience electromagnetic interference.

Should I replace the module immediately when an input fails?

No. First verify the field device, wiring, terminal, common circuit, carrier, and PLC configuration.

How do I determine whether the module itself is faulty?

Trace the signal from the field device to the module and compare the physical signal with the PLC input state. If the correct electrical condition reaches the module but the corresponding input does not respond, the module or its interface becomes a stronger suspect.

What should be checked when a replacement module has the same fault?

Check the field wiring, field device, carrier, backplane, power supply, configuration, and PLC program. A repeated fault usually indicates that the root cause is elsewhere in the system.

---

Conclusion

The GE IC200MDL243 VersaMax Discrete Input Module provides a modular interface for acquiring discrete field conditions in industrial automation systems. It allows a VersaMax controller to monitor machine status, equipment feedback, switches, sensors, alarms, interlocks, and other binary signals.

The supplied physical specifications are 110 × 66.8 × 50 mm and 0.27 kg, making the module suitable for compact industrial control installations.

Reliable operation depends on correct mechanical installation, proper field wiring, secure terminals, appropriate common connections, and suitable separation between signal and high-power wiring. During commissioning, field devices should be tested individually so that their physical states can be compared directly with the corresponding PLC input states.

For troubleshooting, the most reliable approach is to follow the complete signal path from field device to wiring, input module, backplane, controller, and PLC logic. This method makes it easier to identify the actual source of a fault and prevents unnecessary replacement of otherwise functional automation hardware.
