Product Overview

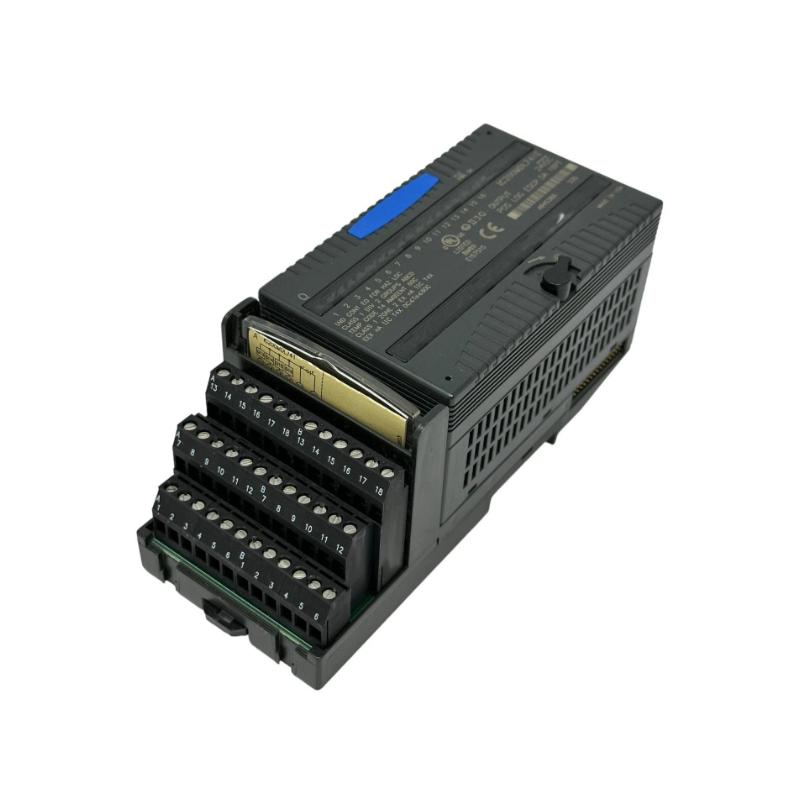

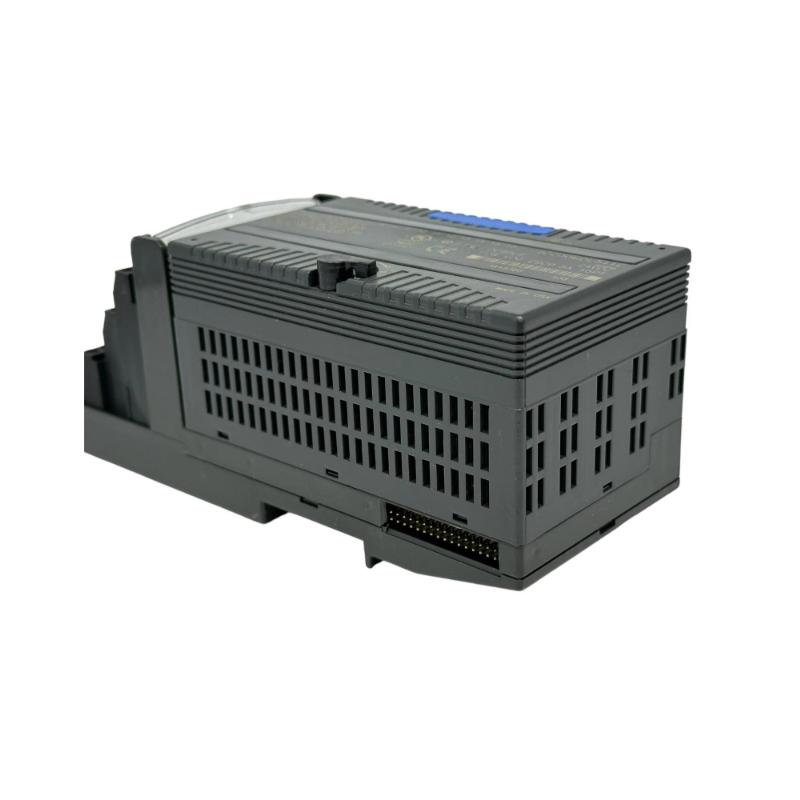

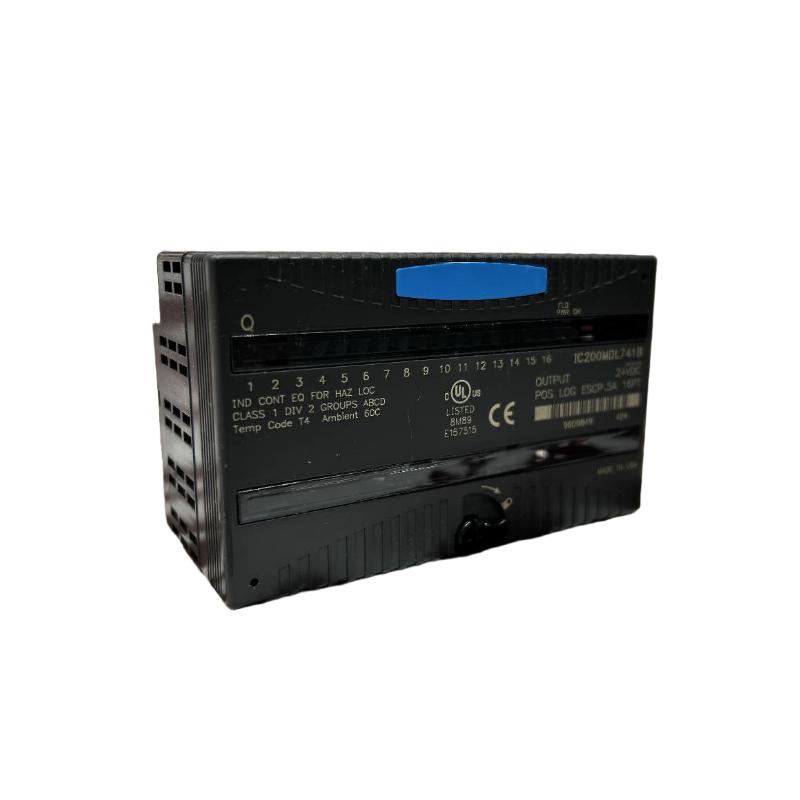

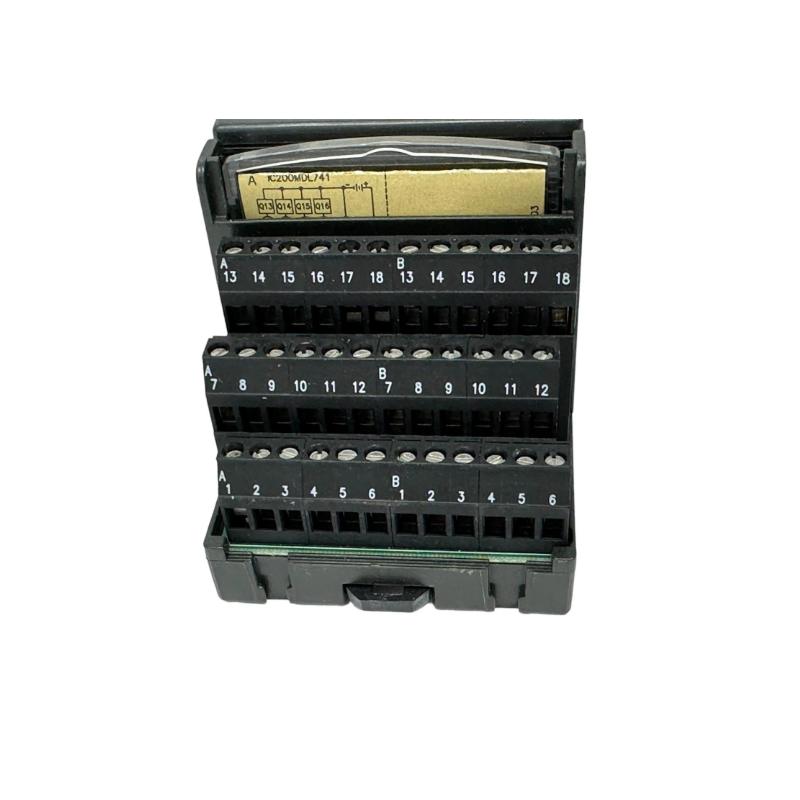

The GE IC200MDL741 VersaMax Discrete Output Module is a modular digital output component used in industrial automation systems based on the GE VersaMax platform. Its primary function is to receive discrete commands from the PLC controller and provide corresponding output signals to external field devices.
In an industrial control system, the PLC continuously evaluates process conditions and executes its programmed sequence. When an actuator, relay, indicator, valve interface, or other discrete device needs to change state, the controller sends the appropriate command to the output module. The IC200MDL741 then provides the corresponding field-side switching function.
This makes the module an important link between PLC logic and physical equipment.
The supplied product information is:
- Manufacturer: GE
- Product Family: VersaMax
- Model: IC200MDL741
- Product Type: Discrete Output Module
- Dimensions: 110 × 66.8 × 50 mm
- Weight: 0.1 kg
- Application: Industrial Automation
- Primary Function: Discrete Field Output Control
The exact output voltage, current capability, channel arrangement, load limitations, protection requirements, and terminal configuration should be confirmed for the specific system before connecting field equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Product Family | VersaMax |
| Model | IC200MDL741 |
| Product Type | VersaMax Discrete Output Module |
| Signal Type | Digital / Discrete Output |
| Main Function | Field Device Control |
| System Architecture | Modular I/O |
| Application | Industrial Automation |
| Dimensions | 110 × 66.8 × 50 mm |
| Weight | 0.1 kg |
| Installation | VersaMax Modular I/O System |
| Interface | VersaMax I/O Backplane |
| Field Interface | Discrete Output Circuits |
| Typical Applications | Relays, Solenoids, Indicators, Contactors, Control Devices |
Function and Working Principle
The IC200MDL741 receives output commands from the VersaMax controller and converts those commands into corresponding discrete output states.
A simplified signal path is:
PLC Program
↓
VersaMax Controller
↓
I/O Backplane
↓
IC200MDL741
↓
Field Wiring
↓
Actuator / Load
When the PLC program determines that a field device should be activated, it sends the associated output command through the controller and I/O architecture.
The appropriate output channel changes state, allowing the connected field device to respond.
For example, the PLC may command a solenoid valve to operate. The controller sends the output command to the IC200MDL741, and the corresponding output circuit switches the field circuit. The valve then responds according to the electrical characteristics of the connected control circuit.
When the PLC removes the command, the output returns to its inactive condition.
Role in Industrial Control Systems
A typical automation architecture can be represented as:
Sensors
↓
Input Modules
↓
VersaMax Controller
↓
PLC Logic
↓
IC200MDL741
↓
Actuators
↓
Industrial Process
The IC200MDL741 therefore performs the output-side interface function between the control program and physical equipment.
Typical output functions include:
- Valve control
- Relay activation
- Contactor control
- Alarm activation
- Indicator control
- Machine sequencing
- Equipment enable signals
- Auxiliary control
- Interlock-related outputs
Typical Industrial Applications
Machine Automation
The IC200MDL741 can be used in machine-control applications involving:
- Solenoid valves
- Control relays
- Contactors
- Indicator lamps
- Alarm devices
- Auxiliary actuators
The PLC can control these devices according to programmed machine sequences.
Conveyor Systems
Discrete outputs may control:
- Conveyor relays
- Motor-control interfaces
- Diverter mechanisms
- Pneumatic valves
- Stack lights
- Alarm circuits
- Auxiliary equipment
The output state can be determined by product sensors and machine-position feedback.
Packaging Machinery
Packaging equipment may require discrete outputs for:
- Pneumatic cylinders
- Solenoid valves
- Clamping mechanisms
- Product diverters
- Machine indicators
- Alarm devices
- Auxiliary relays
Correct output sequencing is important because multiple actuators often have to operate in a predetermined order.
Pump and Fan Systems
Possible applications include:
- Pump enable signals
- Fan-control interfaces
- Starter relays
- Equipment alarms
- Auxiliary contactors
- Status indicators
Where a motor requires dedicated switching equipment, the output module can be used to provide the appropriate control interface rather than directly switching an unsuitable motor load.
Process Automation
The module can provide discrete control signals for:
- Valve actuators
- Pump enable circuits
- Alarm devices
- Equipment permissives
- Auxiliary relays
- Process sequence commands
Installation Guide
1. Verify the Module
Before installation, confirm the product identification:
GE IC200MDL741
Inspect the module for:
- Cracked housing
- Physical deformation
- Damaged connectors
- Broken locking components
- Contamination
- Signs of overheating
Do not install visibly damaged equipment.
2. Inspect the VersaMax Carrier
Inspect the carrier before installing the module.
Check:
- Carrier condition
- Backplane connector
- Module position
- Adjacent modules
- Terminal assembly
- Field power connections
A damaged carrier or connector can cause output problems that may appear to be module failures.
3. Follow Electrical Safety Procedures
Follow the facility’s approved electrical isolation procedure before installing or replacing the module.
Unless the particular installation supports live replacement, remove system power before servicing.
The controlled machinery should also be placed in an appropriate safe condition.
4. Install the Module
Align the IC200MDL741 with its assigned carrier position.
Carefully engage the module with the carrier.
Verify:
- Correct orientation
- Connector alignment
- Complete seating
- Secure locking
Do not force the module into the carrier.
If the module does not seat correctly, inspect the connector and carrier before proceeding.
5. Connect Field Loads
Connect the field devices according to the approved electrical drawings.
Possible loads include:
- Relays
- Solenoid valves
- Contactors
- Indicators
- Alarm devices
- Auxiliary control circuits
Before connection, verify that each load is electrically compatible with the output circuit.
6. Verify Output Wiring
Check:
- Output terminals
- Common connections
- Field power
- Load conductors
- Terminal assignments
- Cable insulation
- Protective devices
Incorrect output wiring can result in an inactive load, unintended activation, or damage to the field circuit.
7. Check Load Compatibility
Before commissioning, evaluate the connected load.
Important considerations include:
- Operating voltage
- Normal current
- Inrush current
- Load type
- Switching frequency
- Inductive characteristics
- Required suppression
Particular attention should be given to coils, contactors, and solenoid valves.
Commissioning Procedure
Step 1 — Mechanical Inspection
Confirm that the IC200MDL741 is securely installed.
Step 2 — Wiring Verification
Compare field wiring with the approved electrical drawings.
Step 3 — Load Verification
Confirm that the connected devices are compatible with the output circuits.
Step 4 — Field Power Verification
Check the required field supply and common circuits.
Step 5 — Energize the System
Restore power according to the site’s approved commissioning procedure.
Step 6 — Controller Recognition
Verify that the controller recognizes the installed module.
Step 7 — Individual Output Testing
Activate output channels individually using the approved test procedure.
Step 8 — Field Device Testing
Confirm that each connected device responds correctly.
Step 9 — Interlock Testing
Verify that outputs operate only when the required permissive conditions are satisfied.
Step 10 — Sequence Testing
Run the machine or process through its normal operating sequence.
Troubleshooting Guide
Problem 1: IC200MDL741 Is Not Recognized
Possible causes include:
- Incorrect installation
- Poor connector engagement
- Carrier fault
- Configuration problem
- Power issue
- Backplane problem
- Module fault
Recommended Checks
- Verify module seating.
- Inspect the carrier connector.
- Review controller diagnostics.
- Verify I/O configuration.
- Check system power.
- Inspect adjacent modules.
- Investigate the carrier and backplane.
Problem 2: PLC Commands an Output but the Load Does Not Operate
Possible causes include:
- Open field wiring
- Missing field power
- Incorrect terminal connection
- Failed load
- Common-circuit problem
- Output-channel problem
- Open protective device
Trace the complete circuit:
PLC Command → IC200MDL741 → Wiring → Field Power → Load
This helps identify where the signal path is interrupted.
Problem 3: Output Remains OFF
If the PLC indicates that the output should be active but the field device remains inactive, check:
- PLC logic
- Output address
- Controller status
- Module status
- Field power
- Wiring
- Terminal connections
- Load
- Output channel
Programming and addressing problems can produce symptoms identical to hardware faults.
Problem 4: Output Remains ON
Possible causes include:
- PLC logic
- Incorrect output mapping
- Wiring problem
- Output-channel problem
- External circuit condition
First determine whether the PLC continues to command the output.
If the PLC command is OFF but the physical circuit remains active, investigate the output circuit and module.
Problem 5: Output Operates Intermittently
Potential causes include:
- Loose terminal
- Unstable field power
- Damaged load
- Voltage drop
- Connector problem
- Electrical interference
- Mechanical problems with the actuator
Test the circuit under actual operating conditions.
Problem 6: Output Becomes Unstable During Switching
If a problem appears when a relay, contactor, or solenoid is energized or de-energized, investigate:
- Inductive load characteristics
- Load suppression
- Field wiring
- Power stability
- Coil condition
- Excessive load
The source of the fault may be in the external field circuit rather than the output module.
Problem 7: Several Outputs Stop Operating
When several outputs fail simultaneously, investigate shared components.
Check:
- Field power
- Common wiring
- Controller status
- Carrier
- Backplane
- Shared protective devices
- Configuration
A shared power or communication problem can affect several channels at the same time.
Problem 8: Replacement Module Has the Same Fault
If replacing the IC200MDL741 does not correct the problem, investigate:
- PLC program
- Output addressing
- Field wiring
- Field power
- Load
- Carrier
- Backplane
- Common connections
Repeated module replacement without checking the external circuit is unlikely to resolve an external fault.
Systematic Fault Diagnosis
A structured output diagnostic process should follow the command from the PLC toward the load.
Stage 1 — PLC Program
Confirm that the required output command is generated.
↓
Stage 2 — Controller
Confirm that the controller processes the command correctly.
↓
Stage 3 — Backplane
Verify communication between the controller and output module.
↓
Stage 4 — IC200MDL741
Determine whether the corresponding output channel responds.
↓
Stage 5 — Field Wiring
Check continuity and terminal connections.
↓
Stage 6 — Field Power
Confirm the required external supply.
↓
Stage 7 — Load
Verify that the actuator operates correctly.
This approach helps distinguish:
PLC Logic Problem
from
Configuration Problem
from
Module Problem
from
Wiring Fault
from
Power-Supply Fault
from
Load Failure
Inductive Load Considerations
Industrial output applications frequently involve inductive devices such as:
- Relay coils
- Contactors
- Solenoid valves
- Electromagnetic actuators
When these devices switch, stored energy can generate transient electrical effects.
Therefore, the external field circuit should be designed with appropriate protection based on the actual load characteristics.
Important considerations include:
- Operating voltage
- Load current
- Inrush current
- Coil characteristics
- Switching frequency
- Suppression
- External protection
The appropriate protection method depends on the specific field device and circuit design.
Preventive Maintenance
| Inspection Item | Recommended Check |
|---|---|
| Module Housing | Inspect for physical damage |
| Module Seating | Verify secure installation |
| Connectors | Check for contamination |
| Terminals | Check connection integrity |
| Field Wiring | Inspect insulation and routing |
| Load Devices | Verify operating condition |
| Field Power | Check stability |
| Carrier | Inspect mechanical condition |
| Cabinet | Check dust and moisture |
| Inductive Loads | Check protection |
| Diagnostics | Review recurring faults |
Preventive inspection is especially useful in systems exposed to vibration, dust, humidity, temperature variation, or frequent switching.
Wiring Best Practices
Separate Control and Power Wiring
Keep output/control wiring away from high-power conductors where practical.
Particular attention should be given to:
- Motor cables
- VFD cables
- Transformer wiring
- Large contactors
- High-current feeders
Secure All Terminations
Loose connections can result in:
- Intermittent loads
- Voltage drops
- Heating
- Unexpected equipment operation
- Output faults
Verify Common Connections
A shared common or field-supply problem can disable multiple outputs simultaneously.
Use Appropriate Load Protection
Relay coils, contactors, and solenoid valves can produce switching transients. Appropriate external protection should be considered according to the actual electrical characteristics of the load.
IC200MDL741 Troubleshooting Table
| Symptom | Possible Cause | Recommended Check |
|---|---|---|
| Module not recognized | Installation/configuration | Check module and carrier |
| Output command but no load | Wiring/power/load problem | Trace complete circuit |
| Output remains OFF | Logic/addressing/wiring | Check PLC and field circuit |
| Output remains ON | Logic/wiring/channel fault | Compare command and physical state |
| Intermittent output | Loose connection/power | Inspect field circuit |
| Fault during switching | Inductive transient | Check load and protection |
| Several outputs fail | Shared power/common | Check supply and common |
| Replacement does not help | External fault | Check PLC, wiring, load and carrier |
Key Advantages
- GE VersaMax modular I/O architecture
- Designed for discrete output control
- Suitable for industrial automation
- Provides a controller-to-field interface
- Suitable for relay and actuator control
- Suitable for machine sequencing
- Suitable for process-control applications
- Suitable for equipment enable functions
- Modular installation
- Compact physical dimensions
- Suitable for industrial control cabinets
- Supplied dimensions of 110 × 66.8 × 50 mm
- Supplied weight of 0.1 kg
Technical FAQs
What is GE IC200MDL741?
The GE IC200MDL741 is a VersaMax discrete output module used to transfer digital output commands from the PLC controller to suitable external field devices.
What does IC200MDL741 do?
It provides discrete output switching functions for external control circuits connected to the VersaMax system.
What devices can be controlled?
Depending on the actual electrical specifications and system design, applications may include:
- Relays
- Solenoid valves
- Contactors
- Indicators
- Alarm devices
- Auxiliary control circuits
What are the dimensions of IC200MDL741?
The supplied dimensions are:
110 × 66.8 × 50 mm
What is the weight of IC200MDL741?
The supplied product information specifies:
0.1 kg
Is IC200MDL741 a standalone PLC?
No. It is a modular output component designed to operate within a VersaMax control system.
Why does the PLC command an output but the field device remain OFF?
Check the PLC logic, output address, module status, field power, wiring, terminal connections, protective devices, and connected load.
Why does an output remain OFF?
Possible causes include incorrect PLC logic, incorrect addressing, missing field power, wiring problems, an incompatible load, or an output-channel fault.
Why does an output remain ON?
First determine whether the PLC is still commanding the output. If the PLC command is OFF while the physical output remains active, investigate the wiring and output channel.
Why does an output operate intermittently?
Check loose terminals, unstable field power, voltage drops, damaged loads, connectors, and electrical interference.
Can solenoids and contactors affect output operation?
Yes. Inductive loads can generate switching transients, so appropriate external protection should be considered according to the actual load and circuit.
Why do several outputs fail simultaneously?
Check shared field power, common wiring, controller status, carrier condition, backplane communication, and shared protection.
Should I replace IC200MDL741 immediately after an output failure?
No. First verify the PLC command, output addressing, field wiring, field power, load, carrier, and common connections.
How can I determine whether the output module itself has failed?
Confirm that the PLC is commanding the output, then verify the field power, wiring, terminal connections, and load. If all external conditions are correct but the output channel does not respond, the module becomes a stronger suspect.
What if a replacement module has the same problem?
Investigate the PLC program, output mapping, field wiring, power supply, load, carrier, and backplane. Repeated failure symptoms after replacement often indicate an external system fault.
Conclusion
The GE IC200MDL741 VersaMax Discrete Output Module provides the output-side interface between PLC control logic and external industrial field devices. It can be used in machine automation, conveyor systems, packaging equipment, pump and fan applications, process automation, and other control systems requiring discrete actuator control.
The supplied physical specifications are 110 × 66.8 × 50 mm, with a stated weight of 0.1 kg. The module should be installed as part of the appropriate VersaMax controller, carrier, backplane, power, and field-device architecture.
Successful commissioning requires correct module installation, accurate field wiring, suitable load selection, reliable field power, and appropriate consideration of inductive loads. Individual outputs should be tested during commissioning, and the physical response of each field device should be compared with the corresponding PLC command.
For troubleshooting, the most effective method is to trace the complete signal path from PLC logic → controller → backplane → IC200MDL741 → field wiring → field power → load. This systematic approach helps identify whether the root cause is in the PLC program, configuration, output module, carrier, wiring, power supply, or connected equipment.
