Product Overview

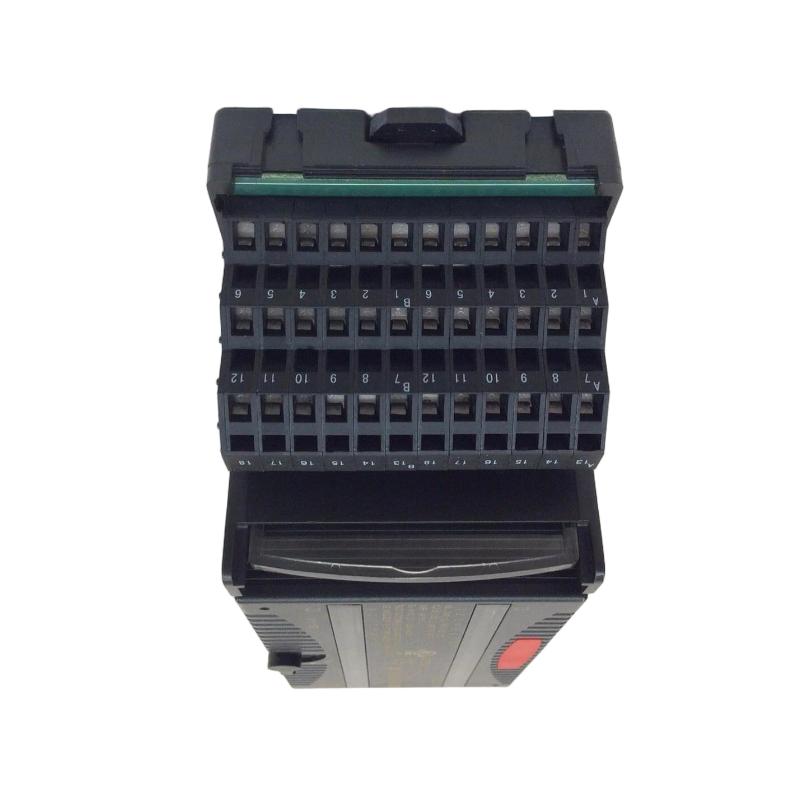

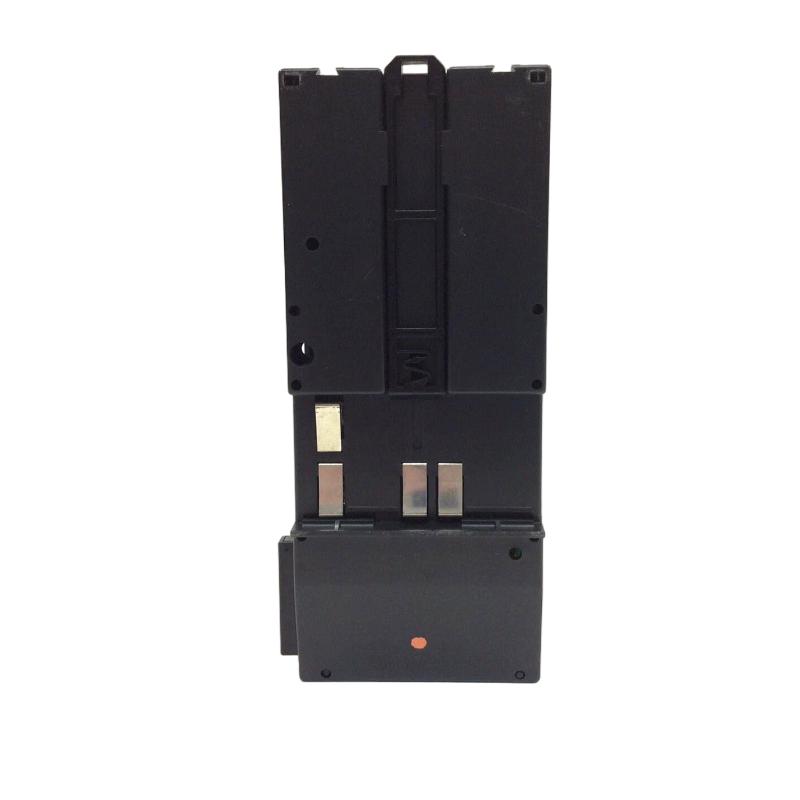

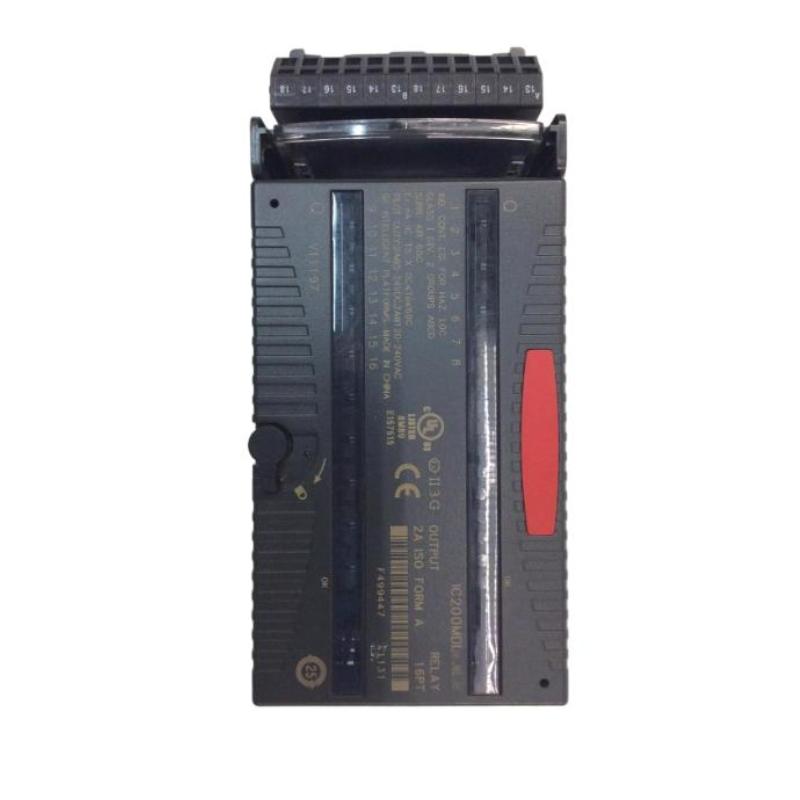

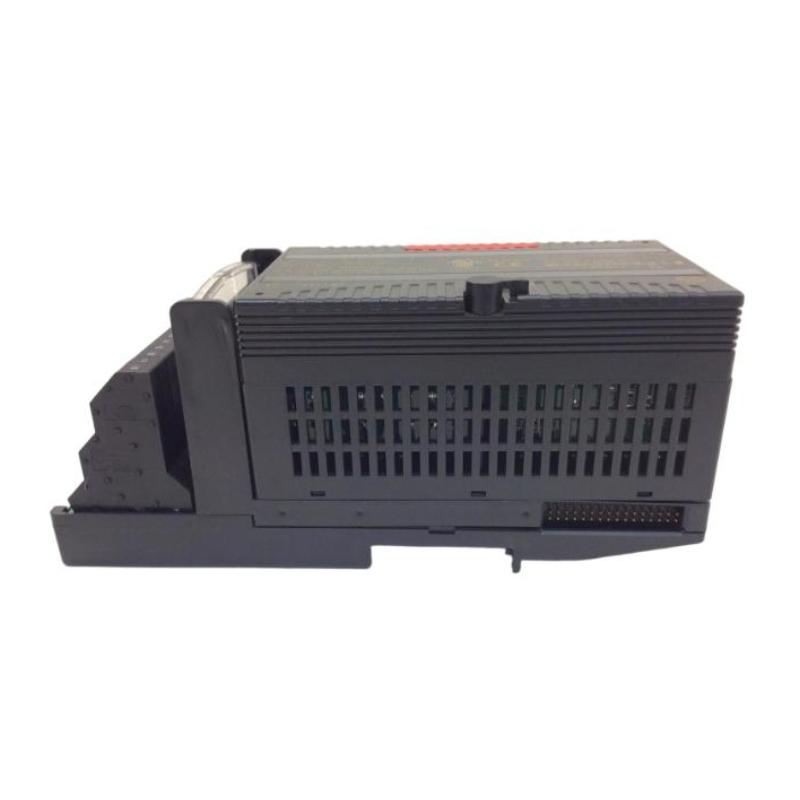

The GE IC200MDL244 VersaMax Discrete Input Module is a modular digital input component used to connect discrete field devices with a GE VersaMax industrial automation system. Its primary function is to acquire discrete electrical signals and provide their status to the control system for monitoring, sequencing, interlocking, and equipment management.
Discrete signals are widely used throughout industrial automation. Examples include motor running feedback, valve position, limit-switch status, equipment alarms, selector switches, and machine-position sensors. Instead of measuring a continuously variable value, a discrete input generally represents a defined operating condition such as ON/OFF, active/inactive, or open/closed.
The IC200MDL244 is installed as part of a modular VersaMax I/O architecture. It works with the appropriate carrier, backplane, controller, power arrangement, and field wiring to provide a complete signal-acquisition path.
The supplied product information is:
- Manufacturer: GE
- Product Family: VersaMax
- Model: IC200MDL244
- Product Type: Discrete Input Module
- Dimensions: 110 × 66.8 × 50 mm
- Weight: 1.36 kg
- Application: Industrial Automation
- Primary Function: Discrete Field Signal Acquisition
For replacement and engineering applications, the actual electrical characteristics and system configuration should be verified against the applicable equipment documentation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Product Family | VersaMax |
| Model | IC200MDL244 |
| Product Type | VersaMax Discrete Input Module |
| Signal Type | Digital / Discrete Input |
| Main Function | Field Signal Acquisition |
| System Architecture | Modular I/O |
| Application | Industrial Automation |
| Dimensions | 110 × 66.8 × 50 mm |
| Weight | 1.36 kg |
| Installation | VersaMax Modular I/O System |
| Interface | VersaMax I/O Backplane |
| Field Interface | Discrete Field Devices |
| Typical Signals | Binary / ON-OFF Conditions |
Note: The dimensional and weight information above follows the product information supplied for this article. Electrical parameters such as input voltage, channel count, current, isolation, and terminal arrangement should be confirmed for the specific installation before wiring.
Function and Working Principle
The IC200MDL244 serves as the input interface between field-level devices and the PLC control system.
A simplified signal path is:
Field Device
↓
Field Wiring
↓
IC200MDL244
↓
VersaMax Backplane
↓
PLC / Controller
↓
Control Program
↓
Output Devices
When a field device changes state, the corresponding input circuit detects the electrical condition. The module then makes the input status available to the controller.
For example, a machine may have a limit switch that indicates whether a mechanical assembly has reached its designated position. When the limit switch changes state, the IC200MDL244 receives the corresponding discrete signal. The PLC can then use the signal to stop a motor, permit the next sequence, activate an alarm, or update machine status.
The module itself provides signal acquisition. The actual control response is determined by the PLC program and the overall system design.
Role in Industrial Control Systems
A VersaMax control system can contain multiple layers of signal processing.
A typical arrangement is:
Sensors / Switches
↓
IC200MDL244
↓
VersaMax I/O Carrier
↓
Controller
↓
PLC Program
↓
Output Modules
↓
Actuators
The IC200MDL244 therefore provides an important connection between the physical process and the software-based control strategy.
Its input information can be used for:
- Machine sequencing
- Equipment status
- Motor feedback
- Valve-position monitoring
- Alarm detection
- Interlocking
- Position detection
- Process permissives
- Equipment-ready conditions
Typical Industrial Applications
Machine Automation
Discrete inputs are commonly used to monitor:
- Limit switches
- Machine-position switches
- Motor auxiliary contacts
- Machine guards
- Equipment-ready signals
- Start/stop devices
- Interlocks
The PLC can use these signals to determine the current state of the machine.
Conveyor Systems
The IC200MDL244 can form part of a conveyor-control system that monitors:
- Product sensors
- Conveyor position
- Motor running feedback
- Jam switches
- End-position sensors
- Equipment fault contacts
These signals can be used to coordinate conveyor sections and prevent incorrect sequencing.
Packaging Machinery
Typical discrete signals include:
- Product detection
- Cylinder-position feedback
- Door status
- Machine-ready feedback
- Limit switches
- Equipment interlocks
Reliable input acquisition is important because incorrect input states can cause a packaging sequence to stop or execute at the wrong time.
Pump and Fan Systems
Potential applications include:
- Pump running status
- Fan running status
- Motor fault feedback
- Starter auxiliary contacts
- Local/remote status
- Equipment alarm contacts
The controller can use these signals to determine whether commanded equipment is actually operating.
Process Equipment
Discrete input applications can include:
- Valve position
- Pressure-switch status
- Level-switch status
- Pump feedback
- Equipment alarms
- Process permissives
Installation Guide
1. Verify the Product
Before installation, verify that the module is marked:
GE IC200MDL244
Inspect the housing and connector area for:
- Cracks
- Physical deformation
- Damaged contacts
- Broken locking components
- Contamination
- Signs of overheating
If visible damage is present, the module should not be installed until its condition has been evaluated.
2. Inspect the VersaMax Carrier
Before installing the module, inspect the associated carrier and interface.
Check:
- Carrier condition
- Backplane connector
- Mounting position
- Adjacent modules
- Terminal assembly
- Power connections
A carrier or connector problem can produce symptoms that appear to be an input-module fault.
3. Follow the Approved Safety Procedure
Before removing or installing the module, follow the site’s electrical isolation and maintenance procedures.
Where live insertion or removal is not specifically supported by the system design, remove power before servicing.
The connected machinery should also be placed in an appropriate safe condition.
4. Install the Module
Align the IC200MDL244 with the designated carrier position.
Carefully engage the module with the carrier.
Verify:
- Correct orientation
- Proper connector alignment
- Full seating
- Secure locking
Do not force the module into position.
If it does not seat correctly, remove it and inspect the module and carrier interface.
5. Connect Field Wiring
Connect the field devices according to the approved electrical drawings.
Typical discrete field devices may include:
- Pushbuttons
- Selector switches
- Limit switches
- Proximity sensors
- Relay contacts
- Auxiliary contacts
- Machine-status contacts
Each input should be clearly identified.
6. Verify Field Wiring
Before energizing the system, check:
- Field supply
- Common connections
- Input conductors
- Terminal assignments
- Polarity where applicable
- Cable insulation
- Possible short circuits
Incorrect wiring can result in incorrect input states or damage to the input circuit.
7. Verify Field Device Operation
Operate representative field devices and compare their physical states with the expected PLC states.
For example:
Field Device Inactive → PLC Input OFF
Field Device Active → PLC Input ON
The actual interpretation depends on the field circuit and application logic.
Commissioning Procedure
Step 1 — Mechanical Inspection
Confirm that the IC200MDL244 is securely installed.
Step 2 — Wiring Verification
Compare field wiring against the approved electrical drawings.
Step 3 — Power Verification
Check the relevant field supply and common circuits.
Step 4 — Energize the System
Restore power using the approved commissioning procedure.
Step 5 — Check Module Status
Inspect available module and controller diagnostics.
Step 6 — Verify Controller Recognition
Confirm that the controller recognizes the module.
Step 7 — Test Representative Inputs
Activate field switches and sensors individually.
Step 8 — Verify PLC Input Status
Confirm that the controller displays the expected input state.
Step 9 — Test Interlocks
Verify required permissive and interlock conditions.
Step 10 — Test the Machine Sequence
Confirm that the input signals produce the expected control response.
Troubleshooting Guide
Problem 1: IC200MDL244 Is Not Recognized
Possible causes include:
- Module not fully seated
- Connector problem
- Carrier problem
- Incorrect configuration
- Power issue
- Module fault
Recommended Procedure
- Check module seating.
- Inspect the carrier connector.
- Check module diagnostics.
- Review controller diagnostics.
- Verify configuration.
- Check power.
- Inspect adjacent I/O components.
If reseating does not resolve the problem, investigate the carrier and backplane.
Problem 2: All Inputs Remain OFF
If every input remains OFF, investigate common components before assuming a module failure.
Possible causes include:
- Missing field power
- Open common connection
- Incorrect wiring
- Field devices inactive
- Module power issue
- Carrier problem
- Configuration problem
Start at the field power source and trace the signal toward the module.
Problem 3: One Input Remains OFF
If one field device is active but its corresponding PLC input remains OFF, inspect:
- Field device
- Field wiring
- Terminal
- Common connection
- Input channel
- Module seating
- Controller configuration
A single-channel problem can often be isolated without replacing the complete module.
Problem 4: One Input Remains ON
Possible causes include:
- Shorted wiring
- Incorrect common connection
- Faulty field device
- Incorrect terminal connection
- Input-channel problem
- PLC logic issue
Determine whether the actual field circuit remains active before concluding that the input module has failed.
Problem 5: Input Signal Is Intermittent
Intermittent input behavior may be caused by:
- Loose terminals
- Damaged cable
- Worn switch contacts
- Vibration
- Electrical noise
- Unstable field power
- Connector contamination
If the problem occurs when cables or equipment move, inspect the physical wiring carefully.
Problem 6: Multiple Inputs Change Together
When multiple channels change simultaneously, investigate common conditions.
Check:
- Shared power supply
- Common wiring
- Grounding
- Electrical interference
- Cable routing
- Carrier/backplane
A common external fault is generally more likely than several independent input-channel failures occurring at the same time.
Problem 7: Inputs Become Unstable During Machine Operation
If input signals are stable while the machine is stopped but become unstable during operation, investigate:
- Motor starting
- Contactor switching
- VFD operation
- Electromagnetic interference
- Mechanical vibration
- Voltage fluctuation
- Signal cable routing
Compare the timing of the input fault with specific machine events.
Problem 8: Replacement Module Does Not Solve the Problem
If a replacement IC200MDL244 produces the same symptoms, investigate:
- Field devices
- Field wiring
- Carrier
- Backplane
- Power supply
- Configuration
- PLC program
Replacing the module repeatedly without investigating the external signal path can waste maintenance time and resources.
Systematic Fault Diagnosis
A structured diagnostic process should follow the signal from the field toward the controller.
Stage 1 — Field Device
Confirm that the switch or sensor actually changes state.
↓
Stage 2 — Field Wiring
Verify that the expected signal reaches the correct terminal.
↓
Stage 3 — IC200MDL244
Check whether the corresponding input channel detects the signal.
↓
Stage 4 — Backplane
Verify that the module communicates correctly with the controller.
↓
Stage 5 — Controller
Check the input state seen by the PLC.
↓
Stage 6 — PLC Logic
Verify that the program interprets the input correctly.
This approach separates:
Field Device Fault
from
Wiring Fault
from
Input Module Fault
from
Backplane Fault
from
PLC Logic Fault
Preventive Maintenance
Regular inspection can reduce unexpected discrete-input problems.
| Inspection Item | Recommended Check |
|---|---|
| Module Housing | Inspect for physical damage |
| Module Seating | Verify secure engagement |
| Connectors | Check for contamination |
| Terminals | Verify connection integrity |
| Field Wiring | Inspect insulation and routing |
| Field Devices | Verify operation |
| Power Supply | Check stability |
| Carrier | Inspect mechanical condition |
| Cabinet | Check dust and moisture |
| Signal Cables | Maintain proper routing |
| Diagnostics | Review recurring faults |
Systems operating in high-vibration, dusty, humid, or electrically noisy environments may require more frequent inspection.
Wiring Best Practices
Separate Signal and Power Cables
Keep discrete input wiring away from high-current conductors where practical.
Particular attention should be given to:
- Motor cables
- VFD output cables
- Transformer wiring
- Large contactor circuits
Secure Field Terminations
Loose connections can cause intermittent input states.
A terminal that appears physically connected may still have poor electrical contact, so suspect connections should be inspected carefully.
Maintain Consistent Identification
The following relationship should be clearly documented:
Field Device → Terminal → Input Channel → PLC Address → PLC Tag
This is especially important in large control cabinets.
Inspect Common Connections
A common-circuit problem can affect multiple input channels at once and should therefore be considered whenever several inputs fail simultaneously.
IC200MDL244 Troubleshooting Table
| Symptom | Possible Cause | Recommended Check |
|---|---|---|
| Module not recognized | Installation/configuration | Check module and carrier |
| All inputs OFF | Power/common issue | Check field supply |
| One input OFF | Device/wiring fault | Check individual circuit |
| Input always ON | Short/wiring issue | Inspect field circuit |
| Input fluctuates | Loose connection/EMI | Check terminals and routing |
| Multiple inputs change together | Shared circuit fault | Check common power |
| Fault occurs during operation | EMI/vibration | Check machine environment |
| Replacement does not help | External fault | Check wiring and carrier |
Key Advantages
- GE VersaMax modular architecture
- Designed for discrete field signal acquisition
- Suitable for binary input monitoring
- Suitable for machine automation
- Suitable for process equipment
- Provides a field-to-controller interface
- Modular installation
- Compact physical dimensions
- Supports systematic troubleshooting
- Suitable for industrial control cabinets
- Supplied dimensions of 110 × 66.8 × 50 mm
- Supplied weight of 1.36 kg
Technical FAQs
What is GE IC200MDL244?
The GE IC200MDL244 is a VersaMax discrete input module designed to acquire digital field signals and provide their status to a compatible controller.
What is the purpose of the IC200MDL244?
Its purpose is to provide the control system with discrete field information such as switch states, equipment feedback, machine position, alarms, and other binary conditions.
What types of field devices can be connected?
Typical examples include:
- Pushbuttons
- Limit switches
- Proximity sensors
- Relay contacts
- Selector switches
- Auxiliary contacts
- Equipment status contacts
What are the dimensions of IC200MDL244?
The supplied dimensions are:
110 × 66.8 × 50 mm
What is the stated weight of IC200MDL244?
The supplied product information specifies:
1.36 kg
Is IC200MDL244 a standalone PLC?
No. It is a modular input component that operates within the appropriate VersaMax control architecture.
Why do all input channels remain OFF?
Check field power, common connections, field wiring, module seating, carrier condition, and controller configuration.
Why does only one input remain OFF?
Start with the individual field device and wiring. Then inspect the terminal and corresponding input channel.
Why does an input remain ON?
Possible causes include a short circuit, incorrect wiring, faulty field device, common connection problem, or PLC logic issue.
Why do several input channels change at the same time?
Check shared field power, common wiring, grounding, electrical interference, and the I/O carrier or backplane.
Can vibration cause intermittent inputs?
Yes. Vibration can affect terminals, connectors, mechanical switches, and field wiring.
Can electrical noise affect IC200MDL244 signals?
Yes. Poor signal-cable routing can expose discrete inputs to interference from motors, drives, contactors, and other high-power equipment.
Should the module be replaced immediately if one input fails?
No. Check the field device, wiring, terminal, common circuit, carrier, and PLC configuration first.
How can I identify a module fault?
Trace the signal from the field device to the module. If the expected electrical condition reaches the appropriate input but the corresponding channel does not respond, the module or its interface becomes a stronger suspect.
What if a replacement IC200MDL244 has the same problem?
Investigate the field wiring, field device, carrier, backplane, power supply, configuration, and PLC logic. Replacing the module again without checking these components is unlikely to solve an external fault.
Conclusion
The GE IC200MDL244 VersaMax Discrete Input Module provides a modular interface for acquiring discrete field signals and transferring their status to a VersaMax control system. It can support monitoring of machine conditions, equipment feedback, switches, sensors, alarms, interlocks, and other binary process information.
The supplied physical specifications are 110 × 66.8 × 50 mm and 1.36 kg. The module can therefore be integrated into industrial control architectures where modular digital input acquisition is required.
Proper installation requires correct module seating, appropriate field wiring, secure terminal connections, correct common circuits, and suitable separation between signal and high-power cables. Commissioning should include individual verification of representative field devices and confirmation that their physical states correspond to the expected PLC input states.
When diagnosing an IC200MDL244 input problem, the most effective method is to trace the complete signal path from field device → field wiring → input module → backplane → controller → PLC logic. This approach helps determine whether the fault is caused by the field device, wiring, module, carrier, controller, or application logic.
