Product Overview

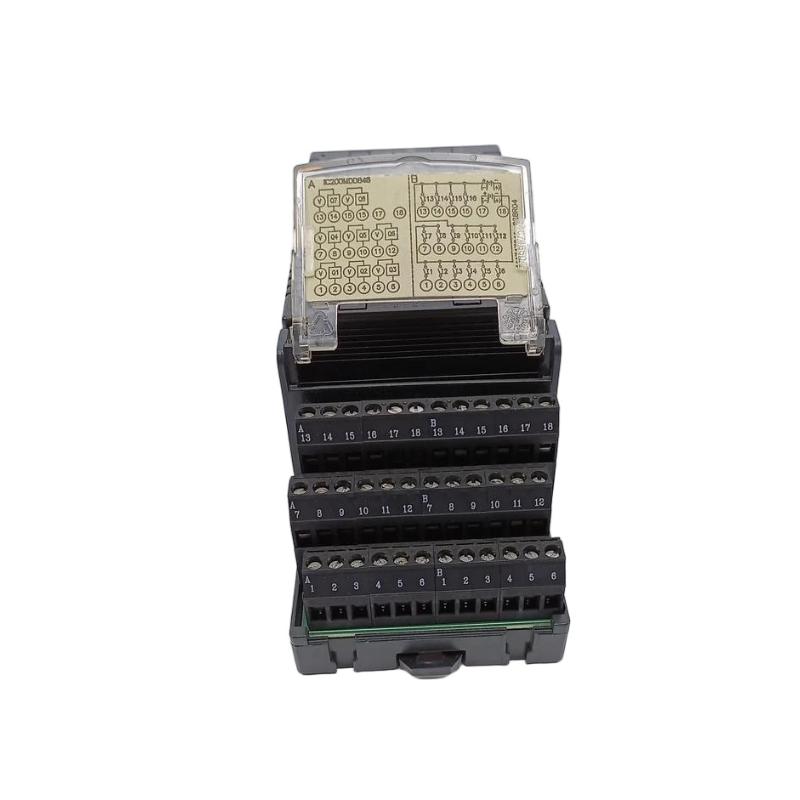

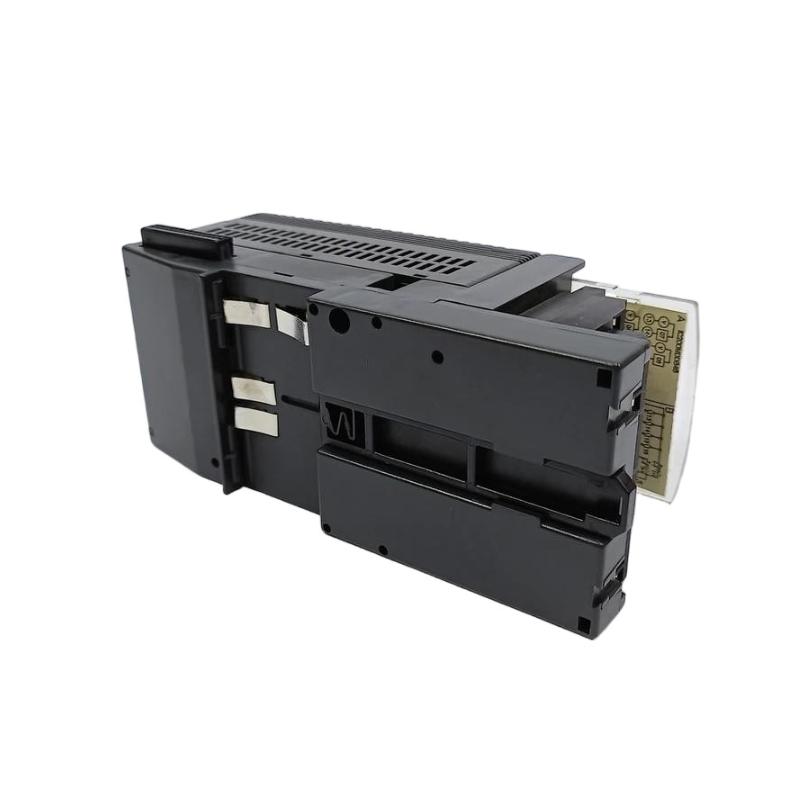

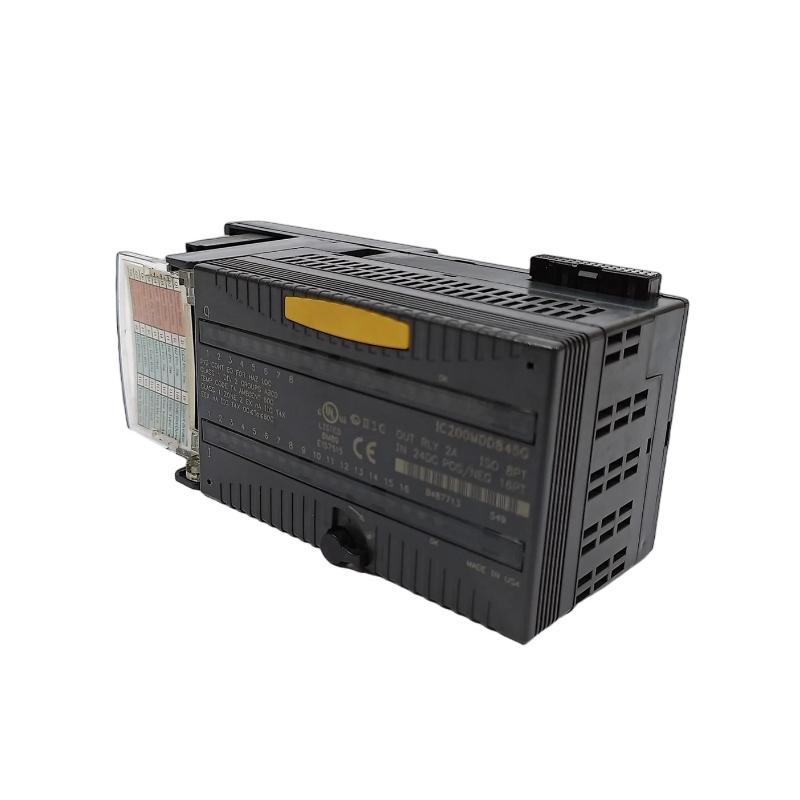

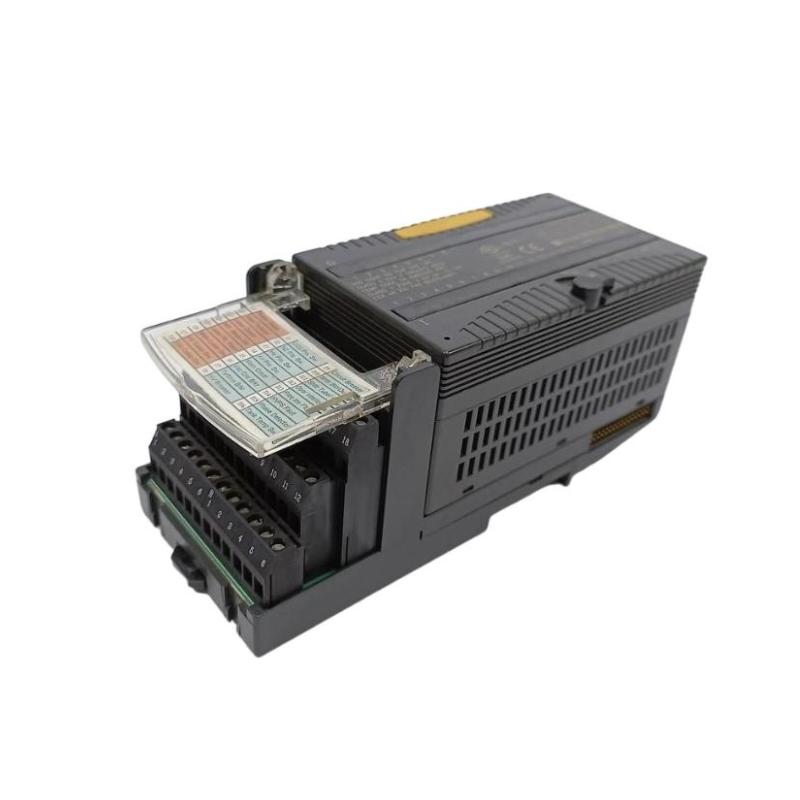

The GE IC200MDD845 VersaMax Discrete Hybrid I/O Module is a modular digital input/output interface designed for the GE VersaMax PLC platform. As part of the VersaMax distributed I/O family, this module enables reliable communication between the PLC controller and various field devices by integrating discrete input and output functions within a single module.

In modern industrial automation systems, digital field signals are essential for monitoring machine conditions and executing control commands. The IC200MDD845 provides an efficient interface for processing these discrete signals, allowing engineers to simplify cabinet layouts while maintaining flexible system expansion.

Rather than functioning as an independent controller, the IC200MDD845 works together with VersaMax CPU modules, power supplies and communication interfaces. It serves as the field-level connection point where PLC logic interacts with sensors, switches, relays and actuators throughout the production process.

With overall dimensions of 133.4 × 85.9 × 69.1 mm and a weight of approximately 0.159 kg, the module offers a compact design suitable for machine control cabinets, OEM equipment and distributed automation systems.

Technical Specifications

Function and Working Principle

The IC200MDD845 exchanges discrete signals between industrial equipment and the PLC controller.

The operating principle is straightforward:

Field Devices → IC200MDD845 → VersaMax CPU → IC200MDD845 → Controlled Equipment

The input section continuously monitors the status of connected field devices. Whenever a digital signal changes state, the information is transferred to the PLC CPU where the user program determines the required control action.

The output section receives commands from the PLC and transmits them to external devices such as relays, indicator lamps or actuator interfaces.

Unlike analog modules that measure continuously changing values, the IC200MDD845 is designed for digital signals representing two logical states.

Typical signal conditions include:

• ON / OFF
• TRUE / FALSE
• OPEN / CLOSED
• RUN / STOP
• ENABLE / DISABLE
• ACTIVE / INACTIVE

This operating method makes the module suitable for sequencing, machine interlocking and general automation control.

Role in Industrial Control Systems

Within a VersaMax PLC architecture, the IC200MDD845 functions as the connection layer between the controller and field equipment.

A typical system architecture consists of:

Sensors & Switches

↓

IC200MDD845 Hybrid I/O Module

↓

VersaMax CPU

↓

Control Program

↓

IC200MDD845 Output Interface

↓

Relays, Solenoids and Actuators

Because the module is responsible for transferring field signals rather than executing logic, it allows the PLC processor to focus on program execution while ensuring fast and reliable communication with connected equipment.

This modular architecture also simplifies future system expansion and maintenance.

Industrial Applications

The IC200MDD845 can be integrated into many industrial automation environments, including:

• Manufacturing production lines
• Packaging machinery
• Conveyor systems
• Assembly equipment
• Material handling systems
• Automated inspection machines
• Food and beverage processing
• Pharmaceutical production
• Water treatment equipment
• OEM machinery
• Machine tool automation
• General factory automation

Its hybrid I/O capability makes it particularly useful in equipment requiring both signal monitoring and actuator control within the same cabinet.

Digital Signal Processing

Discrete I/O modules are responsible for handling binary electrical signals generated by industrial devices.

Typical input devices include:

• Emergency stop contacts
• Limit switches
• Proximity sensors
• Photoelectric sensors
• Push buttons
• Selector switches
• Auxiliary relay contacts

Typical output devices include:

• Relay coils
• Solenoid valves
• Indicator lamps
• Alarm buzzers
• Contactors
• Stack lights

The control sequence can be simplified as:

Input Signal

↓

IC200MDD845

↓

PLC Decision Logic

↓

Output Signal

↓

Industrial Device

This process forms the foundation of most PLC-based automation systems.

Advantages of Hybrid I/O Design

Compared with using completely separate digital input and output modules, hybrid I/O modules can provide several engineering advantages.

These include:

• Reduced cabinet space
• Simplified wiring organization
• Flexible machine design
• Easier module management
• Modular system expansion
• Improved maintenance efficiency
• Simplified spare parts management

Hybrid I/O modules are particularly attractive for compact automation equipment where installation space is limited.

Installation and System Integration

Proper installation helps ensure reliable operation throughout the system lifecycle.

Mechanical Installation

Before installation, verify:

• Correct model number
• Compatible VersaMax carrier
• Proper module position
• Adequate cabinet ventilation
• Mechanical locking
• Sufficient wiring clearance

The module dimensions of 133.4 × 85.9 × 69.1 mm should be considered during cabinet design.

Electrical Connections

Before energizing the system:

• Verify input wiring.
• Verify output wiring.
• Confirm terminal identification.
• Inspect cable routing.
• Separate signal cables from high-power wiring where possible.
• Check grounding arrangements.
• Confirm field-device compatibility.

Proper wiring practices improve system reliability and reduce electrical interference.

Commissioning Procedure

A recommended commissioning sequence includes:

1. Install the module.
2. Verify carrier engagement.
3. Connect field wiring.
4. Check power supply.
5. Download PLC configuration.
6. Verify module recognition.
7. Test all digital inputs.
8. Test all digital outputs.
9. Verify field-device operation.
10. Complete functional testing before production.

Compatible System Components

The IC200MDD845 is designed to operate with other VersaMax automation products.

These modules can be combined to create scalable automation systems for a wide variety of industrial applications.

Typical Machine Applications

Packaging Equipment

Packaging machines require continuous monitoring of sensors while controlling pneumatic cylinders and conveyors.

The IC200MDD845 can participate in applications involving:

• Product detection
• Carton positioning
• Pneumatic valve control
• Conveyor synchronization
• Alarm indication

Conveyor Systems

Typical conveyor automation requires monitoring of:

• Product presence
• Motor status
• Belt position
• Safety switches

while controlling:

• Conveyor motors
• Diverter mechanisms
• Warning indicators
• Stop circuits

The hybrid I/O architecture allows these operations to be managed efficiently within one modular system.

Assembly Automation

Assembly equipment often relies on sequential digital operations.

Typical applications include:

• Component detection
• Fixture positioning
• Robot handshaking
• Cylinder sequencing
• Status indication
• Machine interlocking

Maintenance and Troubleshooting

When diagnosing an automation fault, engineers should examine the complete signal path rather than replacing the module immediately.

Recommended troubleshooting sequence:

Power Supply

↓

Field Device

↓

Field Wiring

↓

IC200MDD845

↓

PLC Configuration

↓

Application Program

Common Diagnostic Checks

• Verify field power.
• Inspect connector condition.
• Check terminal tightness.
• Review PLC diagnostics.
• Confirm module installation.
• Test field devices independently.
• Verify program logic.

Systematic troubleshooting generally reduces downtime and unnecessary component replacement.

Common Fault Symptoms

Recommended Alternative Models

Depending on the automation requirements, the following VersaMax modules may also be suitable.

Key Advantages

• Designed specifically for GE VersaMax PLC systems
• Integrated discrete input and output functionality
• Compact modular construction
• Easy installation and replacement
• Suitable for distributed I/O architectures
• Supports industrial automation applications
• Simplifies cabinet layout
• Flexible system expansion
• Reliable digital signal processing
• Suitable for OEM machinery
• Ideal for machine control applications
• Supports long-term industrial operation
• Dimensions: 133.4 × 85.9 × 69.1 mm
• Weight: 0.159 kg

Technical FAQs

What is the GE IC200MDD845?

The IC200MDD845 is a VersaMax Discrete Hybrid I/O Module designed for digital input and output applications within GE VersaMax PLC systems.

What is its primary function?

Its primary function is to exchange discrete digital signals between field devices and the PLC controller.

Is the IC200MDD845 a CPU module?

No. It is an I/O module. PLC logic execution is performed by a compatible VersaMax CPU module.

What are its dimensions?

The module measures 133.4 × 85.9 × 69.1 mm.

How much does it weigh?

Its specified weight is approximately 0.159 kg.

What types of signals does it process?

The module processes discrete digital signals such as ON/OFF, OPEN/CLOSED and ACTIVE/INACTIVE states.

Can it be used in packaging machinery?

Yes. It is suitable for packaging equipment, conveyor systems, assembly machines and many other industrial automation applications.

Can it control relays and solenoid valves?

The module can be integrated into control systems that operate compatible relay interfaces, solenoid valves and other discrete field devices according to the system design.

Is it suitable for analog signal measurement?

No. Applications requiring analog signal acquisition should use dedicated VersaMax analog input or analog output modules.

What should be checked before replacing the module?

Engineers should verify the exact model number, system compatibility, wiring configuration, PLC program and field-device requirements before replacement.

Conclusion

The GE IC200MDD845 VersaMax Discrete Hybrid I/O Module is a compact and reliable digital interface module developed for GE VersaMax PLC systems. By integrating discrete input and output functionality into a modular design, it provides an efficient connection between PLC logic and industrial field equipment.

With dimensions of 133.4 × 85.9 × 69.1 mm and a weight of approximately 0.159 kg, the module is well suited for installation in modern industrial control cabinets where space efficiency and modularity are important considerations.

Whether applied in packaging machinery, conveyor systems, assembly equipment or general factory automation, the IC200MDD845 contributes to dependable signal acquisition and control. When combined with VersaMax CPU modules, power supplies, communication interfaces and expansion modules, it becomes an integral part of a scalable industrial automation solution that supports reliable machine operation and simplified maintenance.
