Product Overview

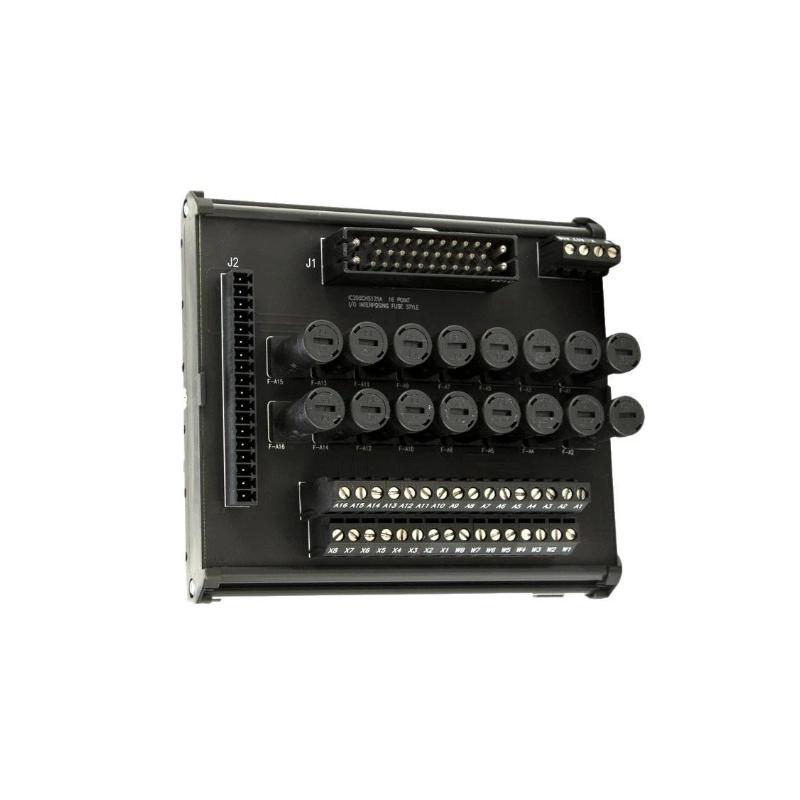

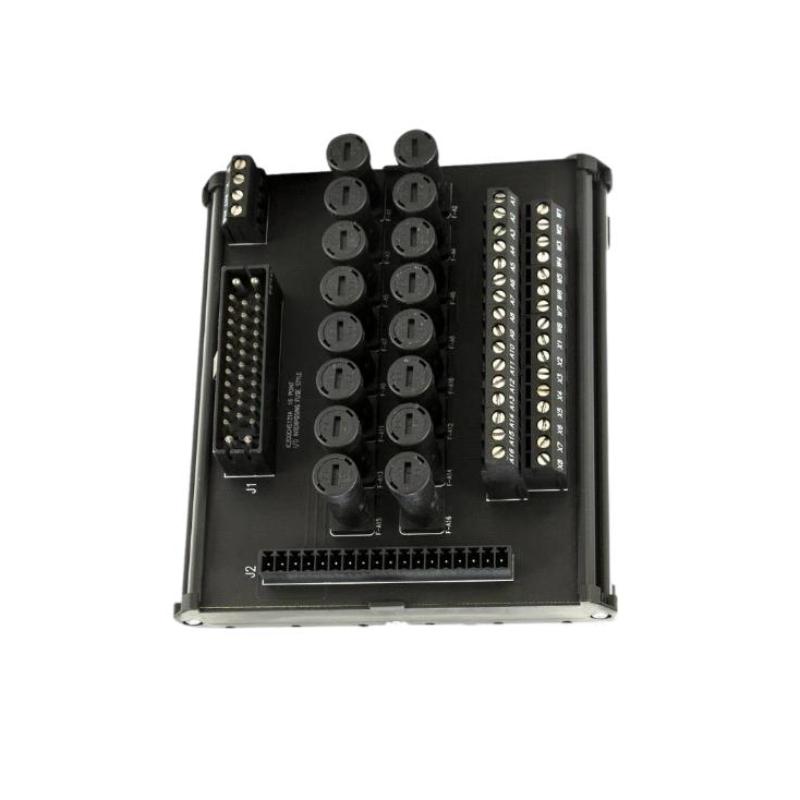

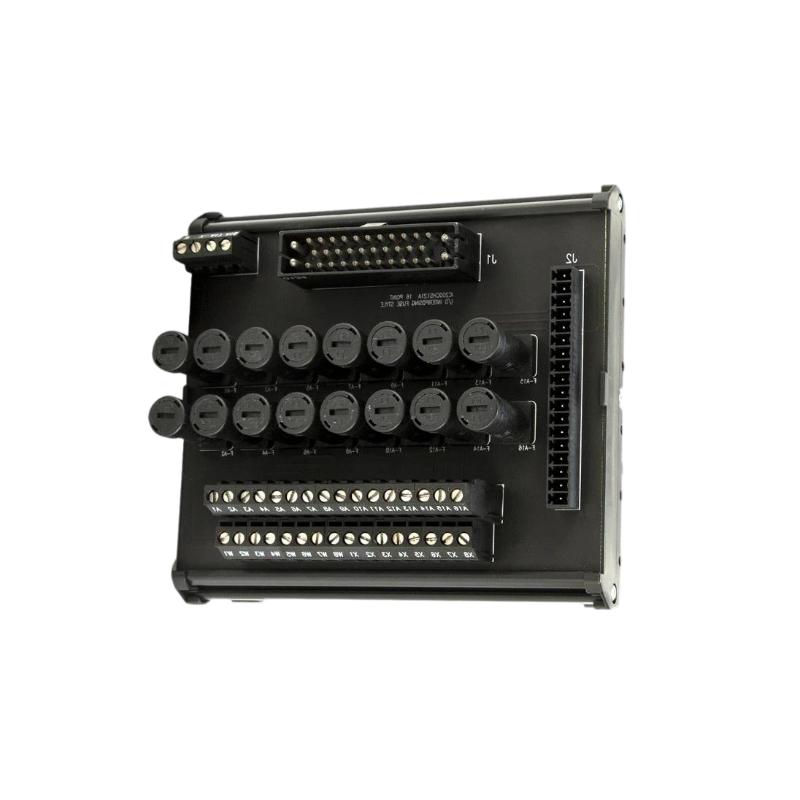

The GE IC200CHS121 VersaMax Fuse-Type Intermediate I/O Terminal Main Base is a specialized terminal-base component designed for GE VersaMax industrial automation and distributed I/O systems. It provides an intermediate connection interface between compatible I/O modules and external field circuits while incorporating a fuse-type arrangement for applications where circuit protection and organized field wiring are important.

Unlike a conventional VersaMax I/O module, the IC200CHS121 functions primarily as a terminal and main-base component. It provides the physical mounting and electrical connection structure needed to integrate I/O electronics with field devices.

The fuse-type configuration gives this terminal base a particular advantage in systems where individual field circuits need an additional level of protection or convenient isolation during maintenance. Proper fuse selection remains dependent on the connected circuit, I/O module and application requirements.

With specified dimensions of 137.16 × 126 × 75.4 mm and a weight of approximately 1.36 kg, the IC200CHS121 is suitable for industrial control cabinets, machine-control panels and distributed VersaMax I/O installations.

Technical Specifications

Function and Working Principle

The primary role of the IC200CHS121 is to provide an intermediate I/O connection between VersaMax I/O electronics and external field circuits.

Its fuse-type configuration adds an additional consideration to field-circuit protection and maintenance.

Intermediate I/O Interface

The terminal base provides an interface between the I/O module and external devices.

A simplified signal path can be represented as:

I/O Module → IC200CHS121 → Field Circuit → Sensor or Actuator

The terminal base does not replace the I/O module. Instead, it provides the connection infrastructure required for field signals to reach the appropriate I/O channels.

Fuse-Type Configuration

The fuse-type arrangement allows a field circuit to incorporate a fuse as part of its protection strategy.

A properly selected fuse can help limit the effects of certain overcurrent conditions and may prevent damage from propagating through a field circuit.

However, the fuse does not replace correct electrical design.

Fuse characteristics should be selected according to:

• Circuit voltage
• Expected operating current
• Connected load
• Inrush current
• I/O module requirements
• Wire size
• Protection coordination

Using an incorrect fuse rating can cause nuisance trips or inadequate protection.

Main Base Function

The main-base configuration provides the physical platform for integrating the terminal assembly with compatible VersaMax I/O electronics.

This modular approach allows the terminal infrastructure and I/O processing electronics to remain organized within the control cabinet.

Role in Industrial Control Systems

The IC200CHS121 serves as an interface component within a VersaMax distributed I/O architecture.

A typical system can be represented as:

PLC / Controller → VersaMax I/O Interface → I/O Module → IC200CHS121 → Field Device

For an input circuit:

Sensor → Fuse-Type Terminal → Input Module → VersaMax Controller

For an output circuit:

VersaMax Controller → Output Module → Fuse-Type Terminal → Field Load

This structure allows the control system to maintain a clear separation between controller logic, I/O signal processing and field-circuit connections.

The fuse-type terminal can be particularly useful when field circuits require localized protection and easier troubleshooting.

Industrial Applications

The GE IC200CHS121 can be used in VersaMax-based industrial automation applications where organized field wiring and fuse-type circuit protection are required.

Typical applications include:

• Factory automation
• Machine control
• Packaging machinery
• Production lines
• Conveyor systems
• Motor-control systems
• Pump stations
• Process monitoring
• Industrial equipment
• Material handling systems
• Manufacturing machinery
• Remote I/O installations
• OEM control cabinets

It can be particularly useful in systems containing numerous discrete field circuits where technicians need a structured method for identifying and isolating individual circuits.

Fuse Protection in Industrial I/O Systems

Fuse protection is an important consideration when I/O circuits are connected to external industrial equipment.

A field circuit can potentially be affected by:

• Wiring faults
• Short circuits
• Incorrect connections
• Component failure
• Overcurrent conditions
• Damaged field devices

A properly engineered fuse can limit the energy available to a fault.

For example, a discrete output circuit controlling an external load may include a fuse between the I/O interface and the field circuit. If a fault occurs downstream, the fuse can interrupt the affected circuit according to its specified characteristics.

The correct fuse type and rating should always be determined from the complete electrical design rather than selected solely from the terminal-base model.

Installation and System Integration

Correct installation of the IC200CHS121 is important for both reliable I/O operation and effective circuit protection.

Main Base Installation

The terminal base should be mounted securely within the designated VersaMax installation.

Before installation, verify:

• Correct model
• Compatible I/O module
• Correct mounting arrangement
• Adequate cabinet space
• Required wiring clearance
• Accessibility for fuse inspection and replacement

The cabinet should provide sufficient room to access the terminal connections and protection components during maintenance.

I/O Module Integration

The compatible I/O module should be installed according to the system configuration.

Before applying power:

1. Verify the I/O module type.
2. Confirm correct mechanical installation.
3. Check the electrical interface.
4. Verify module position.
5. Confirm the field-circuit configuration.

Fuse Installation

Fuse installation requires particular attention.

Technicians should verify:

• Correct fuse type
• Correct voltage rating
• Correct current rating
• Appropriate interrupting capability
• Correct physical installation
• Proper circuit identification

A fuse should never be bypassed with an unsuitable conductor or replaced with an arbitrarily higher-rated device.

Field Wiring

Field wiring should be connected according to the I/O module and circuit design.

Check:

• Terminal assignments
• Signal polarity
• Wire identification
• Connection tightness
• Grounding
• Shielding
• Separation from high-voltage wiring
• Correct fuse location

Commissioning

After installation:

1. Inspect the complete terminal assembly.
2. Verify the correct fuses.
3. Confirm field wiring.
4. Check I/O module installation.
5. Energize the system under controlled conditions.
6. Verify controller communication.
7. Monitor I/O status.
8. Test individual field circuits.
9. Confirm correct operation of connected equipment.

Compatible System Components

The IC200CHS121 can be integrated with multiple components within a VersaMax control system.

The exact configuration depends on the application and electrical design.

IC200CHS121 for Troubleshooting and Maintenance

A fuse-type terminal can make certain field-circuit faults easier to locate.

For example, if an individual I/O circuit stops operating, a technician may inspect:

1. I/O module status
2. Terminal connection
3. Fuse condition
4. Field wiring
5. Connected device
6. Controller logic

If a fuse has opened, the technician should not immediately install another fuse without investigating the reason for the fault.

Possible causes can include:

• Shorted field wiring
• Failed load
• Incorrect wiring
• Excessive startup current
• Damaged actuator
• Incorrect fuse selection

Replacing the fuse without identifying the root cause can result in repeated failures.

Recommended Alternative Models

Depending on the required VersaMax field connection method and protection arrangement, other terminal and carrier configurations may be considered.

These models use different connection and interface arrangements. A replacement should be selected only after checking the installed I/O module, wiring design and mechanical configuration.

Key Advantages

• Designed for GE VersaMax automation systems
• Fuse-type intermediate I/O terminal configuration
• Main-base design
• Provides an organized field-circuit interface
• Supports modular distributed I/O architecture
• Allows structured fuse-based circuit protection
• Facilitates field-circuit troubleshooting
• Supports organized control-panel wiring
• Suitable for industrial machine-control applications
• Supports modular maintenance
• Suitable for systems with multiple discrete circuits
• Dimensions of approximately 137.16 × 126 × 75.4 mm
• Weight of approximately 1.36 kg

Technical FAQs

What is GE IC200CHS121?

The GE IC200CHS121 is a VersaMax Fuse-Type Intermediate I/O Terminal Main Base designed to provide an intermediate field connection and fuse-type interface for compatible VersaMax I/O systems.

Is IC200CHS121 an I/O module?

No. It is a terminal-base component. The associated I/O module performs the actual input or output signal processing.

What are the dimensions of IC200CHS121?

The specified dimensions are 137.16 × 126 × 75.4 mm.

What is the weight of IC200CHS121?

The specified weight is approximately 1.36 kg.

What is the main purpose of IC200CHS121?

Its primary purpose is to provide an intermediate I/O terminal interface with a fuse-type configuration for field circuits in a VersaMax automation system.

Why is a fuse used in an I/O circuit?

A correctly selected fuse can provide overcurrent protection for a field circuit and help limit the impact of certain wiring or load faults.

Can the fuse be replaced with a higher-rated fuse?

A higher-rated fuse should not be installed simply to prevent nuisance operation. Fuse selection must match the electrical design, wiring and connected load.

Where is IC200CHS121 used?

It is used in GE VersaMax industrial automation, machine-control and distributed I/O systems where fuse-type field-circuit interfaces are required.

Can IC200CHS121 replace IC200CHS101?

Not automatically. IC200CHS121 is a fuse-type intermediate terminal main base, while IC200CHS101 is a disconnectable plug-in I/O terminal main base. The complete I/O and field-wiring configuration must be verified.

Does IC200CHS121 provide PLC control logic?

No. The PLC or VersaMax controller executes the control program. The IC200CHS121 provides the field connection and fuse-type interface.

Conclusion

The GE IC200CHS121 VersaMax Fuse-Type Intermediate I/O Terminal Main Base is a specialized field-interface component designed for VersaMax industrial automation systems. Its primary role is to provide an organized intermediate connection between compatible I/O modules and external field circuits while supporting a fuse-type protection arrangement.

With specified dimensions of 137.16 × 126 × 75.4 mm and a weight of approximately 1.36 kg, the IC200CHS121 is suitable for industrial control cabinets where organized field wiring, modular I/O construction and circuit protection are important.

Its fuse-type configuration can simplify the identification and isolation of individual field circuits during troubleshooting and maintenance. However, proper fuse selection remains an essential part of the overall electrical design and should be based on the connected load, wiring and I/O requirements.

For replacement and system-integration projects, engineers should verify the complete VersaMax configuration, compatible I/O module, fuse arrangement, field wiring and mechanical installation requirements before selecting a replacement. When a fuse-type intermediate I/O terminal with a main-base configuration is required, the GE IC200CHS121 provides a practical interface for building and maintaining organized VersaMax industrial control systems.
