Product Overview

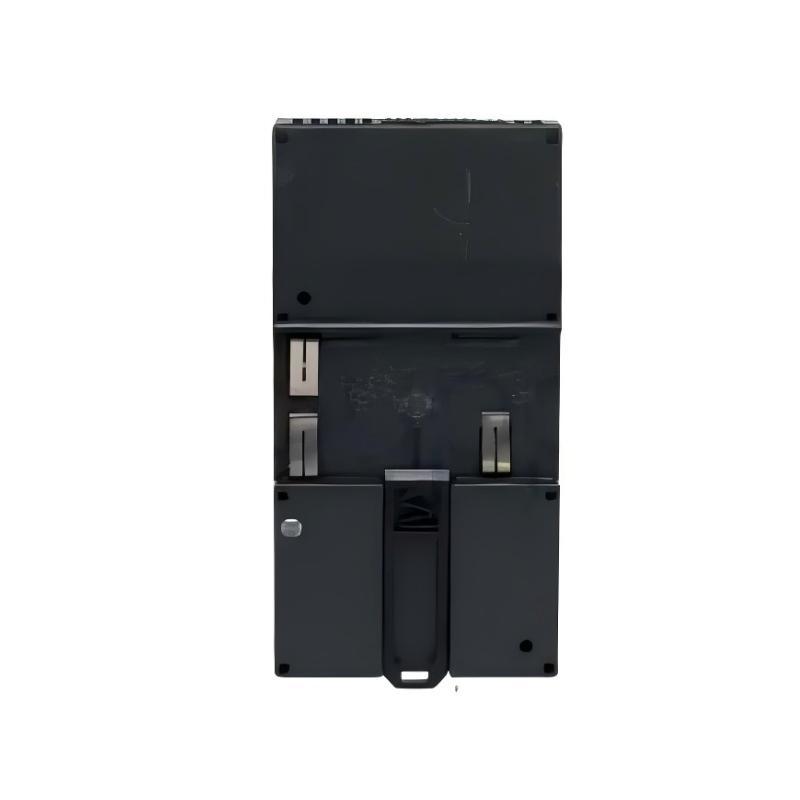

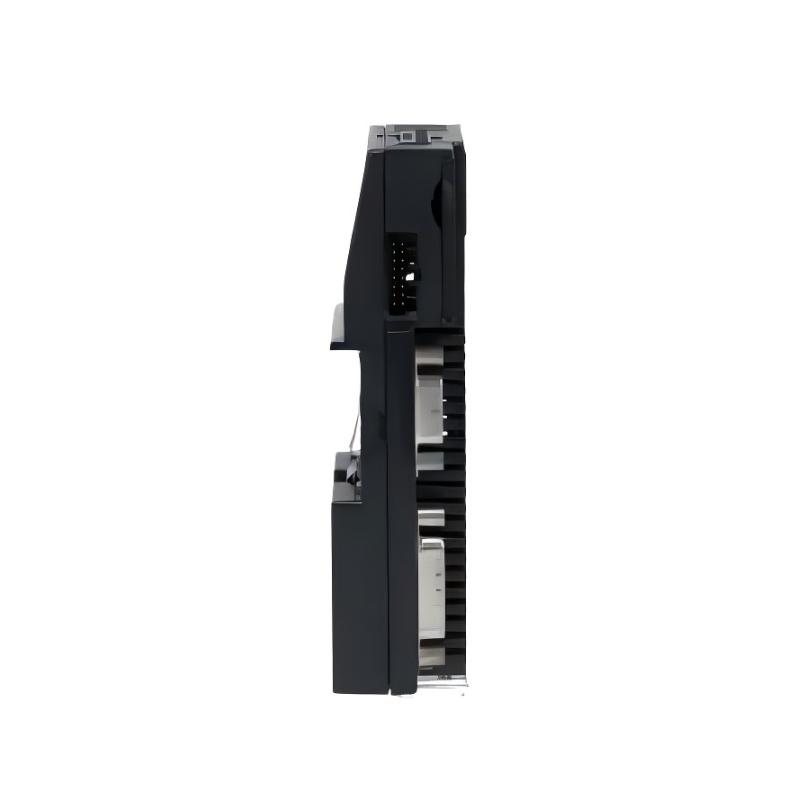

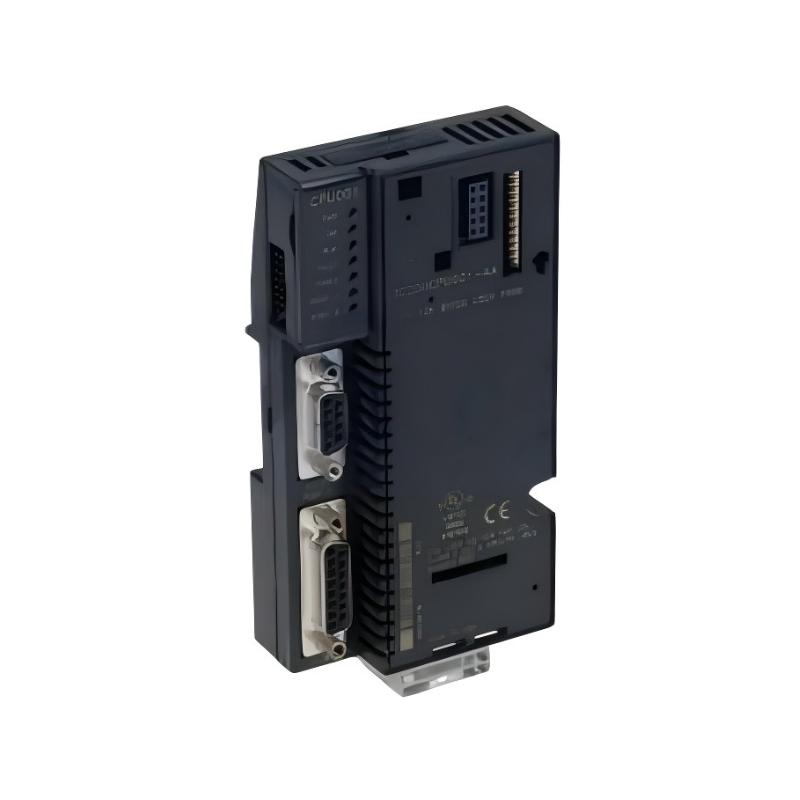

The GE IC200CPU002 VersaMax CPU Module is a central processing module designed for GE VersaMax industrial automation systems. It provides the control-processing function required to execute a PLC application program, manage system operations and coordinate connected VersaMax I/O components.

As an active controller component, the IC200CPU002 is fundamentally different from VersaMax I/O carriers, terminal bases and expansion bases. Those components provide mounting and field-wiring interfaces, while the CPU module performs the actual control logic and system-processing tasks.

The IC200CPU002 can serve as the processing core of a modular VersaMax control architecture. It receives information from connected input modules, processes that information according to the programmed control logic and coordinates the appropriate output operations.

The specified dimensions of the IC200CPU002 are 66.8 × 128 × 69.1 mm, with a weight of approximately 0.449 kg. Its compact form factor makes it suitable for industrial control cabinets, machine automation panels and distributed I/O control applications.

Technical Specifications

Function and Working Principle

The primary function of the IC200CPU002 is to execute the PLC application program and coordinate the operation of the VersaMax automation system.

The CPU acts as the decision-making element between field inputs and controlled outputs.

A simplified operating sequence is:

Field Sensors → Input Modules → IC200CPU002 → Control Program → Output Modules → Actuators

The CPU repeatedly processes information from the automation system and determines what actions should be performed.

PLC Program Execution

The IC200CPU002 executes the control logic developed for the machine or process.

Depending on the application, the control program can manage:

• Start and stop sequences
• Equipment interlocking
• Timers
• Counters
• Machine states
• Alarm conditions
• Sensor monitoring
• Actuator commands
• Process sequences
• Equipment status

The actual functionality depends on the application program and the connected VersaMax hardware.

Input Processing

Input modules collect information from field devices.

Typical input sources include:

• Limit switches
• Proximity sensors
• Push buttons
• Pressure switches
• Temperature instruments
• Machine-status contacts

The CPU evaluates these signals according to the programmed logic.

Output Control

After processing the input information, the CPU generates control commands for the appropriate output modules.

These outputs may operate:

• Solenoid valves
• Relays
• Contactors
• Indicator devices
• Motor-control circuits
• Other industrial actuators

This creates a continuous control cycle between the controller and the physical process.

Role in Industrial Control Systems

The IC200CPU002 serves as the processing center of a VersaMax PLC system.

A simplified system architecture is:

Programming / Engineering Device → IC200CPU002 → VersaMax I/O → Field Equipment

The CPU receives data from the I/O system and applies the programmed control logic.

For example:

Product Sensor → Digital Input Module → IC200CPU002 → Digital Output Module → Conveyor Motor Control

The CPU determines when the conveyor should start, stop or change operating state according to the application logic.

In a more complex machine, the same CPU can coordinate multiple groups of sensors and actuators through the modular VersaMax I/O architecture.

Industrial Applications

The GE IC200CPU002 can be used in a wide range of industrial automation systems based on the VersaMax platform.

Typical applications include:

• Factory automation
• Packaging machines
• Conveyor systems
• Assembly machinery
• Material handling
• Production equipment
• Machine tools
• Pump-control systems
• Process monitoring
• Manufacturing lines
• Industrial equipment
• OEM machinery
• Distributed I/O systems
• Automated production systems

Its compact physical dimensions make it suitable for control cabinets where space efficiency is an important engineering consideration.

CPU-Based Machine Automation

A PLC CPU is responsible for coordinating the sequence of machine operations.

For example, a packaging machine may operate as follows:

1. A product sensor detects an incoming item.
2. The input module sends the signal to the CPU.
3. The IC200CPU002 evaluates the machine state.
4. The control program determines whether the machine can proceed.
5. The CPU activates an output.
6. The output module controls the corresponding actuator.
7. The machine performs the programmed operation.
8. Additional sensors provide feedback to the CPU.

This cycle allows the controller to continuously monitor the machine and adjust its operation according to the programmed logic.

I/O System Integration

The IC200CPU002 operates as part of a modular VersaMax architecture rather than as an isolated controller.

This modular arrangement allows the automation system to be configured around the actual requirements of the machine or process.

Installation and System Integration

Correct installation is important for reliable CPU operation.

Mechanical Installation

The IC200CPU002 should be installed in the appropriate VersaMax system location.

Before installation, verify:

• Correct CPU model
• Compatible VersaMax hardware
• Proper mounting arrangement
• Cabinet clearance
• Environmental conditions
• Access for programming and maintenance

The specified dimensions are 66.8 × 128 × 69.1 mm, so the control-panel design should provide sufficient space around the module for installation and servicing.

Power Connections

Before applying power, inspect the system carefully.

Verify:

• Correct power supply
• Correct voltage
• Proper wiring
• Secure terminals
• Correct grounding
• Proper module installation

A power problem can appear as a CPU fault even when the CPU itself is functioning correctly.

I/O Integration

The connected I/O modules should be installed according to the system configuration.

Verify:

1. Correct module types.
2. Correct module positions.
3. Secure mechanical engagement.
4. Correct electrical connections.
5. Proper controller configuration.

Program Commissioning

After the hardware installation is complete, the application program should be loaded or verified.

Commissioning should include:

1. CPU startup verification.
2. Controller status inspection.
3. I/O status verification.
4. Program validation.
5. Digital input testing.
6. Digital output testing.
7. Analog signal testing where applicable.
8. Communication verification.
9. Machine sequence testing.

Compatible System Components

The IC200CPU002 is designed to operate within a larger VersaMax automation system.

The exact combination depends on the machine and control architecture.

IC200CPU002 vs. I/O Carrier Components

The IC200CPU002 should not be confused with VersaMax carrier and terminal-base components.

For example, the IC200CHS025 provides a compact spring-loaded I/O carrier interface, while the IC200CPU002 provides the control-processing function.

These products work at different levels of the automation architecture and are therefore not interchangeable.

CPU Diagnostics and Troubleshooting

When troubleshooting a VersaMax system containing the IC200CPU002, it is important to examine the complete control chain rather than assuming that every control fault originates from the CPU.

A practical troubleshooting sequence is:

Power Supply → CPU Status → I/O Status → Communication → Program Logic → Field Wiring → Field Device

Potential CPU-related symptoms may include:

• Controller fails to enter normal operation
• Unexpected controller status
• Loss of programmed control
• Abnormal I/O behavior
• Communication problems
• Unexpected machine sequence

However, similar symptoms can be caused by:

• Incorrect power supply
• Loose connections
• Faulty I/O modules
• Incorrect program configuration
• Communication problems
• Field wiring faults

A complete diagnosis should therefore be performed before replacing the CPU.

Recommended Alternative Models

Depending on the required controller architecture and system configuration, the following VersaMax products may be considered.

The CPU alternatives should be evaluated based on program requirements, I/O architecture, communication requirements and overall system compatibility. The IC200CHS-series products are I/O interface components and should not be considered direct CPU replacements.

Key Advantages

• Designed for GE VersaMax PLC systems
• Provides central control processing
• Executes PLC application logic
• Coordinates VersaMax I/O modules
• Supports modular distributed I/O architecture
• Suitable for machine-control applications
• Supports sequential automation
• Supports equipment interlocking
• Coordinates sensors and actuators
• Compact industrial form factor
• Suitable for OEM machine automation
• Suitable for manufacturing applications
• Dimensions of approximately 66.8 × 128 × 69.1 mm
• Weight of approximately 0.449 kg

Technical FAQs

What is GE IC200CPU002?

The GE IC200CPU002 is a VersaMax CPU Module that provides central processing and control functions within a compatible GE VersaMax PLC system.

What is the main function of IC200CPU002?

Its primary function is to execute the PLC application program and coordinate connected I/O modules and field devices.

What are the dimensions of IC200CPU002?

The specified dimensions are 66.8 × 128 × 69.1 mm.

What is the weight of IC200CPU002?

The specified weight is approximately 0.449 kg.

Is IC200CPU002 an I/O module?

No. It is a CPU module. The CPU executes control logic, while separate I/O modules interface with field devices.

What applications can IC200CPU002 support?

It can serve as the processing core for machine control, factory automation, packaging, conveyor systems, manufacturing equipment and other VersaMax-based automation applications.

What components work with IC200CPU002?

A typical system can include VersaMax I/O modules, terminal bases, carriers, power supplies, network interfaces, sensors, actuators, relays and contactors.

What should be checked before replacing IC200CPU002?

Engineers should verify the CPU model, system architecture, application program, I/O configuration, power supply and communication requirements.

Is IC200CPU002 the same as IC200CPU001?

Both are VersaMax CPU modules, but they are separate model numbers. The exact compatibility and functional requirements should be verified against the existing control-system configuration before substitution.

Can an IC200CHS-series component replace IC200CPU002?

No. IC200CHS-series products provide I/O carrier or terminal functions and do not perform the CPU’s control-processing role.

Conclusion

The GE IC200CPU002 VersaMax CPU Module is a central processing component designed to provide PLC control functionality within a VersaMax industrial automation system. It executes the application program, processes information from connected I/O modules and coordinates the operation of external machinery and process equipment.

With specified dimensions of 66.8 × 128 × 69.1 mm and a weight of approximately 0.449 kg, the IC200CPU002 offers a compact form factor for industrial control cabinets, OEM machines and distributed automation systems.

Its role is fundamentally different from VersaMax I/O carriers and terminal bases. The CPU provides the system’s control intelligence, while I/O components provide the electrical interface between the controller and field devices.

For replacement and system-integration projects, engineers should verify the complete VersaMax hardware configuration, CPU compatibility, application program requirements, I/O architecture and communication setup before installation. When a VersaMax CPU module is required for centralized machine and process control, the GE IC200CPU002 provides the processing foundation for a modular industrial automation system.
