Overview

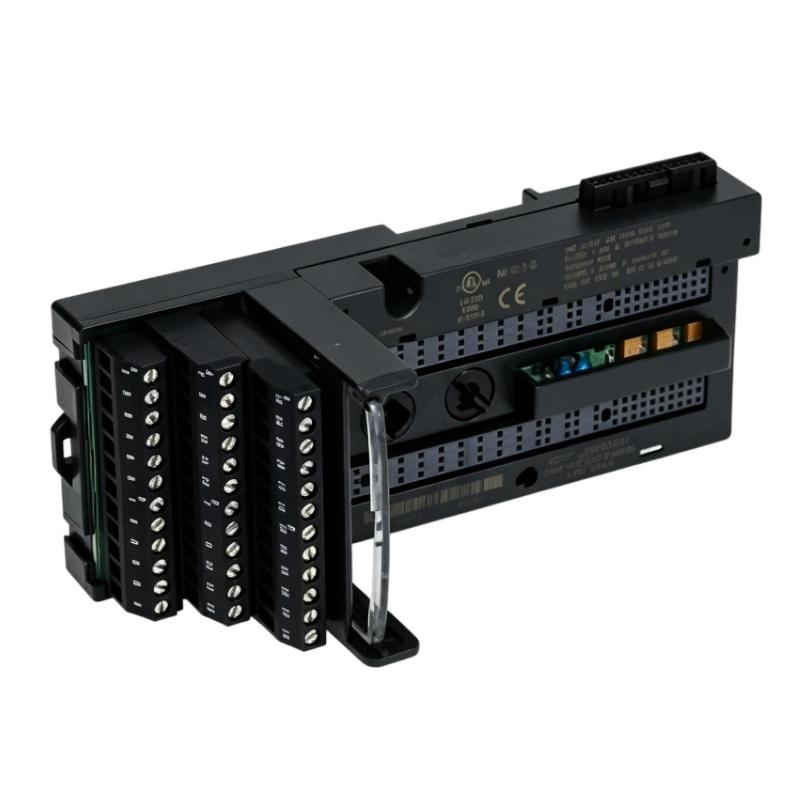

The GE IC200CHS022J is a VersaMax Compact I/O Carrier Box designed for GE VersaMax PLC and industrial automation systems.
This carrier module provides mechanical mounting, field wiring termination, and backplane communication support for VersaMax I/O modules. It serves as the connection base between the control system and installed I/O modules, allowing reliable signal transmission between the controller and field devices.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE |
| Model | IC200CHS022J |
| Product Type | VersaMax Compact I/O Carrier Box |
| Series | VersaMax |
| Dimensions | 66.8 × 163.5 × 70 mm |
| Weight | 0.34 kg |
| Terminal Type | Box-Style Terminal |
| Main Function | I/O Module Mounting and Field Wiring Connection |
| Communication Function | Backplane Communication Support |
| Installation Type | DIN Rail / Panel Mounting |
| Application | Industrial PLC Control Systems |
Applications
Industrial PLC Systems
The GE IC200CHS022J is used as an I/O carrier base in VersaMax PLC systems, allowing different I/O modules to be installed and connected within automation architectures.
Factory Automation
It supports machine control applications by providing a reliable connection platform between PLC controllers and field devices.
Process Control Systems
The carrier module is suitable for process industries where multiple digital and analog I/O modules need to be integrated into a compact control system.
Remote I/O Expansion
It allows VersaMax I/O modules to be installed in distributed control structures for flexible system expansion.
Equipment Monitoring Applications
The module supports automation equipment that requires stable field signal connections and modular I/O configuration.
How It Works
The GE IC200CHS022J works as the physical and electrical interface between VersaMax I/O modules and the control system.
The carrier provides mounting support for one I/O module while also handling field wiring connections and internal backplane communication. The installed I/O module communicates with the PLC controller through the carrier, allowing input and output signals to be transferred between the controller and external devices.
The typical working process is:
PLC Controller → VersaMax I/O Carrier → I/O Module → Field Device
By providing a stable mounting and communication platform, the carrier simplifies system installation and maintenance.
Key Advantages
| Feature | Benefit |
|---|---|
| Compact I/O Carrier Design | Saves cabinet space in automation installations. |
| Reliable Module Connection | Provides stable communication between controller and I/O modules. |
| Flexible System Expansion | Allows easy addition or replacement of VersaMax I/O modules. |
| Integrated Field Wiring Support | Simplifies connection between modules and external devices. |
| Industrial Mounting Design | Suitable for continuous automation applications. |
| Easy Maintenance | Allows convenient module replacement without major rewiring. |
Related Components
| Component | Function |
|---|---|
| IC200CHS022J Carrier Box | Provides mounting and connection support for I/O modules. |
| VersaMax I/O Modules | Handle digital and analog input/output signals. |
| VersaMax PLC CPU | Executes automation control programs. |
| Power Supply Module | Provides system operating power. |
| Terminal Blocks | Connect field wiring connections. |
| DIN Rail Assembly | Provides mechanical installation support. |
Installation
The GE IC200CHS022J is typically installed on a DIN rail or mounted inside a control cabinet according to system requirements.
Before installation, check:
- Correct carrier model
- Compatible VersaMax I/O module
- Proper DIN rail mounting
- Field wiring condition
- Backplane connection alignment
The I/O module should be installed securely on the carrier to ensure reliable electrical connection. After installation, verify communication status between the controller, carrier, and connected I/O modules.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| I/O Module Not Recognized | Poor carrier connection or installation issue | Check module seating and backplane connection. |
| Field Signals Not Working | Wiring problem | Verify terminal wiring and field connections. |
| Communication Failure | Controller or carrier connection fault | Check system configuration and module status. |
| Intermittent Operation | Loose mounting or connection issue | Inspect mounting and terminal connections. |
| Module Replacement Failure | Incorrect module compatibility | Confirm I/O module and carrier compatibility. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| IC200CHS022J | Compact I/O Carrier Box | VersaMax I/O module mounting |
| IC200CHS025 | Compact I/O Carrier Spring Clamp Type | Field wiring applications |
| IC200CHS006 | VersaMax Terminal Carrier | I/O system expansion |
| IC200MDL750 | Discrete Output Module | Digital output control |
| IC200ALG264 | Analog Input Module | Analog signal acquisition |
| IC200CPUE05 | VersaMax CPU Module | PLC control processing |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| GE VersaMax Series | PLC Control System | Industrial automation control |
| GE IC200 Series | I/O Modules | Signal input and output processing |
| VersaMax I/O Carriers | Carrier Components | Module installation and communication |
| GE PLC Power Modules | Power Supply Components | System power management |
| GE Industrial Controllers | Control Hardware | Automation applications |
| GE Remote I/O Components | Distributed Control Modules | Field device integration |
Technical FAQs
1. What is the main function of the GE IC200CHS022J?
It is a VersaMax compact I/O carrier used for mounting I/O modules and providing field wiring connections.
2. Which system uses the IC200CHS022J?
It is designed for GE VersaMax PLC and industrial automation control systems.
3. What type of modules can be installed on this carrier?
It supports compatible VersaMax I/O modules used for digital and analog signal control.
4. What is the purpose of the carrier backplane connection?
The backplane provides communication between the installed I/O module and the PLC control system.
5. What should be checked if the installed I/O module does not operate?
Check module compatibility, carrier installation, wiring connections, controller configuration, and communication status.
