- GE
- IS200CSLAH4A

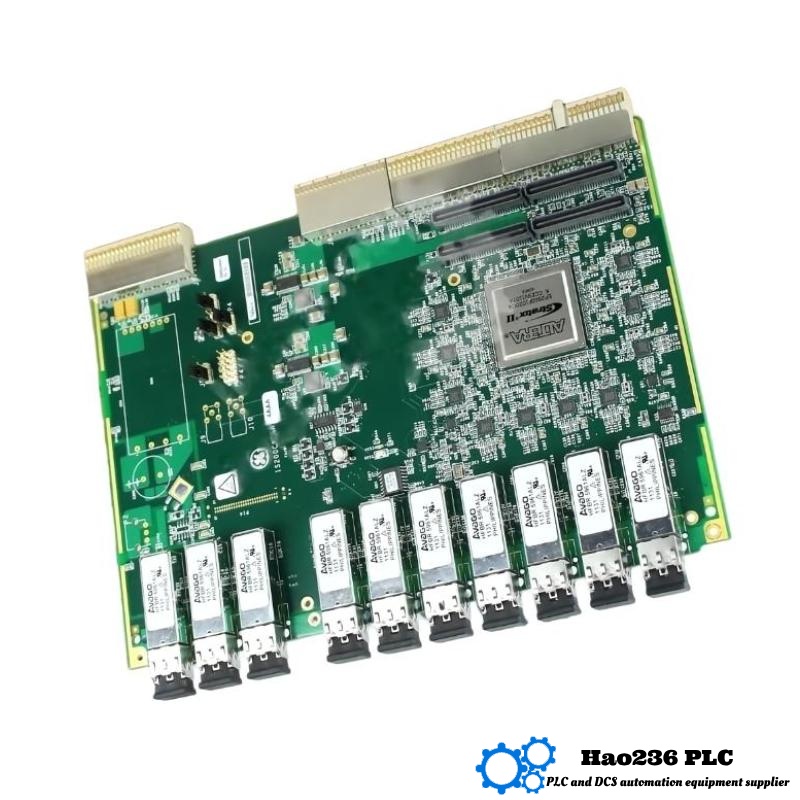

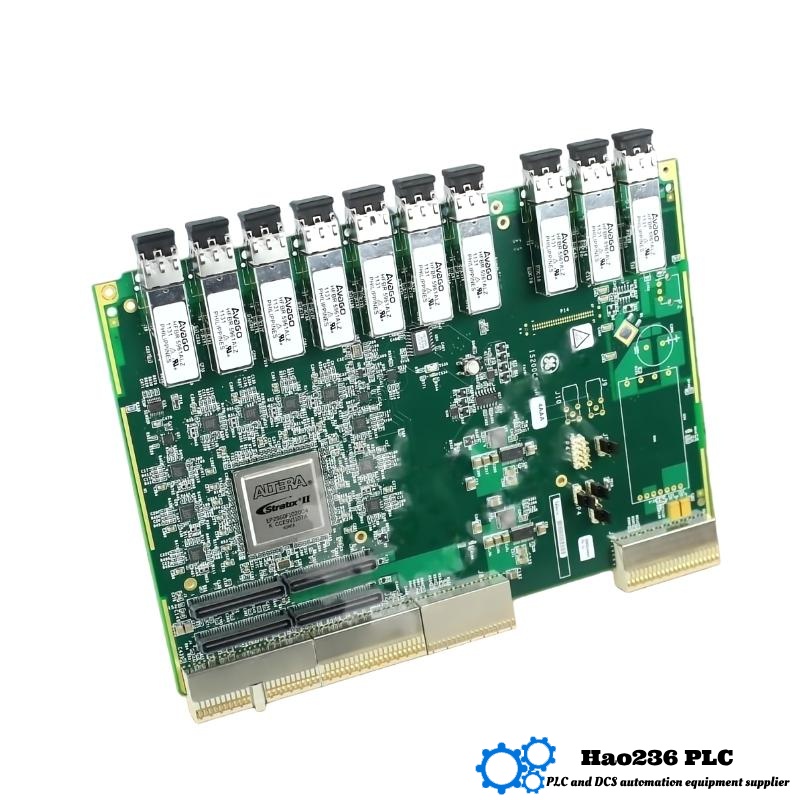

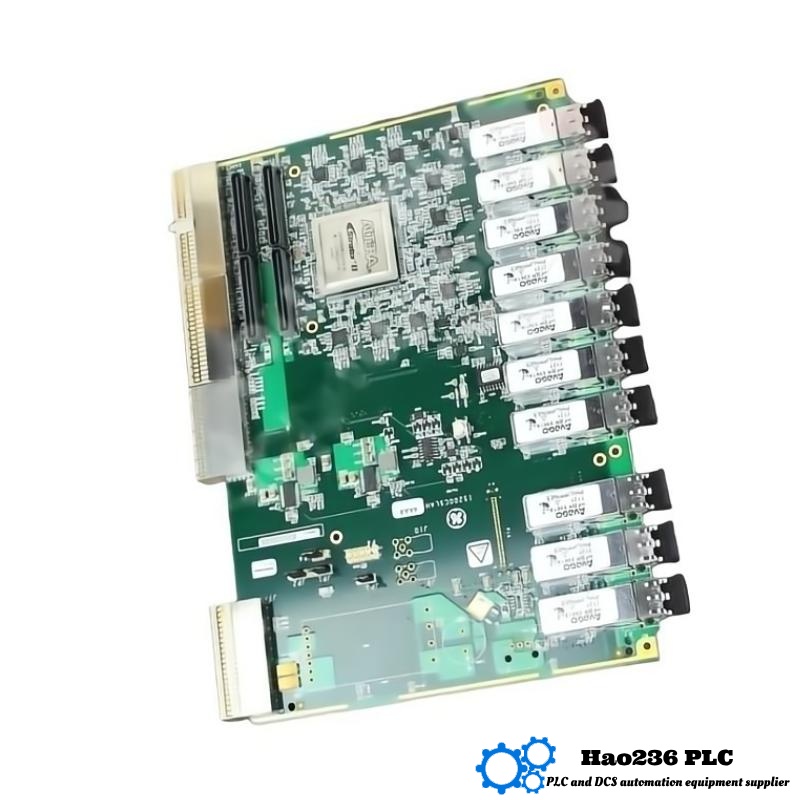

- High Speed Expansion Board Compact PCI Serial Link Expansion Board
- USA
- 210 mm × 202 mm × 26 mm
- 0.35kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 36
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
📦 Product Introduction
The IS200CSLAH4A is a tension control / analog I/O interface module designed for use in industrial control systems, particularly in automation systems requiring precise tension regulation (for example, in material handling, web tension control, winding/rewinding, etc.). It supports analog input and output processing, control loops for tension regulation, and integration with a larger control rack or system.
This module is manufactured under the GE / GE Fanuc / IS200 family and used where both analog signal processing and control feedback are required under automated systems. It can act as the front-end interface for sensors (strain gauges, load cells, encoders) and drive control outputs accordingly.
📊 Technical Specifications
| Parameter | Details / Typical Values |
|---|---|
| Model | IS200CSLAH4A |
| Module Type | Tension Control / Analog I/O Interface Module |
| Function | Analog input / output, tension control regulation |
| Analog Channels | e.g. 4 or 8 analog input + 2 analog output (typical) |
| Input Signal Type | ±10 V, 0–10 V, ±20 mA, 4–20 mA |
| Output Signal Type | 0–10 V, 4–20 mA |
| Control Loop Support | PID or proportional control for tension regulation |
| Communication Interface | Rack bus / internal control bus |
| LED Indicators | System OK, Fault, Status |
| Operating Temperature | –20 °C to +80 °C (typical industrial range) |
| Storage Temperature | –40 °C to +85 °C |
| Mounting / Installation | Rack / chassis insertion |
| Dimensions | ~210 mm × 202 mm × 26 mm |
| Weight | ~0.35 kg |
| Protection / Isolation | Galvanic isolation, overvoltage protection, filtering |
🛠 Applications
-
Tension control systems in web processes (films, fabrics, paper, metal foils)
-
Winding / unwinding machines, to maintain consistent tension
-
Material handling and transportation systems that require force feedback
-
Control loops with analog sensors such as load cells, encoders, strain gauges
-
Servo or analog drive feedback for motors, guides, and rollers
-
Industrial automation systems where analog I/O and feedback control are integrated
✅ Advantages & Strengths
-
Precision analog control: Enables accurate tension regulation using feedback loops.
-
Flexible signal support: Compatible with multiple analog ranges (voltage, current) to match field sensors.
-
Rack-compatible design: Easily integrates into GE / Fanuc modular rack systems.
-
Robust physical design: Withstands industrial environment stresses (temperature, vibration).
-
Status diagnostics: LEDs provide quick visual feedback for operational health.
-
Isolation and protection: Reduces noise, protects against surges and ground loops.
-
Compact footprint: Slim module design conserves rack space.
🏷 Brand & Series
-
Brand: GE / GE Fanuc
-
Series / Family: IS200 / GE modular I/O / control system family
🔄 Related or Same-Series Modules
Here are five modules in the same or related functional area (analog, interface, control) for comparison:
| Model | Description / Role | Key Features | Dimensions / Type | Weight (kg) |
|---|---|---|---|---|
| IS200CSLAH4A | Tension control / analog I/O module | Analog I/O, tension regulation capabilities | ~210 × 202 × 26 mm (module) | ~0.35 |
| IS200CSLAH1A | Earlier analog / serial link expansion module | Basic analog or serial link interface | Module / board style | ~0.30 |
| IS200CSLAH2A | Intermediate analog control module | More channels or higher precision variant | Module style | ~0.33 |
| IS200EDEXG1A | Excitation / I/O interface & analog module | Mixed analog & digital interface | Rack / module format | ~0.42 |
| IS200EROCH1A | Output / actuator control module | Takes control outputs to actuators | Module / board | ~1.0 |
⭐ Popular Modules from the Same Brand
Some commonly used or well-known modules in the GE / GE Fanuc / IS200 / Mark VI / related ecosystem:
| Model | Description / Role | Key Characteristics | Mount or Module Type | Weight (kg) |
|---|---|---|---|---|
| IS200DSPXH1D | Digital Signal Processor / Control Board | Core logic and control processing | Slot board / module | ~1.1 |
| IS200DTTCH1A | Turbine control logic board | Manages control loops, timing, and algorithms | Board module | ~1.2 |
| IS200EROCH1A | Output / actuator interface module | Drives actuators, valves, motors | Board / module | ~1.0 |
| IS200EDEXG1A | Excitation & I/O interface module | Mixed analog/digital processing for excitation | Module / rack format | ~0.42 |
| IS200EISBH1A | Bus receiver / expansion interface module | Rack bus interface and expansion connectivity | Module / slot format | ~0.4 |
❓ Frequently Asked Questions (FAQ)
Q1: What does IS200CSLAH4A do?
A1: It serves as a tension control or analog I/O module that processes analog sensor signals (voltage, current) and outputs control signals to regulate tension in web or winding systems.
Q2: How many analog channels does it support?
A2: A typical configuration supports multiple analog inputs (e.g. 4–8 channels) and a couple of analog outputs, though the exact count depends on the internal I/O pack design.
Q3: What signal ranges are compatible?
A3: It typically supports standard industrial signal ranges such as ±10 V, 0–10 V, ±20 mA, and 4–20 mA.
Q4: What are its dimensions and weight?
A4: The approximate dimensions are 210 mm × 202 mm × 26 mm, and it weighs around 0.35 kg.
Q5: What temperature range can it operate within?
A5: It can operate reliably in the range of about –20 °C to +80 °C, suitable for many industrial environments.
Q6: Does it incorporate protection or isolation features?
A6: Yes, it includes galvanic isolation, overvoltage protection, filtering, and shielding to protect signals and module integrity.
Q7: Is the module modular and rack-mountable?
A7: Yes, it is designed to fit into a modular rack or chassis for integration in control systems.
Q8: Does it allow local diagnostics?
A8: The module includes LED status indicators (OK, Fault, Status) and internal monitoring to signal any anomalies.
Q9: Can it be used in closed-loop control?
A9: Yes, it is often used in closed-loop feedback systems, using analog input from sensors and producing outputs to drive actuators to regulate tension.
Q10: Where is this typically applied?
A10: It is used in industrial fields such as paper, film, textiles, metal foil, converting, packaging lines—any application requiring precise control of material tension.
