Product Overview
The GE DS215DMCBG1AZZ03A, associated with the DS200DMCBG1AED DMCB board design, is a specialized circuit board used in GE industrial control hardware. It belongs to the legacy GE Mark V / DS200-series control architecture and serves as a main control, processing, and communication board within compatible equipment.
The DMCB board is designed to provide core electronic control functions while interfacing with operator controls, communication networks, and optional input/output expansion hardware. Its processing and communication capabilities allow it to exchange control information with other parts of the system and coordinate the operation of associated industrial equipment.
Unlike a conventional standalone PLC CPU, this board is intended to operate as part of a larger GE control assembly. Its actual function depends on the host system, installed option boards, firmware configuration, and connected interface hardware.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE General Electric |
| Model | DS215DMCBG1AZZ03A |
| Associated Board Number | DS200DMCBG1AED |
| Functional Acronym | DMCB |
| Product Type | Industrial Control Circuit Board |
| System Family | GE Mark V / DS200 Series |
| Primary Function | Main control, processing and communication functions |
| Application | Industrial turbine and control equipment |
| Communication | DLAN / DLAN+ related communication architecture |
| Additional Communication | RS-232C interface and optional network functions depending on configuration |
| Processor Architecture | Embedded microprocessor-based control |
| Firmware | Firmware-supported board configuration |
| Board Construction | Multi-connector printed circuit board assembly |
| Dimensions | 273 × 218 × 60 mm |
| Weight | 0.69 kg |
| Installation | Internal cabinet / equipment-mounted installation |
| Operating Environment | Industrial control environment |
Function and Working Principle
The DS215DMCBG1AZZ03A operates as a central electronic control element within its compatible GE control equipment. The DMCB architecture combines processing, control-power support, communication interfaces, and connections to other system boards.
The board receives information from connected control and interface circuits, processes the information according to its firmware and system configuration, and exchanges control data with other system components.
Depending on the particular installation, the board can provide interfaces associated with:
- Operator keypad and display functions
- Drive Local Area Network communication
- ARCNET-based DLAN+ communication
- Optional Genius LAN communication
- RS-232C serial communication
- Local logic input and output interface boards
- DS200IOEA input/output expansion hardware
The board therefore acts as an important processing and communication hub rather than simply serving as a passive interface card.
Role in Industrial Control Systems
The GE DS215DMCBG1AZZ03A plays an important role in compatible GE control architectures by connecting processing functions with operator interfaces, communication networks, and expansion hardware.
In systems using the DMCB architecture, the board can participate in communication and information paths involving:
- Control processors
- Operator keyboards and displays
- Drive Local Area Network devices
- DLAN+ communication hardware
- Genius LAN interface hardware
- RS-232C serial devices
- I/O expansion boards
- Local logic input and output circuits
This architecture allows the control equipment to collect operating information, process control commands, communicate with other system devices, and provide information to operators.
Industrial Applications
The DS215DMCBG1AZZ03A is associated with legacy GE industrial control systems and is particularly relevant to applications where GE Mark V / DS200-series hardware remains in service.
Typical application areas include:
- Gas turbine control systems
- Steam turbine control systems
- Industrial turbine automation
- Excitation and generator control equipment
- Legacy GE Speedtronic control architectures
- Industrial power generation facilities
- Process plants using legacy GE control equipment
- Industrial equipment requiring replacement Mark V circuit boards
Because the Mark V platform is a legacy control architecture, the DS215DMCBG1AZZ03A is particularly valuable in modernization and maintenance projects where the existing control system cannot immediately be replaced.
Hardware Features

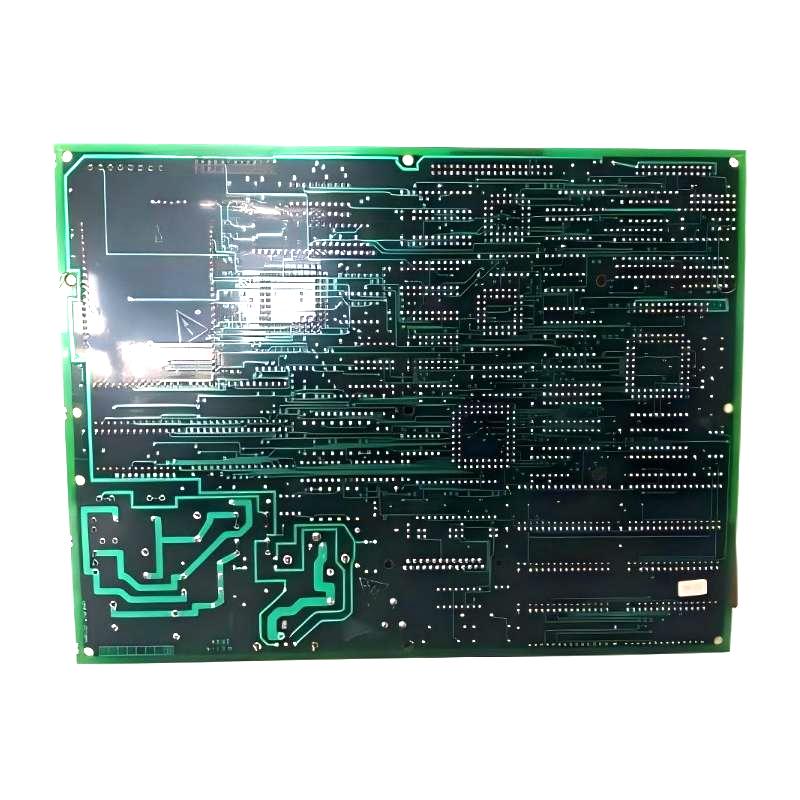

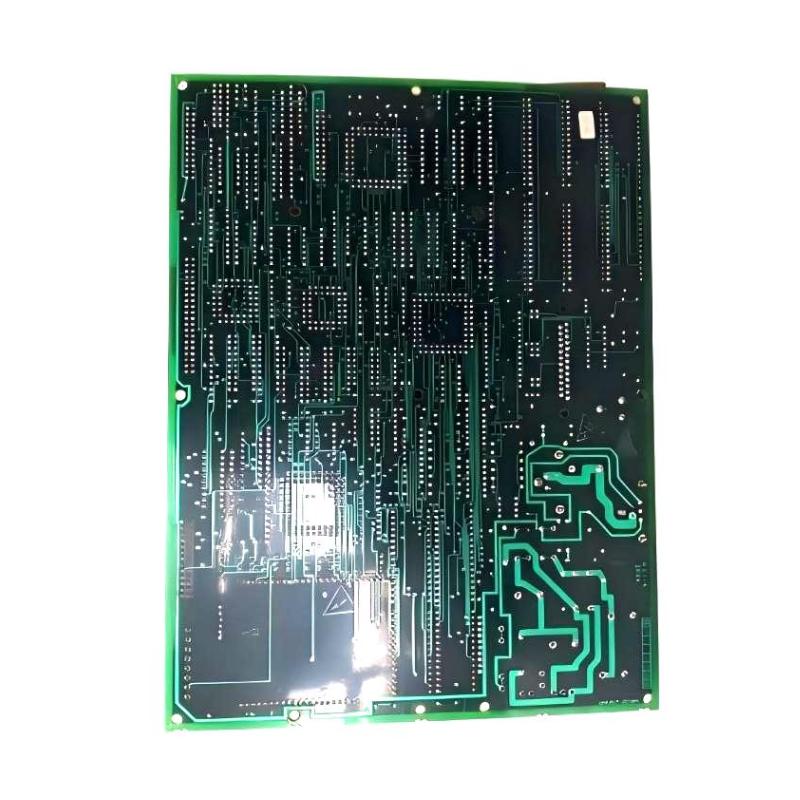

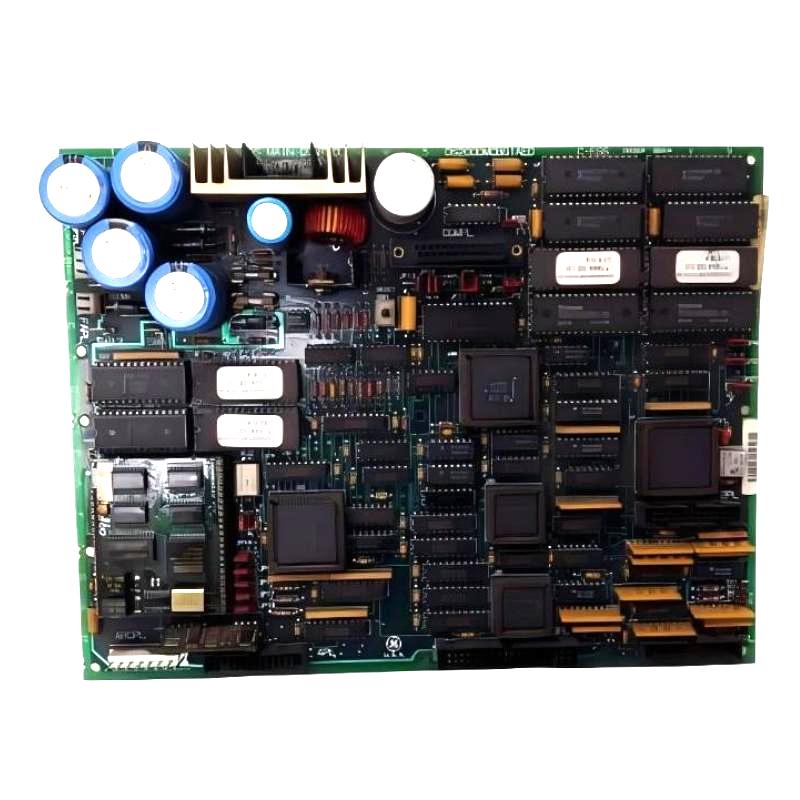

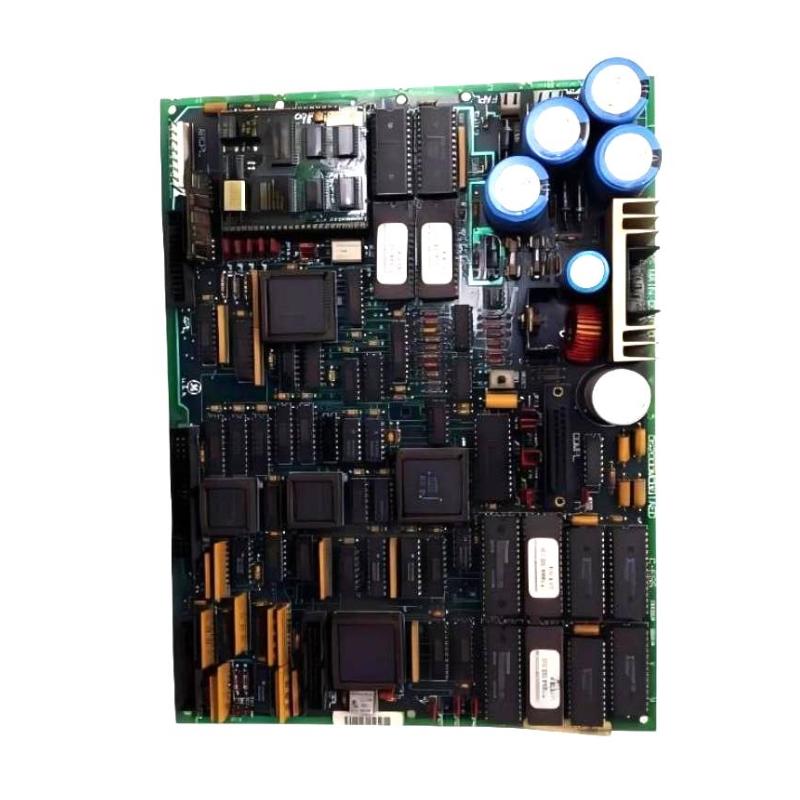

The DS215DMCBG1AZZ03A is a densely populated industrial circuit board containing multiple connectors, integrated circuits, jumper switches, test points, LEDs, and supporting electronic components.
| Hardware Feature | Function |
|---|---|
| Vertical Cable Connectors | Provide electrical interfaces with other system hardware |
| Header Connectors | Support internal board and auxiliary-board connections |
| Stab-On Connectors | Provide additional electrical interconnection points |
| Jumper Switches | Support hardware configuration and system setup |
| Reset Switch | Provides board reset functionality |
| LED Indicators | Provide visual information about board status |
| Test Points | Support electrical measurement and maintenance diagnostics |
| Integrated Circuits | Provide processing, logic, memory and interface functions |
| Auxiliary Boards | Provide additional interface or system-specific functions |
| Firmware Memory | Stores software required for board operation |
Installation and System Integration
Correct installation is important because the DS215DMCBG1AZZ03A is part of a larger control system rather than an independent module.
Before installation, technicians should record the original board identification, jumper configuration, connector locations, firmware information, and associated daughterboard arrangement.
The recommended installation process includes:
- Remove system power and follow the applicable electrical safety procedures.
- Record all cable and connector positions before removing the existing board.
- Verify the replacement board number and revision.
- Compare jumper settings with the original configuration.
- Inspect connectors for contamination, bent pins, oxidation, or mechanical damage.
- Install the board using the correct mounting points.
- Reconnect all cables and auxiliary boards carefully.
- Verify that the board is seated correctly before restoring power.
- Perform system-level diagnostics after startup.
Because the board contains sensitive electronic components and firmware-dependent functions, technicians should avoid unnecessary handling of exposed circuitry and should use appropriate ESD protection.
Compatible System Components
The DMCB board normally operates together with several other components. The exact combination depends on the specific control-system configuration.
| Component | Typical Function | Relationship to DMCB |
|---|---|---|
| DS200IOEA | I/O Expansion Interface Board | Provides additional input/output interface capability |
| KLD / Operator Interface Board | Keyboard and display functions | Provides operator interaction with the control system |
| DKLB | Reduced-key operator interface | Alternative operator interface configuration |
| DLAN Interface Hardware | Drive Local Area Network communication | Supports communication between control devices |
| DLAN+ Hardware | ARCNET-based network communication | Optional communication architecture |
| Genius LAN Interface | Industrial network communication | Optional network interface |
| ACNA Board | Connector conversion / network interface | Used in configurations requiring corresponding network connections |
| DS200DPCB | Power connection board | Part of the associated system power architecture |
| Auxiliary Power Supply | Provides control power conversion | Supports the control unit’s internal power requirements |
Communication and Interface Architecture
One of the important characteristics of the DMCB design is its ability to interact with multiple communication and interface paths.
The board can form part of a communication architecture involving DLAN, optional DLAN+, Genius LAN, and RS-232C interfaces. This allows information to move between the central control hardware, operator interface, expansion boards, and other connected system devices.
This communication architecture is particularly important in legacy industrial systems because the control board is not only responsible for processing data but also serves as an interface between different layers of the control system.
Maintenance and Troubleshooting Considerations
When a DS215DMCBG1AZZ03A is suspected of failure, replacing the board immediately is not always the best first step. A systematic inspection can help determine whether the actual problem is located on the DMCB board or in an associated component.
| Observed Condition | Possible Area to Check |
|---|---|
| Board does not initialize | Control power, board seating, reset circuit, firmware and processor section |
| No operator display | Operator interface board, cables, DMCB interface and control power |
| Communication failure | DLAN interface, communication connectors, network hardware and board configuration |
| Intermittent operation | Connectors, power stability, thermal condition, PCB contamination or aging components |
| I/O communication problems | DS200IOEA and related interface circuitry |
| Unexpected reset | Control power quality, reset circuitry, processor section or external loading |
| Repeated system fault | System configuration, firmware, connected boards or communication network |
Technicians should also inspect the board for damaged connectors, overheated components, cracked solder joints, contamination, corrosion, or physical damage before deciding whether the PCB itself requires replacement.
Recommended Alternative Models
Because legacy GE Mark V boards are highly configuration-dependent, a recommended model should be considered according to function and system compatibility rather than simply by physical appearance.
| Model | Type | Key Feature | Application |
|---|---|---|---|
| DS200DMCBG1AED | DMCB Main Control Board | Original DS200-series DMCB identification | Compatible legacy control assemblies |
| DS215DMCBG1AZZ03A | DMCB Control and Communication Board | Updated DS215 hardware / firmware configuration | Mark V / related industrial control systems |
| DS200IOEA | I/O Expansion Interface Board | Additional I/O interface capability | Systems requiring expanded I/O |
| DS200DKLB | Operator Interface Board | Reduced-key keyboard and display configuration | Operator interface applications |
| DS200KLDAG1 | Keyboard / Display Interface | Operator interface functionality | Legacy GE control panels |
| DS200DPCB | Power Connection Board | Control-power connection functions | Associated control-unit power architecture |
Replacement note: The models above should not be treated as universal drop-in replacements. The correct replacement must be selected according to the host system, hardware revision, firmware configuration, connector arrangement, and original board identification.
Key Advantages
- Provides core processing functions within compatible GE industrial control hardware
- Supports multiple communication and interface pathways
- Works with DLAN and related legacy GE communication architectures
- Supports operator interface and system expansion functions
- Designed for integration with GE Mark V / DS200-series control equipment
- Suitable for maintenance and replacement of legacy industrial control systems
- Provides a practical spare-board solution for long-life turbine and power-generation installations
- Combines processing, communication, and control-system interface functions on a single PCB assembly
Technical FAQs
What is the GE DS215DMCBG1AZZ03A?
The GE DS215DMCBG1AZZ03A is an industrial control circuit board associated with the DMCB architecture. It provides processing, control, communication, and interface functions within compatible GE control equipment.
What is DS200DMCBG1AED?
DS200DMCBG1AED is an associated DS200-series DMCB board identification. DS215DMCBG1AZZ03A represents a later or enhanced hardware/firmware configuration associated with the DMCB function.
What does DMCB stand for?
DMCB is the functional acronym used for the main control board within the associated GE control architecture.
Where is the DS215DMCBG1AZZ03A used?
It is used in legacy GE industrial control equipment and is associated with Mark V / DS200-series architectures used in applications such as turbine and power-generation control.
What are the dimensions of the DS215DMCBG1AZZ03A?
The product specification provided for this unit is 273 × 218 × 60 mm.
How much does the DS215DMCBG1AZZ03A weigh?
The specified product weight is 0.69 kg.
Does the board support communication functions?
Yes. The DMCB architecture provides communication interfaces associated with DLAN and other optional communication hardware, as well as an RS-232C interface depending on the system configuration.
Can DS200DMCBG1AED and DS215DMCBG1AZZ03A be considered the same board?
They are closely related DMCB board identifications, but they should not automatically be considered electrically interchangeable. Hardware revision, firmware, connectors, and host-system configuration must be checked before replacement.
Is the DS215DMCBG1AZZ03A a PLC CPU?
It performs processing and control functions, but it is more accurately described as a dedicated GE industrial control circuit board rather than a modern standalone PLC CPU module.
Conclusion
The GE DS215DMCBG1AZZ03A DS200DMCBG1AED is a specialized DMCB circuit board designed for legacy GE industrial control architectures. Its combination of processing, control, communication, operator-interface, and expansion capabilities makes it an important component within compatible GE systems.
With dimensions of 273 × 218 × 60 mm and a weight of approximately 0.69 kg, the board is designed as an internal control-system assembly rather than a standalone field device. Its interfaces with DLAN, optional communication hardware, operator interfaces, and I/O expansion components allow it to participate in a complete industrial control architecture.
For maintenance engineers and system integrators, correct identification is essential. The DS215DMCBG1AZZ03A should be matched against the original DS200DMCBG1AED identification, board revision, firmware configuration, connector arrangement, and host equipment before replacement. When correctly matched, it provides a practical solution for maintaining legacy GE control systems and extending the service life of established industrial automation equipment.
