Product Overview

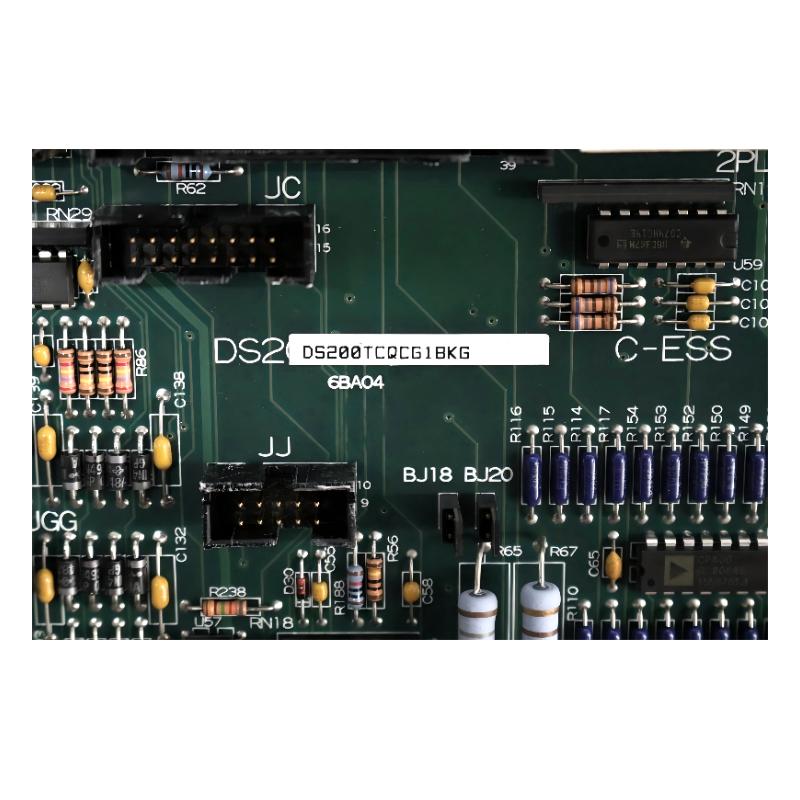

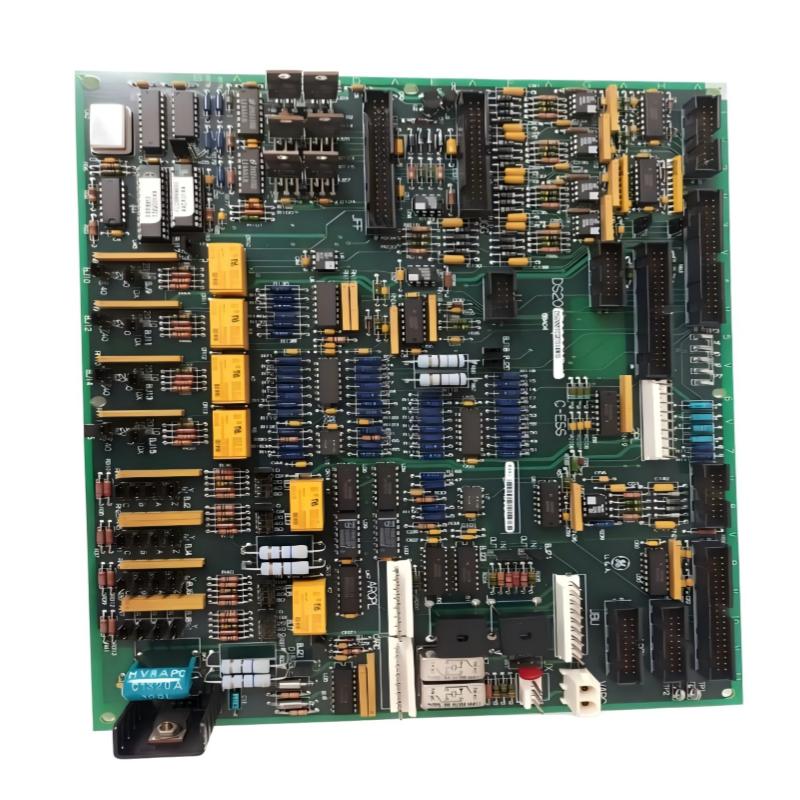

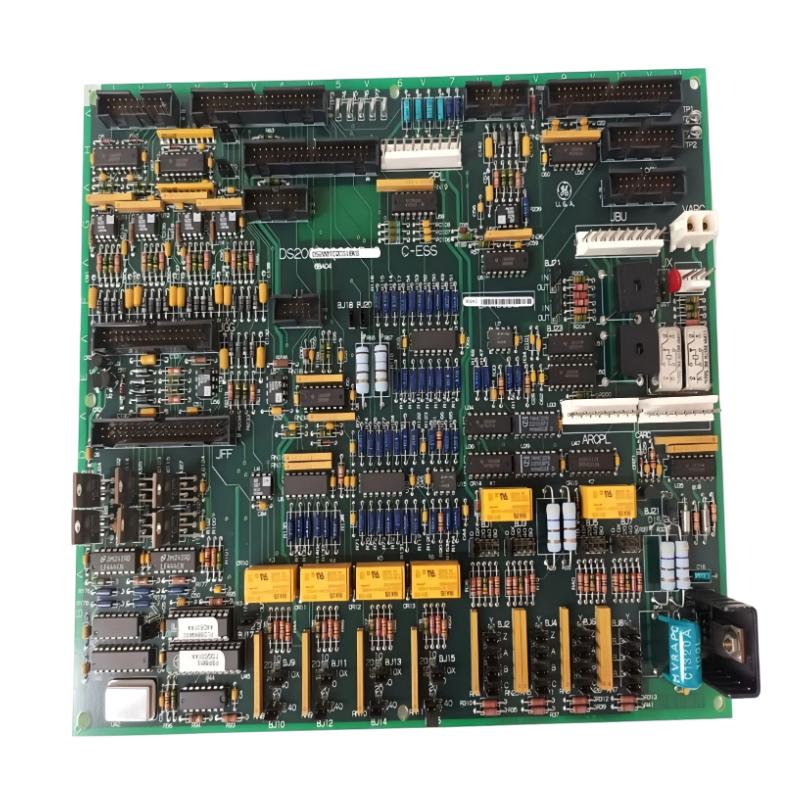

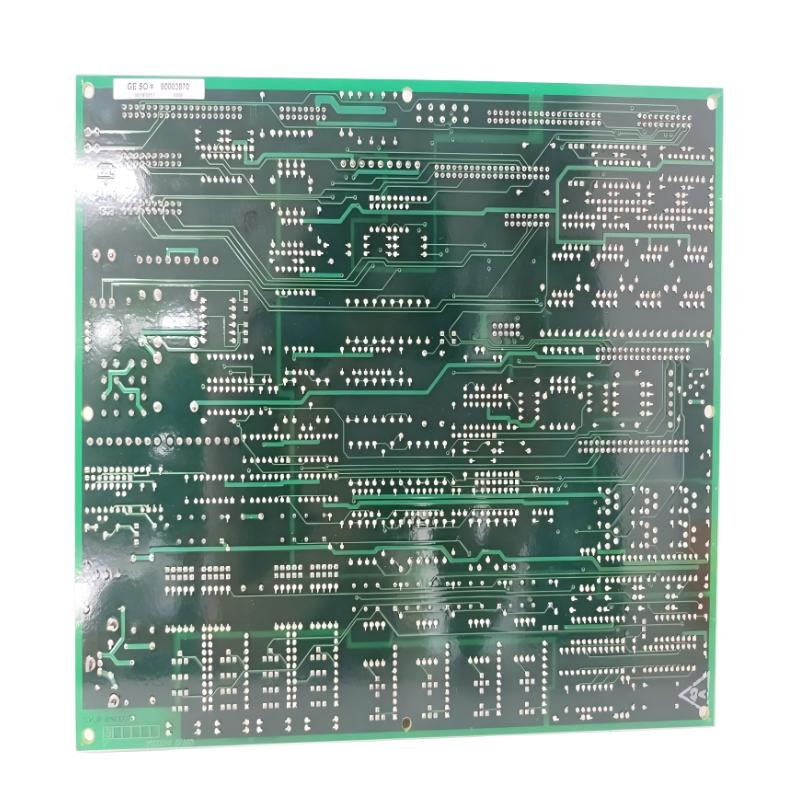

The GE DS200TCQCG1BKG MARK V RST Overflow Plate is a specialized interface board designed for integration into the GE Mark V Speedtronic turbine control system. It belongs to the DS200 series and the TCQC family, supporting the RST architecture used for turbine control, monitoring, and protection.
The DS200TCQCG1BKG is intended to operate as part of an integrated Mark V control cabinet rather than as an independent controller. It works with I/O boards, terminal boards, control processors, RST control cores, and field instrumentation to support the exchange and organization of turbine-related signals.
In large turbine installations, numerous sensors and transmitters continuously provide operating information to the control system. The RST architecture requires dedicated interface hardware to route these signals between field devices and the appropriate control-processing components. The TCQC overflow plate forms part of this interface structure.
The exact application of an individual DS200TCQCG1BKG installation depends on the turbine model, cabinet configuration, connected I/O boards, terminal interfaces, and hardware revision. Therefore, the complete part number should be verified before selecting a replacement.
The specified dimensions of the DS200TCQCG1BKG are 280 × 25 × 250 mm, with a specified weight of 0.48 kg.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | DS200TCQCG1BKG |
| Product Series | Mark V DS200 |
| Product Type | RST Overflow Plate |
| Functional Acronym | TCQC |
| Control System | GE Mark V Speedtronic |
| System Architecture | RST |
| Main Function | RST I/O interface and overflow function |
| Dimensions | 280 × 25 × 250 mm |
| Weight | 0.48 kg |
| Board Type | Industrial turbine-control PCB |
| Installation | Mark V control cabinet |
| Application | Turbine control and monitoring |
| Typical Equipment | Gas turbines, steam turbines and industrial turbine systems |
| Interface | Mark V internal I/O architecture |
| Application Category | I/O expansion and signal interfacing |
| Operating Environment | Industrial control environment |
Function and Working Principle
The primary function of the DS200TCQCG1BKG is to provide additional interface capability within the RST I/O architecture of the GE Mark V turbine control system.
A turbine control system must acquire and process information from a large number of field devices. Depending on the application, these devices may include temperature sensors, pressure transmitters, speed pickups, position sensors, vibration monitoring equipment, and other instrumentation.
The signals are connected through the appropriate terminal and I/O hardware before being transferred into the control architecture.
A simplified signal path is:
Field Instrumentation → Terminal Interface → I/O Hardware → TCQC Interface → RST Control Architecture
The exact signal path depends on the individual Mark V configuration.
The DS200TCQCG1BKG is therefore not a standalone turbine controller. Instead, it serves as an interface component within the larger Mark V signal-processing structure.
Its function is to support the organization and transfer of signals between different sections of the control system. This allows the RST architecture to accommodate the extensive I/O requirements associated with turbine automation.
Because the board depends on other Mark V hardware, troubleshooting should consider the complete signal path rather than treating the board as an isolated device.
Role in Industrial Control Systems
The DS200TCQCG1BKG provides supporting functionality within the GE Mark V RST control architecture.
Mark V turbine control systems use multiple control channels and extensive I/O hardware to maintain reliable turbine operation. The RST architecture requires appropriate interface components to transfer field information to the control processors.
The TCQC family forms part of this internal interface structure.
The DS200TCQCG1BKG may work alongside:
- TCQA analog I/O boards
- TCQB extended analog I/O boards
- Mark V I/O cores
- RST control cores
- Terminal boards
- Turbine control processor boards
- Power supply boards
- Generator interface hardware
- Protection-related circuits
- Field sensors
- Process transmitters
The board itself does not normally execute the complete turbine-control algorithm. Instead, it supports the I/O architecture used by the control processors.
This makes the board an important component in systems where extensive field instrumentation must be integrated into the Mark V control platform.
Industrial Applications
The GE DS200TCQCG1BKG is primarily associated with GE Mark V Speedtronic turbine control systems.
Typical applications include:
- Gas turbine control
- Steam turbine control
- Combined-cycle power generation
- Turbine generator systems
- Industrial turbine packages
- Mechanical-drive turbine systems
- Compressor-drive turbines
- Power-generation automation
- Turbine monitoring
- Legacy GE Speedtronic installations
- Industrial process systems using turbine equipment
Turbine automation systems require continuous monitoring of operating conditions.
Temperature signals provide thermal information, pressure measurements indicate process conditions, position feedback monitors valves and actuators, while speed and vibration signals provide information about rotating machinery.
The Mark V system combines these measurements with control and protection functions. The DS200TCQCG1BKG forms part of the internal interface structure that supports this overall process.
Installation and System Integration
Correct installation is essential because the DS200TCQCG1BKG is integrated with multiple Mark V components.
Before replacing an installed board, maintenance personnel should carefully document the existing configuration.
Recommended installation procedures include:
- Follow the approved turbine shutdown procedure.
- Isolate the appropriate control-system power.
- Confirm the complete DS200TCQCG1BKG part number.
- Record the board revision information.
- Document connector locations.
- Identify associated ribbon cables.
- Record the original cable orientation.
- Inspect the replacement PCB for visible damage.
- Check connectors and pins for contamination or damage.
- Install the board in the correct cabinet location.
- Reconnect all cables according to the original configuration.
- Verify associated I/O boards.
- Check terminal-board connections.
- Restore power according to the approved procedure.
- Check Mark V diagnostic indications.
- Verify communication with associated I/O hardware.
- Confirm expected signal values.
- Complete system diagnostics before returning the turbine to service.
The PCB should be handled with appropriate electrostatic-discharge precautions.
Ribbon cables should be handled by their connectors rather than pulled directly from the cable. Incorrect cable installation can produce missing signals, incorrect measurements, or unexpected system alarms.
The replacement board should also be compared against the original board’s complete identification and revision information.
Compatible System Components
The DS200TCQCG1BKG operates within a larger Mark V control-system configuration.
| Component | Function |
|---|---|
| TCQA Analog I/O Board | Processes and conditions analog turbine signals |
| TCQB Extended Analog I/O Board | Provides additional analog I/O capability |
| Mark V I/O Core | Interfaces field signals with control electronics |
| RST Control Cores | Provide redundant control processing |
| Terminal Boards | Connect field sensors and transmitters |
| Control Processor Boards | Execute turbine-control logic |
| Power Supply Boards | Provide power to control electronics |
| Generator Interface Hardware | Handles generator-related measurements |
| Pressure Transmitters | Provide pressure measurements |
| Temperature Sensors | Provide thermal measurements |
| Position Sensors | Monitor valve and actuator position |
| Vibration Sensors | Monitor rotating equipment |
The actual combination of compatible components depends on the turbine model and the Mark V cabinet configuration.
For this reason, compatibility should be determined from the complete system architecture rather than from dimensions alone.
Recommended Alternative Models
The following models may be considered when evaluating related GE Mark V RST and I/O hardware:
| Model | Type | Key Feature | Application |
|---|---|---|---|
| DS200TCQCG1BKG | RST Overflow Plate | TCQC interface function | Mark V turbine control |
| DS200TCQCG1BJF | RST Overflow Plate | Related TCQC configuration | Mark V RST systems |
| DS200TCQCG1BGF | RST Overflow Plate | TCQC interface architecture | Mark V turbine systems |
| DS200TCQCG1BFE | RST Overflow Plate | Related RST interface | Mark V control systems |
| DS200TCQBG1BCB | Analog I/O Expansion Board | Extended analog I/O | Mark V I/O expansion |
These models belong to related GE Mark V interface families, but they should not automatically be treated as direct replacements.
Different board revisions can have different signal assignments, connectors, hardware configurations, and application-specific functions.
Before selecting an alternative, engineers should verify the complete part number and compare it with the original turbine control-system configuration.
Key Advantages
The GE DS200TCQCG1BKG provides several advantages for legacy turbine-control applications:
- Supports the GE Mark V RST architecture
- Provides additional I/O interface capability
- Supports complex turbine signal configurations
- Integrates with Mark V I/O cores
- Works with TCQA and TCQB hardware
- Supports redundant control architectures
- Helps organize internal signal paths
- Supports turbine monitoring and control
- Suitable for legacy GE Speedtronic systems
- Provides a practical solution for maintenance projects
- Compact industrial control-board construction
- Supports continued operation of established turbine-control infrastructure
Its primary value is maintaining the established Mark V I/O architecture while avoiding unnecessary replacement of the complete turbine control system.
Technical FAQs
What is GE DS200TCQCG1BKG?
The GE DS200TCQCG1BKG is a MARK V RST Overflow Plate belonging to the TCQC family of GE DS200 turbine-control hardware.
What is the main function of DS200TCQCG1BKG?
Its main function is to support additional signal-interface and overflow capability within the Mark V RST I/O architecture.
What are the dimensions of DS200TCQCG1BKG?
The specified dimensions are 280 × 25 × 250 mm.
What is the weight of DS200TCQCG1BKG?
The specified weight is 0.48 kg.
What does TCQC mean?
TCQC identifies a GE Mark V board family associated with RST I/O interface and overflow functions.
Is DS200TCQCG1BKG a processor board?
No. It is an I/O/interface board. Dedicated Mark V processor hardware performs the primary turbine-control logic.
What components work with DS200TCQCG1BKG?
It can operate within a system containing TCQA analog I/O boards, TCQB expansion boards, terminal boards, Mark V I/O cores, RST control cores, processor boards, power supplies, and field instrumentation.
Can DS200TCQCG1BJF replace DS200TCQCG1BKG?
Not automatically. Although both are TCQC-family boards, their dimensions, revisions, configurations, and system assignments may differ. Compatibility must be verified before installation.
What should be checked before replacing DS200TCQCG1BKG?
The complete board number, hardware revision, connector configuration, associated I/O boards, terminal interfaces, signal assignments, and Mark V cabinet architecture should be checked.
Is DS200TCQCG1BKG suitable for general PLC applications?
No. It is specifically associated with the GE Mark V turbine-control architecture and is primarily intended for compatible Mark V installations.
Conclusion
The GE DS200TCQCG1BKG MARK V RST Overflow Plate is a specialized interface component used within GE Mark V Speedtronic turbine control systems.
Its primary purpose is to support the RST I/O and signal-interface architecture, allowing complex turbine control systems to accommodate extensive field instrumentation and associated control signals.
The specified dimensions are 280 × 25 × 250 mm, and the specified weight is 0.48 kg.
The board works together with TCQA analog I/O boards, TCQB expansion boards, terminal boards, I/O cores, RST control cores, processor boards, power supplies, and turbine instrumentation. Its performance should therefore always be evaluated as part of the complete Mark V architecture.
For maintenance engineers, system integrators, and procurement teams, accurate identification of the DS200TCQCG1BKG is essential. Related TCQC boards can have similar functions but different hardware revisions, dimensions, connector arrangements, and system assignments.
When correctly matched with the existing Mark V configuration, the DS200TCQCG1BKG provides a practical solution for maintaining the I/O interface structure and operational reliability of legacy GE turbine control systems.
