- GE
- DS200TCQCG1BGF
- Mark V RST Overflow Plate
- USA
- 330 × 280 × 50 mm
- 0.254 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 27
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

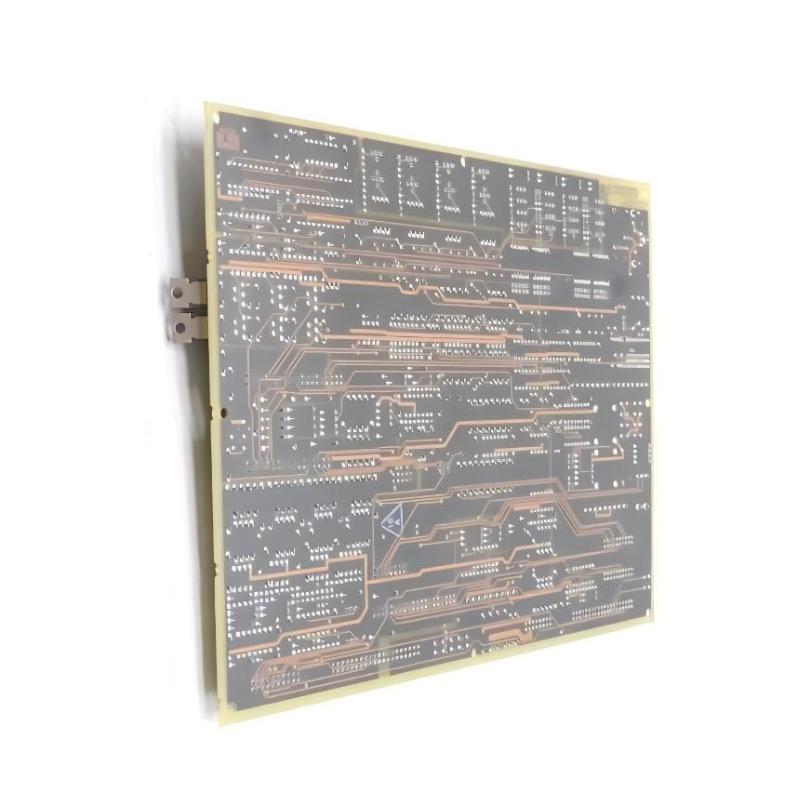

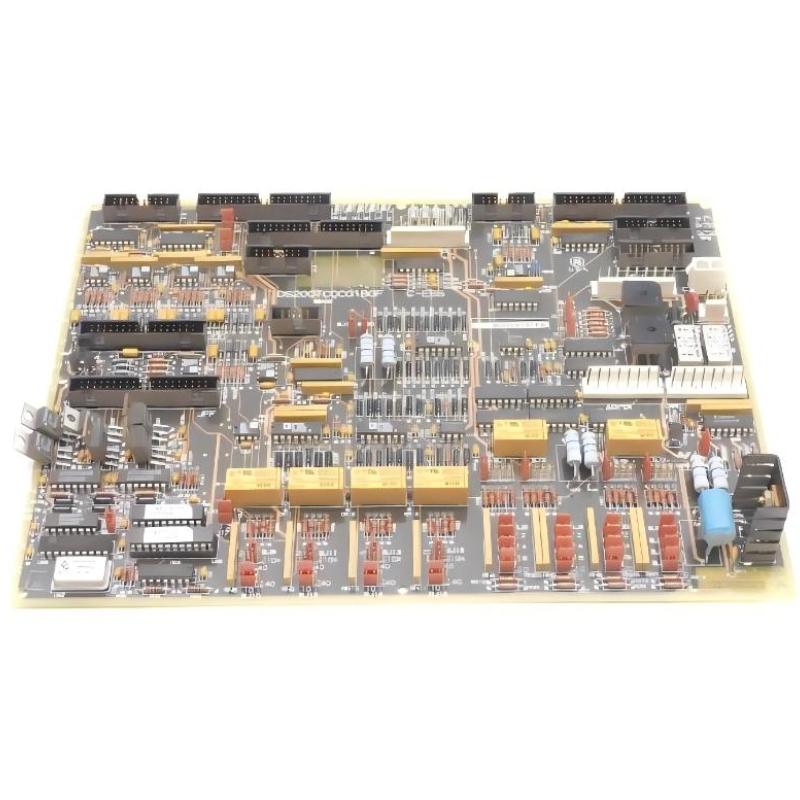

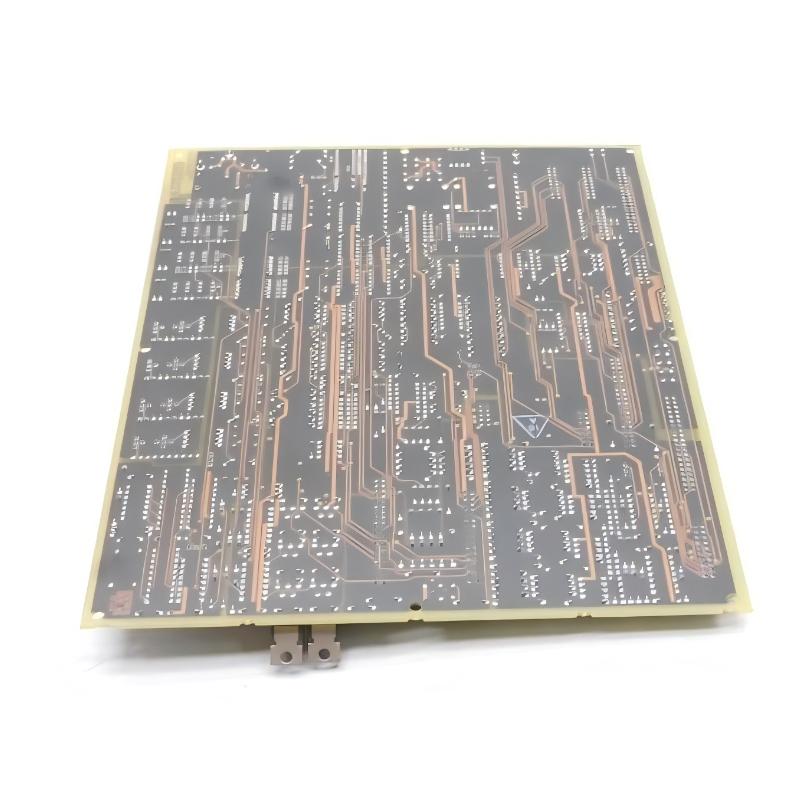

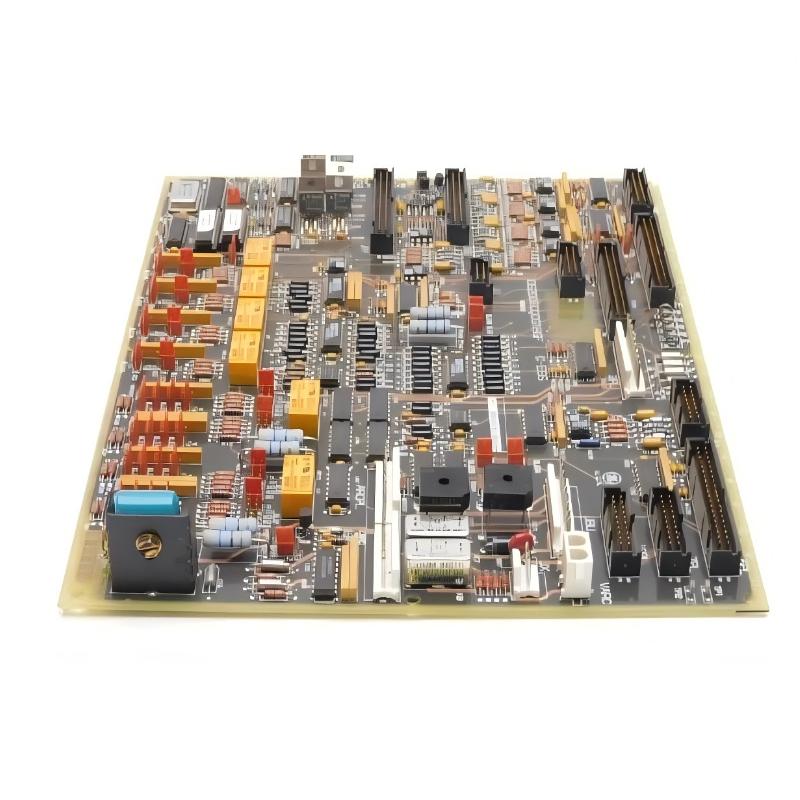

The GE DS200TCQCG1BGF MARK V RST Overflow Plate is a specialized interface board associated with the GE Mark V Speedtronic turbine control system. It belongs to the DS200 series and the TCQC family, which is used within the RST control architecture for turbine monitoring, signal interfacing, and I/O expansion.
The DS200TCQCG1BGF is designed to operate as part of a larger Mark V control-system architecture rather than as an independent controller. It works together with I/O boards, terminal boards, control processors, RST control cores, and field instrumentation to support the exchange of turbine-related signals.
In complex turbine applications, a large quantity of analog and discrete information must be transferred between field devices and the control processors. An RST overflow board provides additional interface capability within this architecture and helps accommodate the signal requirements of the overall control system.
The DS200TCQCG1BGF is particularly relevant to maintenance and replacement projects involving existing GE Mark V installations. Since Mark V systems may remain in service for many years, correctly identifying the exact board revision is important when replacing an installed PCB.
The specified dimensions of the DS200TCQCG1BGF are 330 × 280 × 50 mm, and the specified weight is 0.254 kg.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | DS200TCQCG1BGF |
| Product Series | Mark V DS200 |
| Product Type | RST Overflow Plate |
| Functional Acronym | TCQC |
| Control System | GE Mark V Speedtronic |
| System Architecture | RST |
| Main Function | RST I/O interface and overflow function |
| Dimensions | 330 × 280 × 50 mm |
| Weight | 0.254 kg |
| Board Type | Industrial turbine-control PCB |
| Installation | Mark V control cabinet |
| Application | Turbine control and monitoring |
| Typical Equipment | Gas turbines, steam turbines and industrial turbine systems |
| Signal Interface | Mark V internal I/O architecture |
| Application Category | I/O expansion and signal interfacing |
| Operating Environment | Industrial control environment |
Function and Working Principle
The main function of the DS200TCQCG1BGF is to provide additional interface capability within the Mark V RST control architecture.
A turbine control system receives information from a wide range of field devices. These devices can include pressure transmitters, temperature sensors, speed pickups, valve-position sensors, vibration monitoring equipment, and other process instruments.
The field signals first enter the appropriate terminal interface and I/O hardware. The RST architecture then transfers the information to the control-processing system.
A simplified signal path can be described as:
Field Sensors → Terminal Boards → I/O Boards → TCQC Overflow Interface → RST Control Cores → Control Logic
The actual signal routing depends on the specific turbine and cabinet configuration.
The DS200TCQCG1BGF should therefore be viewed as an architecture-level interface component rather than a standalone analog input or output module.
Its role is to support the organization and transfer of signals within the Mark V system. By providing additional interface capability, the board helps the control architecture accommodate complex turbine instrumentation requirements.
The board’s function is closely related to the other components installed in the same Mark V cabinet. Consequently, a fault involving the board should be investigated together with associated cables, connectors, terminal boards, I/O modules, and control processors.
Role in Industrial Control Systems
The DS200TCQCG1BGF plays a supporting role in the RST I/O architecture of GE Mark V turbine control systems.
The Mark V platform uses redundant control channels to provide reliable turbine operation. The RST architecture requires multiple I/O and interface boards to transfer field information to the control-processing hardware.
The TCQC overflow board can be incorporated into this architecture to provide additional interface capacity.
Typical associated hardware includes:
- TCQA analog I/O boards
- TCQB extended analog I/O boards
- Mark V I/O cores
- RST control cores
- Terminal boards
- Turbine control processor boards
- Power supply boards
- Generator interface components
- Protection-related interfaces
- Field sensors
- Process transmitters
The DS200TCQCG1BGF does not normally perform the complete turbine control algorithm itself. Instead, it supports the communication and organization of I/O information used by the control processors.
This makes the board an important part of the overall signal-processing chain.
Industrial Applications
The GE DS200TCQCG1BGF is primarily used in GE Mark V Speedtronic turbine control systems.
Typical applications include:
- Gas turbine control
- Steam turbine control
- Combined-cycle power generation
- Turbine generator systems
- Industrial turbine packages
- Mechanical-drive turbine systems
- Compressor-drive turbines
- Power-generation automation
- Turbine monitoring
- Legacy GE Speedtronic installations
- Industrial process control associated with turbine equipment
Turbine systems require continuous monitoring of critical operating conditions.
Pressure measurements can be used to monitor process and combustion conditions. Temperature signals help track thermal behavior. Speed and position measurements provide information about rotating equipment and actuators. Vibration signals can help identify mechanical abnormalities.
The Mark V control architecture integrates these signals into its control and protection strategy, and the DS200TCQCG1BGF can form part of the internal interface structure supporting this process.
Installation and System Integration
Correct installation is essential because the DS200TCQCG1BGF is integrated into an interconnected turbine control system.
Before removing an existing board, technicians should document the complete installation configuration.
Recommended installation practices include:
- Follow the approved turbine shutdown procedure.
- Isolate the appropriate control-system power.
- Verify the complete DS200TCQCG1BGF identification.
- Record the board revision information.
- Document connector locations.
- Identify all associated ribbon cables.
- Record the original cable routing.
- Inspect the replacement PCB before installation.
- Check connectors for contamination or physical damage.
- Install the board in its designated cabinet position.
- Reconnect all cables carefully.
- Verify the associated I/O boards.
- Check the terminal-board connections.
- Restore power according to the approved procedure.
- Check Mark V diagnostic indications.
- Verify I/O communication.
- Confirm expected turbine signal values.
- Complete system diagnostics before returning the equipment to service.
Ribbon cables should be connected according to their original orientation. Incorrect cable placement can result in missing signals, abnormal I/O values, or system alarms.
The replacement board should also be checked for correct revision and configuration before installation. A physically similar DS200 board is not necessarily a functional substitute.
Compatible System Components
The DS200TCQCG1BGF works with multiple components within a Mark V turbine control system.
| Component | Function |
|---|---|
| TCQA Analog I/O Board | Processes and conditions analog turbine signals |
| TCQB Extended Analog I/O Board | Provides additional analog I/O capability |
| Mark V I/O Core | Interfaces field signals with control electronics |
| RST Control Cores | Provide redundant control processing |
| Terminal Boards | Connect field instrumentation |
| Control Processor Boards | Execute turbine control logic |
| Power Supply Boards | Provide power to control electronics |
| Generator Interfaces | Process generator-related measurements |
| Pressure Transmitters | Provide pressure measurements |
| Temperature Sensors | Provide thermal measurements |
| Position Sensors | Monitor valves and actuators |
| Vibration Sensors | Monitor rotating machinery |
The actual combination of components varies depending on the turbine model, Mark V cabinet design, and system application.
For this reason, compatibility should be confirmed from the complete control-system configuration rather than based only on board dimensions or family name.
Recommended Alternative Models
The following models may be considered when evaluating related GE Mark V I/O and RST interface hardware:
| Model | Type | Key Feature | Application |
|---|---|---|---|
| DS200TCQCG1BGF | RST Overflow Plate | TCQC interface function | Mark V turbine control |
| DS200TCQCG1BFE | RST Overflow Plate | Related TCQC configuration | Mark V RST systems |
| DS200TCQBG1BCB | Analog I/O Expansion Board | Extended RST analog I/O | Mark V I/O expansion |
| DS200TCQBG1BBA | Extended Analog I/O Board | TCQB expansion capability | Turbine control |
| DS200TCQAG1BHF | RST Analog I/O Board | Analog I/O processing | Mark V analog signal systems |
These models belong to related Mark V I/O families, but they should not be assumed to be direct replacements.
The TCQA, TCQB, and TCQC families perform different functions within the Mark V architecture. Even boards within the same family can have different hardware revisions or system assignments.
A replacement decision should therefore consider the complete part number, revision, connector configuration, I/O assignments, and turbine control-system architecture.
Key Advantages
The GE DS200TCQCG1BGF provides several advantages for legacy Mark V turbine-control applications:
- Supports the Mark V RST architecture
- Provides additional I/O interface capability
- Supports complex turbine signal architectures
- Works with associated TCQA and TCQB hardware
- Integrates with Mark V I/O cores
- Supports redundant control-system configurations
- Helps organize internal signal paths
- Supports turbine monitoring and control
- Suitable for legacy GE Speedtronic installations
- Provides a practical maintenance solution for existing Mark V systems
- Supports continued operation of established turbine-control infrastructure
The board’s primary advantage is its ability to support the existing Mark V I/O architecture without requiring replacement of the entire turbine control platform.
Technical FAQs
What is GE DS200TCQCG1BGF?
The GE DS200TCQCG1BGF is a MARK V RST Overflow Plate belonging to the TCQC family of GE DS200 turbine-control hardware.
What is the main function of DS200TCQCG1BGF?
Its main function is to provide additional signal-interface and overflow capability within the Mark V RST I/O architecture.
What are the dimensions of DS200TCQCG1BGF?
The specified dimensions are 330 × 280 × 50 mm.
What is the weight of DS200TCQCG1BGF?
The specified weight is 0.254 kg.
What does TCQC mean?
TCQC identifies a GE Mark V board family associated with RST I/O interface and overflow functions.
Is DS200TCQCG1BGF a processor board?
No. It is an I/O/interface board. Dedicated Mark V processor hardware performs the primary turbine control logic.
What boards are commonly associated with DS200TCQCG1BGF?
It can operate as part of a system containing TCQA analog I/O boards, TCQB expansion boards, terminal boards, I/O cores, RST control cores, processors, and power-supply hardware.
Can DS200TCQCG1BFE replace DS200TCQCG1BGF?
Not automatically. Although both are TCQC-family boards, their hardware revisions and configurations may differ. Compatibility should be verified before replacement.
What should be checked before replacing DS200TCQCG1BGF?
The complete board number, revision, connector arrangement, associated terminal boards, I/O assignments, control-core configuration, and system documentation should be checked.
Is DS200TCQCG1BGF suitable for new PLC systems?
It is specifically associated with GE Mark V turbine-control architecture and is primarily intended for maintenance, replacement, and continued operation of compatible legacy systems rather than general-purpose PLC applications.
Conclusion
The GE DS200TCQCG1BGF MARK V RST Overflow Plate is a specialized interface component used within the GE Mark V Speedtronic turbine control architecture.
Its primary purpose is to support the RST I/O and signal-interface structure, allowing the control system to manage the extensive instrumentation requirements of gas turbines, steam turbines, and other industrial turbine systems.
The specified physical dimensions are 330 × 280 × 50 mm, with a weight of 0.254 kg.
The DS200TCQCG1BGF works together with TCQA analog I/O boards, TCQB expansion boards, terminal boards, I/O cores, RST control cores, processor boards, and field instrumentation. It should therefore be evaluated as part of the complete Mark V architecture rather than as an independent control module.
For maintenance engineers, system integrators, and spare-parts procurement teams, accurately identifying the DS200TCQCG1BGF is essential. Related TCQC models may look similar and have comparable dimensions, but their hardware revisions and system assignments can differ.
When correctly matched with the existing Mark V configuration, the DS200TCQCG1BGF provides a practical solution for maintaining the I/O interface structure and operational reliability of legacy GE turbine control systems.
