Product Overview

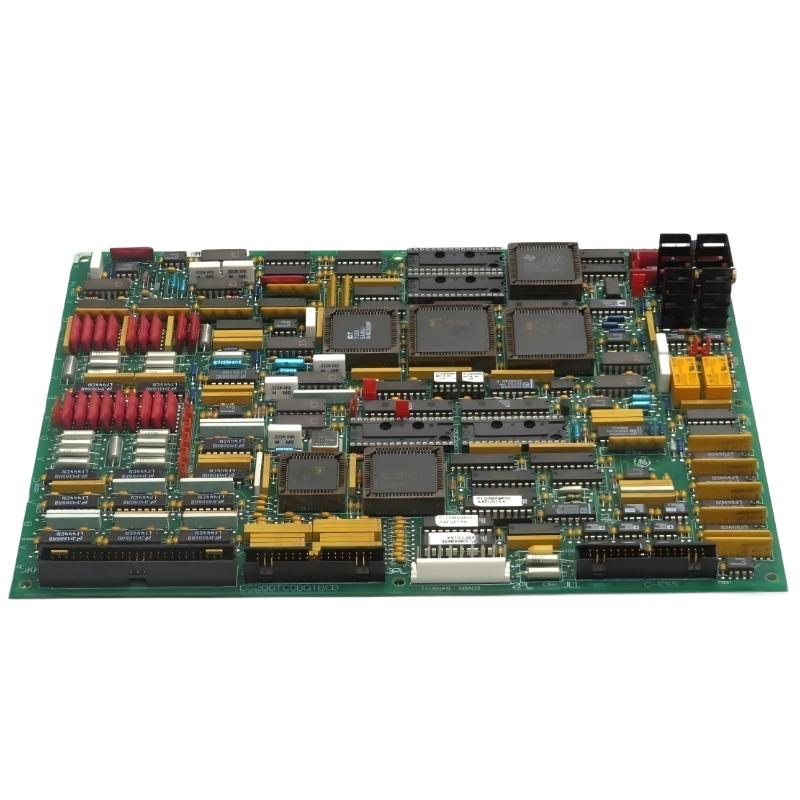

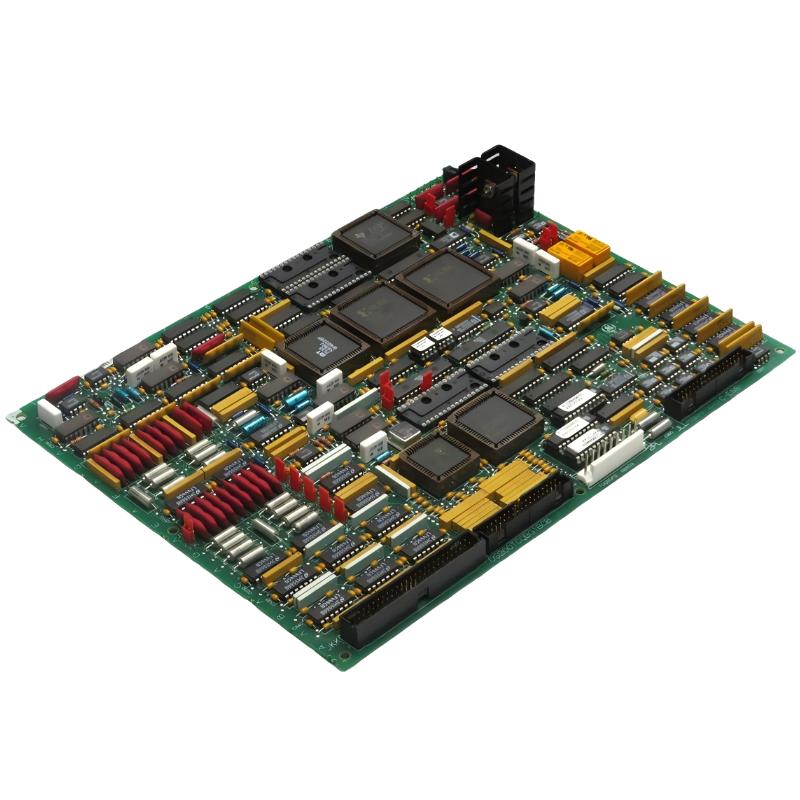

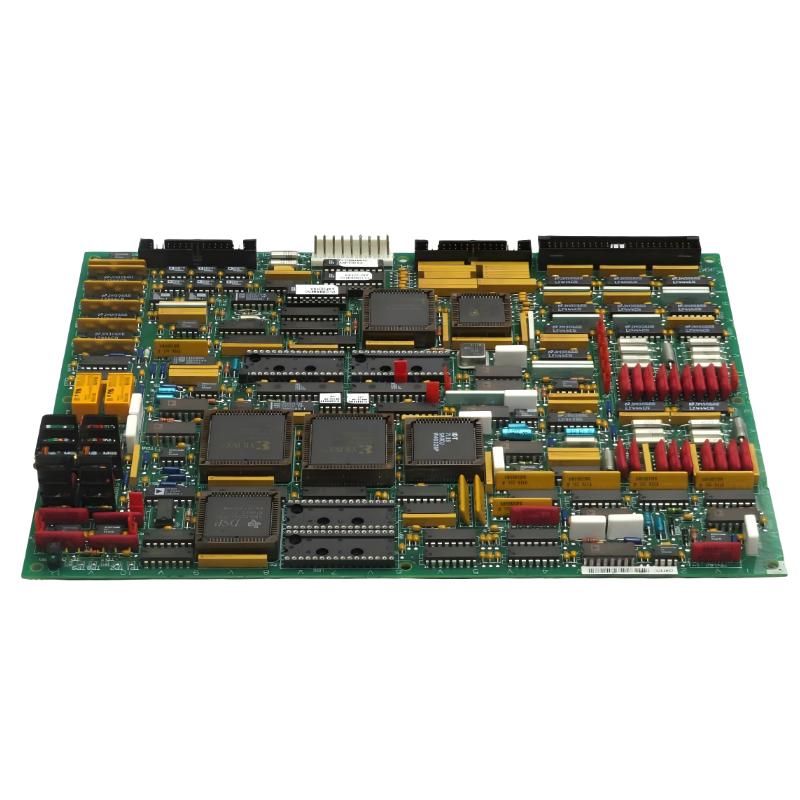

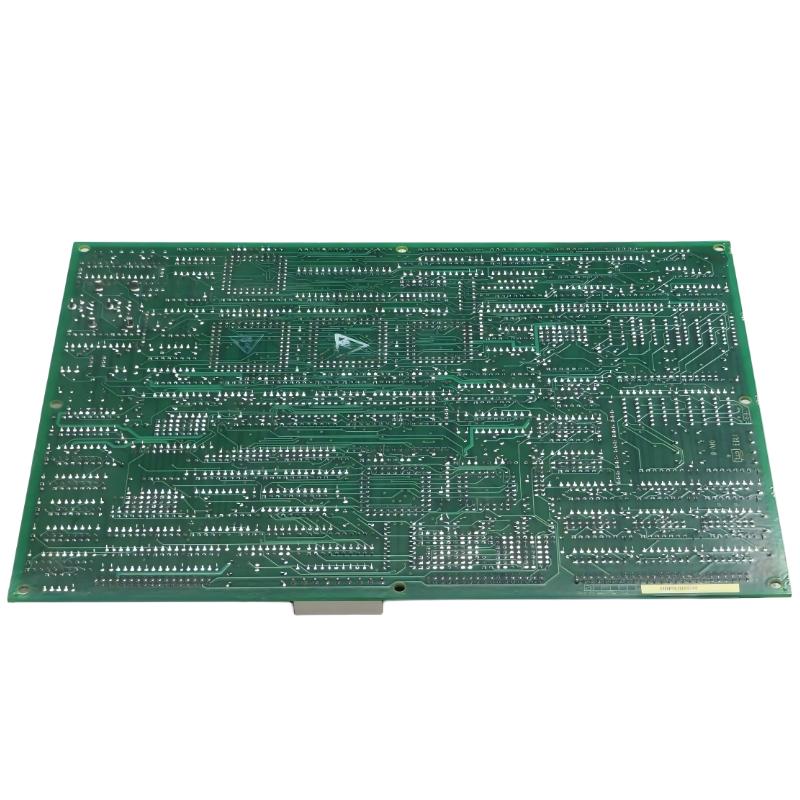

The GE DS200TCQBG1BCB MARK V Analog I/O Expansion Board is an extended analog input/output interface board designed for the GE Mark V Speedtronic turbine control system. It belongs to the DS200 series and is identified as an RST Extended Analog I/O Board within the Mark V control architecture.
The DS200TCQBG1BCB is part of the TCQB board family and is used when additional analog I/O capability is required within the turbine control system. It works together with other Mark V boards, terminal interfaces, control processors, and field instrumentation to provide an expanded signal-processing path.
In a typical Mark V installation, the board does not operate as an independent PLC controller. Instead, it forms part of the overall RST I/O architecture. Field signals are connected through the appropriate terminal boards and transferred to the control electronics through the corresponding I/O boards.
The DS200TCQBG1BCB includes a programmable logic device, EPROM-related circuitry, diagnostic indication, a 50-pin connector, 34-pin interfaces, and multiple hardware jumpers. These features allow the board to be configured according to the requirements of the specific Mark V turbine control application.
The specified dimensions of this model are 200 × 150 × 30 mm, and the specified weight is 0.6 kg.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | DS200TCQBG1BCB |
| Product Series | Mark V DS200 |
| Product Type | Analog I/O Expansion Board |
| Functional Description | RST Extended Analog I/O Board |
| Functional Acronym | TCQB |
| Control System | GE Mark V Speedtronic |
| System Architecture | RST |
| Main Function | Extended analog I/O and signal interfacing |
| Dimensions | 200 × 150 × 30 mm |
| Weight | 0.6 kg |
| Primary Functional Revision | B |
| Secondary Functional Revision | C |
| Artwork Revision | B |
| PCB Coating | Normal coating |
| Assembly Type | Standard industrial assembly |
| 50-Pin Connector | 1 |
| 34-Pin Interfaces | 2 |
| Hardware Jumpers | 15 |
| Diagnostic Indicator | OK LED |
| Installation | Mark V control cabinet |
| Application | Turbine control and monitoring |
| Typical Equipment | Gas turbines, steam turbines and industrial turbine systems |
Function and Working Principle
The main function of the DS200TCQBG1BCB is to extend the analog I/O capability of a GE Mark V turbine control system.
Large turbine control installations may require many different types of measurements and feedback signals. These can include temperature, pressure, vibration, position, speed, process variables, and other continuously changing parameters.
The TCQB board provides an additional interface within the RST control architecture so that the Mark V system can accommodate the required signal-processing configuration.
A simplified signal path can be represented as:
Field Sensor → Terminal Board → TCQA / I/O Interface → DS200TCQBG1BCB → Mark V Control Architecture
The exact signal path depends on the individual turbine configuration.
The DS200TCQBG1BCB contains programmable logic and memory-related circuitry that support its assigned I/O functions. Its hardware jumpers allow the board configuration to be adapted to the requirements of the connected system.
The board also contains an OK diagnostic LED, which provides a convenient visual indication during maintenance.
The 50-pin and 34-pin interfaces provide communication paths through ribbon-cable assemblies. These cables transfer signals between the TCQB board and other boards installed within the Mark V control cabinet.
Because the TCQB is part of an integrated architecture, its actual function should always be evaluated together with the associated terminal boards, TCQA boards, processors, and system configuration.
Role in Industrial Control Systems
The DS200TCQBG1BCB performs an important role in the extended analog I/O layer of the GE Mark V RST architecture.
The Mark V system was designed to control and monitor complex turbine equipment using multiple independent control cores and I/O interfaces. The RST architecture provides redundant control processing for critical turbine functions.
The TCQB board can be installed as part of this architecture when additional I/O functionality is required.
It may operate alongside:
- TCQA analog I/O boards
- Mark V I/O cores
- R, S and T control cores
- Terminal boards
- Turbine control processor boards
- Generator interface hardware
- Power supply boards
- Position sensors
- Vibration sensors
- Temperature sensors
- Pressure transmitters
The board’s purpose is therefore not limited to a single sensor or measurement. It forms part of the overall interface structure that allows the turbine control system to acquire and process additional operating information.
This is especially important in complex turbine installations where the number of field signals exceeds the basic I/O requirements.
Industrial Applications
The GE DS200TCQBG1BCB is primarily associated with GE Mark V Speedtronic turbine control systems.
Typical applications include:
- Gas turbine control
- Steam turbine control
- Power generation
- Combined-cycle power plants
- Turbine generator systems
- Industrial turbine packages
- Mechanical-drive turbines
- Compressor-drive turbines
- Turbine monitoring systems
- Legacy GE Speedtronic control systems
- Industrial automation systems requiring extended analog I/O
In a power-generation environment, turbine control systems must continuously collect large amounts of operational information.
Temperature measurements help monitor thermal conditions. Pressure signals provide information about process and turbine operating conditions. Position feedback can be used to monitor valves and actuators, while vibration signals provide information about rotating equipment.
The DS200TCQBG1BCB contributes to this larger measurement architecture by providing additional I/O interface capacity.
Installation and System Integration
Correct installation is essential because the DS200TCQBG1BCB is part of a highly interconnected turbine control system.
Before removing an existing board, technicians should document the original configuration carefully. This is especially important for ribbon cables and jumper settings.
Recommended installation procedures include:
- Follow the approved Mark V shutdown procedure.
- Isolate the appropriate control-system power.
- Confirm the complete board identification.
- Record the board revision.
- Photograph or document connector positions.
- Record all jumper positions.
- Label cables where necessary.
- Inspect the replacement PCB for physical damage.
- Check connectors and pins for contamination or damage.
- Install the board in the correct cabinet position.
- Reconnect all ribbon cables.
- Verify the 50-pin and 34-pin connector positions.
- Confirm all jumper settings.
- Restore system power according to the approved procedure.
- Check the OK diagnostic LED.
- Verify communication with associated Mark V boards.
- Confirm expected analog I/O operation.
- Perform system diagnostics before returning the turbine to service.
Ribbon cables should always be disconnected by holding the connector rather than pulling directly on the cable.
Incorrect cable installation can cause communication failures, incorrect signal readings, or unexpected system alarms.
When replacing a TCQB board, it is also important to verify that the replacement hardware revision is suitable for the installed Mark V configuration.
Compatible System Components
The DS200TCQBG1BCB normally operates as part of a larger Mark V system.
| Component | Function |
|---|---|
| TCQA Analog I/O Board | Processes and conditions analog turbine signals |
| Mark V I/O Core | Provides field signal interface |
| R Core | Primary control-processing channel |
| S Core | Redundant control-processing channel |
| T Core | Redundant control-processing channel |
| Terminal Boards | Connect field sensors and transmitters |
| Control Processor Boards | Execute turbine control logic |
| Power Supply Boards | Provide electrical power to control electronics |
| Position Sensors | Provide valve and actuator feedback |
| Vibration Sensors | Monitor rotating equipment |
| Temperature Sensors | Monitor turbine temperature |
| Pressure Transmitters | Provide process pressure information |
One of the most important associated components is the TCQA board. The TCQB family is used as an extension to the analog I/O architecture, so its function should be evaluated together with the TCQA and associated terminal interfaces.
The exact system combination varies according to the turbine model and Mark V cabinet configuration.
Recommended Alternative Models
The following models may be considered when evaluating related GE Mark V analog I/O hardware:
| Model | Type | Key Feature | Application |
|---|---|---|---|
| DS200TCQBG1BCB | Analog I/O Expansion Board | RST extended analog I/O | Mark V turbine control |
| DS200TCQBG1BBA | Extended Analog I/O Board | TCQB expansion configuration | Mark V I/O expansion |
| DS200TCQBG1B | RST Extended Analog I/O Board | Base TCQB architecture | Legacy Mark V systems |
| DS200TCQBG1AFB | Extended Analog I/O Board | Related TCQB configuration | Mark V analog expansion |
| DS200TCQBG2AEB | Extended Analog I/O Board | Related RST analog expansion | Mark V turbine applications |
These models are related to the GE Mark V analog I/O and expansion architecture, but they should not automatically be treated as direct substitutes.
Different revisions may have different hardware configurations, signal assignments, connectors, jumpers, firmware requirements, and application-specific functions.
For a replacement project, the complete board number and existing Mark V configuration should be verified before selecting an alternative model.
Key Advantages
The GE DS200TCQBG1BCB provides several advantages for legacy Mark V turbine-control applications:
- Extends the analog I/O capability of the control system
- Supports the GE Mark V RST architecture
- Provides additional signal-interface capacity
- Works with TCQA analog I/O boards
- Supports complex turbine instrumentation systems
- Includes onboard diagnostic indication
- Provides multiple ribbon-cable interfaces
- Includes configurable hardware jumpers
- Uses programmable logic circuitry
- Integrates with Mark V I/O cores
- Suitable for turbine monitoring and control
- Helps maintain existing GE Speedtronic installations
Its primary advantage is that it allows the Mark V system to accommodate additional I/O requirements while retaining the established turbine-control architecture.
Technical FAQs
What is GE DS200TCQBG1BCB?
The GE DS200TCQBG1BCB is a MARK V RST Extended Analog I/O Board used to provide additional analog I/O and interface capability within GE turbine control systems.
What is the main function of DS200TCQBG1BCB?
Its main function is to extend the analog I/O and signal-interface capability of the Mark V RST control architecture.
What are the dimensions of DS200TCQBG1BCB?
The specified dimensions are 200 × 150 × 30 mm.
What is the weight of DS200TCQBG1BCB?
The specified weight is 0.6 kg.
What does TCQB mean?
TCQB identifies a GE Mark V board family associated with RST Extended Analog I/O functions.
How many jumpers does DS200TCQBG1BCB have?
The board is specified with 15 hardware jumpers.
Does DS200TCQBG1BCB have a diagnostic LED?
Yes. The board includes an OK diagnostic LED for local status indication.
What type of connector does the board use?
The board includes a 50-pin connector and 34-pin interfaces used with ribbon-cable connections to other Mark V hardware.
Is DS200TCQBG1BCB a processor board?
No. It is an analog I/O expansion/interface board. Dedicated Mark V processor hardware performs the primary turbine-control logic.
What boards work with DS200TCQBG1BCB?
It can operate with TCQA analog I/O boards, Mark V I/O cores, terminal boards, RST control cores, processor boards, power boards, and associated field instrumentation.
Can DS200TCQBG1BBA replace DS200TCQBG1BCB?
Not automatically. Although both are members of the TCQB family, their revisions and hardware configurations may differ. Compatibility must be confirmed against the specific Mark V installation.
What should be checked before replacing DS200TCQBG1BCB?
The complete part number, revision level, connector configuration, jumper positions, associated terminal boards, I/O assignments, and Mark V system architecture should all be checked.
Conclusion
The GE DS200TCQBG1BCB MARK V Analog I/O Expansion Board is a specialized RST Extended Analog I/O board designed for GE Mark V Speedtronic turbine control systems.
Its primary purpose is to provide additional analog I/O and interface capability within the Mark V architecture. By working together with TCQA boards, terminal boards, I/O cores, control processors, and field instrumentation, the DS200TCQBG1BCB helps support the extensive measurement and monitoring requirements of industrial turbine systems.
The board is specified at 200 × 150 × 30 mm and 0.6 kg, making it a compact component within the overall Mark V control cabinet.
Its 15 hardware jumpers, programmable logic circuitry, EPROM-related circuitry, diagnostic OK LED, and multiple ribbon-cable interfaces provide the hardware necessary for integration into the RST I/O architecture.
For engineers, system integrators, and maintenance teams working with legacy GE turbine control equipment, correctly identifying the DS200TCQBG1BCB is important because related TCQB boards may have different hardware revisions and system functions.
When properly matched with the existing Mark V configuration, the DS200TCQBG1BCB provides a practical solution for maintaining and expanding the analog I/O capabilities of legacy GE turbine automation systems.
