Product Overview

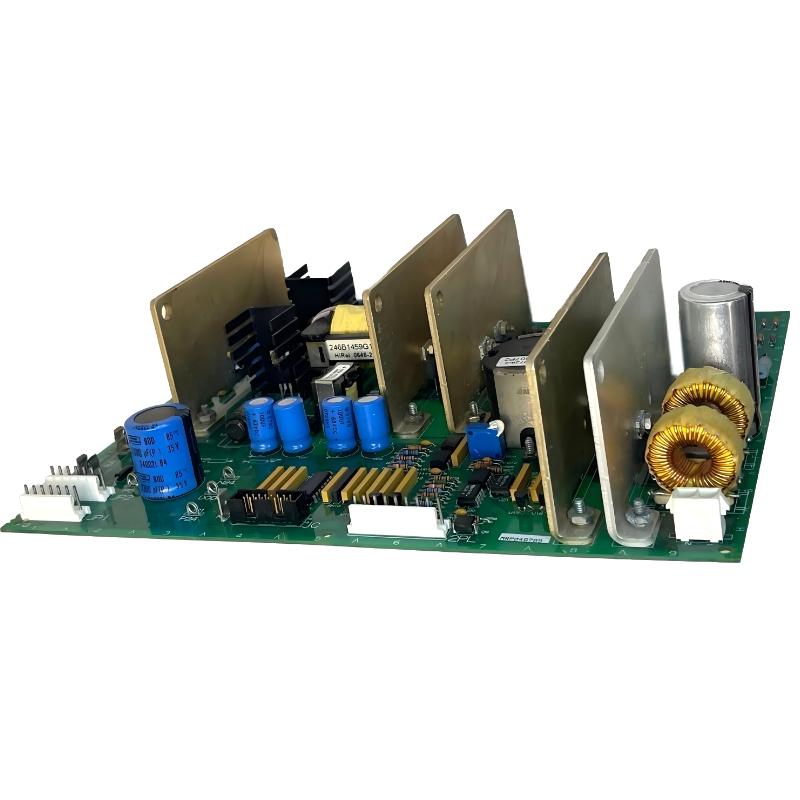

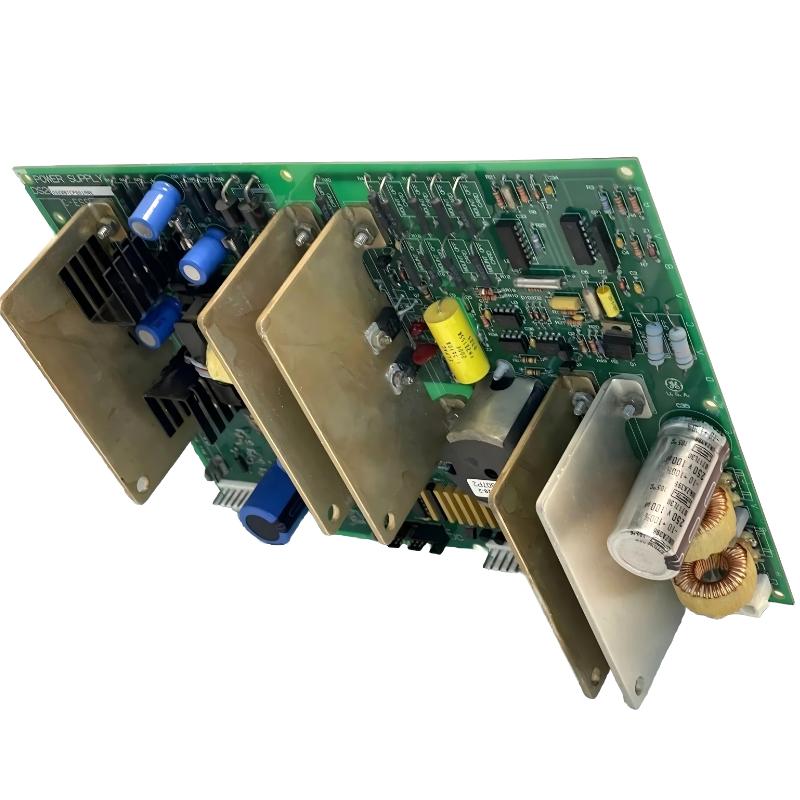

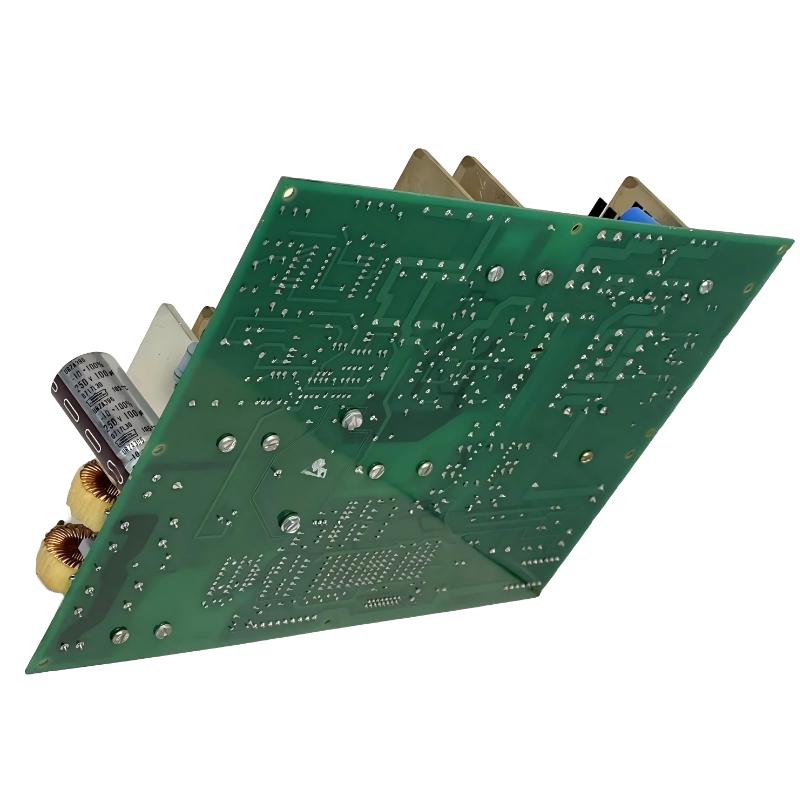

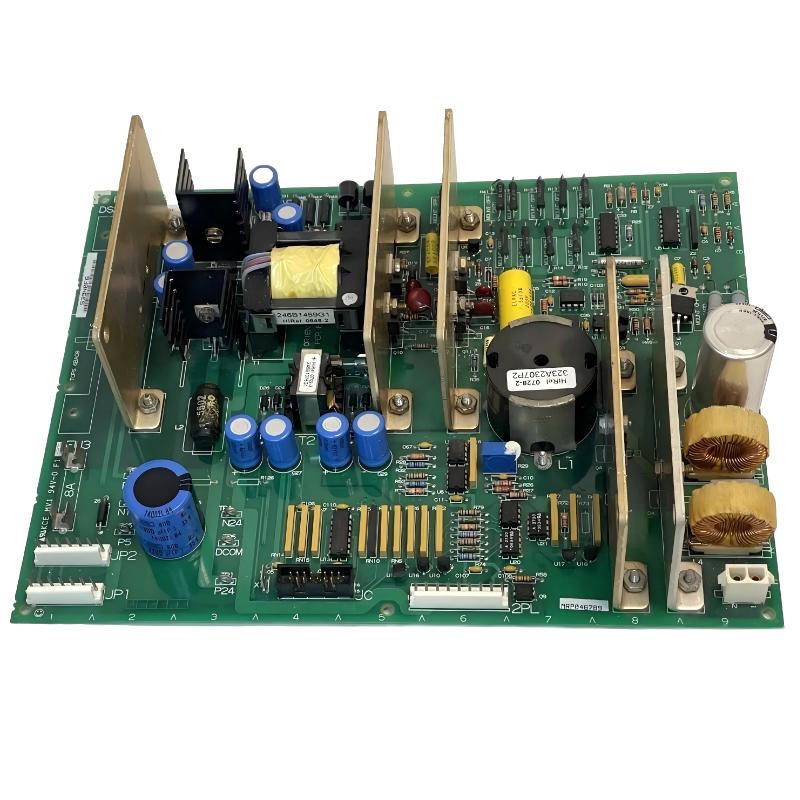

The GE DS200TCPSG1AME MARK V DC Input Power Board is a dedicated power-interface board used within the GE Mark V Speedtronic turbine control system. It is designed to receive and distribute DC power required by different control-system circuits, providing an important electrical interface between the incoming power supply and the Mark V control hardware.

Unlike processor or I/O boards, the DS200TCPSG1AME focuses primarily on DC power conversion, distribution, and protection. It works with power-distribution boards and other Mark V control components to ensure that the appropriate DC supply reaches processors, I/O cores, interface boards, and related control circuits.

The board is especially important in legacy turbine installations where reliable control-system power is necessary for continuous operation. A fault in the DC input power section can affect multiple downstream control circuits, making this board an important component for troubleshooting and preventive maintenance.

With a specified size of 250 × 120 × 25 mm and a weight of 1.36 kg, the DS200TCPSG1AME is designed for installation within an industrial Mark V control cabinet.

Technical Specifications

Function and Working Principle

The primary function of the DS200TCPSG1AME is to receive DC input power and provide the appropriate electrical power paths required by the Mark V control system.

A turbine control cabinet contains numerous electronic circuits that cannot be powered directly from the plant’s primary electrical supply. The Mark V power architecture therefore uses dedicated power-supply and distribution boards to provide controlled DC power to the electronic control hardware.

The general power path can be represented as:

Incoming DC Supply → DS200TCPSG1AME → Mark V Power Distribution → Control and Interface Boards

The board works as part of this larger power architecture rather than operating as an independent controller.

The TCPS board can support power delivery to components such as:

• Mark V control processors
• I/O cores
• Terminal interface boards
• Control interface boards
• Power-distribution boards
• Other associated electronic circuits

Stable DC power is essential because fluctuations, interruptions, or excessive electrical noise can cause processor resets, communication problems, I/O abnormalities, or unexpected control-system alarms.

The DS200TCPSG1AME therefore provides an important foundation for reliable operation of the turbine control system.

Role in Industrial Control Systems

The DS200TCPSG1AME occupies the power-supply interface layer of the Mark V architecture.

A typical Mark V control system includes processor boards, I/O interfaces, terminal boards, power-distribution modules, protection circuits, and various field devices. All of these components depend on reliable electrical power.

The TCPS board works closely with the Mark V power-distribution architecture.

It may be associated with:

• TCPD power-distribution boards
• TCEA control boards
• Mark V I/O cores
• Control Engine cores
• Terminal boards
• Control processors
• Interface and communication boards

The board’s role is particularly important because power problems can appear as faults in completely different parts of the control system.

For example, an unstable DC supply can cause multiple communication errors, processor resets, intermittent I/O failures, or unexplained control alarms. Properly diagnosing the power-distribution layer can therefore prevent unnecessary replacement of otherwise healthy processor and I/O boards.

Industrial Applications

The GE DS200TCPSG1AME is intended for industrial turbine-control applications using the GE Mark V platform.

Typical applications include:

• Gas turbine control systems
• Steam turbine control systems
• Power generation plants
• Combined-cycle power facilities
• Industrial turbine packages
• Turbine generator systems
• Compressor-drive turbines
• Mechanical-drive turbine systems
• Legacy GE Speedtronic installations

The board is especially useful in long-running turbine installations where the original Mark V control system remains operational.

As turbine control cabinets age, power-supply boards can be affected by thermal cycling, component aging, electrical stress, contamination, and repeated power events. Maintaining a compatible TCPS replacement can help reduce the time required to restore a failed control system.

Installation and System Integration

Installation of the DS200TCPSG1AME should be performed by qualified personnel familiar with the Mark V power architecture.

Because the board handles DC power, proper isolation and verification of the incoming supply are essential.

Recommended installation practices include:

1. Follow the plant’s approved shutdown and electrical isolation procedures.
2. Verify that the incoming DC supply has been safely isolated.
3. Record the existing board part number and revision.
4. Document all connected cables and terminals.
5. Compare the replacement board with the original board.
6. Inspect the PCB for physical damage before installation.
7. Install the board in its designated Mark V cabinet position.
8. Reconnect all power and signal connections correctly.
9. Check connector seating and cable routing.
10. Verify the input supply before energizing the board.
11. Restore power according to the approved procedure.
12. Check downstream Mark V power-distribution circuits.
13. Verify processor, I/O, and communication status before returning the turbine to service.

The board should also be handled using appropriate electrostatic-discharge precautions.

If the replacement board immediately shows abnormal behavior or downstream fuses open after energization, the power circuit should be investigated rather than repeatedly cycling the supply.

Compatible System Components

The DS200TCPSG1AME normally operates as part of the broader GE Mark V power architecture.

The exact system configuration depends on the turbine model and Mark V cabinet design.

The TCPS board should therefore be treated as part of an integrated power system. Correct replacement requires verification of both the board itself and the surrounding power-distribution configuration.

Recommended Alternative Models

The following models may be considered when evaluating related GE Mark V power-system components.

These models perform related power-system functions but should not automatically be considered direct replacements.

A TCPS input-power board and a TCPD distribution board have different roles. The exact board revision, input configuration, output circuits, and Mark V cabinet architecture must be verified before selecting an alternative.

Key Advantages

The GE DS200TCPSG1AME provides several important advantages within Mark V turbine control systems:

• Provides a dedicated DC power interface
• Supports reliable power delivery to Mark V electronics
• Integrates with the turbine control power architecture
• Works with downstream power-distribution boards
• Supports processors and I/O system power requirements
• Helps isolate the control system from power-distribution problems
• Designed for industrial turbine applications
• Suitable for legacy GE Mark V maintenance
• Provides a practical replacement solution for compatible systems
• Supports stable operation of critical control electronics

The board’s power-management role makes it an important component to consider when several seemingly unrelated Mark V faults occur simultaneously.

Technical FAQs

What is GE DS200TCPSG1AME?

The GE DS200TCPSG1AME is a DC Input Power Board used in the GE Mark V Speedtronic turbine control system.

What is the main function of DS200TCPSG1AME?

Its primary function is to receive DC input power and provide the appropriate power paths for Mark V control-system electronics.

What are the dimensions of DS200TCPSG1AME?

The specified dimensions are 250 × 120 × 25 mm.

What is the weight of DS200TCPSG1AME?

The specified weight is 1.36 kg.

Is DS200TCPSG1AME a processor board?

No. It is a power-interface board rather than a turbine control processor.

What components work with the TCPS board?

Depending on the Mark V configuration, the board can work with TCPD power-distribution boards, TCEA boards, I/O cores, terminal boards, processor boards, and other control-system hardware.

Why is DC power important in a Mark V system?

Mark V processors, I/O electronics, communication hardware, and interface circuits require stable DC power. Problems with the supply can result in multiple system-level faults.

Can DS200TCPDG2BEC replace DS200TCPSG1AME?

No direct replacement should be assumed. The TCPD is primarily a power-distribution board, while the TCPS serves as a DC input power interface. Their functions and system connections are different.

What should be checked before replacing DS200TCPSG1AME?

Maintenance personnel should verify the complete part number, board revision, incoming power configuration, connectors, cable arrangement, downstream distribution circuits, and the specific Mark V system architecture.

What symptoms can indicate a power-board problem?

Possible symptoms include loss of power to multiple control circuits, processor resets, communication failures, I/O abnormalities, unexpected alarms, or repeated downstream fuse failures. Proper electrical testing is required to identify the actual cause.

Conclusion

The GE DS200TCPSG1AME MARK V DC Input Power Board is a key power-interface component within GE Mark V turbine control systems. Rather than performing turbine control calculations, it provides the electrical foundation required by processors, I/O systems, terminal interfaces, and other control hardware.

With dimensions of 250 × 120 × 25 mm and a weight of 1.36 kg, the board is designed for installation within an industrial Mark V control cabinet.

Its position within the power architecture makes it especially important when diagnosing system-wide control problems. Multiple processor, communication, and I/O faults can sometimes originate from an unstable or interrupted control-system power supply, making the TCPS section an important part of the troubleshooting process.

For maintenance engineers, system integrators, and spare-parts procurement teams, the complete DS200TCPSG1AME identification should be verified before replacement. Related TCPS and TCPD boards may have similar physical characteristics but perform different functions.

When correctly matched and installed, the DS200TCPSG1AME provides a dependable DC power interface that supports stable operation of legacy GE Mark V turbine control systems.
