Product Overview

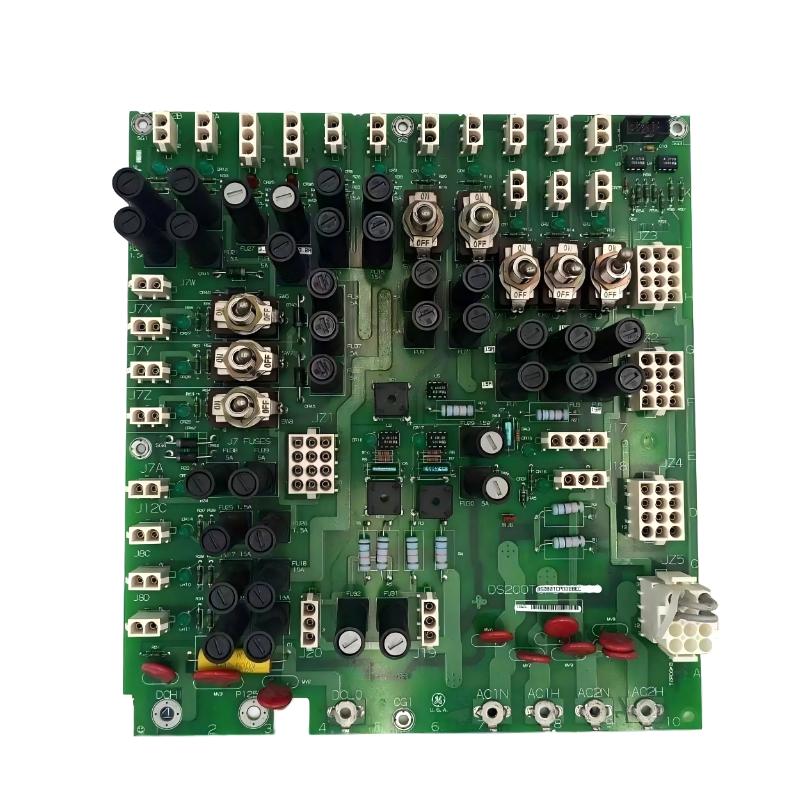

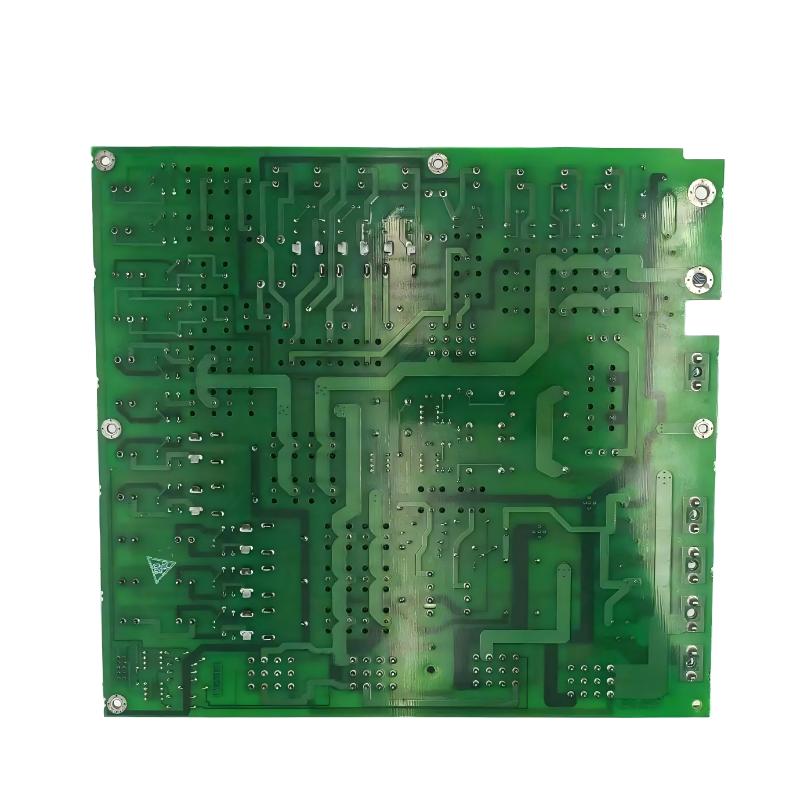

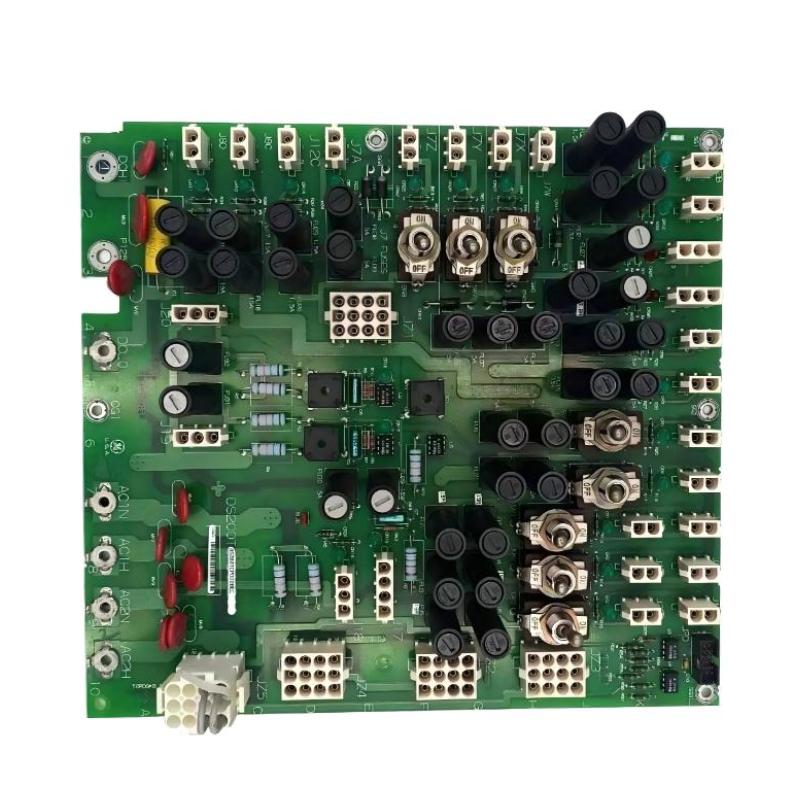

The GE DS200TCPDG2BEC MARK V Power Distribution Module is a specialized power distribution board used within the GE Mark V Speedtronic turbine control system. Although this model is sometimes described as a Mark V “Switchboard,” its primary function is power distribution and circuit protection.
The DS200TCPDG2BEC distributes control-system power to multiple Mark V control cores and associated turbine-control hardware. It also provides individual switching and fuse protection, allowing maintenance personnel to isolate selected circuits when servicing the control system.
The board is designed to work as part of the larger Mark V power architecture rather than as an independent controller. It works with control processors, I/O cores, terminal boards, TCEA boards, and other turbine-control components to provide the electrical power required for reliable system operation.
With its compact 180 × 120 × 30 mm form factor and 0.454 kg weight, the DS200TCPDG2BEC is suitable for installation inside industrial turbine control cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | DS200TCPDG2BEC |
| Product Series | Mark V DS200 |
| Product Type | Power Distribution Module |
| Common Description | Mark V Power Distribution Board / Switchboard |
| Functional Acronym | TCPD |
| Main Function | Power distribution and circuit protection |
| Dimensions | 180 × 120 × 30 mm |
| Weight | 0.454 kg |
| DC Distribution | 125 VDC system distribution |
| AC Distribution | Supports associated ignition-transformer power circuits |
| Toggle Switches | 8 |
| Fuses | 36 |
| Fuse Status LEDs | 36 |
| Signal Wire Terminals | 4 |
| System Connector | 1 × 10-pin connector |
| Installation | Mark V control cabinet |
| Application | Turbine control and power-generation systems |
| Typical Equipment | Gas turbines and steam turbines |
Function and Working Principle
The main purpose of the DS200TCPDG2BEC is to distribute electrical power throughout the Mark V control architecture while protecting individual branches from electrical faults.
The board distributes 125 VDC power to control-system circuits, including power paths associated with I/O cores, control-engine hardware, and TCEA boards. It also provides power to selected terminal-board circuits and associated turbine-control equipment.
Its basic architecture can be represented as:
Control-System Power → DS200TCPDG2BEC → Fused / Switched Distribution → Mark V Control Hardware
The eight toggle switches provide individual switching functions for associated power circuits. This allows selected control cores or branches to be isolated during maintenance without necessarily removing power from the entire control cabinet.
The board also contains 36 fuses. Each fuse protects an individual circuit against excessive current. The associated LED indicators provide a convenient visual method for checking fuse status.
When a fuse is operating normally, its corresponding status indication can be used to confirm the condition of the protected circuit. If an indicator is not active, maintenance personnel should determine whether the fuse has failed or whether the associated circuit is not receiving power.
The DS200TCPDG2BEC therefore combines:
- Power distribution
- Individual circuit protection
- Manual circuit isolation
- Fuse-status monitoring
- Interface connections
These functions make it an important part of the Mark V electrical infrastructure.
Role in Industrial Control Systems
The DS200TCPDG2BEC occupies the power-distribution layer of the GE Mark V control architecture.
A turbine control system requires stable power for processors, I/O hardware, terminal boards, protection equipment, and other electronic components. The TCPD board distributes this power through separate protected circuits.
The board can provide power paths for:
- Mark V I/O cores
- Control Engine cores
- TCEA boards
- DTBC terminal boards
- DTBD terminal boards
- Associated ignition-transformer circuits
- CTBA power-monitoring circuits
The exact power paths depend on the Mark V configuration.
The board is particularly useful from a maintenance perspective because the individual toggle switches and fuse indicators provide local control and diagnostic information.
If a particular control core needs to be isolated, the relevant switching circuit can be controlled according to the approved maintenance procedure. Likewise, a fuse-status indication can help technicians identify a possible power-distribution problem before investigating downstream equipment.
Industrial Applications
The GE DS200TCPDG2BEC is primarily associated with GE Mark V turbine control systems.
Typical applications include:
- Gas turbine control systems
- Steam turbine control systems
- Power generation plants
- Combined-cycle power facilities
- Industrial turbine packages
- Turbine generator systems
- Mechanical-drive turbines
- Compressor-drive turbine systems
- Legacy GE Speedtronic installations
The board is especially useful in facilities that continue to operate existing Mark V systems.
For legacy turbine equipment, replacing a failed power-distribution board can be significantly more practical than replacing the entire control architecture. Keeping an appropriate TCPD spare available can also shorten maintenance response time when a power-distribution fault occurs.
Installation and System Integration
Correct installation of the DS200TCPDG2BEC requires careful attention to the existing Mark V power configuration.
Before removing the original board, maintenance personnel should document the switch positions, wiring, connectors, and fuse arrangement.
Recommended installation practices include:
- Isolate the relevant control-system power according to approved plant procedures.

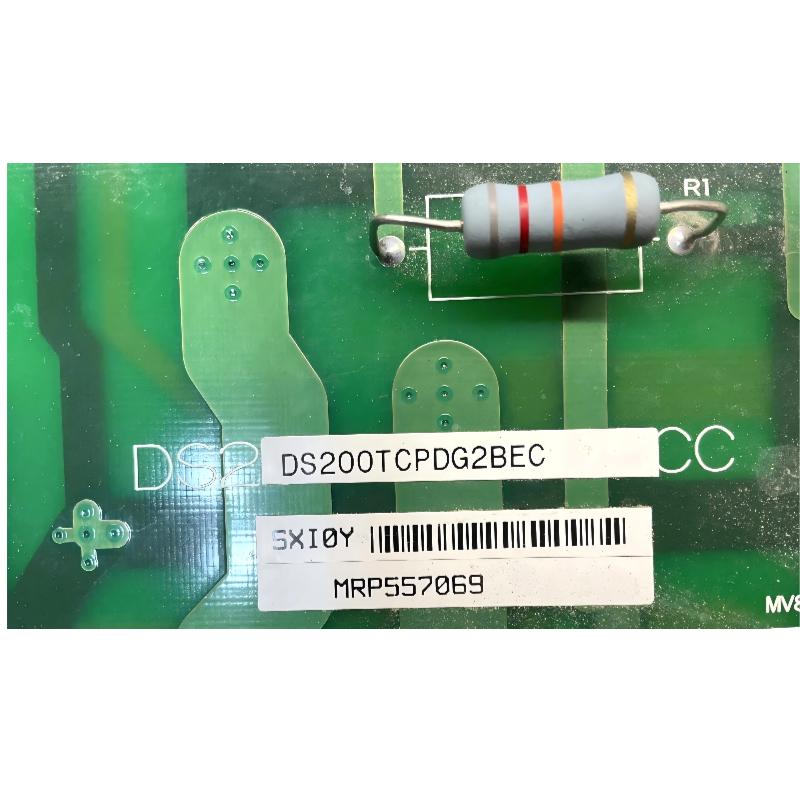

- Confirm the complete DS200TCPDG2BEC identification.
- Record all eight toggle-switch positions.
- Document the existing wiring and connector arrangement.
- Check the replacement board for visible damage.
- Verify the fuse configuration.
- Install the board in the designated Mark V cabinet position.
- Reconnect the associated wiring and 10-pin connector.
- Confirm that all connections are secure.
- Restore power according to the approved procedure.
- Check the fuse-status indicators.
- Verify the associated control cores and terminal-board power circuits.
The board should be handled using appropriate electrostatic-discharge precautions.
Fuse replacement should also be performed carefully. A blown fuse should not simply be replaced repeatedly without determining why the original fuse failed. A recurring fuse failure may indicate a downstream wiring problem, short circuit, or faulty control component.
Compatible System Components
The DS200TCPDG2BEC operates together with several components within the GE Mark V power and control architecture.
| Component | Function |
|---|---|
| TCPS Boards | Receive distributed control-system power |
| TCEA Boards | Provide associated turbine control and interface functions |
| DTBC Terminal Boards | Interface with digital/control circuits and solenoid outputs |
| DTBD Terminal Boards | Support associated digital control functions |
| CTBA Terminal Board | Supports power-output monitoring |
| Mark V I/O Cores | Provide control-system I/O processing |
| Control Engine Core | Supports central turbine control functions |
| Ignition Transformers | Receive associated AC power for turbine ignition circuits |
| Other DS200 Boards | Provide processing, I/O, protection and interface functions |
The exact combination depends on the turbine model and Mark V system architecture.
Because power-distribution boards can have different revisions and circuit configurations, the complete part number should be checked before selecting a replacement.
Recommended Alternative Models
The following related models may be considered when evaluating GE Mark V power-distribution requirements:
| Model | Type | Key Feature | Application |
|---|---|---|---|
| DS200TCPDG2BEC | Power Distribution Module | TCPD power distribution configuration | GE Mark V turbine control |
| DS200TCPDG1BEC | Power Distribution Module | Related TCPD design | Mark V power distribution |
| DS200TCPDG1BCC | Power Distribution Module | Related board configuration | Legacy Mark V systems |
| DS200TCPDG1B | Power Distribution Board | TCPD family design | Turbine control maintenance |
| DS200TCPDG2B | Power Distribution Board | Related TCPD configuration | Mark V power-distribution applications |
These models should not be considered automatic replacements. Differences in board revision, connector configuration, power paths, switch assignments, and turbine-system architecture may affect compatibility.
For direct replacement work, the DS200TCPDG2BEC should normally be matched by the complete part number specified for the existing Mark V system.
Key Advantages
The GE DS200TCPDG2BEC provides several important advantages in turbine control applications:
- Provides centralized Mark V power distribution
- Distributes 125 VDC control power
- Supports associated AC power circuits
- Provides 8 individual toggle switches
- Includes 36 fuse-protected circuits
- Provides 36 fuse-status indicators
- Includes 4 signal wire terminals
- Provides a 10-pin system connector
- Allows convenient circuit isolation during maintenance
- Helps technicians identify fuse-related faults
- Supports Mark V I/O and control-core power requirements
- Suitable for legacy turbine control systems
Its combination of power distribution, circuit protection, switching, and local indication makes the TCPD board particularly useful for maintaining the electrical infrastructure of an existing Mark V control system.
Technical FAQs
What is GE DS200TCPDG2BEC?
The GE DS200TCPDG2BEC is a Power Distribution Module used in GE Mark V Speedtronic turbine control systems.
Is DS200TCPDG2BEC a switchboard?
It is commonly described as a Mark V switchboard, but its more precise functional description is a Power Distribution Module or Power Distribution Board.
What is the main function of DS200TCPDG2BEC?
Its primary function is to distribute control-system power to multiple Mark V circuits while providing individual fuse protection and switching capability.
What are the dimensions of DS200TCPDG2BEC?
The specified dimensions are 180 × 120 × 30 mm.
What is the weight of DS200TCPDG2BEC?
The specified weight is 0.454 kg.
How many fuses are installed on the board?
The DS200TCPDG2BEC contains 36 fuses for individual circuit protection.
How many toggle switches does it have?
The board has 8 toggle switches for controlling associated power-distribution circuits.
How many fuse-status LEDs are included?
The board provides 36 fuse-status LEDs, corresponding to its fuse-protected circuits.
What voltage does the TCPD board distribute?
The board is designed to distribute 125 VDC within the Mark V control architecture. It also supports associated AC power circuits for specific turbine equipment.
What systems work with DS200TCPDG2BEC?
It can work with Mark V I/O cores, Control Engine cores, TCEA boards, DTBC and DTBD terminal boards, CTBA monitoring circuits, and other associated turbine-control hardware.
Can DS200TCPDG1BEC replace DS200TCPDG2BEC?
Not automatically. Although both belong to the TCPD power-distribution family, their hardware configurations and system applications can differ. Compatibility should be verified before replacement.
What should be checked before installing DS200TCPDG2BEC?
Maintenance personnel should verify the complete part number, board revision, switch configuration, fuse arrangement, connectors, wiring, and the specific Mark V turbine-control architecture.
Conclusion
The GE DS200TCPDG2BEC MARK V Power Distribution Module is a specialized power-management component designed to support the electrical infrastructure of GE Mark V turbine control systems.
Its primary role is to distribute 125 VDC control power to multiple control-system circuits while providing individual fuse protection, switching capability, and local status indication. With 8 toggle switches, 36 fuses, 36 fuse-status LEDs, 4 signal terminals, and a 10-pin connector, the board combines power distribution and maintenance-oriented diagnostic functions in a compact industrial PCB.
The specified dimensions are 180 × 120 × 30 mm, with a weight of 0.454 kg, making the module suitable for installation within Mark V control cabinets.
For maintenance engineers, system integrators, and spare-parts procurement teams, accurate identification of the DS200TCPDG2BEC is essential. The complete board number and system configuration should be verified before replacement, particularly because related TCPD models may have different power paths and hardware revisions.
When correctly matched and installed, the DS200TCPDG2BEC provides a practical and reliable power-distribution solution for maintaining legacy GE Mark V turbine control systems and supporting stable operation of critical industrial power-generation equipment.
