Product Overview

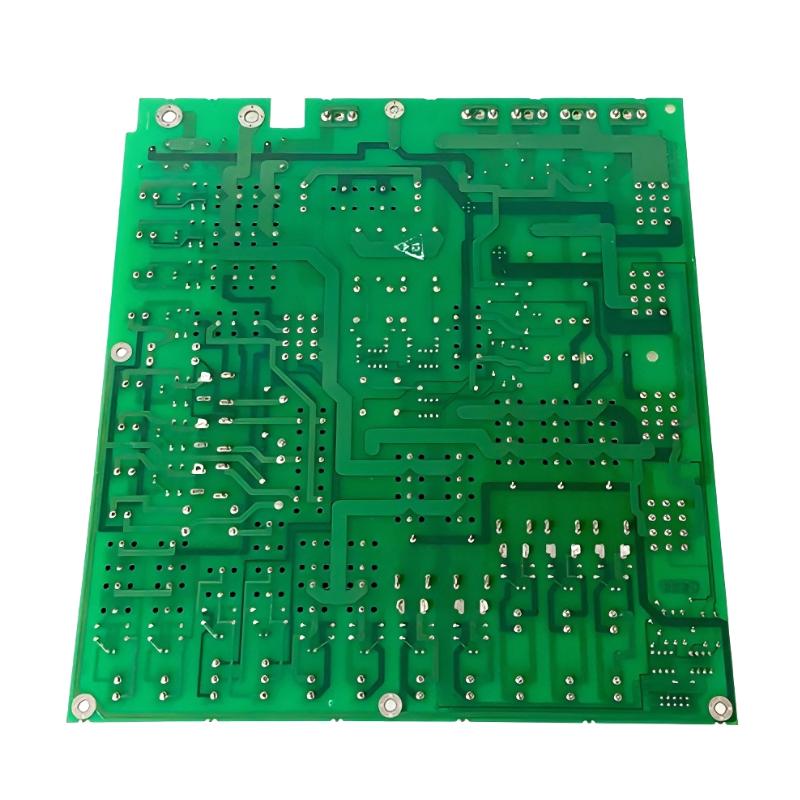

The GE DS200TCPDG1BEC MARK V Power Distribution Module is a specialized power distribution board designed for the GE Mark V turbine control system. As part of the DS200 family, the board provides centralized power distribution and circuit protection for multiple control-system circuits.
The DS200TCPDG1BEC is particularly important in turbine control cabinets where several electronic boards and control circuits require reliable and protected power distribution. Instead of functioning as a processor or conventional I/O module, it provides the electrical distribution and protection layer that supports the operation of associated Mark V hardware.

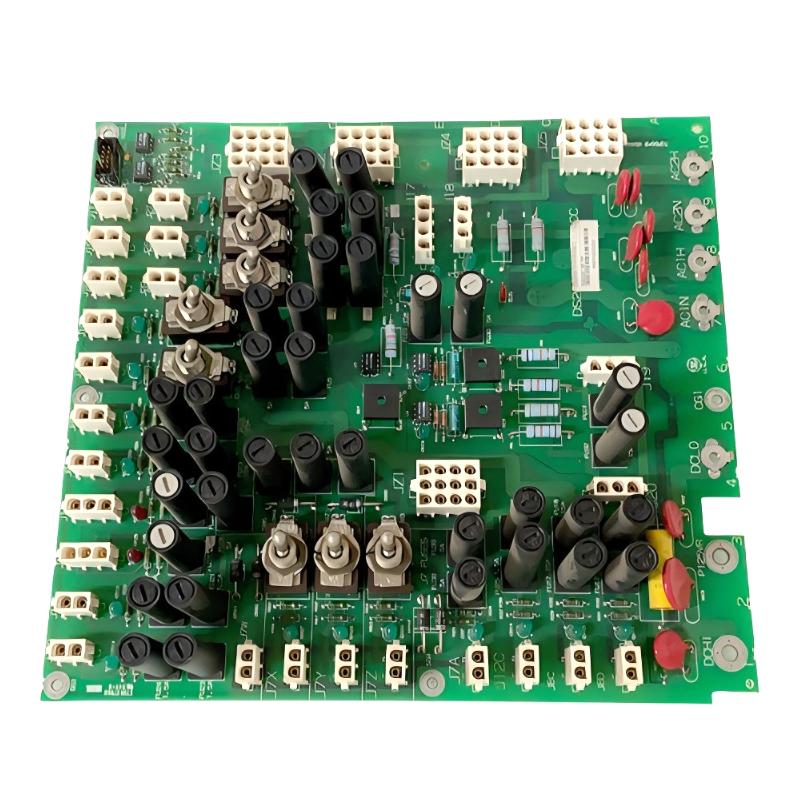

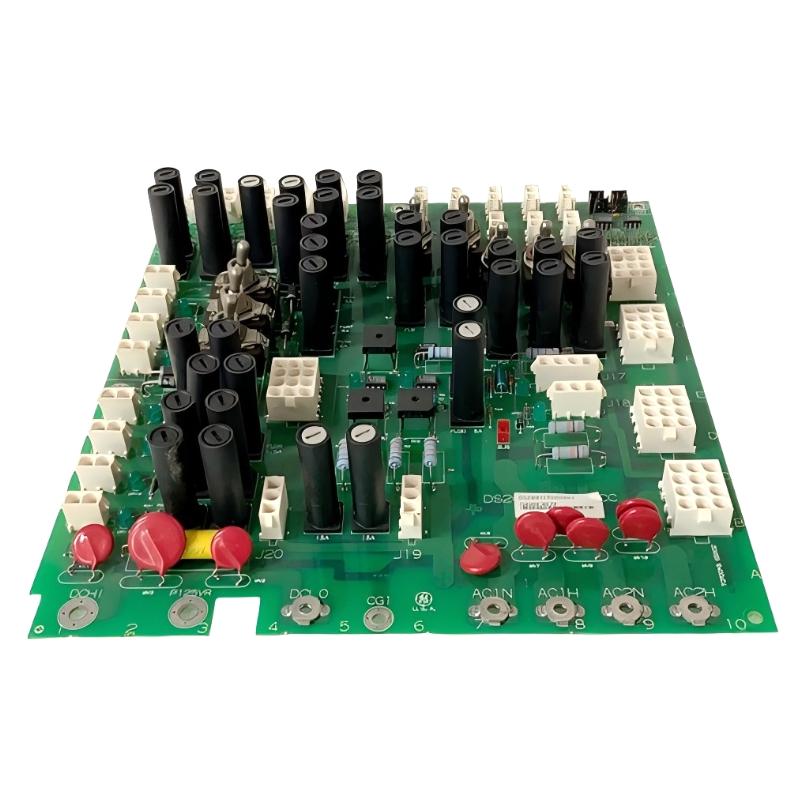

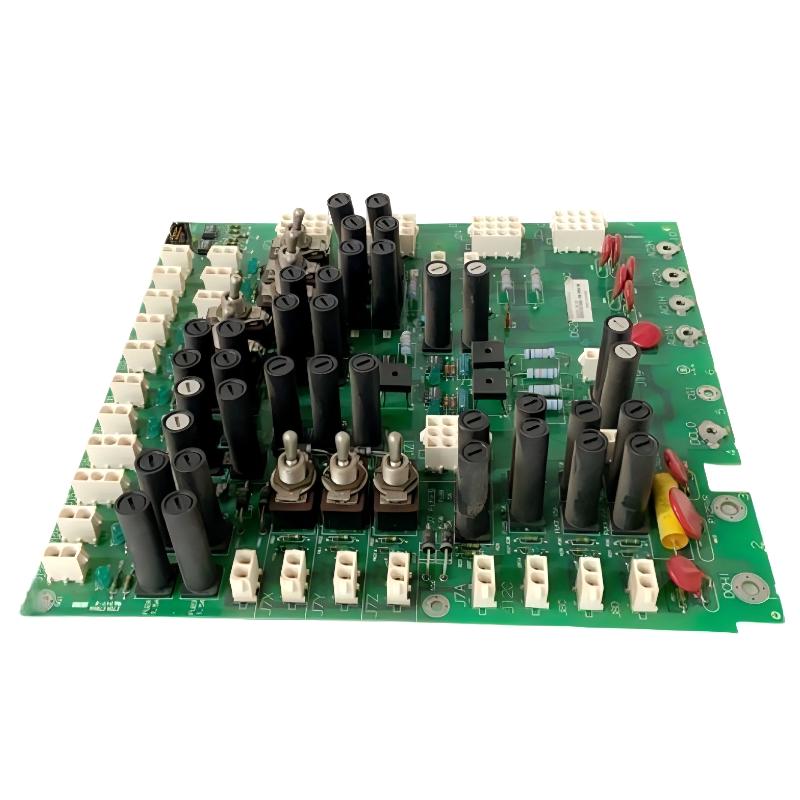

The board incorporates multiple fuses, toggle switches, status LEDs, signal terminals, and a system connector. These features allow maintenance personnel to distribute power, isolate individual circuits, and quickly identify fuse-related conditions.
Because GE Mark V systems remain in operation in many legacy turbine installations, the DS200TCPDG1BEC is an important replacement and maintenance component for power-generation and industrial turbine control applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | DS200TCPDG1BEC |
| Product Series | Mark V DS200 |
| Product Type | Power Distribution Module |
| Functional Acronym | TCPD |
| Functional Description | Power Distribution Card |
| Main Function | Power distribution and circuit protection |
| Dimensions | 180 × 120 × 30 mm |
| Weight | 0.454 kg |
| PCB Coating | Normal coating |
| Functional Revision | B |
| Secondary Functional Revision | E |
| Artwork Revision | C |
| Toggle Switches | 8 |
| Fuses | 36 |
| Signal Wire Terminals | 4 |
| Fuse Status LEDs | 36 |
| System Connector | 1 × 10-pin connector |
| Installation | GE Mark V control cabinet |
| Typical Application | Turbine control and power-generation systems |
Function and Working Principle
The primary function of the DS200TCPDG1BEC is to distribute electrical power to selected circuits within the GE Mark V control system while providing individual circuit protection.
The board contains 36 fuse positions, with each fuse associated with an indicator LED. This arrangement allows maintenance personnel to monitor the condition of individual protected circuits without relying only on external measurements.
The general power path can be represented as:
Control-System Power → DS200TCPDG1BEC → Fused Distribution Circuits → Mark V Control Components
The board also includes eight toggle switches, which provide switching capability for associated circuits. The exact purpose of each switch depends on the particular Mark V installation and system wiring.
The four signal wire terminals provide additional connection points within the board’s electrical architecture, while the 10-pin connector provides an interface with associated control-system wiring.
The fuse-monitoring arrangement is particularly useful during troubleshooting. A corresponding LED can indicate whether a fuse is intact and whether the relevant circuit is receiving power.
The board therefore combines three important functions:
- Power distribution
- Circuit protection
- Local status indication
This makes the TCPD board an important part of the electrical infrastructure supporting the Mark V control system.
Role in Industrial Control Systems
The DS200TCPDG1BEC occupies the power distribution layer of the GE Mark V control architecture.
A turbine control system requires stable electrical power for processors, interface boards, terminal assemblies, protection circuits, and other electronic components. A centralized distribution board simplifies this arrangement by providing multiple protected power paths.
The DS200TCPDG1BEC can work alongside:
- Mark V turbine control processors
- DC power supply boards
- Terminal boards
- I/O interface boards
- Protection boards
- Control relays
- Signal interface circuits
- Other DS200-series boards
The board’s individual fuse protection helps isolate electrical problems. If a downstream circuit develops an overcurrent condition, the corresponding fuse can interrupt the circuit and reduce the possibility of damage spreading to other protected branches.
The integrated LED indicators also provide useful diagnostic information. When troubleshooting a Mark V cabinet, maintenance personnel can inspect the fuse-status indicators to identify circuits that require further investigation.
Industrial Applications
The GE DS200TCPDG1BEC is primarily used in industrial turbine control systems based on the GE Mark V platform.
Typical applications include:
- Gas turbine control systems
- Steam turbine control systems
- Power generation plants
- Industrial turbine packages
- Generator control systems
- Turbine auxiliary systems
- Mechanical-drive turbine installations
- Legacy GE Speedtronic control systems
The board is especially valuable in facilities where the original Mark V architecture is still operating.
In a long-running turbine installation, power distribution components can experience electrical stress, thermal cycling, fuse failures, connector degradation, or aging-related problems. Maintaining a suitable replacement board can therefore reduce troubleshooting time and help restore equipment more quickly.
Installation and System Integration
Installation of the DS200TCPDG1BEC should be performed by qualified personnel familiar with the specific Mark V control-panel configuration.
Before replacing the board, the existing wiring and switch positions should be carefully documented.
A recommended installation sequence includes:
- Isolate the relevant control-system power according to approved plant procedures.
- Record the existing board identification and revision.
- Document all toggle-switch positions.
- Label connected wires and cables before removal.
- Verify the replacement board’s complete part number.
- Compare connector and terminal locations with the original board.
- Install the replacement board in the designated cabinet position.
- Reconnect all wiring and the 10-pin connector correctly.
- Check the fuse positions and verify that the required fuse types are installed.
- Restore power and inspect the status LEDs.
- Verify the associated control circuits before returning the turbine to normal operation.
The fuse indicators should be checked after energization. An unlit indicator can require further investigation because it may indicate a blown fuse or a lack of power to the associated circuit.
Maintenance personnel should never replace a fuse solely based on appearance. The correct replacement rating must be confirmed from the applicable system documentation.
Compatible System Components
The DS200TCPDG1BEC normally operates as part of a larger Mark V power and control architecture.
| Component | Function |
|---|---|
| Mark V Processor Boards | Execute turbine control logic |
| DC Power Supply Boards | Provide system DC power |
| Terminal Boards | Connect field devices and control wiring |
| I/O Boards | Interface field signals |
| Protection Boards | Handle turbine protection functions |
| Control Relays | Provide switching and isolation |
| DS200 Interface Boards | Support signal and control functions |
| Field Devices | Provide turbine operating information |
The exact combination depends on the turbine model and the specific Mark V control-panel design.
When selecting a replacement, it is important to distinguish the DS200TCPDG1BEC from visually similar TCPD boards. Different revisions can have different circuit layouts, switch arrangements, connector assignments, and system applications.
Recommended Alternative Models
The following models may be considered when evaluating related GE Mark V power-distribution boards.
| Model | Type | Key Feature | Application |
|---|---|---|---|
| DS200TCPDG1BEC | Power Distribution Module | B/E/C revision, 36-fuse configuration | GE Mark V turbine control |
| DS200TCPDG1BCC | Power Distribution Module | Related TCPD configuration | Mark V power distribution |
| DS200TCPDG1BDC | Power Distribution Card | Related board revision | Legacy Mark V systems |
| DS200TCPDG1B | Power Distribution Module | TCPD base configuration | Turbine control maintenance |
| DS200TCPDG2B | Power Distribution Board | Related power distribution design | Selected Mark V applications |
These models should not be treated as automatic replacements. Differences in revision, wiring, fuse configuration, connector arrangement, and system architecture may affect compatibility.
For a direct replacement, the DS200TCPDG1BEC should be matched by its complete part number whenever the existing Mark V system specifies this exact configuration.
Key Advantages
The GE DS200TCPDG1BEC provides several important advantages for Mark V turbine control systems:
- Provides centralized power distribution
- Protects individual circuits with replaceable fuses
- Includes 36 fuse positions
- Provides 36 fuse-status LEDs
- Includes eight toggle switches
- Provides four signal wire terminals
- Includes a 10-pin system connector
- Simplifies local circuit monitoring
- Supports faster electrical troubleshooting
- Integrates with GE Mark V turbine control architecture
- Suitable for legacy power-generation systems
The combination of fused distribution and local LED indication makes the board particularly useful for maintenance and fault isolation.
Technical FAQs
What is GE DS200TCPDG1BEC?
The GE DS200TCPDG1BEC is a Power Distribution Module used in the GE Mark V turbine control system.
What is the main function of DS200TCPDG1BEC?
Its primary function is to distribute electrical power to multiple control-system circuits while providing individual fuse protection and local status indication.
Is DS200TCPDG1BEC really a switchboard?
It is sometimes described commercially as a switchboard, but its more precise functional description is Power Distribution Module / Power Distribution Card.
What are the dimensions of DS200TCPDG1BEC?
The specified dimensions are 180 × 120 × 30 mm.
What is the weight of DS200TCPDG1BEC?
The specified weight is 0.454 kg.
How many fuses does the board have?
The DS200TCPDG1BEC has 36 fuse positions.
How many LEDs are installed?
The board has 36 fuse-status LEDs, allowing individual circuit conditions to be monitored.
How many toggle switches are included?
The board has 8 toggle switches.
What connector does DS200TCPDG1BEC use?
The board includes one 10-pin connector, in addition to its signal terminals and switching/fuse circuitry.
What does the fuse LED indicate?
The fuse-status LED provides a local indication of the associated protected circuit. An unlit LED can indicate a blown fuse or a loss of power to that circuit and should be investigated before replacing components.
Can DS200TCPDG1BCC replace DS200TCPDG1BEC?
Not automatically. Although both belong to the TCPD power-distribution family, their revisions and configurations can differ. System compatibility should be confirmed before replacement.
Conclusion
The GE DS200TCPDG1BEC MARK V Power Distribution Module is an important electrical distribution and protection component within GE Mark V turbine control systems. Its primary purpose is to distribute power to multiple control circuits while providing individual fuse protection and convenient local status monitoring.
With dimensions of 180 × 120 × 30 mm and a weight of 0.454 kg, the board is designed for compact installation within industrial turbine control cabinets.
Its 36 fuses, 36 status LEDs, 8 toggle switches, 4 signal terminals, and 10-pin connector provide a practical combination of power distribution, circuit protection, switching, and diagnostic capability.
For maintenance engineers, system integrators, and spare-parts procurement teams, matching the complete DS200TCPDG1BEC part number is important when selecting a replacement. The board revision, wiring configuration, fuse arrangement, and Mark V system architecture should all be verified before installation.
When correctly integrated, the DS200TCPDG1BEC provides a dependable power-distribution interface that helps support the stable operation, protection, and maintainability of legacy GE Mark V turbine control systems.
