Product Overview

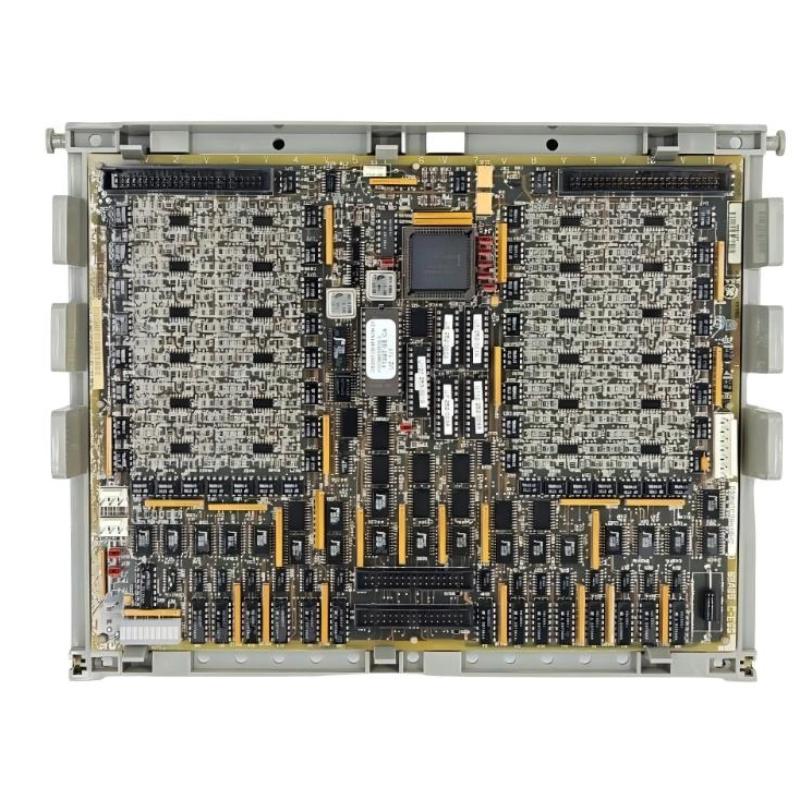

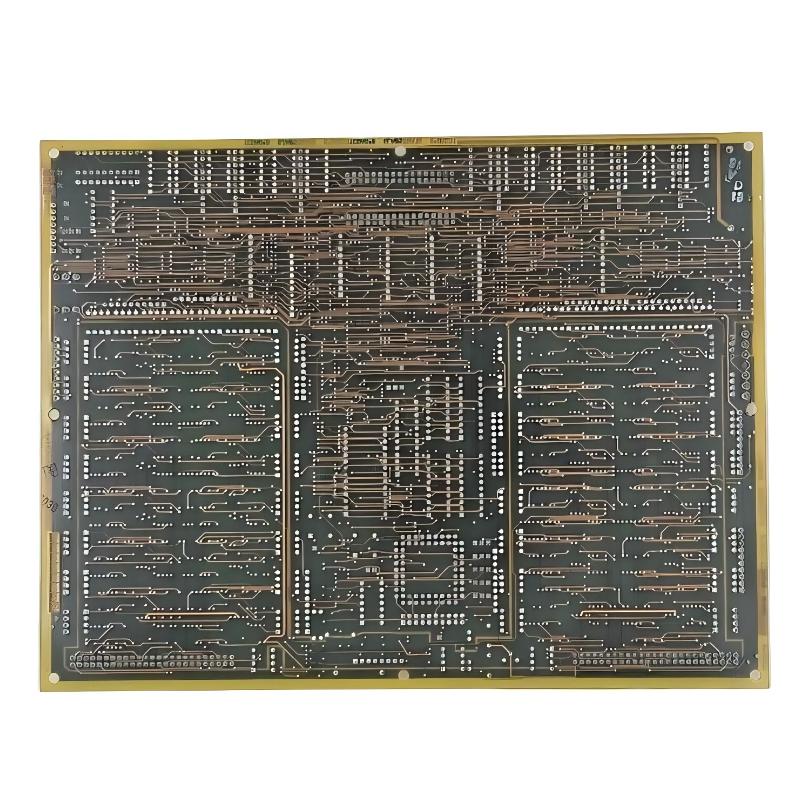

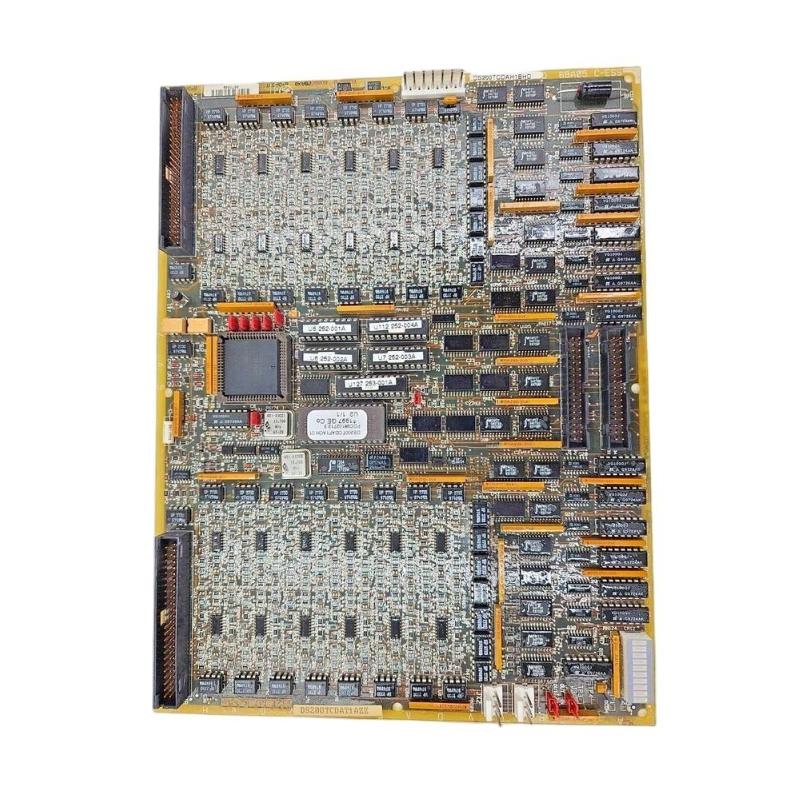

Modern turbine control systems rely on fast and reliable digital signal processing to ensure safe operation, precise equipment monitoring, and stable process control. The GE DS200TCDAH1BHD is a Mark V Digital I/O Board developed for the GE Speedtronic Mark V Turbine Control System, providing high-speed digital input and output processing between field devices and the turbine controller.

As one of the key interface boards within the Mark V architecture, the DS200TCDAH1BHD manages digital signals generated by switches, relays, push buttons, limit switches, protection devices, and other field equipment. It converts these field signals into data that can be processed by the control system while transmitting output commands to external devices for reliable turbine operation.

Designed for continuous industrial operation, the board combines high processing reliability, modular construction, and flexible system integration, making it an important component for maintenance, modernization, and replacement projects in existing GE Mark V turbine control systems.

Technical Specifications

Function and Working Principle

The GE DS200TCDAH1BHD serves as the digital communication interface between the Mark V controller and field equipment.

During operation, digital signals generated by field devices are received by the board and processed through its onboard circuitry. The processed information is transmitted to the Mark V controller, allowing the control system to monitor equipment status and execute programmed logic.

Likewise, output commands generated by the controller are transmitted through the Digital I/O Board to field devices such as relays, solenoids, annunciators, and auxiliary equipment.

The signal flow can be summarized as:

Field Devices → DS200TCDAH1BHD Digital I/O Board → Mark V Controller → Control Logic → Output Commands → Field Equipment

This architecture enables rapid signal acquisition, dependable command execution, and continuous monitoring throughout turbine operation.

Role in Industrial Control Systems

Within a GE Mark V control cabinet, the DS200TCDAH1BHD functions as a central interface for digital communication between field equipment and the turbine controller.

Typical connected devices include:

• Emergency shutdown circuits
• Auxiliary relays
• Limit switches
• Position switches
• Solenoid valves
• Alarm circuits
• Turbine protection devices
• Motor starter feedback
• Breaker status signals
• Push-button stations
• Interlock systems
• Digital monitoring equipment

By processing these signals accurately and efficiently, the board contributes to reliable turbine startup, shutdown, protection, sequencing, and normal operating control.

Industrial Applications

The GE DS200TCDAH1BHD is widely used in industrial applications including:

• Gas turbine control systems
• Steam turbine control systems
• Combined-cycle power plants
• Thermal power stations
• Oil and gas facilities
• Petrochemical plants
• Pipeline compressor stations
• Heavy industrial manufacturing
• Utility power generation
• Industrial process automation
• Turbine retrofit projects
• Existing GE Mark V control installations

Its stable performance and compatibility with the Mark V platform make it suitable for long-term industrial operation.

Installation and System Integration

The DS200TCDAH1BHD is installed inside a GE Mark V control cabinet as part of the turbine control system.

A typical installation procedure includes:

1. Shut down the control system according to maintenance procedures.
2. Disconnect system power.
3. Record the existing hardware configuration.
4. Label and disconnect all cable connections.
5. Remove the existing Digital I/O Board.
6. Inspect connectors and backplane interfaces.
7. Install the replacement DS200TCDAH1BHD board.
8. Verify jumper configuration matches the original board.
9. Reconnect all wiring and communication connectors.
10. Restore system power.
11. Verify LED status indications.
12. Test all digital input and output channels.
13. Confirm normal turbine control operation.

Correct board revision and hardware configuration should always be verified before commissioning.

Compatible System Components

The DS200TCDAH1BHD is typically used together with the following Mark V components:

Together, these components form a complete turbine automation and protection platform.

Recommended Alternative Models

Before selecting an alternative model, verify the board revision, firmware compatibility, connector configuration, and system requirements.

Key Advantages

• Designed specifically for GE Mark V Speedtronic systems
• Reliable digital signal acquisition and output control
• Supports high-speed industrial communication
• On-board microprocessor architecture
• Programmable memory for system configuration
• Multiple diagnostic LED indicators
• Compact rack-mounted design
• Conformal-coated PCB for improved durability
• Stable long-term operation in industrial environments
• Easy integration with existing Mark V systems
• Supports preventive maintenance and system upgrades
• Suitable for critical turbine control applications

Technical FAQs

What is the GE DS200TCDAH1BHD?

The DS200TCDAH1BHD is a Digital I/O Board designed for the GE Mark V Speedtronic turbine control system.

What is its primary function?

It processes digital input signals from field devices and transmits digital output commands from the controller to external equipment.

Which control platform uses this board?

It is designed for the GE Speedtronic Mark V turbine control platform.

What are the dimensions of the DS200TCDAH1BHD?

The board measures 330 × 280 × 25 mm.

How much does the board weigh?

Its approximate weight is 0.386 kg.

Does the board include diagnostic functions?

Yes. It features onboard LED indicators that assist engineers during commissioning, troubleshooting, and maintenance.

What types of field devices can be connected?

Typical devices include relays, limit switches, emergency shutdown circuits, push buttons, solenoid valves, auxiliary contacts, and digital monitoring devices.

Can this board be used in gas and steam turbine systems?

Yes. It is widely applied in both gas turbine and steam turbine control systems using the GE Mark V architecture.

Is the DS200TCDAH1BHD suitable for industrial environments?

Yes. It is designed for installation inside industrial control cabinets and supports continuous operation in demanding applications.

What should be checked before replacing the board?

Verify the board revision, jumper configuration, connector layout, controller compatibility, and overall Mark V system configuration before installation.

Conclusion

The GE DS200TCDAH1BHD Mark V Digital I/O Board is a critical interface module within the GE Speedtronic Mark V turbine control system. It enables dependable communication between field devices and the turbine controller by processing digital input and output signals with high reliability.

Featuring a compact 330 × 280 × 25 mm design, an approximate weight of 0.386 kg, onboard processing capability, programmable memory, diagnostic indicators, and rugged industrial construction, the DS200TCDAH1BHD is well suited for long-term operation in demanding power generation and industrial automation environments.

For maintenance engineers, system integrators, and industrial spare-parts buyers, selecting the correct replacement board requires verification of the original hardware revision, control system configuration, and installation requirements to ensure seamless integration and reliable turbine operation.
