Product Overview

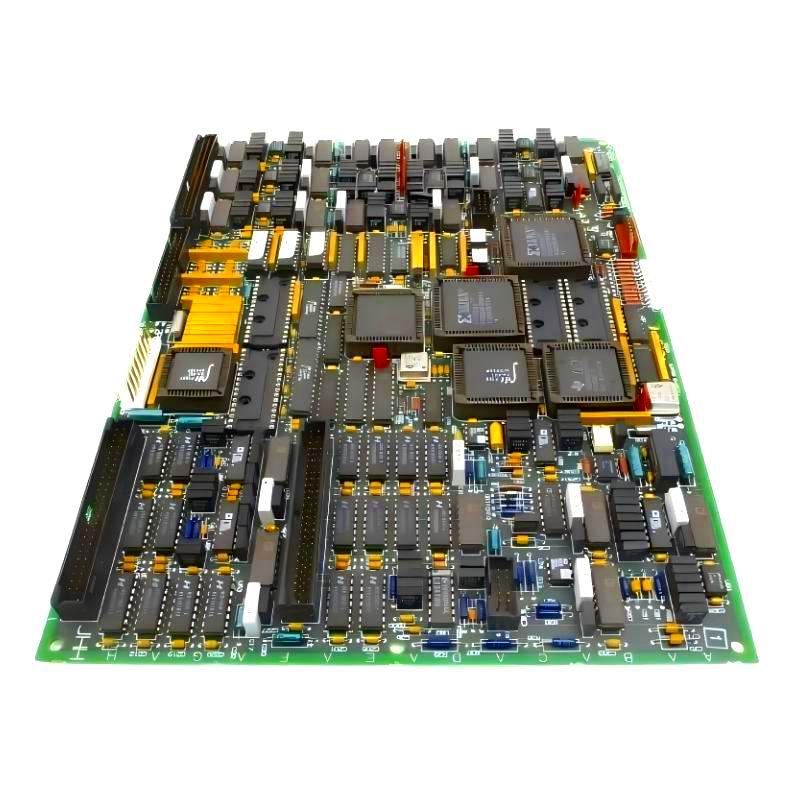

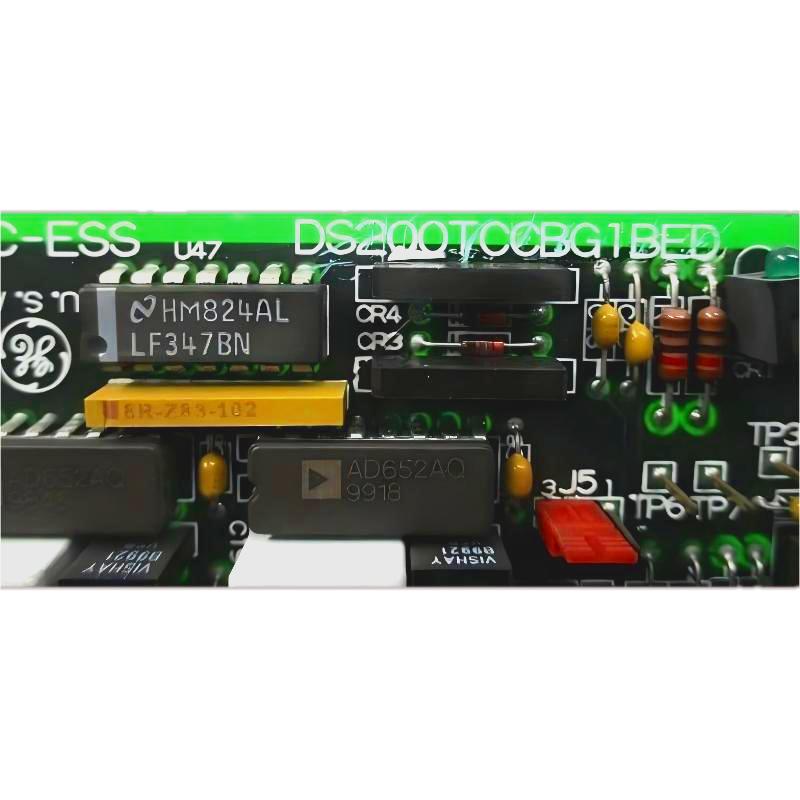

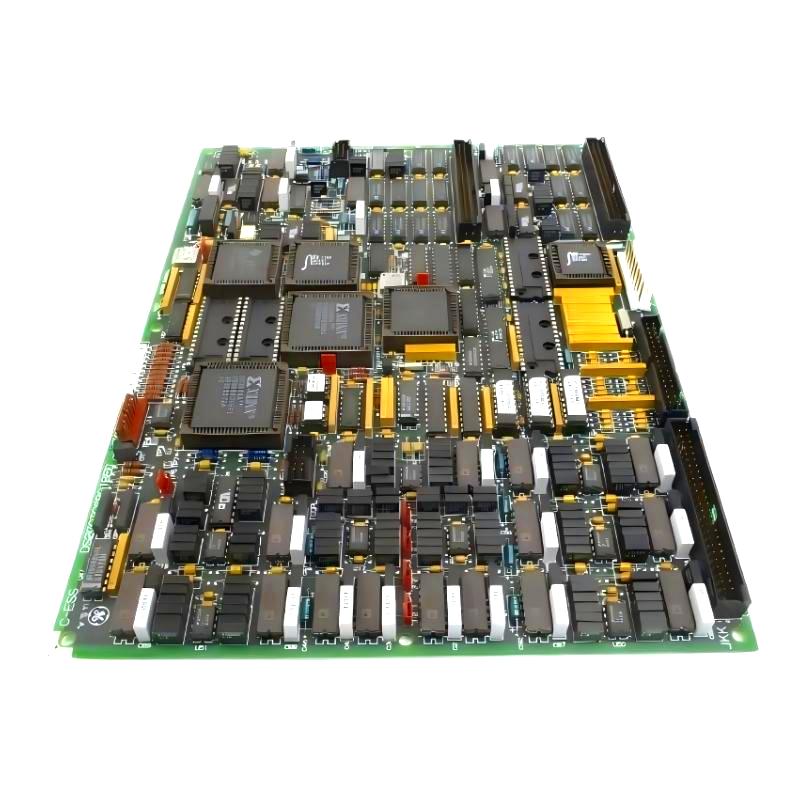

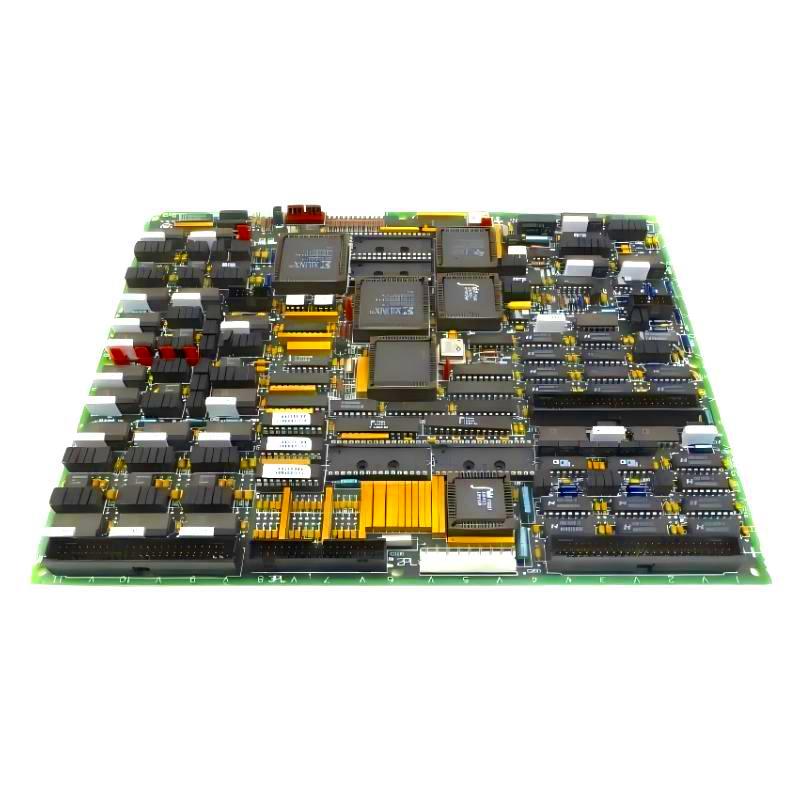

The GE DS200TCCBG1BED Extended Analog I/O Board is an analog interface board designed for compatible GE Mark V Speedtronic control systems. It provides expanded analog I/O capability for control architectures that require additional process-signal acquisition and interface functions.

Unlike a passive terminal board, the DS200TCCBG1BED is an active electronic board that operates as part of the Mark V I/O architecture. It works with associated control hardware to receive, condition, monitor, and exchange analog process information.

Extended analog I/O is useful in turbine and industrial applications where a large number of continuously varying process parameters must be monitored. Depending on the overall system configuration, these signals may represent pressure, temperature, flow, level, speed, position, or other process conditions.

The supplied physical specifications for the DS200TCCBG1BED are 330 × 280 × 50 mm, with a stated weight of 0.907 kg.

Technical Specifications

Function and Working Principle

The DS200TCCBG1BED provides an expanded analog interface between field instrumentation and the Mark V control architecture.

A simplified signal path is:

Field Sensor / Transmitter → Analog I/O Interface → DS200TCCBG1BED → Mark V Control Electronics → Control / Monitoring Functions

The board works with associated Mark V hardware to process analog signals and make process information available to control logic.

Analog signals can represent continuously changing variables such as:

• Pressure
• Temperature
• Flow
• Level
• Speed
• Position
• Process feedback
• Electrical measurements

The board should therefore be considered part of a complete signal-acquisition system rather than an independent measuring instrument.

Extended Analog I/O Function

The term Extended Analog I/O indicates that the board is intended to support additional analog signal-interface requirements within the Mark V architecture.

A typical arrangement is:

Field Instrumentation
↓
Field Wiring
↓
Extended Analog I/O Board
↓
Associated I/O / Signal Conditioning Hardware
↓
Mark V Processor
↓
Control and Protection Logic

This architecture allows a large industrial control system to handle numerous process measurements without routing every field signal directly to the main processor.

Role in Mark V Systems

The Mark V Speedtronic architecture divides control functions among dedicated hardware modules and boards.

The DS200TCCBG1BED operates within the analog I/O portion of this architecture.

Its role can include supporting the interface between field instrumentation and the higher-level control system, where analog information can subsequently be used for:

• Process monitoring
• Closed-loop control
• Alarm generation
• Equipment protection
• Performance calculations
• Turbine sequencing
• Operational feedback

The precise I/O function depends on the specific Mark V system configuration and associated boards.

Main Features

Expanded Analog Interface

The DS200TCCBG1BED is intended for applications requiring an extended analog I/O interface.

This can help accommodate a larger number of process signals within a complex turbine-control installation.

Active Electronic Architecture

Unlike a simple terminal block, the board is an active electronic assembly.

Troubleshooting should therefore consider:

• Board power
• Connectors
• Signal wiring
• Input circuitry
• Associated I/O boards
• Processor communication
• System configuration

Industrial Construction

The supplied dimensions are:

330 × 280 × 50 mm

The supplied weight is:

0.907 kg

The larger physical size compared with compact terminal interfaces provides room for a more substantial electronic I/O assembly.

Industrial Applications

The DS200TCCBG1BED can be used in compatible GE Mark V industrial control environments, including:

• Gas turbine control
• Steam turbine control
• Power-generation systems
• Generator monitoring
• Turbine auxiliary systems
• Industrial process control
• Rotating machinery
• Legacy Speedtronic installations

Installation Guide

Step 1 – Verify the Exact Board

Before installation:

• Confirm DS200TCCBG1BED.
• Verify the complete revision suffix.
• Confirm the Mark V cabinet configuration.
• Check associated I/O hardware.
• Compare connector locations.
• Inspect the replacement board.

Do not substitute another TCC-series board merely because its physical appearance is similar.

Step 2 – Shut Down and Isolate the System

Before removing the existing board:

1. Shut down the relevant equipment.
2. Isolate electrical power.
3. Follow lockout/tagout procedures.
4. Verify that applicable circuits are de-energized.
5. Use appropriate ESD protection.

Legacy turbine-control cabinets may contain multiple electrical sources, so isolation should be performed according to the site’s approved maintenance procedure.

Step 3 – Document Existing Configuration

Before disconnecting the original board:

• Record the board location.
• Label applicable field wiring.
• Record connector positions.
• Photograph the existing installation.
• Document jumper or configuration settings where applicable.
• Record associated board information.

This documentation helps prevent configuration errors during commissioning.

Step 4 – Remove the Existing Board

Carefully:

• Disconnect connectors.
• Disconnect applicable wiring.
• Release mounting hardware.
• Remove the board.
• Place the board on an ESD-safe surface.

Do not pull connectors by their cables.

Step 5 – Inspect the Replacement

Inspect the DS200TCCBG1BED for:

• Damaged connectors
• Bent contacts
• Cracked components
• Burn marks
• Corrosion
• Contamination
• Mechanical deformation

Compare the replacement with the original before installation.

Step 6 – Install the Replacement Board

Install the DS200TCCBG1BED by:

1. Aligning the board with its mounting position.
2. Securing the board.
3. Reconnecting all applicable connectors.
4. Reconnecting field wiring.
5. Checking connector seating.
6. Verifying cable routing.

No connector should require excessive force.

Commissioning Procedure

After installation, commissioning should be performed systematically.

Hardware Verification

Check:

• Board seating
• Mounting hardware
• Connector engagement
• Wiring condition
• Configuration settings

Analog Signal Verification

Check:

• Signal presence
• Correct channel assignment
• Expected signal range
• Signal stability
• Correct process-variable indication

System Verification

Confirm:

• Normal startup
• No unexpected diagnostic alarms
• Correct I/O status
• Stable process readings
• Normal control-system behavior

Critical analog channels should be checked individually rather than assuming that a successful board startup confirms all inputs.

Common Failure Symptoms

Troubleshooting Guide

Analog Channel Has No Signal

If a channel is unavailable:

1. Check the field transmitter.
2. Inspect field wiring.
3. Verify the associated connector.
4. Confirm channel assignment.
5. Check board power.
6. Inspect associated I/O electronics.
7. Review Mark V diagnostics.

This process helps separate field-device problems from board-level problems.

Analog Value Is Incorrect

Possible causes include:

• Faulty transmitter
• Incorrect channel assignment
• Incorrect wiring
• Scaling error
• Configuration mismatch
• Input-circuit fault
• Grounding problem

Compare the actual field signal with an appropriate calibrated measurement before replacing the I/O board.

Analog Signal Is Unstable

An unstable signal can result from:

• Loose wiring
• Connector problems
• Electrical interference
• Poor shielding
• Grounding problems
• Damaged field cable
• Faulty transmitter
• I/O circuit problems

If one channel is affected, focus first on that signal path. If many channels are affected simultaneously, investigate common causes.

Multiple Analog Inputs Fail

When several channels fail together:

• Check board power.
• Inspect common connectors.
• Check associated I/O hardware.
• Review system diagnostics.
• Inspect common field wiring.
• Verify system configuration.

A common power or interface problem may affect multiple channels at once.

Physical Inspection

During maintenance, inspect the DS200TCCBG1BED for:

• Burned components
• Discoloration
• Cracked components
• Damaged connectors
• Bent contacts
• Corrosion
• Contamination
• Cracked solder joints
• Mechanical damage

Also inspect the surrounding cabinet for excessive heat, dust accumulation, vibration, or poor ventilation.

Preventive Maintenance

Recommended maintenance activities include:

• Periodic board inspection
• Connector inspection
• Field-wiring inspection
• Cabinet cleaning
• Cooling and ventilation checks
• Corrosion inspection
• Analog signal-trend monitoring
• Review of recurring alarms
• Verification of board revision records

Because Mark V equipment is often installed in long-service industrial environments, configuration records are particularly valuable during maintenance.

Analog Signal Integrity

Extended analog I/O performance depends on the complete signal environment.

Field Wiring

Damaged or poorly terminated cables can create unstable or inaccurate readings.

Shielding

Proper shielding can reduce electromagnetic interference affecting sensitive analog signals.

Grounding

Improper grounding can produce noise, drift, or abnormal signal behavior.

Cable Routing

Sensitive analog cables should be routed appropriately in relation to high-current and high-voltage conductors.

Transmitter Condition

A defective transmitter can create symptoms that closely resemble an I/O-board failure.

System Integration

The DS200TCCBG1BED is one component in the complete Mark V signal chain.

For accurate fault diagnosis, each stage should be checked in sequence.

Replacement Considerations

Before replacing a DS200TCCBG1BED, record:

• Complete part number
• Revision information
• Existing board location
• Connector arrangement
• Wiring assignments
• Configuration settings
• Associated I/O hardware
• Mark V system configuration

A replacement board should match the required system configuration rather than being selected solely by the base model number.

Key Advantages

• Designed for compatible GE Mark V systems
• Extended analog I/O functionality
• Supports expanded process-signal interfaces
• Suitable for turbine and power-generation applications
• Provides an active electronic interface for analog signals
• Supports organized signal acquisition
• Suitable for complex industrial control architectures
• Supplied dimensions: 330 × 280 × 50 mm
• Supplied weight: 0.907 kg

Technical FAQs

What is the GE DS200TCCBG1BED?

The GE DS200TCCBG1BED is an Extended Analog I/O Board associated with compatible GE Mark V Speedtronic control systems.

What is the main function of the board?

Its primary role is to provide expanded analog I/O capability for acquiring and interfacing continuously varying process signals within the Mark V control architecture.

Is the DS200TCCBG1BED a terminal board?

No. It is an active electronic Analog I/O Board. A terminal board primarily provides field-wiring termination, while an I/O board participates in the electronic signal-interface function.

What process variables can analog I/O represent?

Depending on the system configuration, analog channels can represent pressure, temperature, flow, level, speed, position, electrical measurements, and other continuously varying process conditions.

What are the dimensions?

The supplied dimensions are 330 × 280 × 50 mm.

What is the weight?

The supplied weight is 0.907 kg.

What can cause multiple analog channels to fail?

Possible causes include board power problems, common connectors, associated I/O hardware faults, wiring problems, grounding issues, or system configuration errors.

Should the board be replaced immediately after an analog-input failure?

No. The field transmitter, wiring, connectors, board power, associated I/O electronics, and Mark V diagnostics should be checked systematically before replacing the board.

Why is the exact revision important?

Mark V installations can use different hardware configurations and revisions. The complete part number and revision should therefore be verified to prevent an incompatible replacement.

Conclusion

The GE DS200TCCBG1BED Extended Analog I/O Board is an active analog interface component for compatible GE Mark V Speedtronic control systems. It provides expanded analog signal-interface capability for industrial applications where numerous continuously varying process parameters must be monitored and incorporated into turbine-control logic.

Reliable operation depends on correct board compatibility, secure connectors, proper field wiring, good shielding and grounding practices, and accurate system configuration.

With supplied dimensions of 330 × 280 × 50 mm and a weight of 0.907 kg, the DS200TCCBG1BED provides a substantial analog I/O interface for legacy GE Mark V installations. During maintenance, technicians should diagnose the entire signal path—from field instrumentation through the I/O hardware to the Mark V processor—to distinguish board failures from transmitter, wiring, configuration, and system-level problems.
