Product Overview

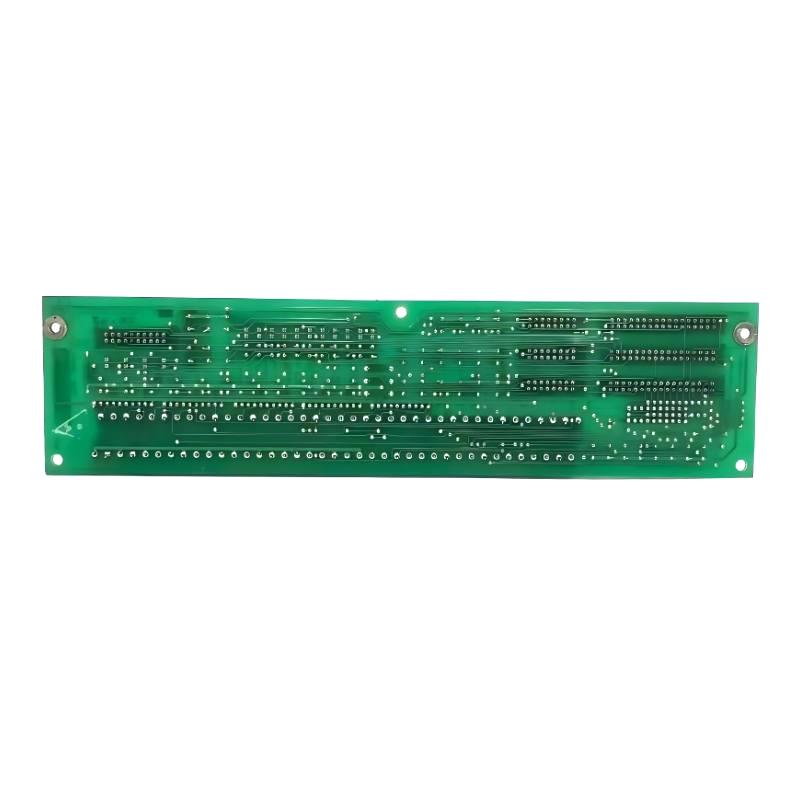

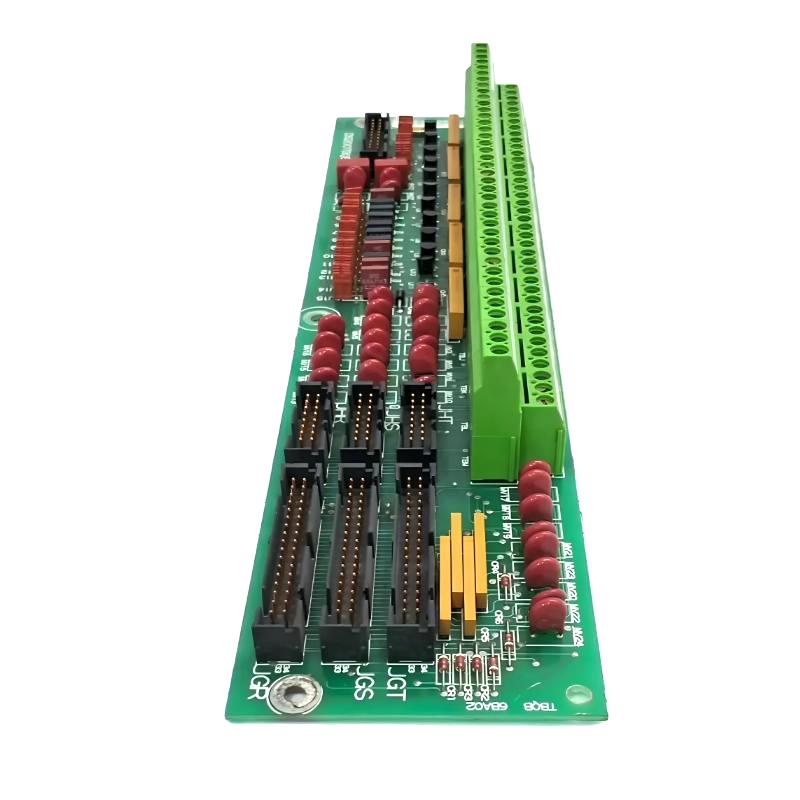

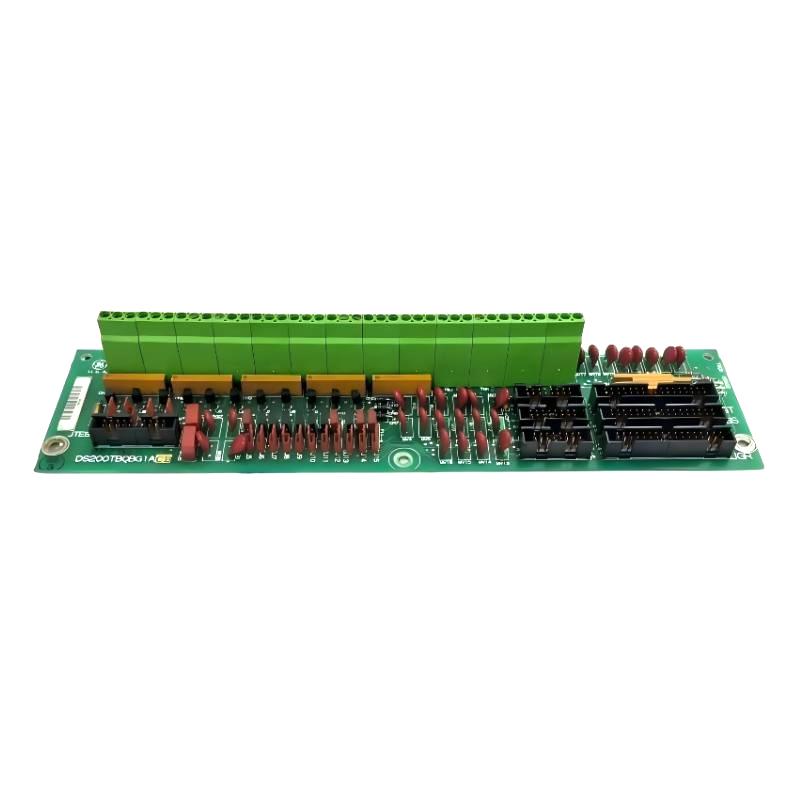

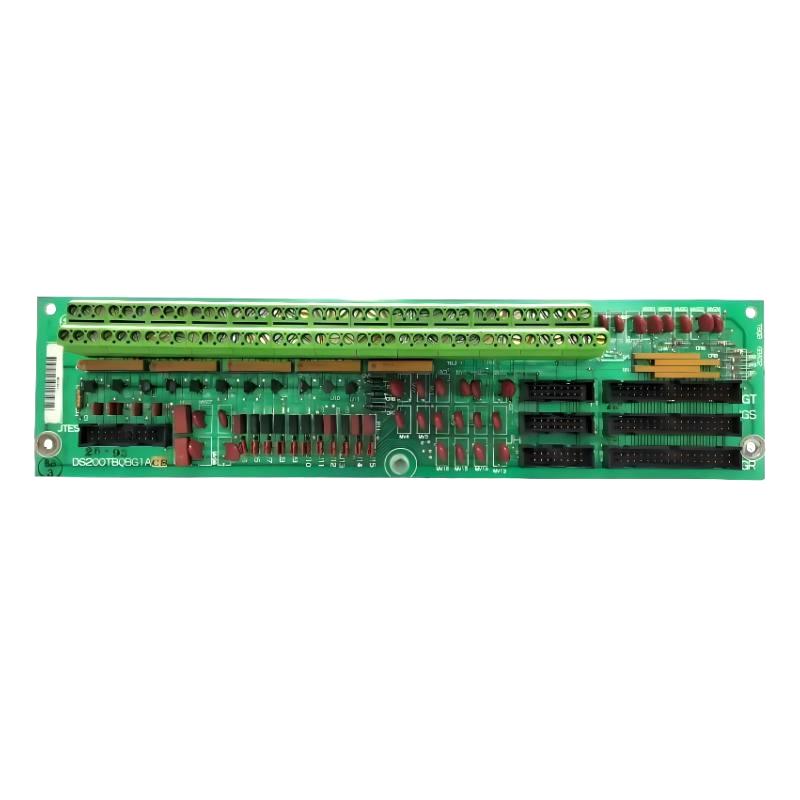

The GE DS200TBQBG1ACB Analog I/O Terminal Block is an analog termination component used within compatible GE Mark V control systems. It provides a structured interface for field analog signals and connects those signals with the associated control-system electronics.

The board is particularly suited to applications where multiple process measurements must be terminated and routed through a turbine or industrial control architecture. Typical analog measurements can include pressure, temperature-related signals, process transmitters, and other continuously varying instrumentation signals.

The DS200TBQBG1ACB is identified with the TBQB functional acronym and is associated with the RST analog termination architecture of the Mark V system. Available technical descriptions indicate that the board uses two terminal blocks with 77 terminals each, together with multiple board-level connectors and configuration jumpers.

For this product entry, the supplied physical specifications are 220 × 100 × 25 mm and 0.35 kg.

Technical Specifications

Function and Working Principle

The DS200TBQBG1ACB provides a termination point between field instrumentation and the Mark V control system.

A simplified signal path is:

Field Instrument → DS200TBQBG1ACB → Control-System I/O Circuitry → Mark V Processor

The board’s terminal connections allow field signal wiring to be organized before the signals are transferred to the associated control electronics.

The board is described as an analog termination board, while other system documentation describes the TBQB function as an input termination module within Mark V cores. It can therefore be viewed as part of the signal-interface layer between field devices and the main control circuitry.

Analog Signal Interface

Analog signals represent continuously changing process conditions rather than simple ON/OFF states.

Typical signals associated with industrial instrumentation can represent:

• Pressure
• Temperature
• Flow
• Level
• Speed
• Process variables
• Transmitter outputs
• Electrical measurements

The DS200TBQBG1ACB provides the termination and routing infrastructure required to bring these signals into the control system.

The associated electronics perform the actual signal processing, scaling, monitoring, and control calculations.

Terminal Configuration

Available descriptions identify two terminal blocks, designated TB1 and TB2, with 77 terminals per block, providing a total of 154 terminal positions for signal wiring.

This arrangement provides a high-density connection point for multiple field signals.

Each terminal has an individual identification, allowing technicians to locate specific signal connections through the applicable system wiring documentation.

This makes accurate terminal documentation particularly important during replacement or troubleshooting.

Jumpers and Configuration

The DS200TBQBG1ACB is also described as having 15 jumpers.

The available technical information associates different jumper groups with analog-input configuration and pressure-transducer-related signal arrangements.

Therefore, jumper positions should be documented before removing an existing board.

A replacement board should retain the correct configuration rather than simply being installed with factory-default jumper positions.

Mark V System Integration

The DS200TBQBG1ACB is associated with the GE Mark V Speedtronic control architecture.

Technical descriptions indicate that the TBQB termination board is used in the R2 and R3 cores and interfaces with associated control boards such as TCQA and TCQC.

A simplified architecture is:

Field Sensors / Transmitters
↓
DS200TBQBG1ACB Analog Termination Board
↓
Associated I/O and Control Boards
↓
Mark V Control Processor
↓
Monitoring / Protection / Control Logic

This arrangement allows field instrumentation to be integrated into the larger turbine-control system.

Industrial Applications

The DS200TBQBG1ACB is suitable for compatible Mark V industrial control environments, particularly applications involving extensive analog instrumentation.

Potential applications include:

• Gas turbine control
• Steam turbine control
• Turbine auxiliary systems
• Generator monitoring
• Industrial process control
• Power-generation automation
• Rotating equipment monitoring
• Industrial instrumentation

Installation Guide

Step 1 – Verify the Board

Before installation:

• Confirm DS200TBQBG1ACB.
• Verify the board revision.
• Confirm the Mark V system configuration.
• Check terminal-block arrangement.
• Verify jumper configuration.
• Inspect the replacement board for physical damage.

Do not substitute a visually similar termination board without verifying the complete part number and configuration.

Step 2 – Shut Down and Isolate the System

Before working on the terminal board:

• Shut down the relevant control system.
• Isolate applicable electrical power.
• Follow site lockout/tagout procedures.
• Verify that circuits are safe.
• Use appropriate ESD precautions.

Field instrumentation may also have external power sources, so all relevant circuits should be identified before disconnecting wiring.

Step 3 – Document Terminal Wiring

Before removing the existing board:

• Record TB1 connections.
• Record TB2 connections.
• Label field wires.
• Record terminal numbers.
• Document jumper positions.
• Record connector positions.
• Photograph the existing installation when appropriate.

This is one of the most important steps because incorrect terminal assignment can cause multiple analog signals to appear incorrect after replacement.

Step 4 – Remove the Existing Board

Carefully:

1. Confirm that all wiring is identified.
2. Disconnect field wiring.
3. Disconnect board-level connectors.
4. Remove mounting hardware.
5. Remove the board from the control assembly.
6. Place it on an ESD-safe surface.

Step 5 – Configure the Replacement

Before installing the replacement board:

• Compare jumper positions.
• Verify terminal configuration.
• Confirm connector arrangement.
• Check revision markings.
• Inspect the PCB for damage.

Any configurable jumper settings should correspond to the system’s original configuration.

Step 6 – Install the DS200TBQBG1ACB

Install the board by:

• Aligning mounting points.
• Securing the board.
• Reconnecting board-level connectors.
• Reconnecting TB1 wiring.
• Reconnecting TB2 wiring.
• Checking all terminal connections.

Avoid excessive mechanical force when connecting field wiring.

Commissioning and Testing

After installation, perform a controlled system test.

Verify:

Analog Inputs

• Correct channel assignment
• Expected signal value
• Stable signal
• Correct scaling
• Correct process-variable indication

Terminal Connections

• Correct TB1 wiring
• Correct TB2 wiring
• Secure terminals
• Correct jumper positions

System Response

• No unexpected alarms
• Correct controller readings
• Normal diagnostic status
• Stable operation

Where appropriate, an approved signal simulator or calibrated test instrument can be used to verify individual analog channels.

Common Failure Symptoms

Troubleshooting Guide

Analog Input Is Missing

If an analog signal is unavailable:

1. Check the field transmitter.
2. Inspect the field wiring.
3. Verify the correct TB1/TB2 terminal.
4. Check connector seating.
5. Verify jumper configuration.
6. Inspect the associated I/O/control board.
7. Review Mark V diagnostics.

Avoid replacing the termination board before checking the external signal source.

Analog Reading Is Incorrect

If the controller shows an incorrect value:

• Verify terminal assignment.
• Check signal polarity where applicable.
• Inspect jumper configuration.
• Confirm transmitter operation.
• Check signal scaling.
• Compare the field signal with an independent measurement.

A wrong jumper setting or terminal assignment can create a measurement problem even when the board itself is healthy.

Multiple Signals Fail

When several analog channels fail simultaneously:

• Inspect common wiring.
• Check shared connectors.
• Check associated control-board connections.
• Inspect the terminal board.
• Review system power and diagnostics.

A simultaneous multi-channel failure often points toward a common interface or wiring problem.

Intermittent Analog Signals

Intermittent signals may be caused by:

• Loose terminal screws
• Damaged field wiring
• Connector movement
• Vibration
• Corrosion
• Poor shielding or grounding
• Incorrect jumper configuration

Inspect the complete signal path before replacing components.

Physical Inspection

During maintenance, inspect the DS200TBQBG1ACB for:

• Burn marks
• Discolored components
• Damaged terminals
• Loose terminal hardware
• Corroded contacts
• Damaged connectors
• Cracked solder joints
• Contamination
• Mechanical damage

Special attention should be given to the terminal blocks because loose field connections can produce intermittent analog measurements.

Preventive Maintenance

Recommended maintenance activities include:

• Periodic terminal inspection
• Verification of jumper positions
• Field-wire inspection
• Connector inspection
• Cabinet cleaning
• Corrosion checks
• Signal-trend monitoring
• Review of recurring alarms

Maintaining accurate terminal documentation is also valuable when servicing older Mark V installations.

Signal Integrity Considerations

Analog signals can be sensitive to installation conditions.

For reliable operation:

• Keep field wiring properly organized.
• Maintain secure terminal connections.
• Avoid unnecessary proximity to high-power conductors.
• Use appropriate shielding practices.
• Verify grounding arrangements.
• Keep connectors clean.
• Minimize mechanical stress on wiring.

A poor connection can produce signal drift, noise, intermittent readings, or complete loss of an analog input.

System Integration

The DS200TBQBG1ACB works as part of a larger Mark V control architecture.

The termination board should therefore be diagnosed together with the field device, wiring, associated I/O electronics, and controller.

Key Advantages

• Designed for GE Mark V analog signal termination
• High-density field-wiring interface
• Two terminal blocks
• 77 terminals per terminal block
• Supports analog instrumentation integration
• Includes configurable jumper arrangements
• Suitable for turbine-control applications
• Compact 220 × 100 × 25 mm dimensions
• Stated weight of 0.35 kg
• Simplifies field wiring organization and maintenance

Technical FAQs

What is the GE DS200TBQBG1ACB?

The GE DS200TBQBG1ACB is a Mark V analog I/O termination board used to provide an interface between field instrumentation signals and compatible GE control-system electronics.

What is the TBQB functional acronym?

TBQB identifies the functional role of the board within the Mark V termination architecture. It is associated with analog/input signal termination.

How many terminals does the board have?

Available technical descriptions identify two terminal blocks with 77 terminals each, for a total of 154 terminal positions.

Does the board contain jumpers?

Yes. Available descriptions identify 15 jumpers, including groups used for analog-input configuration and pressure-transducer-related arrangements.

What are the dimensions?

For this product specification, the supplied dimensions are 220 × 100 × 25 mm.

What is the weight?

The supplied weight is 0.35 kg.

What can cause incorrect analog readings?

Possible causes include incorrect terminal assignment, jumper configuration, faulty field transmitters, damaged wiring, poor connections, grounding problems, or faults in associated I/O circuitry.

Why should jumper positions be documented before replacement?

Because jumper settings can affect analog-input configuration. Reproducing the original system configuration helps prevent unexpected signal behavior after replacement.

Conclusion

The GE DS200TBQBG1ACB Analog I/O Terminal Block is a key field-interface component within compatible GE Mark V control architectures. It provides organized termination for analog signals and supports the connection between field instrumentation and the associated control-system electronics.

Its high-density terminal arrangement, configurable jumpers, and integration with the Mark V signal architecture make accurate wiring and configuration particularly important during maintenance.

With the supplied dimensions of 220 × 100 × 25 mm and a weight of 0.35 kg, the DS200TBQBG1ACB provides a compact solution for industrial analog signal termination. Proper terminal identification, jumper documentation, secure wiring, and systematic troubleshooting are essential for maintaining reliable analog signal acquisition and stable turbine-control operation.
