Product Overview
In industrial automation systems, operator interface components are essential for monitoring equipment status, displaying operating information, and enabling convenient system interaction. Reliable human-machine communication helps operators quickly identify system conditions, adjust parameters, and maintain stable industrial operations.

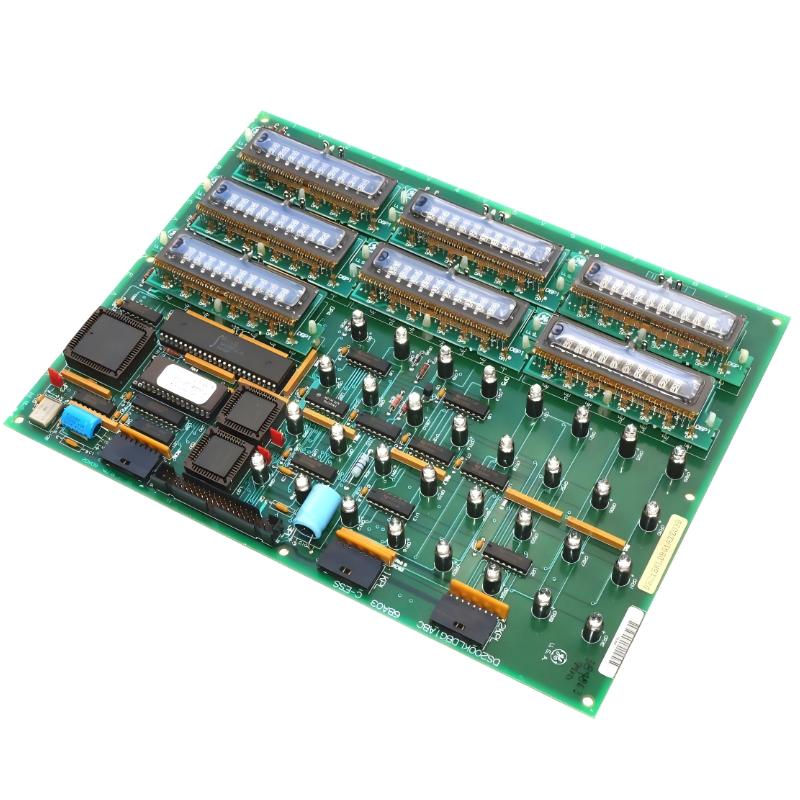

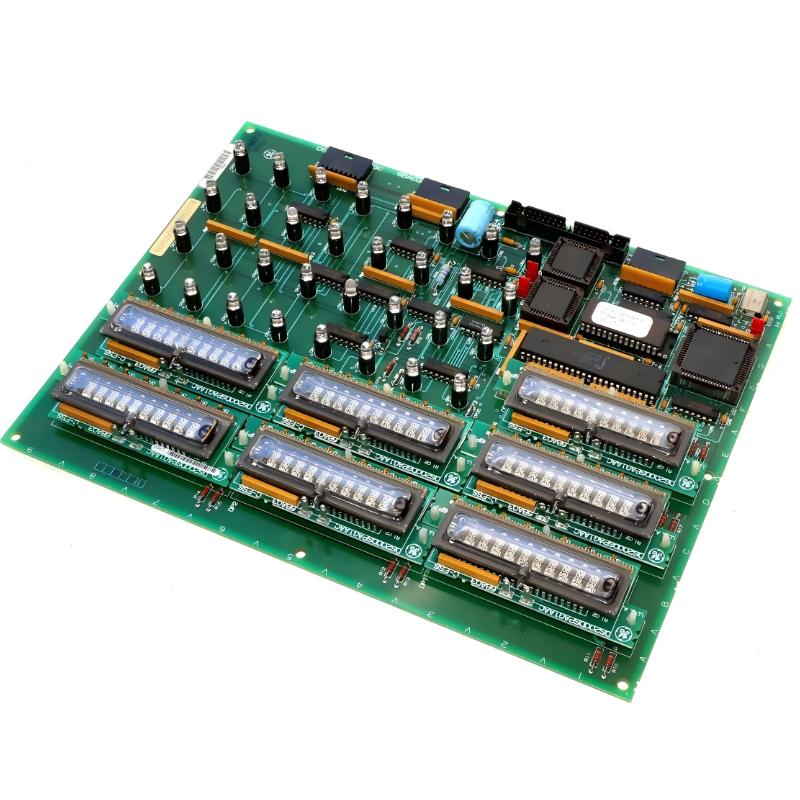

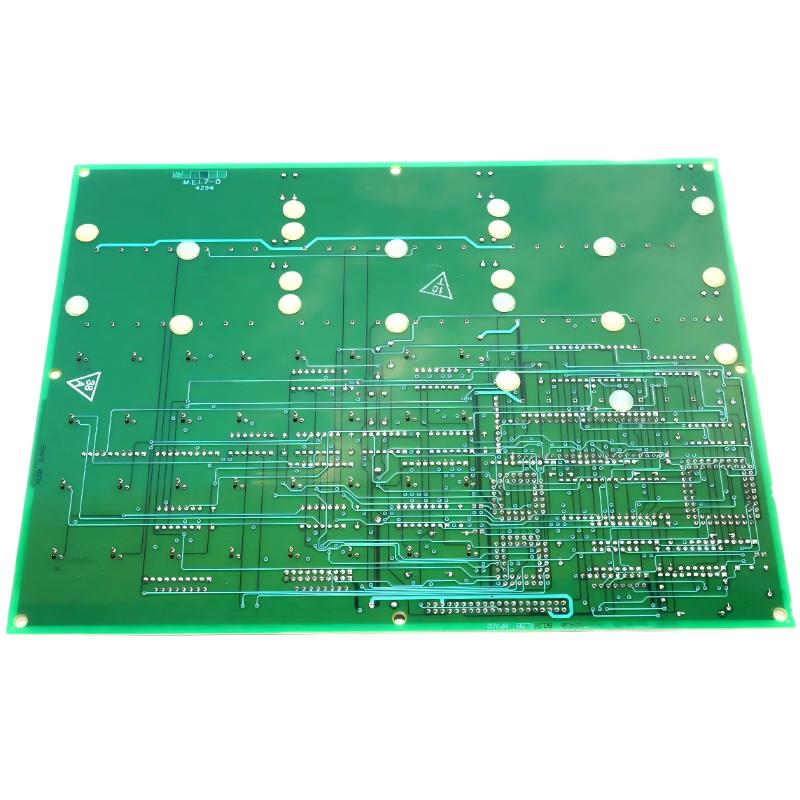

The GE DS200KLDBG1ABC Mark V LED Display Keyboard is an operator interface module designed for GE Mark V control systems. It combines LED display functions and keyboard input capabilities, allowing operators to view system information, access control parameters, and interact with industrial equipment.
As part of the GE Mark V control platform, the DS200KLDBG1ABC is designed for industrial applications requiring dependable operator communication, clear status indication, and convenient maintenance access.
With dimensions of 224 × 206 × 20 mm and a weight of 0.567 kg, the GE DS200KLDBG1ABC Mark V LED Display Keyboard features a compact design suitable for installation in industrial control panels and automation cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | DS200KLDBG1ABC |
| Product Type | Mark V LED Display Keyboard |
| Application | Operator Interface Module |
| Series | GE Mark V Control System |
| Function | Display Monitoring and Keyboard Input |
| Display Type | LED Display Interface |
| Installation Type | Control Panel / Cabinet Installation |
| Dimensions | 224 × 206 × 20 mm |
| Weight | 0.567 kg |
Function and Working Principle
The GE DS200KLDBG1ABC Mark V LED Display Keyboard operates as a local operator interface between personnel and the industrial control system.
The operating process is:
Control System Data → Display Interface → LED Status Display → Operator Input → Control System Response
Main working functions include:
- Receives operating information from the control system.
- Displays alarms, status messages, and system parameters through LED indicators.
- Accepts operator commands through the keyboard interface.
- Transfers input commands back to the control system.
- Supports equipment monitoring and maintenance operations.
This interface allows operators to quickly understand system conditions and perform necessary control actions.
Role in Industrial Automation Systems
The DS200KLDBG1ABC plays an important role in GE Mark V automation architectures.
Main functions include:
- Local equipment monitoring
- Operator command input
- Alarm indication
- Parameter access
- System status display
Typical applications include:
- Turbine control systems
- Generator control equipment
- Industrial drive systems
- Power automation systems
- Process control cabinets
Main Features
Clear LED Status Display
The LED display function provides operators with direct system information.
Advantages:
- Quick status identification
- Easy alarm recognition
- Improved maintenance efficiency
- Reduced troubleshooting time
Integrated Keyboard Operation
The integrated keyboard allows convenient local interaction with the control system.
Benefits:
- Direct parameter access
- Simplified maintenance operations
- Faster operator response
- Improved equipment management
Compact Industrial Design
With dimensions of 224 × 206 × 20 mm, the DS200KLDBG1ABC is designed for efficient installation.
Advantages:
- Compact panel integration
- Space-saving structure
- Easy replacement
- Suitable for industrial cabinets
Reliable Industrial Interface
The module is designed for continuous operation in demanding automation environments.
Benefits:
- Stable communication
- Reliable operator interaction
- Long service life
- Reduced system downtime
Industrial Applications
Turbine Control Systems
The DS200KLDBG1ABC is commonly used in industrial turbine control environments.
Applications include:
- Turbine monitoring
- Equipment status display
- Operator access functions
- Control system interaction
Generator Automation Systems
Generator systems require reliable local interfaces for monitoring and operation.
Applications include:
- Power generation equipment
- Generator control panels
- Electrical automation systems
Industrial Drive Systems
The display keyboard can support local monitoring functions in drive-related applications.
Applications include:
- Motor control systems
- Industrial power equipment
- Automation cabinets
Process Control Equipment
Industrial processes require clear information display and operator access.
Applications include:
- Manufacturing systems
- Energy facilities
- Industrial monitoring systems
Installation Guide
Step 1: Confirm System Compatibility
Before installation, verify:
- Correct module model
- GE Mark V system compatibility
- Panel installation requirements
- Cable connections
Ensure the replacement unit matches the existing configuration.
Step 2: Shut Down System Power
Before replacing the display keyboard:
- Disconnect system power
- Follow safety procedures
- Confirm equipment is safe to access
This prevents electrical damage and ensures personnel safety.
Step 3: Remove Existing Interface Module
Carefully:
- Disconnect communication cables
- Remove mounting hardware
- Take out the existing display keyboard
Avoid damaging connectors and panel components.
Step 4: Install DS200KLDBG1ABC
Installation steps:
- Mount the LED display keyboard in the correct position
- Secure fixing points
- Connect interface cables
- Verify connector alignment
Step 5: Perform Functional Testing
After installation:
- Restore system power
- Check LED indicators
- Test keyboard operation
- Verify communication
- Confirm normal system display functions
Common Failure Symptoms
| Fault Symptom | Possible Cause |
|---|---|
| LED display not working | Power or display circuit issue |
| Keyboard input failure | Interface malfunction |
| Incorrect displayed information | Communication problem |
| No system response | Connection or control issue |
| Intermittent display | Loose connection or component aging |
Troubleshooting Guide
Check Power Supply
Inspect:
- Module power connection
- Control voltage
- Electrical terminals
Incorrect power supply may prevent normal operation.
Verify Communication Connection
Check:
- Interface cables
- Connector condition
- Communication path
Communication faults may cause incorrect display information.
Inspect Keyboard Function
Check:
- Key response
- Input signals
- Interface condition
Keyboard failure may indicate module damage.
Replace Faulty Display Module
If the interface module is confirmed defective:
- Replace the DS200KLDBG1ABC
- Verify system communication
- Perform functional testing
Maintenance Recommendations
To maintain reliable operation of the GE DS200KLDBG1ABC Mark V LED Display Keyboard:
- Keep the control panel clean
- Protect the display surface
- Check cable connections regularly
- Monitor abnormal display conditions
- Perform preventive inspections
Regular maintenance helps improve operator interface reliability and extend service life.
Compatible Automation Components
| Component | Function |
|---|---|
| LED Display Keyboard | Provides operator monitoring and input |
| Processor Module | Executes control logic |
| I/O Modules | Handles field signals |
| Control Boards | Manage system operation |
| Industrial Communication Network | Enables system data exchange |
Key Advantages
- Integrated LED display and keyboard interface
- Designed for GE Mark V control systems
- Clear equipment status indication
- Convenient local operation
- Compact industrial structure
- Reliable automation system interaction
Technical FAQs
What is GE DS200KLDBG1ABC used for?
The GE DS200KLDBG1ABC Mark V LED Display Keyboard is used as a local operator interface for monitoring and interacting with GE Mark V control systems.
What is the main function of this module?
Its main function is to display system information and provide keyboard-based operator input.
Where is it commonly installed?
It is typically installed on industrial control panels and automation cabinets.
What are the dimensions?
The dimensions are 224 × 206 × 20 mm.
What is the weight?
The weight is 0.567 kg.
Why are operator interface modules important?
Operator interface modules provide real-time system visibility, simplify maintenance operations, and improve control system management efficiency.
Conclusion
The GE DS200KLDBG1ABC Mark V LED Display Keyboard is an important operator interface component designed for GE industrial control applications.
With integrated LED display capability, keyboard input functionality, and compact industrial design, it helps operators monitor equipment status, access system information, and improve maintenance efficiency.
For automation engineers, maintenance professionals, and industrial system integrators, the DS200KLDBG1ABC provides a reliable solution for local operation and monitoring within GE Mark V control environments.
