Product Overview

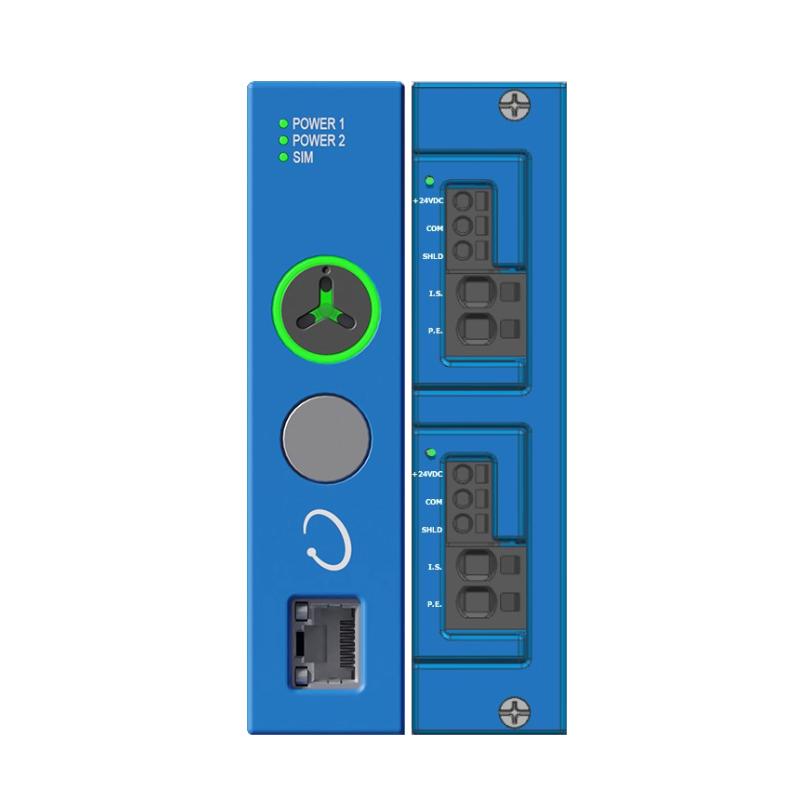

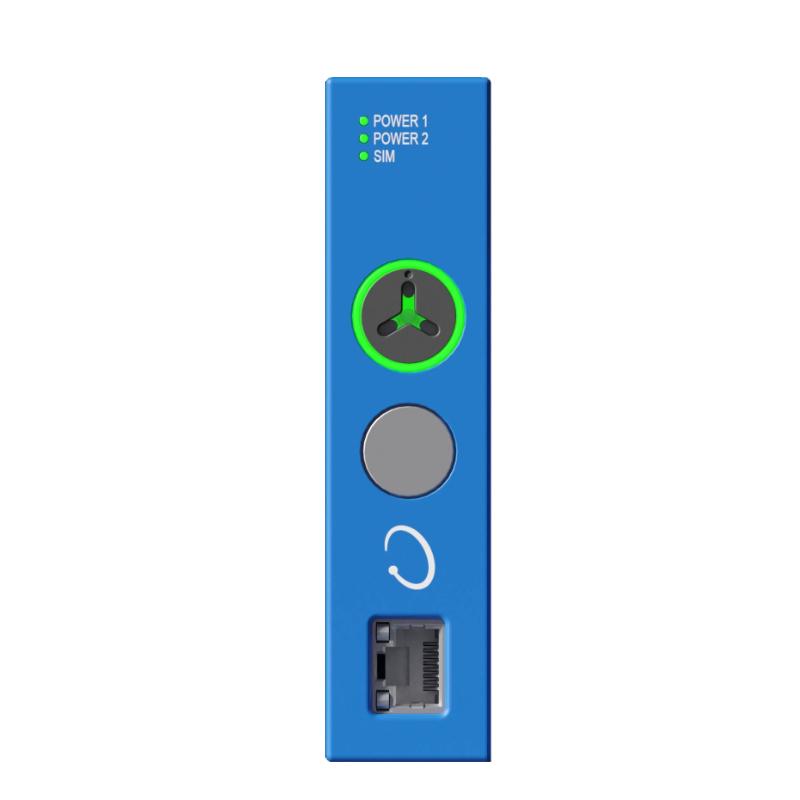

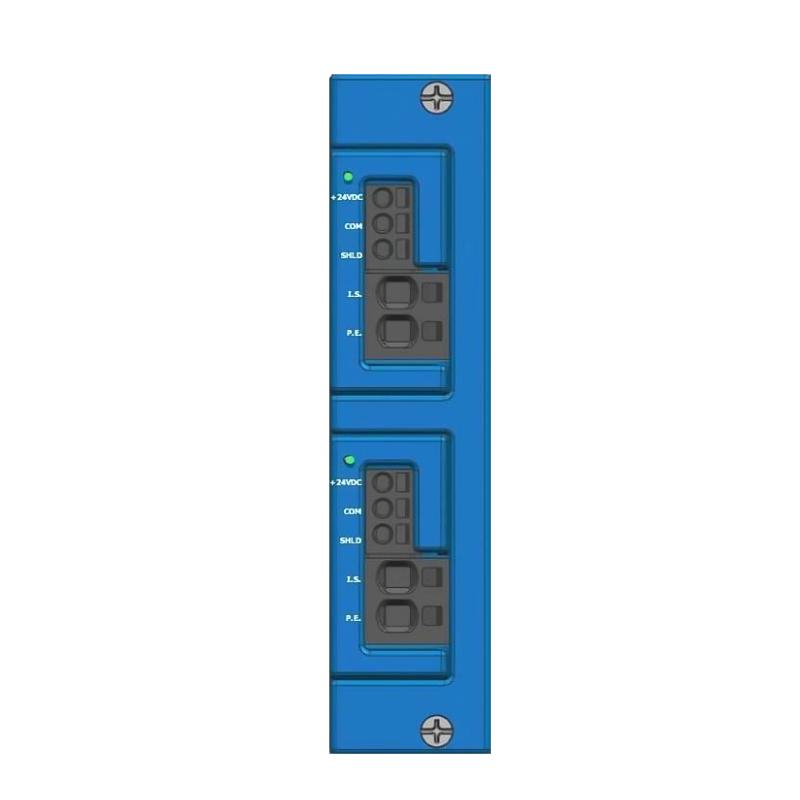

The Bently Nevada 60R/PIM01-00-0 3U Power Input Module is a power-input component for the Bently Nevada 60R monitoring platform. It belongs to the power section of the modular monitoring architecture and supports the electrical supply path required by the monitoring rack and its installed modules.
In a condition-monitoring system, modules responsible for vibration, temperature, and other machine measurements depend on a stable rack-level power system. The PIM01-00-0 handles the power-input role rather than directly acquiring machinery signals.
The 60R/PIM01-00-0 is particularly relevant when maintaining or replacing power-interface hardware in a 60R monitoring rack. Its function should be considered together with the chassis, monitoring modules, and the complete power-distribution arrangement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 60R/PIM01-00-0 |
| Product Type | 3U Power Input Module |
| Main Function | Monitoring System Power Input |
| Application | Bently Nevada 60R Monitoring System |
| Dimensions | 132.1 × 20.3 × 245.6 mm |
| Weight | 1.2 kg |
Main Features
The 60R/PIM01-00-0 is focused on power entry and rack-level power management.
- 3U power input module for the Bently Nevada 60R platform
- Used within a modular machinery monitoring architecture
- Supports the monitoring rack’s electrical power path
- Works with other 60R monitoring modules
- Suitable for continuous condition-monitoring installations
- Useful for rack-level power maintenance
- Does not directly perform vibration or temperature measurement
- Designed for integration into a modular chassis
- Suitable for industrial machinery monitoring systems
- Dimensions of 132.1 × 20.3 × 245.6 mm
- Weight of 1.2 kg
Working Principle
The 60R/PIM01-00-0 forms part of the electrical path between the monitoring system’s power source and the modules installed in the 60R rack.
A simplified arrangement is:
Incoming Power → 60R/PIM01-00-0 → Monitoring Chassis → Monitoring Modules
The module receives the applicable electrical input and supports the rack’s power-distribution architecture. Once the required supply is available, installed monitoring modules can perform their individual functions.
For example, a 60R rack may contain dynamic input modules for vibration-related measurements, RTD/TC modules for temperature acquisition, and condition-monitoring modules for broader machine analysis.
This means the PIM01-00-0 operates at the infrastructure level. It does not replace the measurement modules and does not itself function as a vibration or temperature input channel.
Power Architecture in a 60R Monitoring System
A modular monitoring rack can contain several different functional layers:
Power Input → Rack Power Distribution → Measurement Modules → Monitoring / Protection System
The PIM01-00-0 belongs to the first part of this chain.
This separation is useful during troubleshooting. If multiple monitoring modules become unavailable simultaneously, the common power path should be checked before assuming that several individual measurement modules have failed.
A practical troubleshooting sequence is:
Incoming Supply → PIM01-00-0 → Chassis → Individual Module → Signal Channel
This approach helps isolate whether the problem originates from the external power source, rack power section, module power connection, or an individual measurement channel.
Industrial Applications
The 60R/PIM01-00-0 can be used in industrial machinery monitoring installations where multiple monitoring functions are integrated into a common rack.
| Application | Typical Use |
|---|---|
| Steam Turbine Monitoring | Monitoring-rack power |
| Gas Turbine Monitoring | Condition-monitoring infrastructure |
| Generator Systems | Rack-level electrical supply |
| Compressor Monitoring | Continuous monitoring system |
| Pump Monitoring | Monitoring-rack power input |
| Motor Monitoring | Machinery condition monitoring |
| Gearbox Monitoring | Centralized monitoring |
| Rotating Machinery | Machine protection systems |
| Process Plants | Continuous equipment monitoring |
| Industrial Turbomachinery | Monitoring and protection architecture |
It is particularly appropriate for installations where power, measurement, and monitoring functions are organized within a modular 3U rack.
Installation and Maintenance
Before replacing the 60R/PIM01-00-0, verify the complete monitoring-system configuration and isolate the applicable electrical supply.
Recommended maintenance checks include:
- Confirm the complete 60R/PIM01-00-0 part number.
- Verify the compatible 60R chassis.
- Check incoming power.
- Inspect the module’s electrical connections.
- Examine connectors for contamination or damage.
- Check for signs of overheating.
- Verify the chassis power-distribution path.
- Confirm that other installed modules are receiving the expected supply.
After installation:
- Check that the module is correctly seated.
- Verify all electrical connections.
- Restore power according to the applicable procedure.
- Check chassis status.
- Confirm operation of installed monitoring modules.
- Review system diagnostics.
- Verify communication and measurement channels.
- Confirm that the machinery monitoring system has returned to its expected operating condition.
If the replacement is being performed because the rack has lost power, the incoming supply and common power path should also be investigated. Replacing the module without identifying an upstream or downstream fault may not resolve the problem.
Related Components
The PIM01-00-0 operates alongside other components in the 60R monitoring architecture.
| Component | Function |
|---|---|
| 60R/CHA02 | 3U monitoring chassis |
| 60R/PIM01-00-0 | Power input |
| 60R/INP01 | Dynamic signal acquisition |
| 60R/INP01-00-0 | Dynamic signal acquisition |
| 60R/INP07 | RTD/TC temperature acquisition |
| 60R/CMM01 | Condition monitoring |
| Proximity Probe | Shaft displacement measurement |
| RTD / Thermocouple | Temperature measurement |
| Speed Sensor | Rotational-speed measurement |
| Monitoring Software | Data analysis and machine-status display |
The actual module combination depends on the monitored machine and required measurement functions.
Recommended Related Models
| Model | Product Type | Main Function | Typical Application |
|---|---|---|---|
| Bently Nevada 60R/PIM01-00-0 | 3U Power Input Module | Rack power input | 60R monitoring system |
| Bently Nevada 60R/PIM01 | 3U Power Input Module | Rack power input | 60R monitoring system |
| Bently Nevada 60R/CHA02 | 3U Panel Chassis | Module mounting | Monitoring rack |
| Bently Nevada 60R/INP01 | Dynamic Input Module | Dynamic signal acquisition | Vibration monitoring |
| Bently Nevada 60R/INP07 | RTD/TC Temperature Module | Temperature acquisition | Bearing monitoring |
| Bently Nevada 60R/CMM01 | Condition Monitoring Module | Machine condition monitoring | Machinery monitoring |
The 60R/PIM01 and 60R/PIM01-00-0 should not be assumed to be interchangeable solely because their basic product descriptions are similar. The complete part number and applicable system configuration should be checked before replacement.
Key Advantages
- 3U power-input module for the Bently Nevada 60R platform
- Supports the rack-level power architecture
- Suitable for modular machinery monitoring systems
- Works with multiple 60R monitoring modules
- Useful for continuous industrial monitoring
- Helps establish the power path for rack-installed modules
- Suitable for maintenance and replacement applications
- Compact modular construction
- Supports centralized monitoring-rack architecture
- Dimensions of 132.1 × 20.3 × 245.6 mm
- Weight of 1.2 kg
Technical FAQs
What is the function of the Bently Nevada 60R/PIM01-00-0?
The 60R/PIM01-00-0 is a 3U power input module used within the Bently Nevada 60R monitoring architecture. Its role is associated with the electrical power path of the monitoring rack rather than direct machine-signal measurement.
Does the PIM01-00-0 acquire vibration or temperature signals?
No. Its primary role is power input. Dynamic measurement is handled by modules such as the 60R/INP01, while temperature acquisition is associated with modules such as the 60R/INP07.
What should be checked if several monitoring modules stop operating simultaneously?
Start with the common power path: incoming electrical supply, PIM01-00-0, chassis connections, and rack-level power distribution. If the common supply is healthy, individual module connections and module-level faults can then be investigated.
What should be verified before replacing a 60R/PIM01-00-0?
Confirm the complete part number, compatible 60R chassis, power configuration, electrical connections, and the reason for the original failure. The -00-0 suffix should be retained when identifying a replacement because similar-looking power modules may have different system configurations.
