- Bently Nevada
- 60R/CMM01-00
- Status Monitoring Module
- USA
- 132.1 x 20.3 x 245.6 mm
- 1.2 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 2
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Overview

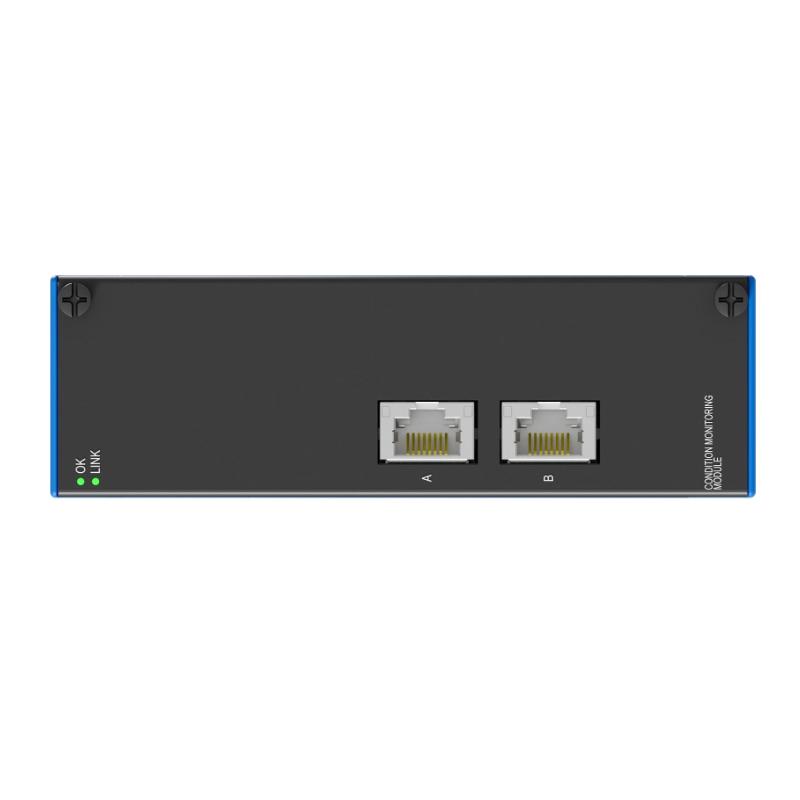

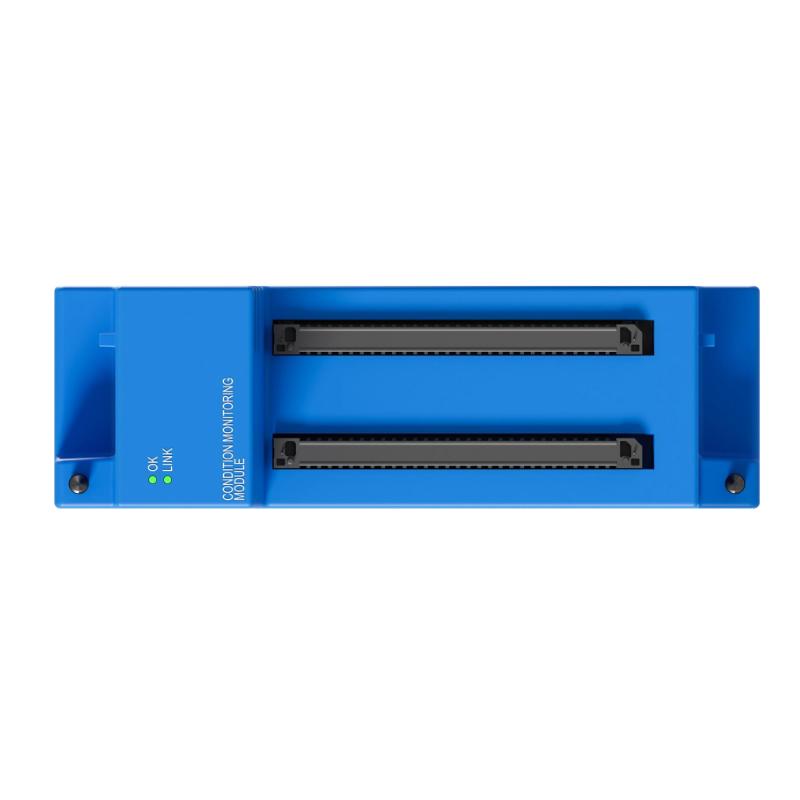

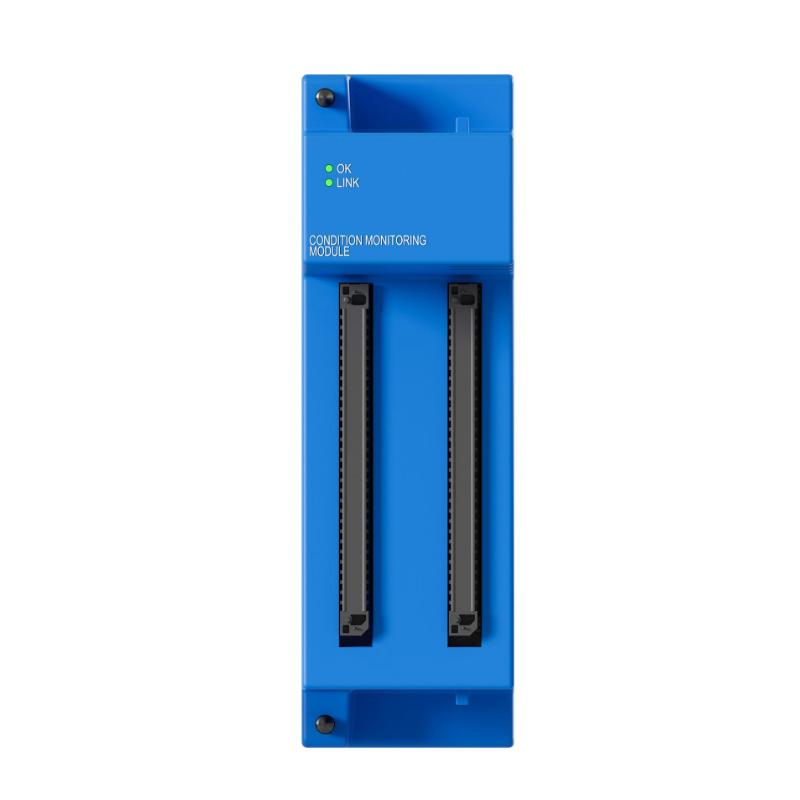

The Bently Nevada 60R/CMM01-00 is a Condition Monitoring Module (CMM) designed for the Orbit 60 machinery monitoring platform. It is responsible for collecting, processing, and managing condition monitoring data from connected monitoring modules within the system.
The module works as a key component in advanced machinery health monitoring applications, providing data access for vibration analysis, equipment condition evaluation, and integration with monitoring software. It is commonly used in critical industrial environments such as power generation, oil and gas, petrochemical, and large rotating equipment applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 60R/CMM01-00 |
| Product Type | Condition Monitoring Module |
| Series | Orbit 60 |
| Module Function | Machinery Condition Monitoring Data Processing |
| Dimensions | 132.1 × 20.3 × 245.6 mm |
| Weight | 1.2 kg |
| Installation Type | Rack / Chassis Mounted Module |
| Application | Rotating Machinery Monitoring |
| Compatible Platform | Orbit 60 Monitoring System |
| Main Function | Data Acquisition, Processing, and Condition Monitoring |
Applications
Power Generation Equipment
The 60R/CMM01-00 is used in power plants for monitoring turbines, generators, and other critical rotating machinery where continuous equipment health information is required.
Oil and Gas Systems
In oil and gas facilities, the module supports machinery condition monitoring for compressors, pumps, and other high-value rotating assets.
Petrochemical Plants
The module helps monitor complex process equipment by collecting and managing vibration and operating condition data.
Large Rotating Machinery
It is suitable for applications where multiple monitoring channels and advanced diagnostic functions are required for equipment protection and maintenance planning.
Industrial Condition Monitoring Systems
The module supports centralized machinery monitoring solutions where real-time equipment status and diagnostic information are important.
How It Works
The 60R/CMM01-00 operates as a condition monitoring processing module within the Orbit 60 system.
It receives measurement information from connected monitoring modules through the system communication structure and manages condition-related data such as measurements, waveforms, alarms, and machine status information.
A typical system structure is:
Sensors → Monitoring Modules → 60R/CMM01-00 → Monitoring Software / Control System
The module does not directly measure vibration signals from sensors. Instead, it manages and processes data collected by other monitoring modules, allowing engineers to analyze machine health and identify potential equipment issues.
Key Benefits
| Feature | Benefit |
|---|---|
| Condition Monitoring Function | Provides centralized management of machinery health information. |
| Orbit 60 Compatibility | Designed for advanced machinery monitoring applications. |
| Data Processing Capability | Supports analysis of collected machine condition data. |
| System Integration | Enables communication between monitoring hardware and software platforms. |
| Compact Module Design | Fits into industrial monitoring rack systems. |
| Diagnostic Support | Helps maintenance teams evaluate equipment condition. |
Related Components
| Component | Function |
|---|---|
| 60R/CMM01-00 Module | Processes and manages condition monitoring data. |
| Orbit 60 Monitoring Rack | Provides module installation and system communication. |
| Monitoring Input Modules | Collect vibration and machine operating data. |
| Communication Modules | Provide system data exchange functions. |
| Monitoring Software | Displays and analyzes machine condition information. |
| Sensors and Transducers | Measure vibration, position, and operating parameters. |
Installation
The 60R/CMM01-00 should be installed in a compatible Orbit 60 chassis according to system configuration requirements.
Before installation, technicians should verify:
- Correct module model
- Compatible monitoring rack
- Available installation slot
- Power supply condition
- Communication connection
- System configuration settings
During installation, the module should be handled carefully to prevent damage to electronic components. After installation, the system should be checked to confirm proper communication between the module and connected monitoring devices.
Correct configuration is important because the module manages system-level monitoring data and interacts with other modules within the machinery protection architecture.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| Module Not Recognized | Communication issue or incorrect installation | Check rack connection and system configuration. |
| Data Missing | Input module communication problem | Verify connected monitoring modules. |
| Communication Failure | Network or module configuration issue | Check communication settings and connections. |
| Abnormal Status Indication | Module hardware or system fault | Review system diagnostics and module status. |
| Incorrect Monitoring Data | Configuration mismatch | Verify module settings and connected devices. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| 60R/CMM01-00 | Condition Monitoring Module | Orbit 60 machinery monitoring system |
| 60R/CMM02-00 | Condition Monitoring Module | Updated single-slot monitoring application |
| 60R/SIM01-00 | System Interface Module | System communication and interface functions |
| 60R/CGW01-00 | Communication Gateway Module | External system data communication |
| 3500/22M | Transient Data Interface Module | Machinery data collection |
| 3500/92 | Communication Gateway | Monitoring system integration |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| Orbit 60 Series | Machinery Monitoring Platform | Advanced condition monitoring |
| 60R Series Modules | Monitoring Hardware Modules | System expansion and monitoring functions |
| System Interface Modules | Communication Module | System configuration and communication |
| Communication Gateway Modules | Data Interface Equipment | External system integration |
| Bently Nevada Sensors | Vibration Monitoring Sensors | Machine condition measurement |
| Machinery Protection Systems | Monitoring Platform | Equipment protection and diagnostics |
Technical FAQs
1. What is the main function of the Bently Nevada 60R/CMM01-00?
The 60R/CMM01-00 is a condition monitoring module used to collect, manage, and process machinery condition data within the Orbit 60 monitoring system.
2. Does the 60R/CMM01-00 directly connect to vibration sensors?
No. The module does not directly perform sensor measurement. It receives and manages data collected by compatible monitoring modules connected within the system.
3. What type of data does the CMM module process?
The module processes machinery condition information such as measurement values, waveform data, alarm information, and system status data.
4. What system is the 60R/CMM01-00 designed for?
The module is designed for the Bently Nevada Orbit 60 machinery monitoring platform and works together with other Orbit 60 system modules.
5. What should be checked when replacing a 60R/CMM01-00 module?
The replacement process should verify module compatibility, rack configuration, power supply condition, communication settings, and system configuration parameters.
