Product Overview

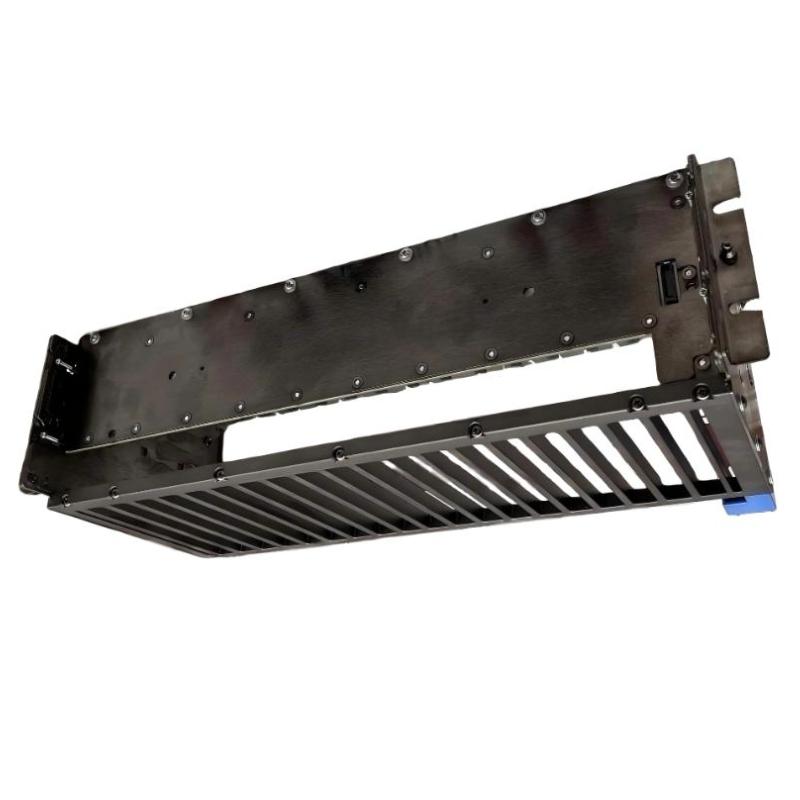

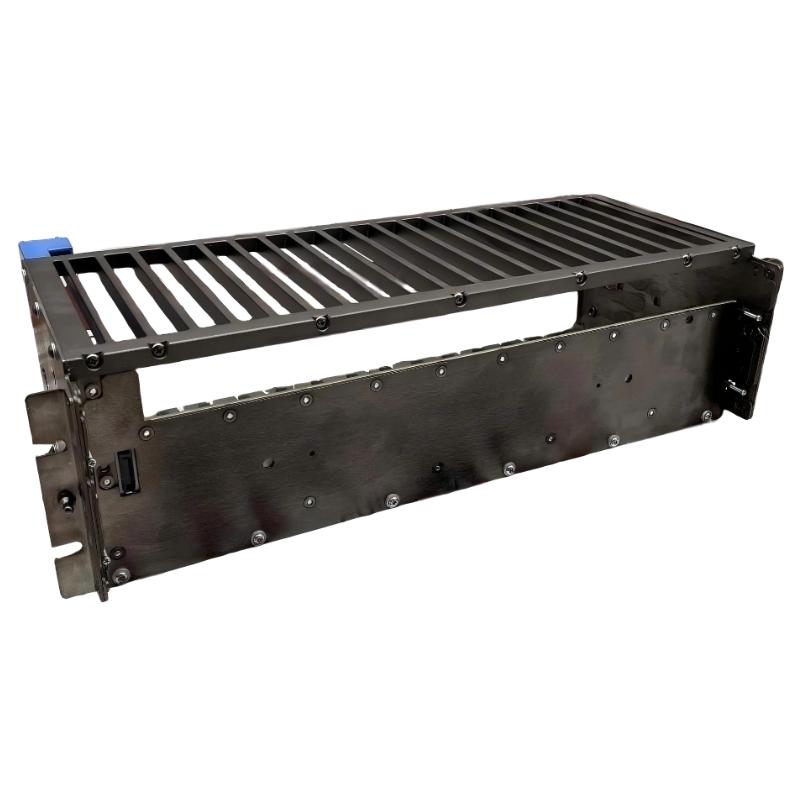

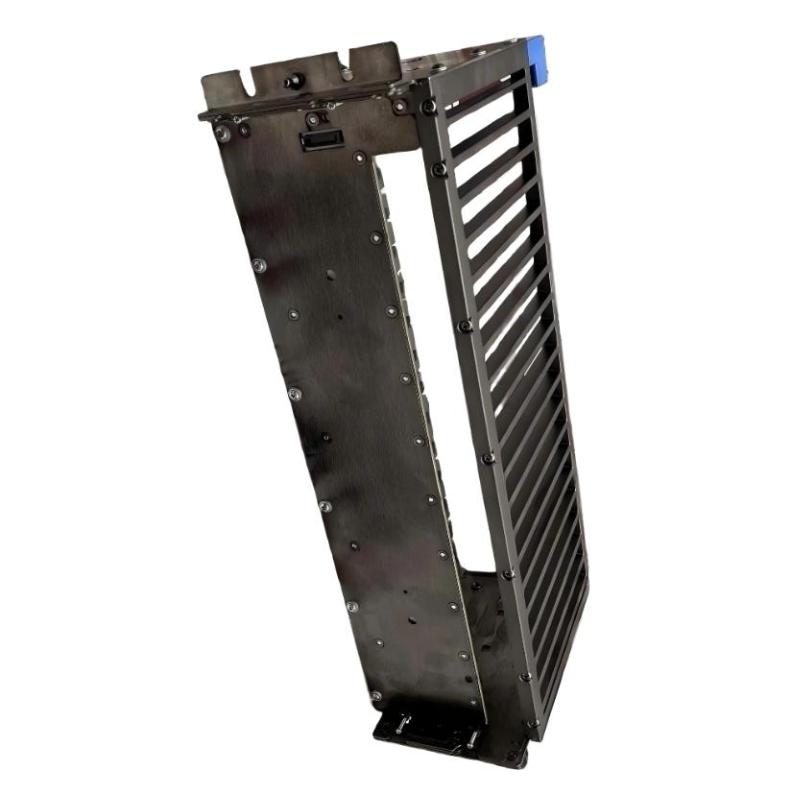

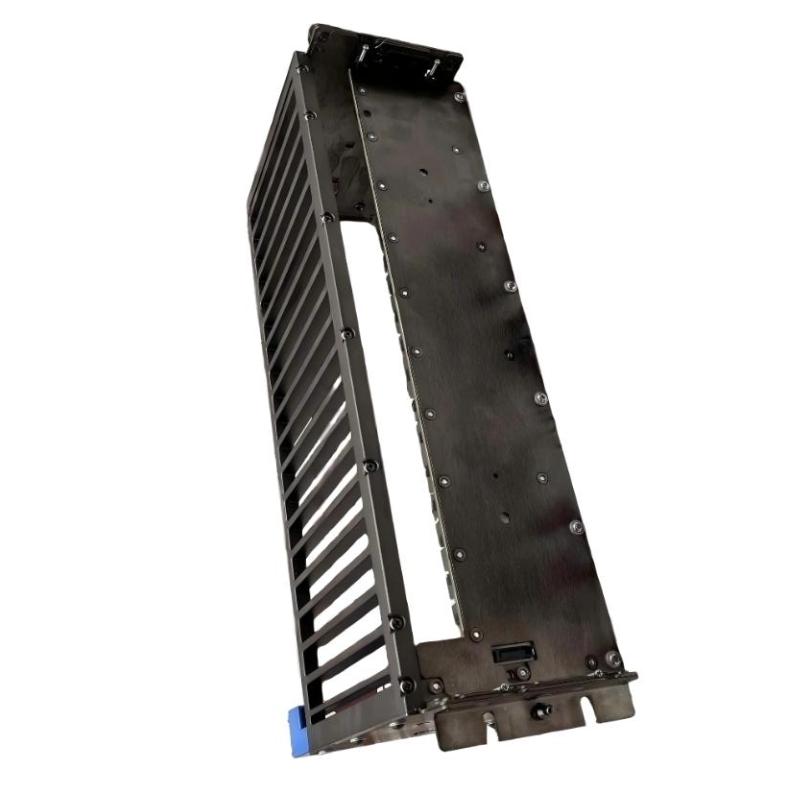

The Bently Nevada 60R/CHA02 3U Panel Chassis is the physical mounting and interconnection platform for modules in the Orbit 60 Series condition monitoring system. Unlike an individual monitoring or communication module, the chassis provides the mechanical structure, module slots, internal connections, and cabinet-level integration required to assemble a complete monitoring system.

The 3U panel chassis is intended for installation within an industrial control cabinet or equipment rack. Individual Orbit 60 modules are installed into the chassis and operate together through the internal system architecture.

In a typical installation, the chassis may contain a combination of condition monitoring modules, communication interfaces, power-related modules, and other Orbit 60 system modules. The exact module arrangement depends on the monitoring requirements and system configuration.

The chassis is therefore more than a simple metal enclosure. It forms the physical foundation of the Orbit 60 platform, maintaining module alignment and providing the common infrastructure required for the installed modules to operate as one system.

With dimensions of 482.6 × 132.1 × 245.6 mm and a stated weight of 14.5 kg, the 60R/CHA02 is intended for fixed industrial installation rather than portable use.

Technical Specifications

The chassis should be selected according to the required Orbit 60 system architecture. Before installation, verify the number and type of modules that need to be accommodated as well as the available cabinet space.

Product Features

The 60R/CHA02 provides the structural foundation for an Orbit 60 monitoring installation.

Its 3U panel format is suited to control cabinets where equipment needs to be organized into a standardized rack-style arrangement. The chassis keeps the individual monitoring modules physically aligned while providing the common platform through which the system is assembled.

Key characteristics include:

• Orbit 60 Series chassis
• 3U panel configuration
• Panel-mounted installation
• Designed for Orbit 60 modules
• Supports modular condition-monitoring system construction
• Provides a common mechanical mounting structure
• Suitable for industrial control cabinets
• Supports organized module installation
• Suitable for fixed monitoring installations
• Dimensions of 482.6 × 132.1 × 245.6 mm
• Weight of 14.5 kg

The modular construction is particularly useful when the monitoring system needs to combine several functions. Instead of installing unrelated standalone devices, the required Orbit 60 modules can be assembled within the same chassis architecture.

Working Principle

The 60R/CHA02 itself does not measure vibration or process parameters. Its role is to provide the physical and system-level platform in which the monitoring modules operate.

A simplified architecture is:

Field Sensors → Orbit 60 Monitoring Modules → Chassis Interconnection → Communication Module → Plant Control System

The installed modules perform the actual electrical and processing functions. The chassis keeps these modules securely mounted and establishes their relationship with the common system infrastructure.

For example, an Orbit 60 installation may contain monitoring modules receiving vibration signals, a condition-monitoring processor handling the acquired information, and a communication gateway transferring selected data to a PLC or DCS.

The chassis allows these modules to operate as an integrated system rather than as separate pieces of equipment.

This modular approach is useful when a monitoring system needs to be expanded. Additional compatible modules can be incorporated into the chassis architecture without redesigning the entire cabinet around individually mounted devices.

Role in an Orbit 60 Monitoring System

The 60R/CHA02 acts as the physical backbone of the Orbit 60 module assembly.

A typical system can be organized as:

Machine Sensors → Input / Monitoring Modules → Processing → Communication Gateway → PLC / DCS

The chassis supports the modules at the center of this architecture.

Its importance becomes particularly clear during system expansion or maintenance. When a monitoring system contains several modules, maintaining consistent mechanical positioning and electrical interconnection is essential. A properly installed chassis helps keep the modules securely positioned and accessible for maintenance.

The chassis also influences cabinet planning. Its 3U format, width, depth, cable access, ventilation requirements, and module arrangement should be considered before the control cabinet is designed.

Industrial Applications

The 60R/CHA02 is suited to industrial installations where multiple Orbit 60 monitoring modules need to be assembled into a structured condition-monitoring system.

The chassis itself does not determine the monitoring capability. That capability depends on the modules installed inside it and the sensors connected to the system.

Installation and Maintenance

The 60R/CHA02 should be installed in a suitable industrial cabinet or panel with sufficient structural support for its 14.5 kg weight.

Cabinet planning should consider not only the chassis dimensions but also the space required for module insertion, wiring, connectors, ventilation, and service access.

Before installation, verify that the cabinet can support the chassis mechanically and that sufficient clearance is available around the module and cable areas.

Recommended checks include:

• Confirm the complete 60R/CHA02 model.
• Verify the 3U panel mounting arrangement.
• Check cabinet or panel dimensions.
• Confirm the cabinet can support the 14.5 kg chassis weight.
• Inspect mounting hardware before installation.
• Ensure the chassis is securely fastened.
• Verify that compatible Orbit 60 modules are being installed.
• Inspect module connectors before insertion.
• Check that modules are correctly seated.
• Avoid excessive force during module installation.
• Verify internal system connections.
• Maintain adequate cabinet ventilation.
• Keep cable routing organized.
• Inspect chassis and connectors during scheduled maintenance.
• Check for loose mounting hardware or signs of mechanical damage.

During maintenance, modules should be removed and installed carefully. Repeated mechanical stress on connectors can eventually affect electrical contact quality.

If intermittent communication or module faults occur, the chassis connections should be considered along with the individual module and network wiring.

Related Components

The 60R/CHA02 is normally used together with other Orbit 60 system components.

The chassis and modules should be treated as a system. Selecting a chassis alone does not establish a complete monitoring installation; the required monitoring, processing, communication, and power modules must also be identified.

Recommended Related Models

For Orbit 60 system construction and maintenance, the following components are relevant when planning around the 60R/CHA02.

The 60R/CHA02 should be selected when the installation requires the corresponding 3U panel chassis architecture. The modules installed inside the chassis should then be selected according to the required monitoring points, communication protocol, processing requirements, and system power arrangement.

Key Advantages

• Orbit 60 Series 3U panel chassis.
• Provides the physical platform for modular condition monitoring.
• Supports installation of compatible Orbit 60 modules.
• Suitable for industrial control cabinets.
• Provides organized module mounting.
• Supports system expansion through modular architecture.
• Suitable for fixed machinery-monitoring installations.
• Can accommodate monitoring, processing, communication, and interface modules within one system structure.
• Simplifies cabinet-level organization of Orbit 60 equipment.
• Dimensions of 482.6 × 132.1 × 245.6 mm.
• Weight of 14.5 kg.

Technical FAQs

What is the difference between the 60R/CHA02 and an Orbit 60 monitoring module?

The 60R/CHA02 is the chassis, while individual Orbit 60 modules perform functions such as signal acquisition, condition monitoring, communication, or system interfacing. The chassis provides the physical and system-level platform for installing those modules.

How should cabinet space be planned around the 60R/CHA02?

The 3U chassis dimensions should be treated as the starting point rather than the complete cabinet-space requirement. Additional room should be reserved for module installation, field wiring, Ethernet connections, ventilation, cable bends, and maintenance access.

What should be checked if an installed Orbit 60 module intermittently loses communication?

The investigation should include the module seating, chassis connections, power supply, communication gateway, Ethernet cabling, and network configuration. If several modules show similar intermittent behavior, checking the common chassis and system power infrastructure can help identify a shared cause.

Can additional Orbit 60 modules be added after the 60R/CHA02 is installed?

Additional modules can be considered when the chassis architecture provides the required capacity and the added modules are compatible with the existing system configuration. Before expansion, the available module positions, power requirements, communication architecture, cabinet thermal conditions, and system configuration should all be reviewed.
