Overview

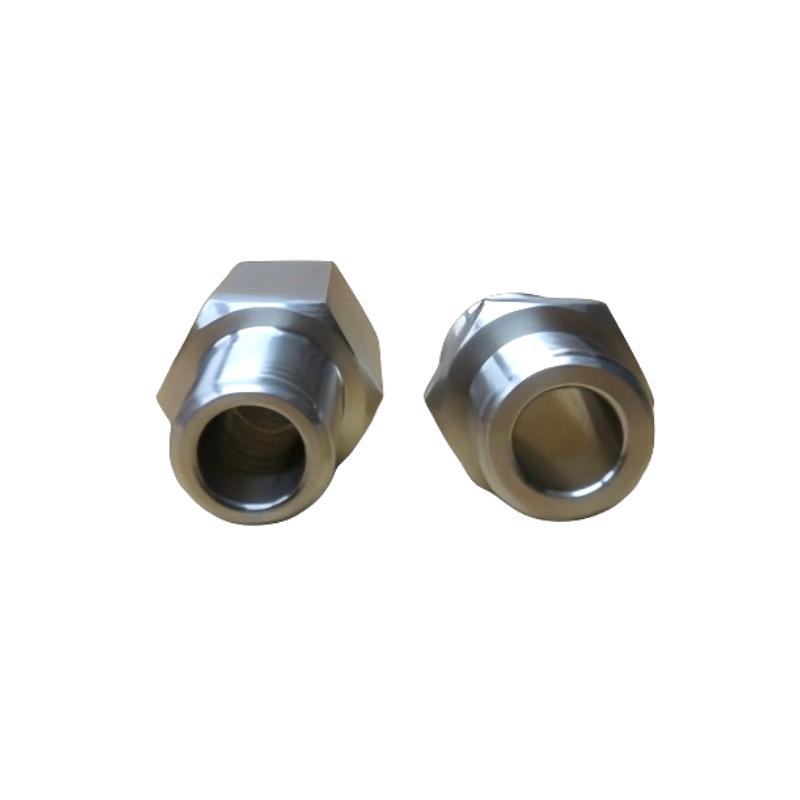

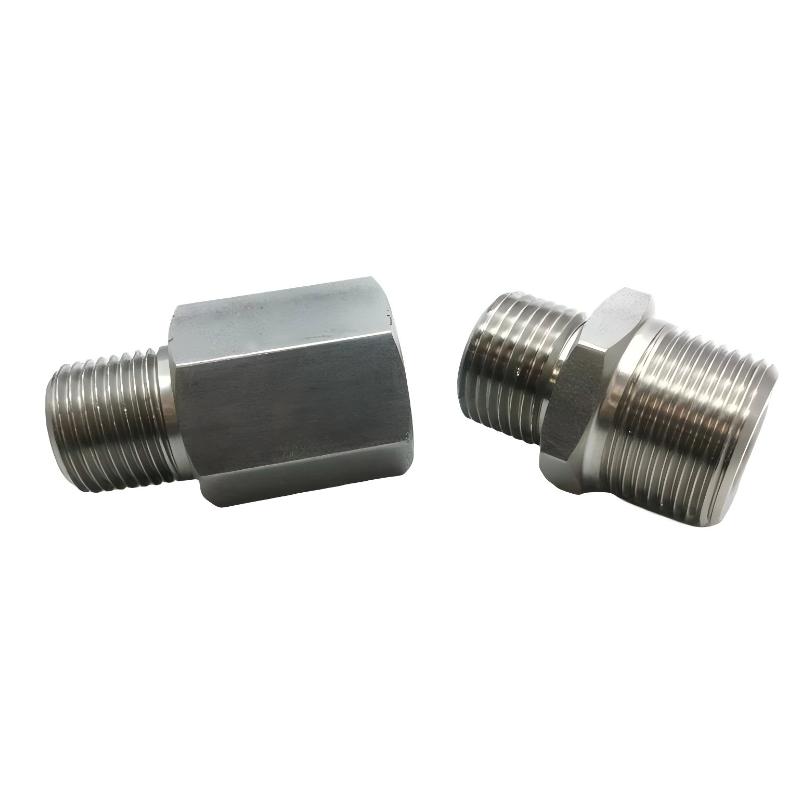

The Bently Nevada 43501-02-04-02 is a Low Pressure Cable Seal designed for use in proximity monitoring installations where sensor cables need to pass through equipment housings while maintaining proper sealing and mechanical protection.
The cable seal is a mechanical accessory used together with Bently Nevada vibration monitoring components. It provides a secure cable routing point for proximity probe cables, helping maintain installation reliability in rotating machinery applications. It is commonly applied on turbines, compressors, pumps, and other critical machines where proximity sensors are installed inside bearing housings or machine enclosures.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 43501-02-04-02 |
| Product Type | Low Pressure Cable Seal |
| High Pressure Side Thread Size | 3/4-14 NPT |
| Cable Grommet Type | 04 |
| Cable Capacity | Up to 4 cables |

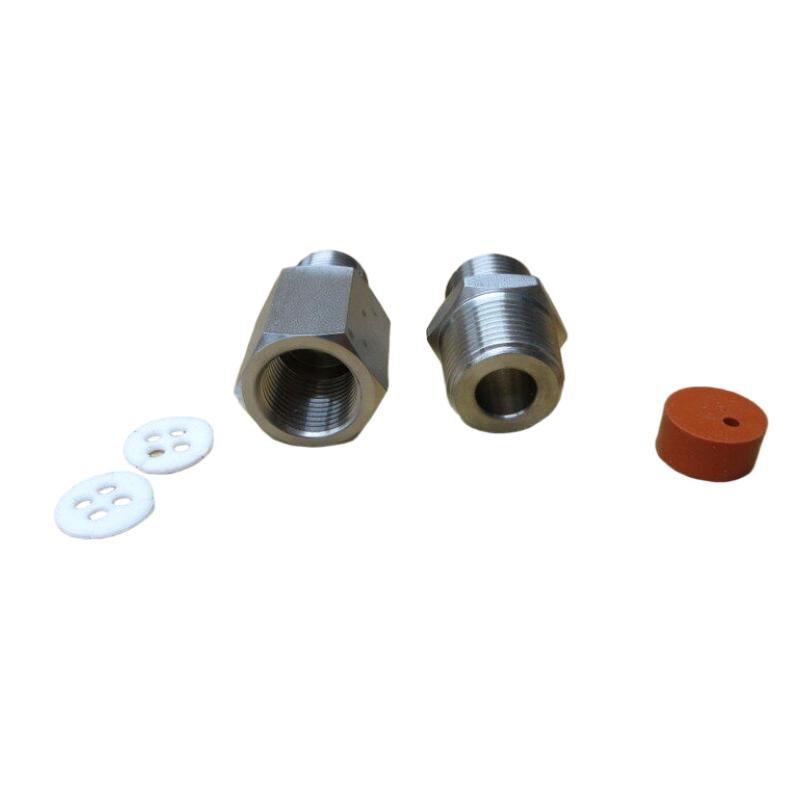

| Grommet Configuration | One punched hole, three partially prepared holes |
| Shipping Weight | 3 kg |
| Application | Proximity Probe Cable Sealing |
| Installation Area | Machine Housing / Bearing Housing |
| System Application | Rotating Machinery Monitoring |
Applications
Steam Turbines
The cable seal is used in turbine monitoring installations where proximity probe cables pass through machine structures and require secure sealing.
Gas Turbines
For gas turbine applications, the component helps maintain reliable cable routing between internal sensors and external monitoring equipment.
Compressors
Large compressors rely on stable vibration monitoring systems. The cable seal provides a protected passage for sensor cables connected to proximity monitoring equipment.
Pumps
The component can support pump monitoring installations by providing a secure cable entry point for vibration and displacement sensors.
Bearing Housing Monitoring
The cable seal is commonly used around bearing housings where proximity probes are installed for continuous shaft condition monitoring.
How It Works
The 43501-02-04-02 is a mechanical sealing component and does not perform vibration measurement itself.
Its function is to provide a sealed and organized cable passage between the sensor installation area and external monitoring equipment. The component helps maintain cable stability while protecting the connection point from mechanical stress and environmental conditions.
A typical installation structure is:
Proximity Probe → Extension Cable → Cable Seal → Junction Box / Monitoring System
The cable seal allows multiple sensor cables to pass through one installation point, reducing the need for multiple openings and improving cable management in complex machinery monitoring systems.
Key Benefits
| Feature | Benefit |
|---|---|
| Cable Sealing Design | Provides protection for probe cable entry points. |
| Multi-Cable Capability | Supports multiple cable routing requirements in one assembly. |
| NPT Thread Connection | Provides a standardized mechanical installation method. |
| Improved Cable Protection | Helps reduce cable movement and mechanical stress. |
| Machinery Monitoring Compatibility | Suitable for proximity sensor installation systems. |
| Industrial Application | Designed for demanding rotating equipment environments. |
Related Components
| Component | Function |
|---|---|
| 43501-02-04-02 Cable Seal | Provides sealed cable routing for monitoring cables. |
| Proximity Probe | Measures shaft vibration and displacement. |
| Extension Cable | Connects the probe to signal-conditioning electronics. |
| Junction Box | Organizes and connects field wiring. |
| Proximitor Sensor | Converts proximity probe signals into monitoring outputs. |
| Monitoring System | Processes vibration and machine condition data. |
Installation
The 43501-02-04-02 should be installed according to the mechanical requirements of the monitoring system and equipment housing.
Before installation, technicians should verify:
- Correct thread connection
- Compatible cable quantity
- Suitable cable diameter
- Proper grommet arrangement
- Cable routing direction
- Mechanical sealing condition
During installation, cables should not be exposed to excessive bending, pulling force, or mechanical interference. Incorrect cable routing may affect sensor reliability and long-term monitoring performance.
After installation, the complete proximity monitoring circuit should be checked to confirm stable signal transmission.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| Cable Movement | Insufficient sealing or support | Check cable fixing and seal installation. |
| Damaged Cable Near Seal | Excessive bending or mechanical stress | Inspect cable routing condition. |
| Poor Sealing Performance | Incorrect installation | Verify thread connection and sealing condition. |
| Installation Difficulty | Incorrect cable or thread selection | Confirm component compatibility. |
| Unstable Monitoring Signal | Cable damage or connection issue | Inspect the complete sensor cable path. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| 43501-02-04-02 | Low Pressure Cable Seal | Multi-cable proximity installation |
| 43501 Series Cable Seal | Cable Sealing Components | Sensor cable protection |
| 3300 XL 8 mm Proximity Probe | Eddy-Current Proximity Probe | Shaft vibration monitoring |
| 3300 XL Extension Cable | Probe Extension Cable | Probe signal connection |
| 3300 XL Proximitor Sensor | Signal Conditioner | Signal processing |
| 3300 Monitoring System | Machinery Monitoring System | Equipment protection |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| 43501 Series | Cable Seal Accessories | Probe cable sealing |
| 3300 XL Series | Proximity Monitoring System | Shaft vibration measurement |
| 3300 XL Proximity Probe | Eddy-Current Sensor | Shaft displacement monitoring |
| 3300 XL Extension Cable | Cable Component | Sensor connection extension |
| Proximitor Sensors | Signal Processing Equipment | Probe signal conversion |
| Machinery Protection Systems | Monitoring Equipment | Rotating equipment protection |
Technical FAQs
1. What is the main function of the 43501-02-04-02?
The 43501-02-04-02 provides a sealed and stable passage for proximity probe cables, helping protect cable connections and maintain reliable sensor installation.
2. Why is a cable seal required in a proximity monitoring system?
A cable seal helps prevent cable movement, protects the cable entry point, and maintains the mechanical integrity of the sensor installation.
3. Can the 43501-02-04-02 affect vibration measurement performance?
Yes. Although it does not measure vibration directly, incorrect cable sealing or unstable cable installation can affect signal reliability by causing cable damage or connection problems.
4. What components are normally connected with this cable seal?
It is typically used with proximity probes, extension cables, signal-conditioning electronics, and machinery monitoring systems as part of a complete vibration monitoring installation.
5. What should be checked when replacing the cable seal?
The thread connection, cable quantity, grommet configuration, cable size, installation position, and compatibility with the existing monitoring system should be confirmed before replacement.
