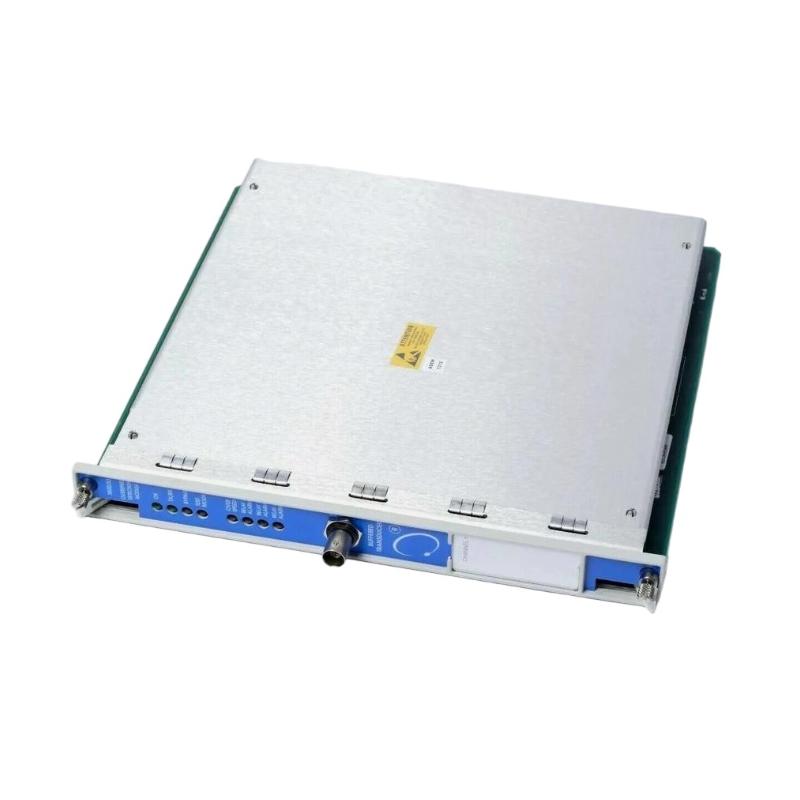

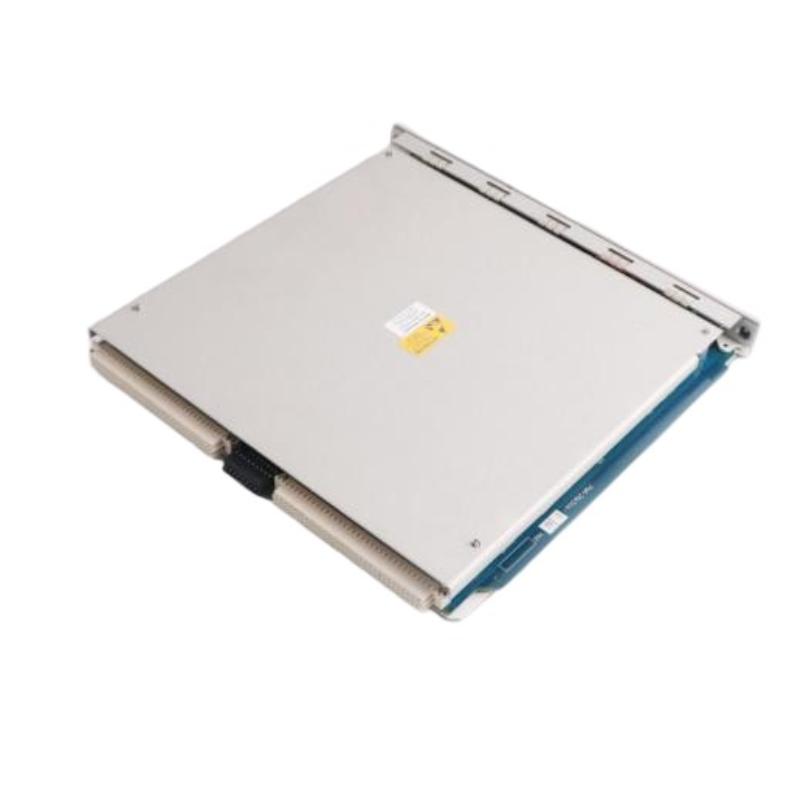

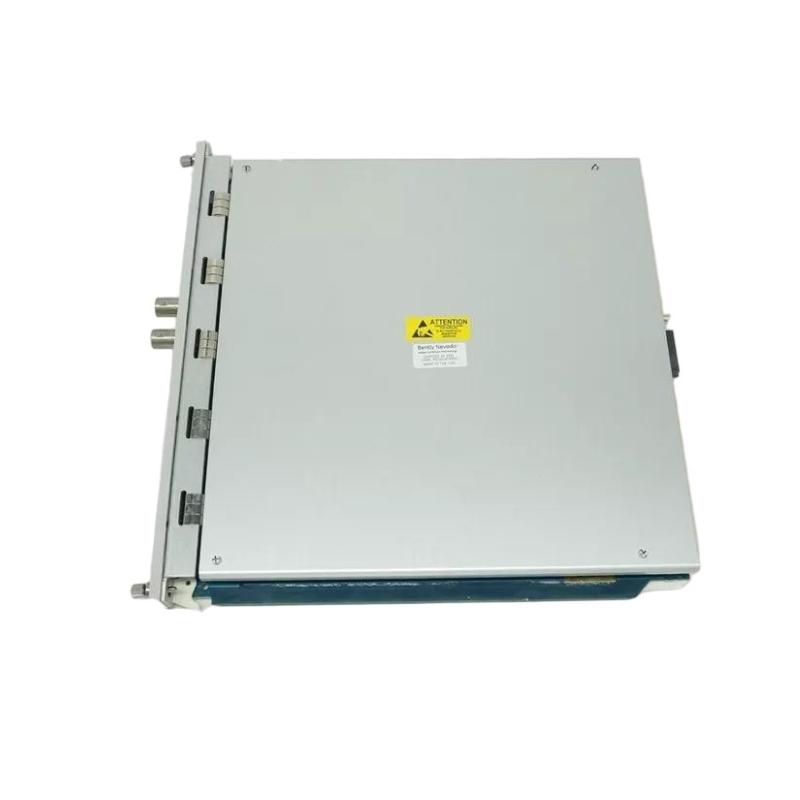

Bently Nevada 3500/40-01-00 Proximity Monitor Product Overview
1. Product Introduction
Bently Nevada 3500/40-01-00 is a high-performance four-channel Proximity Monitor module designed for use in industrial condition monitoring and machinery protection systems. It belongs to the Bently Nevada 3500 monitoring platform and is mainly used for continuous monitoring of rotating equipment operating conditions.
This module is designed to receive signals from proximity probes and monitor shaft displacement, radial vibration, position changes, and other critical mechanical parameters. It provides accurate measurement, alarm functions, and protection logic for large rotating machinery such as turbines, compressors, pumps, motors, and generators.
The 3500/40-01-00 module is widely recognized for its stable operation, high measurement accuracy, and compatibility with industrial machinery monitoring applications. It is commonly installed in environments where equipment reliability and predictive maintenance are critical.
The module works together with proximity sensors, extension cables, and monitoring racks to create a complete vibration and position monitoring system. Through continuous signal acquisition and analysis, it helps operators identify abnormal mechanical conditions before serious failures occur.
The product is designed with a modular structure, allowing easy installation, replacement, and maintenance. It can be integrated into existing 3500 system configurations without major modifications.
2. Product Basic Information
| Parameter | Description |
|---|---|
| Model | Bently Nevada 3500/40-01-00 |
| Brand | Bently Nevada |
| Product Series | 3500 Machinery Protection System Series |
| Product Type | Proximity Monitor Module |
| Module Function | Four-channel displacement and position monitoring |
| Application Type | Industrial rotating equipment condition monitoring |
| Signal Input | Proximity probe input signals |
| Monitoring Method | Continuous online monitoring |
| Installation Type | 3500 rack-mounted module |
| Channel Number | 4 monitoring channels |
| Measurement Type | Shaft displacement, radial position, vibration-related parameters |
| Alarm Function | Configurable alarm and protection monitoring |
| Communication Compatibility | Compatible with 3500 monitoring system communication architecture |
| Operating Environment | Industrial environment |
| Dimensions | Approximately 241 mm × 24.4 mm × 241 mm |
| Weight | Approx. 0.45 kg |
3. Detailed Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 3500/40-01-00 |
| Product Category | Proximity Monitoring Module |
| Series | 3500 Series |
| Input Channels | 4 channels |
| Sensor Type | Eddy current proximity probe |
| Monitoring Object | Rotating shaft displacement and mechanical movement |
| Measurement Principle | Non-contact eddy current measurement technology |
| Signal Processing | Digital signal processing |
| Mounting Method | Rack-mounted installation |
| Rack Compatibility | Bently Nevada 3500 rack system |
| Monitoring Mode | Continuous online monitoring |
| Alarm Setting | User-configurable thresholds |
| Protection Function | Machinery condition protection |
| Diagnostic Function | Channel status monitoring |
| Power Supply | 3500 rack supplied power |
| Operating Temperature | Industrial standard operating temperature range |
| Storage Temperature | Industrial storage temperature range |
| Humidity Resistance | Suitable for industrial humidity environments |
| Shock Resistance | Designed for industrial vibration applications |
| Communication | 3500 system communication interface |
| Front Panel Indicators | LED status indication |
| Maintenance Method | Hot-swappable modular replacement |
| Dimensions | Approximately 241 mm × 24.4 mm × 241 mm |
| Weight | Approx. 0.45 kg |
4. Product Applications
The Bently Nevada 3500/40-01-00 is mainly used in industrial facilities where rotating machinery requires continuous protection and monitoring.
Steam Turbine Monitoring
The module can monitor turbine shaft displacement and mechanical movement conditions. It helps detect abnormal shaft behavior caused by imbalance, misalignment, bearing problems, or mechanical wear.
Gas Turbine Monitoring
Gas turbines operate under high-speed and high-temperature conditions. The module provides continuous monitoring of critical shaft parameters to improve operational safety and reduce unexpected downtime.
Compressor Condition Monitoring
Large compressors require reliable monitoring systems because failures may lead to significant production losses. The 3500/40-01-00 helps identify early mechanical changes.
Generator Monitoring
Power generation equipment requires stable operation. The module supports monitoring of generator shaft movement and related mechanical conditions.
Pump and Motor Monitoring
Industrial pumps and motors often operate continuously for long periods. This module helps detect abnormal vibration and displacement conditions.
Oil and Gas Equipment
The product is widely suitable for demanding environments including refineries, petrochemical plants, and energy facilities where machinery protection is essential.
5. Product Advantages
High Measurement Accuracy
The module uses proximity measurement technology to provide accurate shaft position and displacement monitoring. It can detect small mechanical changes that may indicate developing equipment problems.
Reliable Machinery Protection
The 3500/40-01-00 is designed for critical machinery applications. It provides monitoring functions that help prevent severe equipment damage.
Modular Design
The module adopts a modular structure, making installation, replacement, and maintenance easier. Engineers can quickly replace modules without changing the complete monitoring system.
Continuous Online Monitoring
Unlike periodic inspection methods, this module supports continuous monitoring during normal equipment operation.
Strong Industrial Compatibility
The product is suitable for many types of rotating machinery, including turbines, compressors, pumps, and generators.
Improved Predictive Maintenance
By collecting real-time equipment condition information, the module helps maintenance teams plan repairs before unexpected failures occur.
Long-Term Operational Stability
The product is designed for industrial environments requiring high reliability, stable signal processing, and long service life.
6. Brand Information
| Item | Description |
|---|---|
| Brand | Bently Nevada |
| Brand Category | Industrial machinery monitoring equipment |
| Main Product Area | Vibration monitoring, machinery protection, condition monitoring |
| Famous Product Platform | 3500 Machinery Protection System |
| Main Applications | Energy, oil and gas, manufacturing, industrial rotating equipment |
7. Product Series Information
Bently Nevada 3500 Series
The Bently Nevada 3500 Series is a modular machinery protection and monitoring platform designed for critical rotating equipment.
The series includes vibration monitors, position monitors, temperature monitoring modules, communication modules, and relay modules.
The 3500 platform is widely used for applications requiring high reliability, continuous monitoring, and advanced machinery protection.
Typical system components include:
| Component Type | Function |
|---|---|
| Monitoring Modules | Collect and analyze machinery signals |
| Proximity Monitoring Modules | Monitor shaft position and displacement |
| Vibration Monitoring Modules | Measure vibration levels |
| Relay Modules | Provide alarm and shutdown outputs |
| Communication Modules | Enable system data communication |
| Power Modules | Supply stable system power |
8. Recommended Models from the Same Series or Related Series
| Model | Product Type | Main Parameters | Application | Dimensions | Weight |
|---|---|---|---|---|---|
| 3500/42M-01-00 | Proximity Monitor | 4-channel vibration and displacement monitoring, proximity probe input | Turbine, compressor, generator monitoring | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
| 3500/45-01-00 | Position Monitor | Multi-channel position measurement, shaft position monitoring | Turbine valve and machinery position monitoring | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
| 3500/25-01-01-00 | Enhanced Keyphasor Module | Speed and phase reference monitoring | Rotating machinery speed measurement | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
| 3500/50-01-00 | Tachometer Module | Rotational speed monitoring, overspeed detection | Turbine and compressor speed protection | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
| 3500/53-01-00 | Electronic Overspeed Detection Module | High-speed protection monitoring | Turbine overspeed protection | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
9. Recommended Popular Models from the Same Brand
| Model | Product Type | Main Parameters | Application | Dimensions | Weight |
|---|---|---|---|---|---|
| 3500/15-01-00 | Power Supply Module | Rack power supply, redundant power support | 3500 system power management | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
| 3500/22M-01-01-00 | Transient Data Interface Module | High-speed transient data collection, event recording | Machinery fault analysis | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
| 3500/32-01-00 | 4-Channel Relay Module | Alarm relay output, configurable logic | Equipment shutdown and alarm systems | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
| 3500/60-01-00 | Temperature Monitor Module | Multi-channel temperature measurement | Bearing and machinery temperature monitoring | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
| 3500/92-01-01-00 | Communication Gateway Module | System communication and data transmission | Industrial monitoring networks | Approx. 241 × 24.4 × 241 mm | Approx. 0.45 kg |
10. Product Selection Summary
The Bently Nevada 3500/40-01-00 is a professional proximity monitoring module designed for critical rotating machinery protection. As part of the 3500 Series platform, it provides reliable shaft displacement monitoring, continuous condition analysis, and industrial-grade protection functions.
Compared with basic monitoring devices, this module offers higher reliability, better integration capability, and stronger suitability for large-scale industrial equipment.
For applications involving turbines, compressors, generators, and other high-value rotating machinery, the 3500/40-01-00 provides an effective solution for improving equipment availability, reducing maintenance risks, and increasing operational safety.
